Console gauge cluster
#1
Racer
Thread Starter
Console gauge cluster

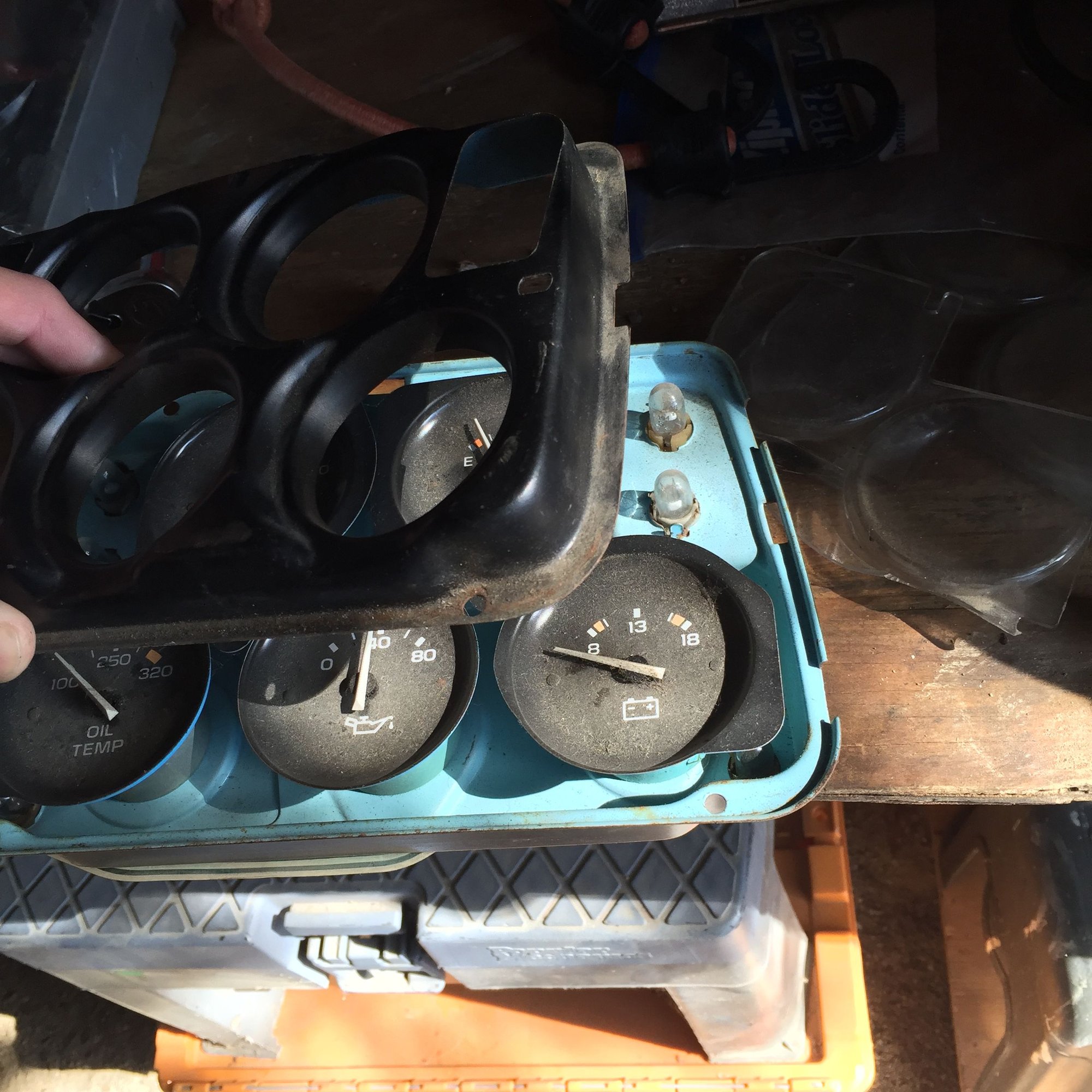

This is probably a stupid question but how does the gauge cover stay attached to this. I'm dumb founded with this corvette stuff lol
#2
Race Director
The black housing does not "attach" to the gauge cluster.
The housing lays on the cluster, just the way you have it. The gauge lens then sits on top of the housing, and all three pieces go into the gauge bezel from the back. Everything is then secured to the gauge bezel, by 4 screws that go through the holes in the cluster, and sandwich the other pieces between the cluster and bezel.
The housing lays on the cluster, just the way you have it. The gauge lens then sits on top of the housing, and all three pieces go into the gauge bezel from the back. Everything is then secured to the gauge bezel, by 4 screws that go through the holes in the cluster, and sandwich the other pieces between the cluster and bezel.
#3
Racer
Thread Starter
The black housing does not "attach" to the gauge cluster.
The housing lays on the cluster, just the way you have it. The gauge lens then sits on top of the housing, and all three pieces go into the gauge bezel from the back. Everything is then secured to the gauge bezel, by 4 screws that go through the holes in the cluster, and sandwich the other pieces between the cluster and bezel.
The housing lays on the cluster, just the way you have it. The gauge lens then sits on top of the housing, and all three pieces go into the gauge bezel from the back. Everything is then secured to the gauge bezel, by 4 screws that go through the holes in the cluster, and sandwich the other pieces between the cluster and bezel.
#4
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,853
Received 3,138 Likes
on
2,069 Posts
#5
Racer
Thread Starter
#6
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,853
Received 3,138 Likes
on
2,069 Posts
Let me check
M
I believe they are the same that hold the clock into the cluster (but I'm frequently wrong), PN 447143. It's a 1/4" hex head self (#8?) tapping screw, not real long, 3/8" or so
M
Last edited by Mooser; 11-01-2015 at 02:39 PM.
#7
Racer
Thread Starter
#8
Advanced
Voltmeter?
How/where can I find a voltmeter like the one in the pic for my 71? I'm mainly interested in replacing the battery gauge with a voltmeter that looks similar to the other gauges
#9
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,853
Received 3,138 Likes
on
2,069 Posts
Green lettering is available Corvette central #393122
White lettering Corvette central # 393136
Willcox may be selling them by now, not back when I bought mine.
You need to drill two holes in the back panel but otherwise a straight forward swap
M
The following users liked this post:
TaiChiGuy (11-02-2015)
#10
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,853
Received 3,138 Likes
on
2,069 Posts
Adding the year of your car to your profile (that cluster looks to be 78+) and your general location will also help as members may be close to you.
M
#11
Racer
Thread Starter
Any chance you can take a picture of the bolts for me? I'm having a hard time getting any info on these screws
#12
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,853
Received 3,138 Likes
on
2,069 Posts
Mine are together so it would only show the head
Here's basically what they are though (except I think they have flat ends not pointed, should be able to get something from NAPA
AMK link
https://www.amkproducts.com/bulk3.asp?part=B-11070
M
Here's basically what they are though (except I think they have flat ends not pointed, should be able to get something from NAPA
AMK link
https://www.amkproducts.com/bulk3.asp?part=B-11070
M
Last edited by Mooser; 11-04-2015 at 04:32 PM.
