under dash work = hard (for me)
1969 corvette L46 with AC
I am trying to put my interior back together.. starting under the dash .. specifically on the driver's side.
Those of you who have this experience please help.
Do I put the duct in first? I assume it goes behind the column.
Or.. do I make the connections to the lower dash bezels (lights, tach,speedo, etc) first then put the duct in?
It's sort of a mess.. I attached the harness to the upper cross member to get it out of the way .. this might be a temporary attachment .. not sure..
I'm struggling with this..
Column is dropped .. still attached to the rag joint.
Here's a photo of what I am working with .. duct and lower dash panel not shown..
I am trying to put my interior back together.. starting under the dash .. specifically on the driver's side.
Those of you who have this experience please help.
Do I put the duct in first? I assume it goes behind the column.
Or.. do I make the connections to the lower dash bezels (lights, tach,speedo, etc) first then put the duct in?
It's sort of a mess.. I attached the harness to the upper cross member to get it out of the way .. this might be a temporary attachment .. not sure..
I'm struggling with this..
Column is dropped .. still attached to the rag joint.

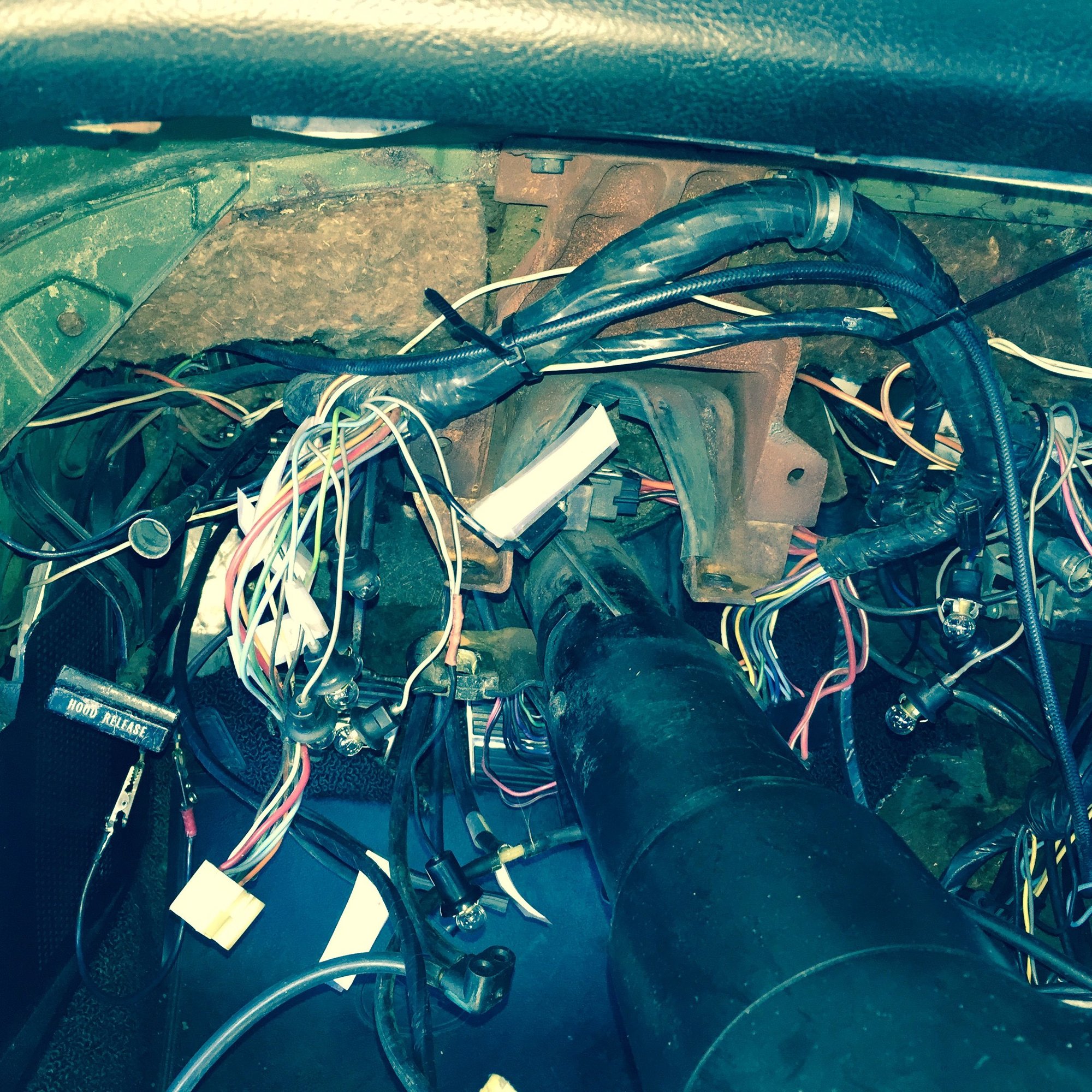

Here's a photo of what I am working with .. duct and lower dash panel not shown..
