Fuse Access Difficutly - 1980 Corvette
#1
Fuse Access Difficutly - 1980 Corvette
The fuses/fuse block is WAY under the dashboard, left side. Has anyone found a way to deal with this where in some cases the fuses are all but impossible to easily check and change when needed. AND, is there an accurate guide? The one in the manual doesn't seem to correspond. Contact me also at rem071947@aol.com (that's a "zero" before the 1). Thanks. Any VIDEOS specifically for this. My horn, courtesy lights and cigarette lighter jack all don't work, nor does the newly installed clock.
#2
Melting Slicks
Member Since: May 2015
Location: Cape Girardeau Missouri
Posts: 2,365
Received 427 Likes
on
377 Posts
Welcome to the forum!
The fuse box location in ALL 3rd generations is an utter pain to access and see. There is no way around this without incredible modifications.
All of the non-working items you mention are on one circuit labeled "CTSY" for "courtesy". Presuming the car is new to you I will say that it is VERY common for this fuse to be removed as there are other things (most notably the alarm system) powered by it as well. The fuse is removed because something in that circuit causes a power draw that drains the battery within a day or so.
The fuse box location in ALL 3rd generations is an utter pain to access and see. There is no way around this without incredible modifications.
All of the non-working items you mention are on one circuit labeled "CTSY" for "courtesy". Presuming the car is new to you I will say that it is VERY common for this fuse to be removed as there are other things (most notably the alarm system) powered by it as well. The fuse is removed because something in that circuit causes a power draw that drains the battery within a day or so.
#3
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,481
Received 3,220 Likes
on
1,732 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified

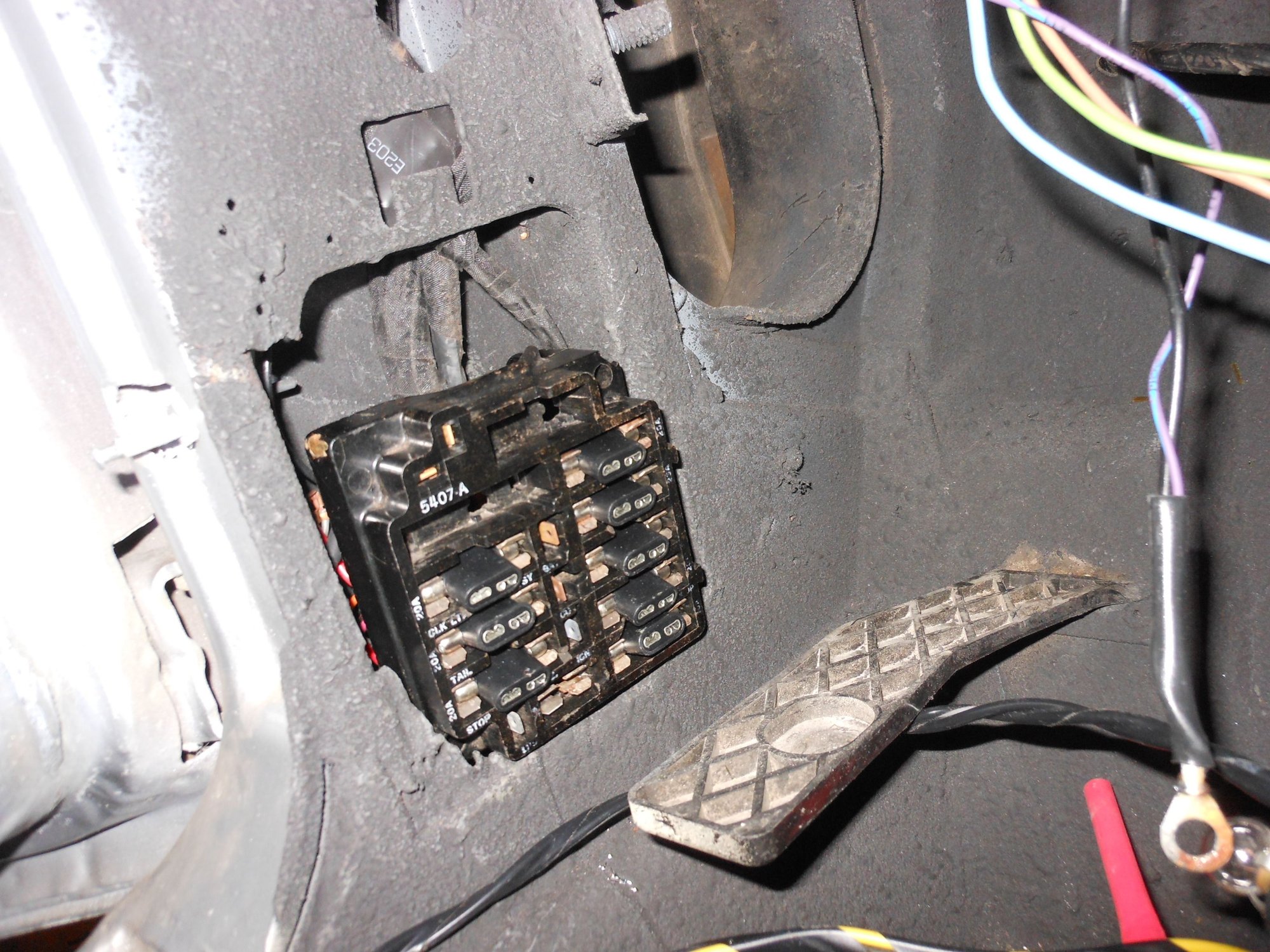

Yep- I moved my fuse box..A TON of work!!!
Hope this helps-
A LOT of work- as Mike said...
Hope this helps-
A LOT of work- as Mike said...
The following users liked this post:
mtydings (10-10-2020)
#5
Well, guys; some of this has been helpful & fortunately if there's anything good about this, the CTSY fuse is one of the lowest on the fuse block, so there is potential of reaching, checking and replacing it! 'Hope that's the answer. THANKS, all.
Any further comments are continually welcome on this subject.
Any further comments are continually welcome on this subject.
Last edited by BobM1980RedCorvette; 03-23-2017 at 12:14 PM.
#6
Melting Slicks
Member Since: May 2015
Location: Cape Girardeau Missouri
Posts: 2,365
Received 427 Likes
on
377 Posts
If after installing the fuse you hear an intermittent buzzing sound coming from the back of the car there's a good chance the line inside the power antenna has snapped and the motor is kicking on and off overload. You'll find a connector for the antenna just behind the left (driver) rear speaker.
If you immediately hear a click coming from the center console near the shifter when you install the fuse, the alarm system is trying to sound. The problem is almost the finicky arming switch installed on the driver side door key lock. Owner's often disconnect the alarm horn (on the engine firewall near the fuse box connector) but the battery still drains because the relay coil is energized. You can stop the drain by disconnecting the relay located in the center console. To access remove the carpeted panel on the driver side and disconnect the large electrical connector just behind the shifter.
If you intend on doing much work on your Corvette you will soon discover that there are things placed in far less convenient locations than the fuse box
If you immediately hear a click coming from the center console near the shifter when you install the fuse, the alarm system is trying to sound. The problem is almost the finicky arming switch installed on the driver side door key lock. Owner's often disconnect the alarm horn (on the engine firewall near the fuse box connector) but the battery still drains because the relay coil is energized. You can stop the drain by disconnecting the relay located in the center console. To access remove the carpeted panel on the driver side and disconnect the large electrical connector just behind the shifter.
If you intend on doing much work on your Corvette you will soon discover that there are things placed in far less convenient locations than the fuse box
Last edited by SwampeastMike; 03-23-2017 at 01:33 PM.
#7
Update: I did pull the CTSY fuse (someone had put a 10 amp fuse there/I replaced with a 20), and pulled a couple other to look at them (none blown). After looking up, I noted the dome light was on, checked the horn- it honked (button falls off easily), the accessory jack worked and the clock second hand was moving. I had noted 1 of the 2 horns under the front cowl there ahead of the vacuum canister for the headlights was disconnected. I plugged the connector onto the horn where was disconnected...and EVERYTHING that had been working a minute before QUIT (clock, accessory jack, horn, etc.). So I am back to "square 1" and the fuse (20 amp) is NOT blown. Any ideas folks? H E L P ! Frustrating.
#8
Melting Slicks
You are about to enter a nighmare. I went through stuff when I was stripping down my 78 that you wouldn't believe. Starting with a lot of relays that were piles of rust, to wires that had been cut and spliced with no tape on them to prevent shorts and regular 40 yr old wires that had melted, cracked and had just plain old bare spots on them. I am just reqiring the whole car since I plan on adding some mods ( elec fans, elec headlight motors etc) that this old system was not designed for when it was new, let alone now that it's old. Fires are not vette's friend. Good luck.
#9
Kanvasman and others: well, I thought it odd that somehow by messing with a fuse or two, things were working altogether (CTSY circuit) then NOT. And wondered what took place that they were working for a while and quit. I had the valve cover gaskets repaired the other day locally by a shop that with good recommendations "know their stuff" when it comes to older (vintage) cars, and they said the horn, etc., was working the two times they tested it...but when I did so on the way home from the shop, it was NOT working. Then as I said, earlier today it (the courtesy items) was working ... for a time. Still seeking some ideas on what would have made this success so short lived!
#10
Melting Slicks
Member Since: May 2015
Location: Cape Girardeau Missouri
Posts: 2,365
Received 427 Likes
on
377 Posts
Update: I did pull the CTSY fuse (someone had put a 10 amp fuse there/I replaced with a 20), and pulled a couple other to look at them (none blown). After looking up, I noted the dome light was on, checked the horn- it honked (button falls off easily), the accessory jack worked and the clock second hand was moving. I had noted 1 of the 2 horns under the front cowl there ahead of the vacuum canister for the headlights was disconnected. I plugged the connector onto the horn where was disconnected...and EVERYTHING that had been working a minute before QUIT (clock, accessory jack, horn, etc.). So I am back to "square 1" and the fuse (20 amp) is NOT blown. Any ideas folks? H E L P ! Frustrating.
#11
Melting Slicks
Member Since: May 2015
Location: Cape Girardeau Missouri
Posts: 2,365
Received 427 Likes
on
377 Posts
Bob: As a new member here you will find this forum EXTREMELY useful.
When pleading for help it is best if you provide some background information and photos.
Please let us know if the car is new to you!
When pleading for help it is best if you provide some background information and photos.
Please let us know if the car is new to you!
The following users liked this post:
BobM1980RedCorvette (03-23-2017)
#12
Le Mans Master
if you have enjoyed working on the fuse box ,,,,,,,,then you will love changing the brake power booster.for that you take out the seat.i suggest a good led light for working under dash.lots of light and they don't get hot.
The following users liked this post:
BobM1980RedCorvette (03-23-2017)
#13
SwampEastMike and all: Yes; the car (87k miles) is new to ME. And the horn worked as did other accessories, when I picked it up from the dealer (specialty car/sports cars mostly there).
And as I said prior, where I had it worked on at an independent garage (valve cover gaskets), they said the horn/accessories worked when it was there, and again today when I replaced and/or simply checked some fuses.
Pictures? I wouldn't know what to include that would help illustrate anything. Other than a picture of my frustrated expressions.
And as I said prior, where I had it worked on at an independent garage (valve cover gaskets), they said the horn/accessories worked when it was there, and again today when I replaced and/or simply checked some fuses.
Pictures? I wouldn't know what to include that would help illustrate anything. Other than a picture of my frustrated expressions.
Last edited by BobM1980RedCorvette; 03-23-2017 at 09:02 PM. Reason: to include responding party's name
#14
New to Me / yes
Yes; we got it in mid January, and it has 87k mile on it. I tried responding with this information before but don't see it in "the thread".
