How does the heater work?
#1
Racer
Thread Starter
Member Since: Apr 2007
Location: Porters Lake Nova Scotia
Posts: 357
Likes: 0
Received 0 Likes
on
0 Posts
How does the heater work?
Hello,
I have finally gotten down to fixing the heat in my 1970, non AC. The heater core was replaced, and the blower runs fine, and I know I have some vacuum hose issues in the interior heater system. I would just like to know what the actuators on the heater box do and why? It will greatly help me diagnose if things work/dont work. Thanks!
I have finally gotten down to fixing the heat in my 1970, non AC. The heater core was replaced, and the blower runs fine, and I know I have some vacuum hose issues in the interior heater system. I would just like to know what the actuators on the heater box do and why? It will greatly help me diagnose if things work/dont work. Thanks!
#2
Safety Car
Your hot to cold wheel operates a flapper from fresh air to heater core air only. That flapper must seal nice or you'll always have hot or cold air getting into the vents.
The selection dial has vac lines going to other diverters sending air to the defroster, main vents and then floor vents for heat. A vac leak in the plastic ball that stores vacuum will cause the defroster to come on when you are giving the car gas going up hill.
The vents should work a few times with the motor off. If you have nothing, there's a leak.
The selection dial has vac lines going to other diverters sending air to the defroster, main vents and then floor vents for heat. A vac leak in the plastic ball that stores vacuum will cause the defroster to come on when you are giving the car gas going up hill.
The vents should work a few times with the motor off. If you have nothing, there's a leak.
#3
Team Owner
Member Since: Sep 2006
Location: Westminster Maryland
Posts: 30,173
Likes: 0
Received 2,878 Likes
on
2,515 Posts
Hi ace,
I'll only add that the change from heat to cold is accomplished by a Bowden cable (the black wheel moves a cable that move the door) not with vacuum direction and actuators as the rest of the functions are.
Regards,
Alan
I'll only add that the change from heat to cold is accomplished by a Bowden cable (the black wheel moves a cable that move the door) not with vacuum direction and actuators as the rest of the functions are.
Regards,
Alan
#4
Drifting
Hi Ace,
Here are a couple of diagrams taken from the 1969 Chassis Service Manual.

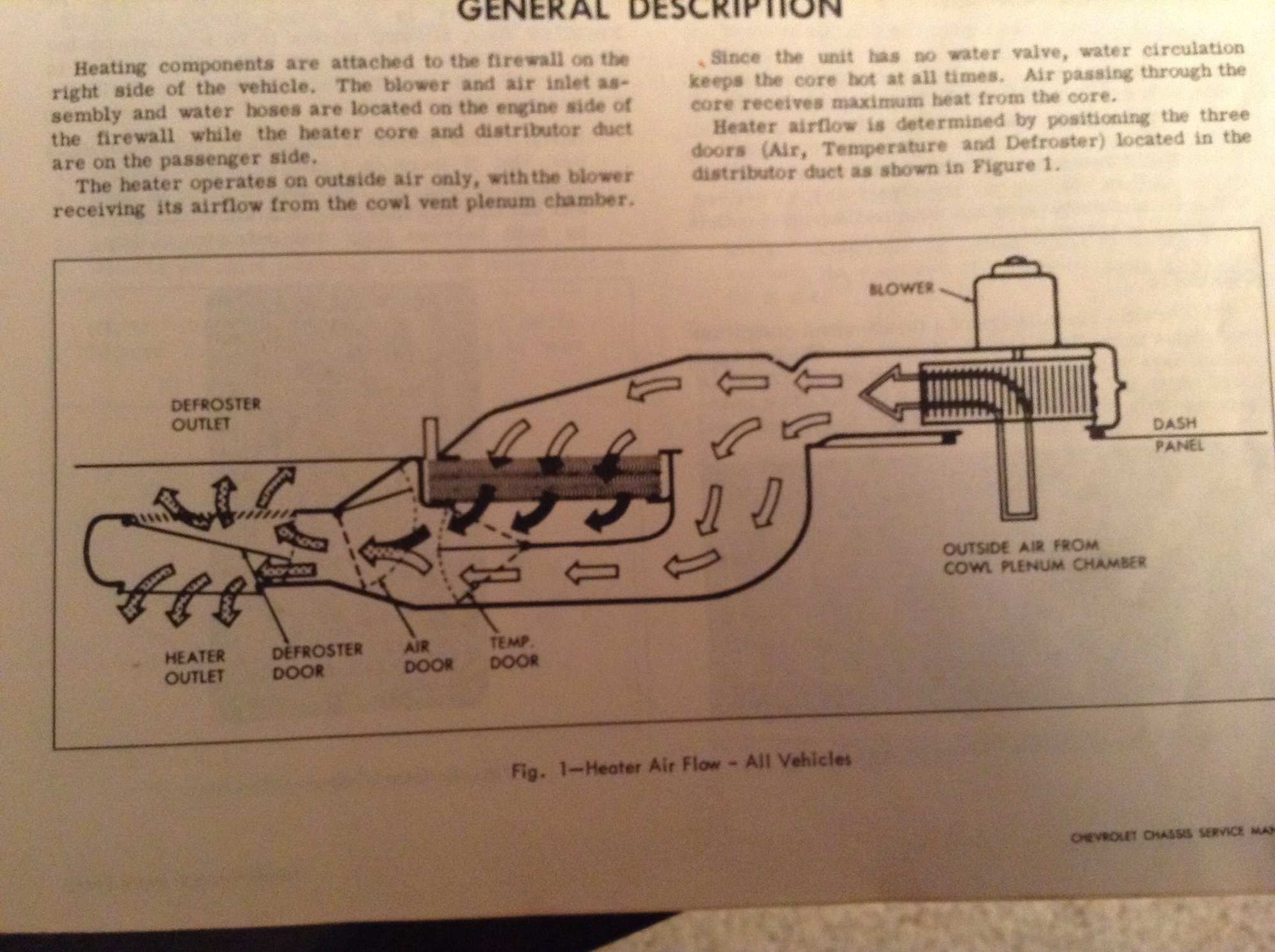

This is a generic view of the airflow and the doors that control the flow.
This is the Corvette vacuum harness - controlled by the left thumb wheel.
These should get you going.
Pete
Here are a couple of diagrams taken from the 1969 Chassis Service Manual.
This is a generic view of the airflow and the doors that control the flow.
This is the Corvette vacuum harness - controlled by the left thumb wheel.
These should get you going.
Pete
#5
Team Owner
This is exactly why DIY owners need to purchase a copy of the Chevrolet Chassis Service Manual and the Assembly Instruction Manual (AIM) for their model year. Then, these answers will be at your finger tips, instead of making a post and waiting for a reply on this Forum.
#7
Drifting
The Chevrolet Chassis Service Manual has been a great tool for me. Between it, the AIM, and a Chilton book I usually wade into a job with a very good idea of what I'm up against. PB Blaster, Liquid Wrench, and a big hammer are also very good tools.
