calling all vacuum gurus
I have a vacuum leak, 71 stock 350 no air. there are 2 hoses with a red stripe on the drivers side fender they are cut by the vac can and by the head lights, wait I have one by the wiper canister 3 hoses out of the firewall one goes to a valve in the passenger well one goes to a steel tube that runs across and the third is cut,now I have one small hose that comes out of the firewall in the middle and is hanging on the side of the block. thanks for your help.
10-29-2014, 10:16 PM
#2
Burning Brakes
I have a vacuum leak, 71 stock 350 no air. there are 2 hoses with a red stripe on the drivers side fender they are cut by the vac can and by the head lights, wait I have one by the wiper canister 3 hoses out of the firewall one goes to a valve in the passenger well one goes to a steel tube that runs across and the third is cut,now I have one small hose that comes out of the firewall in the middle and is hanging on the side of the block. thanks for your help.
http://willcoxcorvette.com/instructi...ted_080509.pdf
10-30-2014, 09:23 AM
#4
Team Owner
Member Since: Sep 2006
Location: Westminster Maryland
Posts: 30,173
Likes: 0
Received 2,878 Likes
on
2,515 Posts
Hi b,

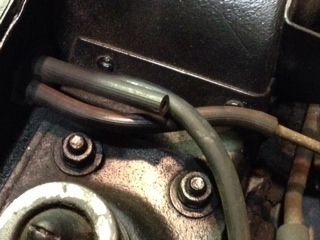

First picture:
3 Hoses from wiper safety valve. It's correct.
White stripe to wiper door relay.
Red stripe to metal tube running along firewall.
Black hose, cut. Vent for safety valve.

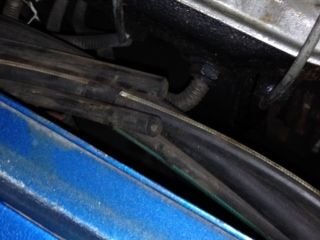

Next picture:
This is a small black neoprene hose that supplies the vacuum for for heater/defroster controller in the console. This causing your leak.
It connects to a 'T' in a the large yellow striped hose right near the end of the metal tubes.
Third Picture:
The 2 red hoses are the remains of the hose bundle that was used when cars had the headlight washer system in 1970.
Regards,
Alan
First picture:
3 Hoses from wiper safety valve. It's correct.
White stripe to wiper door relay.
Red stripe to metal tube running along firewall.
Black hose, cut. Vent for safety valve.
Next picture:
This is a small black neoprene hose that supplies the vacuum for for heater/defroster controller in the console. This causing your leak.
It connects to a 'T' in a the large yellow striped hose right near the end of the metal tubes.
Third Picture:
The 2 red hoses are the remains of the hose bundle that was used when cars had the headlight washer system in 1970.
Regards,
Alan
Last edited by Alan 71; 10-30-2014 at 09:27 AM.
10-30-2014, 09:30 AM
#5
Burning Brakes
Thread Starter
Alan 71 thanks for your help and vast knowledge the hose with the t in it where is that located in your picture i can not figure it out, and thanks again
10-30-2014, 11:18 AM
#6
Team Owner
Member Since: Sep 2006
Location: Westminster Maryland
Posts: 30,173
Likes: 0
Received 2,878 Likes
on
2,515 Posts
Hi b,
The T is located just forward of and below the rubber stop on the right-side hood latch on the cowl.
Regards,
Alan
The T is located just forward of and below the rubber stop on the right-side hood latch on the cowl.
Regards,
Alan
Last edited by Alan 71; 10-30-2014 at 11:44 AM.
10-30-2014, 11:45 AM
#7
Team Owner
Member Since: Sep 2006
Location: Westminster Maryland
Posts: 30,173
Likes: 0
Received 2,878 Likes
on
2,515 Posts
Hi bb,
I sent you a p.m. did you see it?
Regards,
Alan
I sent you a p.m. did you see it?
Regards,
Alan
