Commenced installing LED strip lights-speedo&tach
#1
Le Mans Master
Thread Starter
Commenced installing LED strip lights-speedo&tach
I received my inexpensive strip lights and disassembled my dash to commence the conversion and get rid of those incandescent lamps.
(these guys:
https://www.walmart.com/ip/Kohree-RG...t-fo/136646087

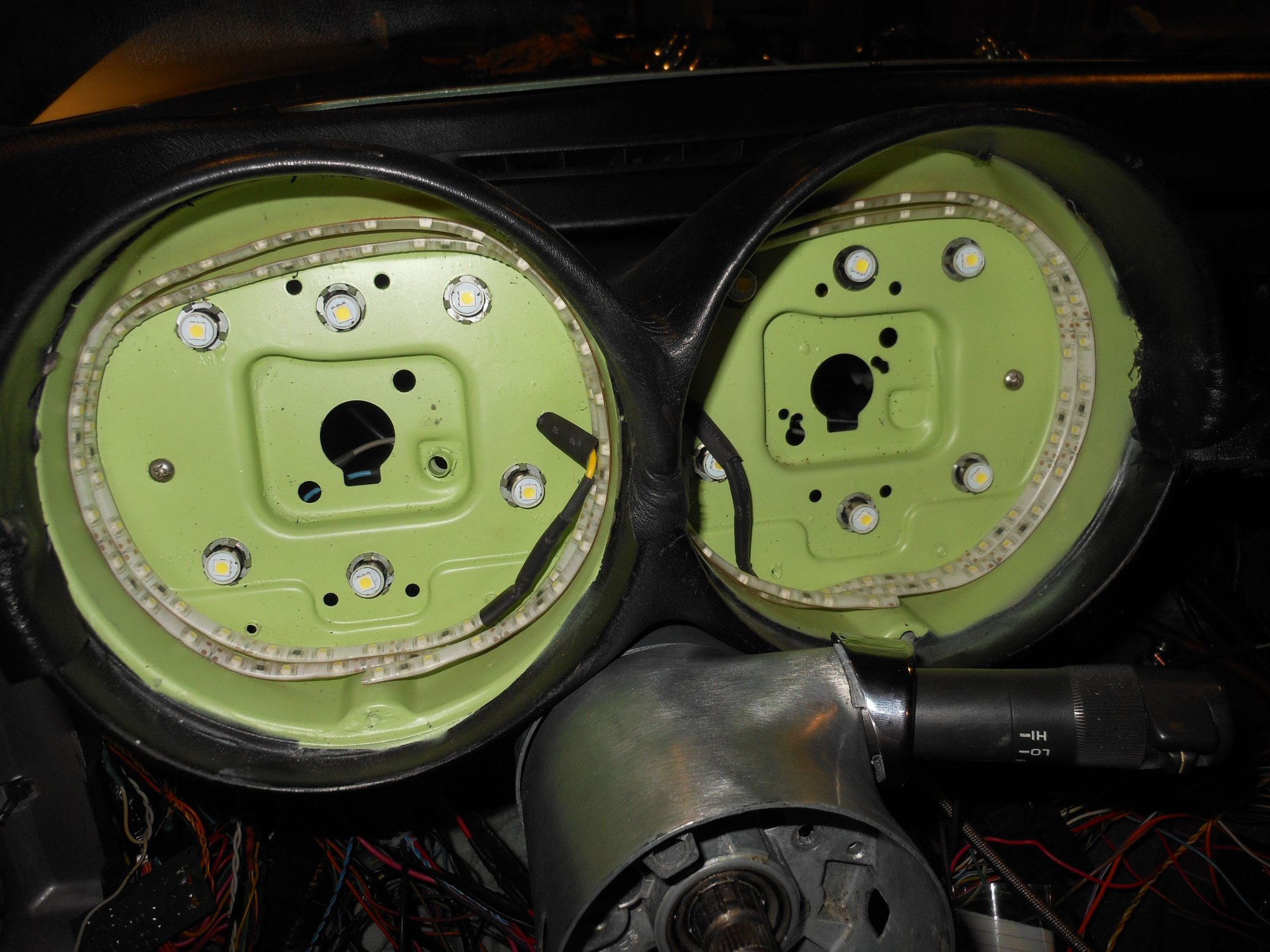

Here's a couple of pics. Still on the workbench. Need to go get some 5/8" grommets & plugs, a new capacitor (broke the once that's attached to the tach body), and a 12 vdc to USB socket or connector.
Anybody know what size capacitor I need?
Not permanently attached yet. Just scotch-taped to inside of housing because I wanted to check and see where they worked best. Housing has been cleaned with alcohol so the strip should attach well once I'm ready.
Here's the pics.
(these guys:
https://www.walmart.com/ip/Kohree-RG...t-fo/136646087
Here's a couple of pics. Still on the workbench. Need to go get some 5/8" grommets & plugs, a new capacitor (broke the once that's attached to the tach body), and a 12 vdc to USB socket or connector.
Anybody know what size capacitor I need?
Not permanently attached yet. Just scotch-taped to inside of housing because I wanted to check and see where they worked best. Housing has been cleaned with alcohol so the strip should attach well once I'm ready.
Here's the pics.
Last edited by carriljc; 03-03-2017 at 10:06 PM.
The following users liked this post:
Fishinnut (12-28-2023)
The following users liked this post:
Fishinnut (12-28-2023)
#3
Le Mans Master
Thread Starter
going to do a 12-hour night test....
Going to leave them on all night. Just to see how they do. They've been on an hour or so and nothing has gotten hot so far...so that's good.
I'll check the strips again in the morning.... I might just RTV (or hot glue?) them in place.... I'd hate to have tear apart the dash if that self-sticking glue doesn't last.
I'm going to have to find that capacitor to replace the one that sits on the back of the tach tomorrow.
I'll check the strips again in the morning.... I might just RTV (or hot glue?) them in place.... I'd hate to have tear apart the dash if that self-sticking glue doesn't last.
I'm going to have to find that capacitor to replace the one that sits on the back of the tach tomorrow.
#4
Le Mans Master
How long are the strips? I've got my dash out right now replacing wire harness so the timing would be perfect..
#5
Le Mans Master
Thread Starter
approximately 20 inches per strip
The strip of lights is 19.7 inches. The oddball part is that one of the strips comes with like 6" inches of extension, and the other with like 6 feet (yes FEET) of extension. From the controller there are then about 20 inches to the USB connector.
Below is the image from the website... I did NOT notice this image until after I received them.
20" of LED strip is just about perfect for our vehicles speedo & tach.
I'm considering painting my housings white to get better light reflection ....hmmmm.
I'm planning on mounting the little box immediately to the right of the tach. That way the USB connection will be accessible from behind the center console.... super easy to disconnect.
Below is the image from the website... I did NOT notice this image until after I received them.
20" of LED strip is just about perfect for our vehicles speedo & tach.
I'm considering painting my housings white to get better light reflection ....hmmmm.
I'm planning on mounting the little box immediately to the right of the tach. That way the USB connection will be accessible from behind the center console.... super easy to disconnect.
Last edited by carriljc; 02-02-2017 at 12:34 AM. Reason: punctuation, clarity, add USB connector comment.
#6
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,481
Received 3,220 Likes
on
1,732 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
I did the same-
A trick to install- use silicone but a couple of dabs of hot glue will keep the lights in place while the silicone sets up.
I just bought a roll of lights-less than $20. Cut and soldered the ends.
Used the LED strip in a lot of locations-
A trick to install- use silicone but a couple of dabs of hot glue will keep the lights in place while the silicone sets up.
I just bought a roll of lights-less than $20. Cut and soldered the ends.
Used the LED strip in a lot of locations-
#7
Le Mans Master
Thread Starter
How did you select the housing color?
Richard454 - I was thinking about painting the inside of the housing WHITE.... since I can select multiple colors (not that I will) with the controller.
Just wondering how you decided on the color for your housing?
And thanks for the pointers on hot glue & silicone.
Just wondering how you decided on the color for your housing?
And thanks for the pointers on hot glue & silicone.
Last edited by carriljc; 02-02-2017 at 12:20 PM.
#8
Drifting
not on vettes, but on chevy trucks of the 70s, I have used the rattle can chrome on the inside of the cluster to help brighten it up.
seems to have worked very well
seems to have worked very well
The following 3 users liked this post by Tiger Joe:
#9
Racer
@Carriljc, I'm going to paint my tach & speedo housing rattle-can white.
On my '74, I already did the wiper switch, hvac, and shift indicator housing in white. On the edges of the plastic lenses there is blue paint from the factory. this blue paint, mixed with yellow glow of incandescent bulbs, makes the green looking light. In my case, i was replacing the all the gauges with Autometer and putting led lights in. I wanted the console, gauge cluster, wiper lights AND speed & tach housing to match in color, so all reflective surfaces are going to be white.
I don't have pics yet of speedo & tach housing, but will post when i have them.
On my '74, I already did the wiper switch, hvac, and shift indicator housing in white. On the edges of the plastic lenses there is blue paint from the factory. this blue paint, mixed with yellow glow of incandescent bulbs, makes the green looking light. In my case, i was replacing the all the gauges with Autometer and putting led lights in. I wanted the console, gauge cluster, wiper lights AND speed & tach housing to match in color, so all reflective surfaces are going to be white.
I don't have pics yet of speedo & tach housing, but will post when i have them.
The following users liked this post:
carriljc (02-21-2018)
#10
Le Mans Master
Thread Starter
Well, I had white paint so I painted housing white....
Well, this is quite pleasing. I let the paint cure for a few hours and then temporarily installed the LED light strip just to see how it looks. I changed to several colors and I took picture of the White LED and the Green LED.
(NOTE: The housings were a different colors because I have an electric tach from a newer model.)
Take a peek:
I then took everything apart again to leave the housings in front of the heater so that the paint gets nice and dry. I'll start putting things together tomorrow. I'm quite sure that I am now going to do the Center console also. Haven't seen any instructions to see how a light strip would work on that though.
Cleaned up the wiring behind the dash too..... I'm am going to use 2 lamp leads to feed these strips... I gather 1 would probably be enough, but what the heck.
(NOTE: The housings were a different colors because I have an electric tach from a newer model.)
Take a peek:
I then took everything apart again to leave the housings in front of the heater so that the paint gets nice and dry. I'll start putting things together tomorrow. I'm quite sure that I am now going to do the Center console also. Haven't seen any instructions to see how a light strip would work on that though.
Cleaned up the wiring behind the dash too..... I'm am going to use 2 lamp leads to feed these strips... I gather 1 would probably be enough, but what the heck.
Last edited by carriljc; 02-02-2017 at 06:52 PM. Reason: add note
#11
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,481
Received 3,220 Likes
on
1,732 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
Another trick- put the metal part in the toaster oven for 30 minutes at 180-200º and the paint will be cured.
Richard
#12
Le Mans Master
Thread Starter
White inside housing and LED strips glued in....
Here are a couple of pictures.
The 2-sided taped seemed to stick fairly well, so I did some spot-gluing with a hot-glue gun.
I think I 'm going to like this ok.
The 2-sided taped seemed to stick fairly well, so I did some spot-gluing with a hot-glue gun.
I think I 'm going to like this ok.
#13
Le Mans Master
Thread Starter
Got my driver side dash & center gauge panel back in...
Well, those incandescent lamps for the center gauges look quite pathetic. Guess I'll blow another 10 bucks and get more strip lights to see what I can do with the center gauge cluster.
Here it is being powered by the vehicle:
Here it is being powered by the vehicle:
#14
Team Owner
I have a "theory" and would like some input from folks on the Forum to prove (or disprove) it.
I think that older owners tend to like the gauge lighting more subtle...not glaring in your face. But, it seems that younger owners tend to like very bright gauge lighting.
Yes or No????
I think that older owners tend to like the gauge lighting more subtle...not glaring in your face. But, it seems that younger owners tend to like very bright gauge lighting.
Yes or No????
The following 2 users liked this post by 7T1vette:
71/502 (01-11-2023),
Jarhead 74 Vette (03-20-2024)
#17
Team Owner
Many moons ago, I put white overlay plastic on my speedo/tach, not long after fabbing up my custom white face gauges for the center/console....and some months later got GREEN LED plug in bulbs for the entire setup, of course they don't dim but in fact, I don't want them to, and so ALL the indicators are green now....signals also.....
and with the white face gauges....look OUT!!!!!!
age 72 now, bought my '72 in '95........
and with the white face gauges....look OUT!!!!!!
age 72 now, bought my '72 in '95........
#18
Racer
I'm going for brighter, cool white to replace the stock yellow. 40's, knocking on the door of the great 50's. 'Not sure if that makes me older or younger in this context. But if it supports you hypothesis, I'll take younger! (I don't think i used an emoticon yet, so here's my chance.... )
#19
Le Mans Master
Thread Starter
Well, I'm old...
I'm old, but I like them bright. BUT - these things are dimmable anyway. AND you have multiple color choices too.
I was just going to live with that dim incandescent lighting, but those annoying lamps are a pain to keep in and I got tired of living with this or that lamp not working. Then, I saw these strip lights for like 10 bucks and decided, ah, what the heck? Not only that, I can always put the lousy lamps back in.
My next project will be the center gauge cluster--- see how that goes?
Anyway, here they are in RED while I was testing them on the counter:
I was just going to live with that dim incandescent lighting, but those annoying lamps are a pain to keep in and I got tired of living with this or that lamp not working. Then, I saw these strip lights for like 10 bucks and decided, ah, what the heck? Not only that, I can always put the lousy lamps back in.
My next project will be the center gauge cluster--- see how that goes?
Anyway, here they are in RED while I was testing them on the counter:
I have a "theory" and would like some input from folks on the Forum to prove (or disprove) it.
I think that older owners tend to like the gauge lighting
more subtle...not glaring in your face. But, it seems that younger owners tend to like very bright gauge lighting.
Yes or No????
I think that older owners tend to like the gauge lighting
more subtle...not glaring in your face. But, it seems that younger owners tend to like very bright gauge lighting.
Yes or No????
Last edited by carriljc; 02-26-2017 at 09:08 AM.
#20
Racer
Carriljc: When I did the center console, I replaced all the gauges because I wanted to update them (based on what I saw in other threads here on the topic of after-market gauges. In doing so, I used the sockets that came with the Autometer gauges and upgraded the bulbs from superbrightleds. (I tested with the leds from the local auto parts store).
Here's a few pics contrasting the incandescent and LED bulbs.

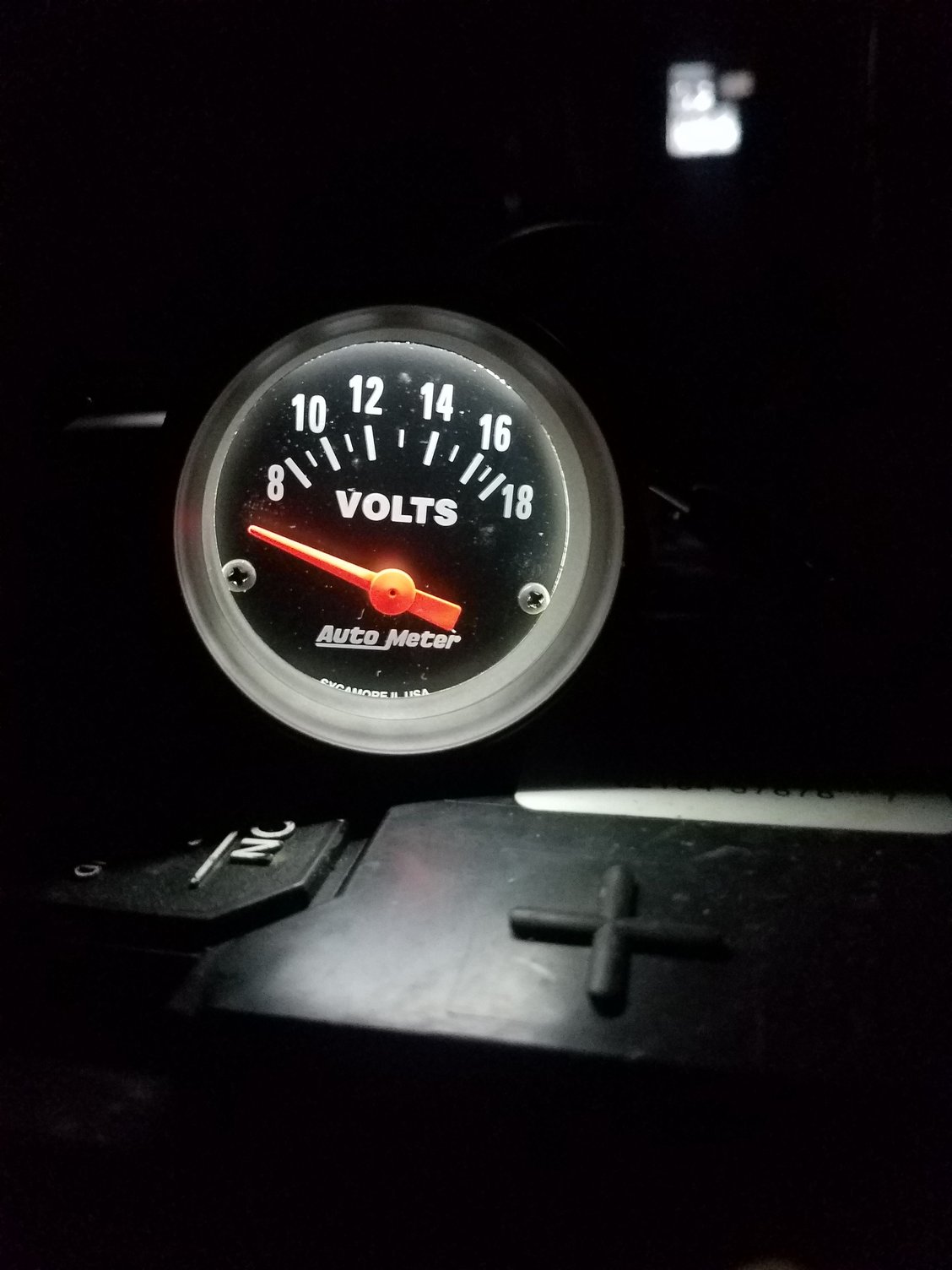

Autometer gauge, LED bulb.
Autometer gauge, incandescent bulb.
C3 Center console, Autometer gauges, LED lights.
C3 corvette 1974 console lenses with stock blue paint on edges.
"while I was at it", I painted cleaned the hvac, wiper, shift indicator lenses. I took off the stock blue paint and replaced it with Testors white model paint. This gets rid of the blue 'glow' when using the cool white bulbs and also helps reflect the light through the 40-something lenses. This way, the light will match throughout the dash. (no after pics...its still a work-in-progress.)
For the wiper lense, I squeegeed the white paint into the embossed letters.
Here's a few pics contrasting the incandescent and LED bulbs.
Autometer gauge, LED bulb.
Autometer gauge, incandescent bulb.
C3 Center console, Autometer gauges, LED lights.
C3 corvette 1974 console lenses with stock blue paint on edges.
"while I was at it", I painted cleaned the hvac, wiper, shift indicator lenses. I took off the stock blue paint and replaced it with Testors white model paint. This gets rid of the blue 'glow' when using the cool white bulbs and also helps reflect the light through the 40-something lenses. This way, the light will match throughout the dash. (no after pics...its still a work-in-progress.)
For the wiper lense, I squeegeed the white paint into the embossed letters.
The following users liked this post:
carriljc (02-26-2017)
