C4 Rear Diffuser
#1
Max G’s
Thread Starter
C4 Rear Diffuser

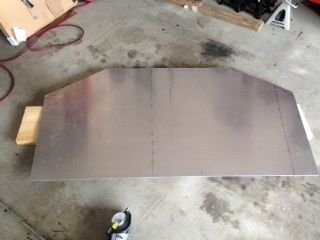

I have been working on a rear diffuser for the 91. Made a template, took a bunch of measurements, and came up with a design. So far, I have the main panel installed, not fastened yet, and trimmed for fitment. I will get back on it next weekend or the next and work on the vertical stabilizers.
Last edited by l98tpi; 11-29-2015 at 08:08 PM.
#3
Max G’s
Thread Starter
My exhaust ends just before the rear differential. My theory is that the exhaust gases will help speed up the air flow at the diffuSer and aid in decreasing the air pressure underneath the rear of the car.
#7
Le Mans Master
Looks good! Have you figured out ground clearance when the rear is squatting under acceleration?
#8
Max G’s
Thread Starter
#11
Max G’s
Thread Starter
Not sure on the skirts yet. I am going to see how the car reacts with the diffuser. If I was trying to keep as much air from under the car as possible like the NASCAR Cars, then I would go ahead and add skirts. I do already have an idea for rubber skirts, but going to hold off for now.
#12
Le Mans Master
Skirts will help the diffuser work better. If I was going to do it, I would keep it simple and get some material like the front air dam 2-3", and attach a long piece on each side to the seam that hangs down under the body side. Being black, and tucked under, it would not be very noticeable.
#13
Max G’s
Thread Starter
Skirts will help the diffuser work better. If I was going to do it, I would keep it simple and get some material like the front air dam 2-3", and attach a long piece on each side to the seam that hangs down under the body side. Being black, and tucked under, it would not be very noticeable.
#14
Melting Slicks
Member Since: Sep 2008
Location: Cherokee National Forest TN
Posts: 2,376
Likes: 0
Received 102 Likes
on
92 Posts
This plastic works well for side boards etc. Its light weight & will clearance itself.
https://www.lefthanderchassis.com/v2...dgroup=2512038
Avatar pic shows it, side boards & front fender extensions.
https://www.lefthanderchassis.com/v2...dgroup=2512038
Avatar pic shows it, side boards & front fender extensions.
Last edited by Churchkey; 12-24-2015 at 05:40 AM.
The following users liked this post:
l98tpi (12-24-2015)
#16
Max G’s
Thread Starter
#17
For the splitter, I have the M1 Prowler front spoiler if you are familiar with those. What I did there was, I replaced the factory center bracket for the spoiler with a pipe hanger that is strong enough to hold what bend I put in it. With the bend I control the angle of the spoiler and can adjust it to between 1" and 2" off the ground. It has and is working good for now.
Not sure on the skirts yet. I am going to see how the car reacts with the diffuser. If I was trying to keep as much air from under the car as possible like the NASCAR Cars, then I would go ahead and add skirts. I do already have an idea for rubber skirts, but going to hold off for now.
Not sure on the skirts yet. I am going to see how the car reacts with the diffuser. If I was trying to keep as much air from under the car as possible like the NASCAR Cars, then I would go ahead and add skirts. I do already have an idea for rubber skirts, but going to hold off for now.
#18
Max G’s
Thread Starter
No, a splitter should not cause the car to run hotter unless you install something that restricts the amount of air going into your radiator opening under the car. Mine increases the amount of air going in and with the addition of the hood vent the extra air and heat get pulled out from underneath the hood.
