Rear Diffuser
Burning Brakes
Joined: Oct 2001
Posts: 983
Likes: 23
From: Northeast Ohio
One step forward, two steps back. My previous midmounted magnaflow exhaust setup droned too much for as much as I drive the car. Sounded great but was too much to enjoy the car. I went back to the original catback that came with the car which has 6" dia mufflers under the trunk and hang below the bumper cover...
So now I'm in search of a stock Ti catback which seems to be able to tuck up nice and high while providing a drone free sound.
This video shows the fitment of the stock catback very well and should work well for what I want to do with the diffuser:
https://www.youtube.com/watch?v=VDTnM5R751A
So now I'm in search of a stock Ti catback which seems to be able to tuck up nice and high while providing a drone free sound.
This video shows the fitment of the stock catback very well and should work well for what I want to do with the diffuser:
https://www.youtube.com/watch?v=VDTnM5R751A
Drifting
Joined: Jun 2010
Posts: 1,944
Likes: 48
From: CT

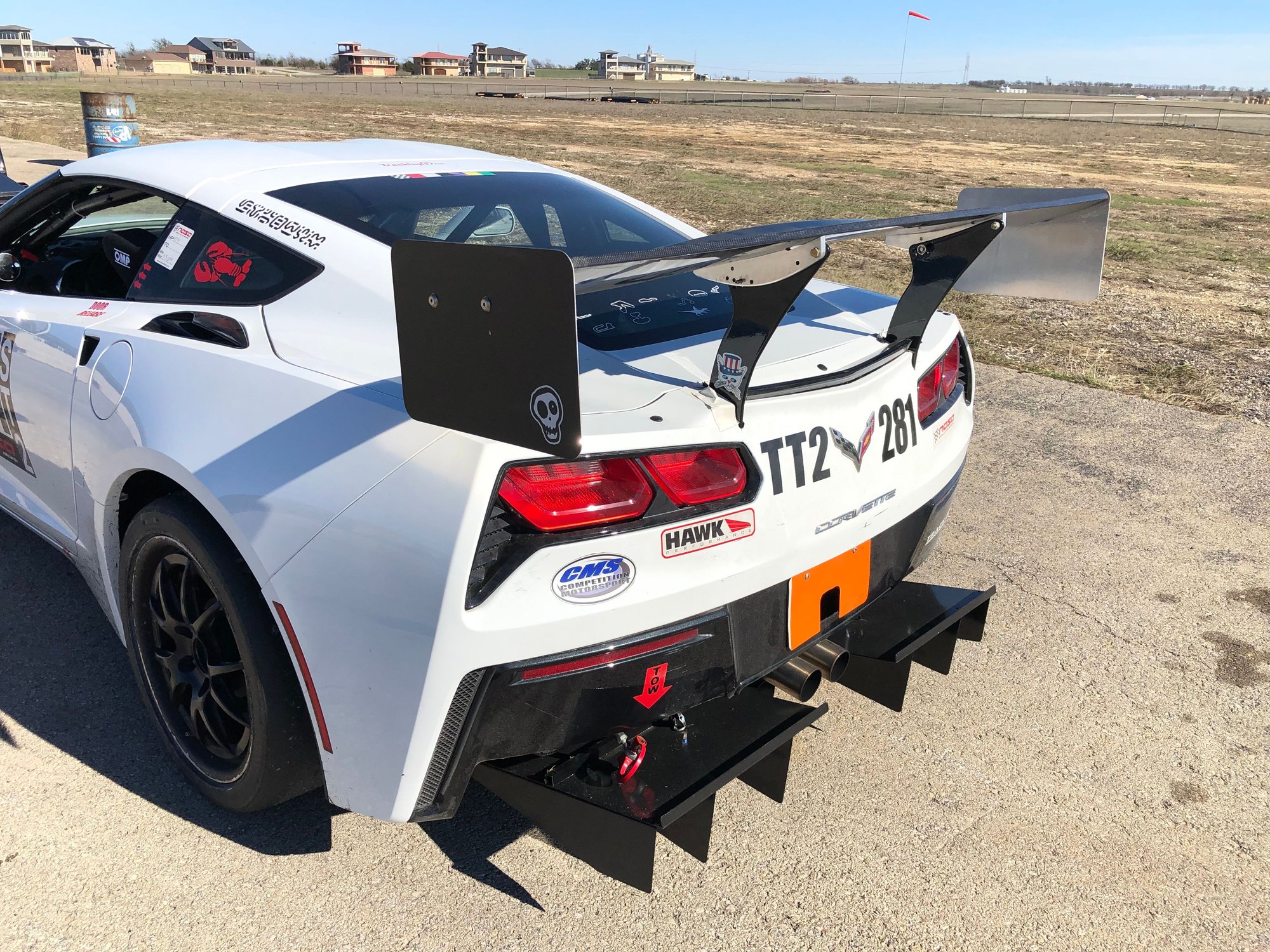

I am still working with someone to make an axle back system that's quiet enough and I plan on using some "kool mat" to protect the important bits in the rear but here's the carbon fiber diffuser I made. It has a radius on the leading edge so it can be adjusted up and down without creating a lip to trip up the air in the throat
Last edited by 383; Aug 3, 2019 at 09:31 PM. Reason: added images
Drifting
Joined: Jun 2016
Posts: 1,325
Likes: 325
2020 Corvette of the Year Finalist (track prepared)
C7 of Year Winner (track prepared) 2019
I am still working with someone to make an axle back system that's quiet enough and I plan on using some "kool mat" to protect the important bits in the rear but here's the carbon fiber diffuser I made. It has a radius on the leading edge so it can be adjusted up and down without creating a lip to trip up the air in the throat
Very much considering that. Not a lot of c7s with full aero
Racer
Joined: Oct 2012
Posts: 314
Likes: 61
Drifting
Joined: Jun 2010
Posts: 1,944
Likes: 48
From: CT
I did. I ran an aluminum version with fewer strikes and had great flow attachment and was able to run less rear wing but the aluminum reflected so much heat my transmission would "burp" fluid on really hot days and that made me nervous, so I pulled it. When I design an over axle kit to go with this diffuser I'll have some strategically-placed coolmatt.
