Question for engine builders
Thread Starter
Racer
Joined: Sep 2014
Posts: 425
Likes: 32
From: richmond virginia
Question for engine builders

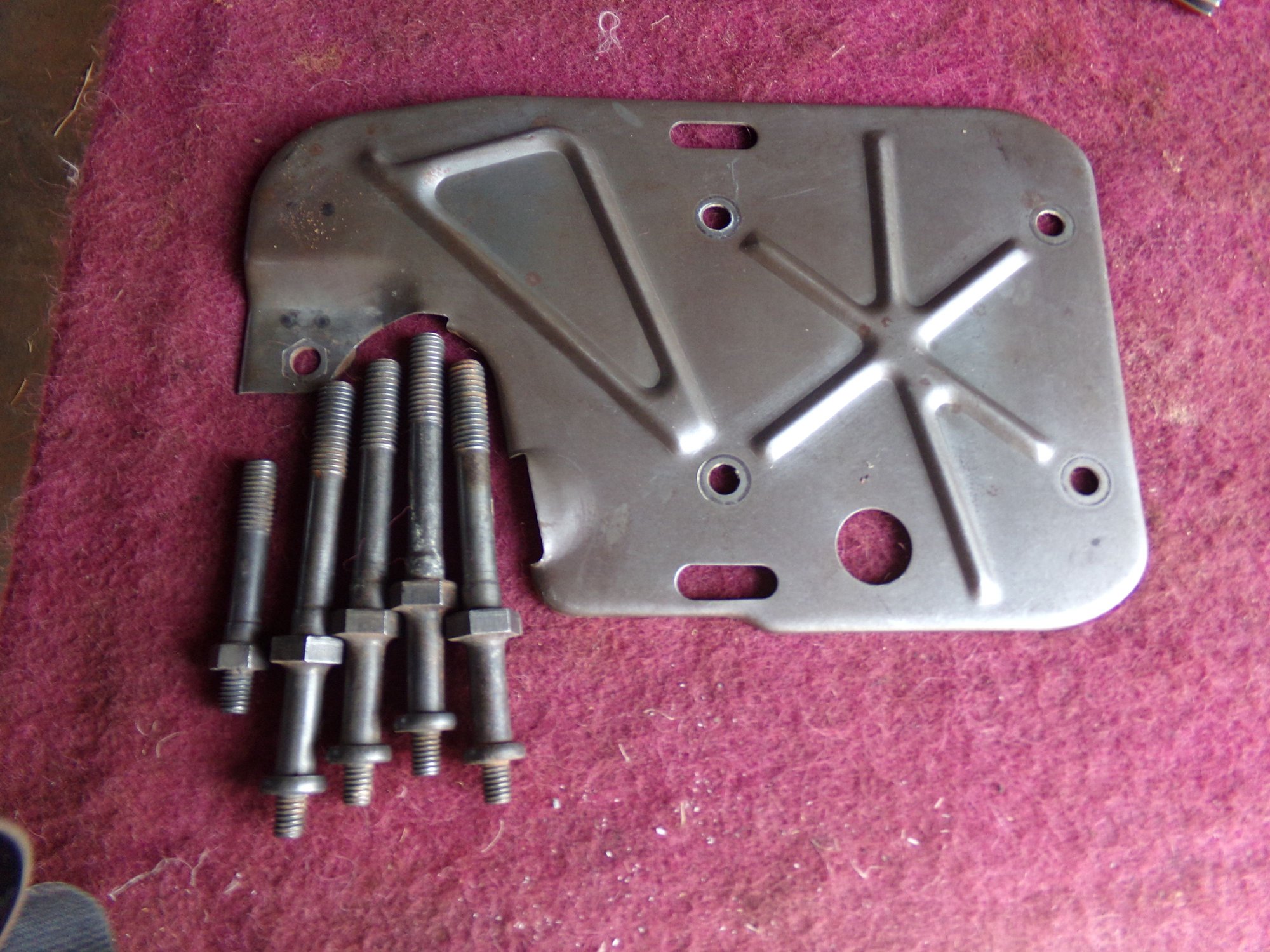

Is there any power advantage to installing a windage tray in the bottom end of my 396 engine? It is apart and I'm working to make the HP as much as possible during the rebuild.
Team Owner
Joined: Feb 2003
Posts: 54,053
Likes: 9,391
From: Sitting in his Nowhere land Hanover Pa
2024 C2 of the Year Finalist - Unmodified
2015 C2 of Year Finalist
They were used on solid lifter motors to keep more oil to the bottom end. Your 396 should have one. Don't know your gain HP numbers but I highly doubt it
Race Director
Joined: Nov 2003
Posts: 10,696
Likes: 3,090
From: Cottonwood AZ
C1 of Year Finalist (performance mods) 2019
Race Director
Joined: Apr 2015
Posts: 17,571
Likes: 3,460
From: Fresno California
Having one is better than not having one...All Pontiacs used them in the '60's. Prevents oil foaming at higher RPM and reduces splash drag on the crank. There is no downside to installing one.
Burning Brakes
Joined: Dec 2010
Posts: 1,223
Likes: 360
From: Southington CT
Oil and windage is something not many people think about as it is not a flashy add on. One thing I do when building a new motor is to fill the pan with water on the workbench to figure out the correct amount of oil to use. On my 365 ci sbc in my Nova I turn that to 8700 rpm every pass and trap at 8200+ so oil control is very important. The 496 BBC in the vette I use a Moroso pan with a trap door and windage tray/screen. That motor never sees above 7000 rpm so windage isn't that critical as with the 365 sb.
Race Director
Joined: Apr 2005
Posts: 11,260
Likes: 2,129
From: Bowling Green, Kentucky
Drifting
Joined: Apr 2005
Posts: 1,526
Likes: 61
From: TU CUM CARI NEW.MEX.
pm me if interested 66racer
Melting Slicks
Joined: May 2007
Posts: 2,415
Likes: 154
it is there to prevent the 120 MPH wind generated by the rotating assy turning at 6000 RPMs blowing down into the pan and blowing the oil up the sides of the pan away from the pickup. that is why it is called a "windage" tray
