early c3 frame verses 73 and later?

Old 01-10-2019, 12:00 PM
  #1
20round
CF Senior Member
Support Corvetteforum!
Thread Starter

20round's Avatar

Member Since: Apr 2014
Location: montague michigan
Posts: 1,306
Thanked 38 Times in 35 Posts
Default early c3 frame verses 73 and later?

ok, i know that 68-72 are identical frames or almost. i know, 68 had different front bumper bracket bolt spacing in the front frame horn..i know in 69 they started adding the angle supports on the kick ups. and that carried on thru the rest of the years..so what needs too be done too a 76 frame too work with a 68-72 ? is it worth the trouble? give me your thoughts guys! thanks troy
20round is offline
Old 01-10-2019, 12:08 PM
  #2
crf311
CF Senior Member

crf311's Avatar

Member Since: Jan 2003
Location: meraux LA
Posts: 2,341
Thanked 17 Times in 17 Posts
Default

Rear section needs to be modified . Don't remember what though. I believe it's doable.
crf311 is offline
Old 01-10-2019, 12:12 PM
  #3
Easy Mike
CF Senior Member
Support Corvetteforum!

Easy Mike's Avatar

Member Since: Jun 2000
Location: Southbound
Posts: 36,394
Thanks: 0
Thanked 846 Times in 780 Posts
Cruise-In II Veteran
Default

Originally Posted by 20round View Post
...so what needs too be done too a 76 frame too work with a 68-72 ? is it worth the trouble?...
IMHO, no.
Easy Mike is offline
Old 01-10-2019, 04:07 PM
  #4
derekderek
CF Senior Member

Member Since: Jul 2015
Location: Westville NJ
Posts: 4,065
Thanked 513 Times in 481 Posts
Default

PM David Howard. He is best frame guy I can think of. pretty sure it's just removing the bumper shock stuff though. And since it's underneath the car, nobody really sees it all that much.

Last edited by derekderek; 01-10-2019 at 04:08 PM.
derekderek is offline
The Following User Says Thank You to derekderek For This Useful Post:
20round (01-11-2019)
Old 01-10-2019, 05:31 PM
  #5
bazza77
CF Senior Member

Member Since: Jul 2010
Location: perth western australia
Posts: 1,489
Thanked 218 Times in 209 Posts
Default

The 69 frame horns won't even be close to fitting the front of a 76 frame. Extra holes need to be made in the horns .



69 body into a 78 frame , so far so good !
bazza77 is offline
Old 01-10-2019, 07:43 PM
  #6
loup68
CF Senior Member
Support Corvetteforum!

Member Since: Jan 2012
Location: myrtle beach sc
Posts: 2,184
Thanked 108 Times in 101 Posts
Default

The additional kick-up bracket before the rear wheels started in later 68 frames. I have a GM replacement frame under my 68 coupe.
It fits 68-74 cars only. Lou.
loup68 is offline
Old 01-10-2019, 08:19 PM
  #7
71yellow454
CF Member

Member Since: Apr 2006
Location: Abingdon Maryland
Posts: 54
Thanks: 0
Thanked 15 Times in 14 Posts
Default

73 body onto a 76 frame. Didn't modify the frame at all. I reconfigured the rear bumper brackets to fit the 76 frame. Worked out fine.

Last edited by 71yellow454; 01-10-2019 at 11:20 PM.
71yellow454 is offline
The Following User Says Thank You to 71yellow454 For This Useful Post:
20round (01-11-2019)
Old 01-11-2019, 09:44 AM
  #8
Rescue Rogers
CF Senior Member
Support Corvetteforum!

Rescue Rogers's Avatar

Member Since: Oct 2015
Location: YUPPY HELL Westford MASS
Posts: 4,508
Thanked 623 Times in 576 Posts
2016 C3 of Year Finalist
Default

Besides the holes and the bracing, The body mounts are at different heights, the rear frame crossmember is different. Those are the only welded differences. There are alot of threads on this

https://www.corvetteforum.com/forums/c3-tech-performance/4214140-1968-1972-frames-question.html

https://www.corvetteforum.com/forums/c3-general/4188982-frame-questions.html

Rescue Rogers is offline
The Following User Says Thank You to Rescue Rogers For This Useful Post:
20round (01-11-2019)
Old 01-11-2019, 11:36 AM
  #9
David Howard
CF Senior Member
Support Corvetteforum!

David Howard's Avatar

Member Since: Jan 2008
Location: Easton PA
Posts: 10,040
Thanked 620 Times in 470 Posts
St. Jude Donor '10
Default

Originally Posted by 20round View Post
ok, i know that 68-72 are identical frames or almost. i know, 68 had different front bumper bracket bolt spacing in the front frame horn..i know in 69 they started adding the angle supports on the kick ups. and that carried on thru the rest of the years..so what needs too be done too a 76 frame too work with a 68-72 ? is it worth the trouble? give me your thoughts guys! thanks troy
You are correct on the 68-72 frames. Kick up supports added in late 68 and continued on through 82. Front horn holes moved in 73 to accommodate the new front rubber bumper.

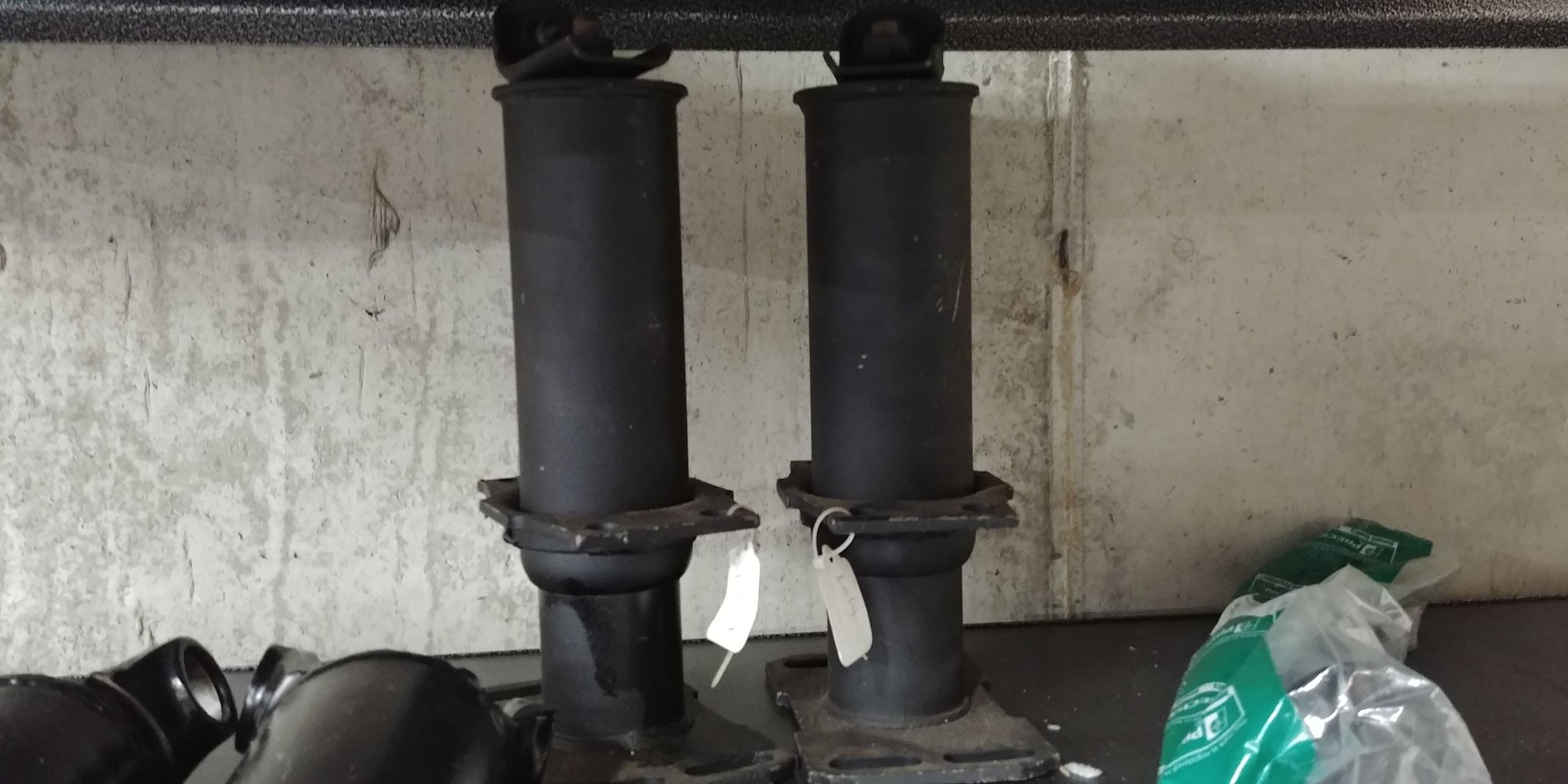

In the rear of the frames the 68-74 are the same frame setup. In 74 they added an external dampening system to absorb impact from a rear end collision. In 1975 they replace that with a newly designed impact shock absorbing part. (Shown in picture below).

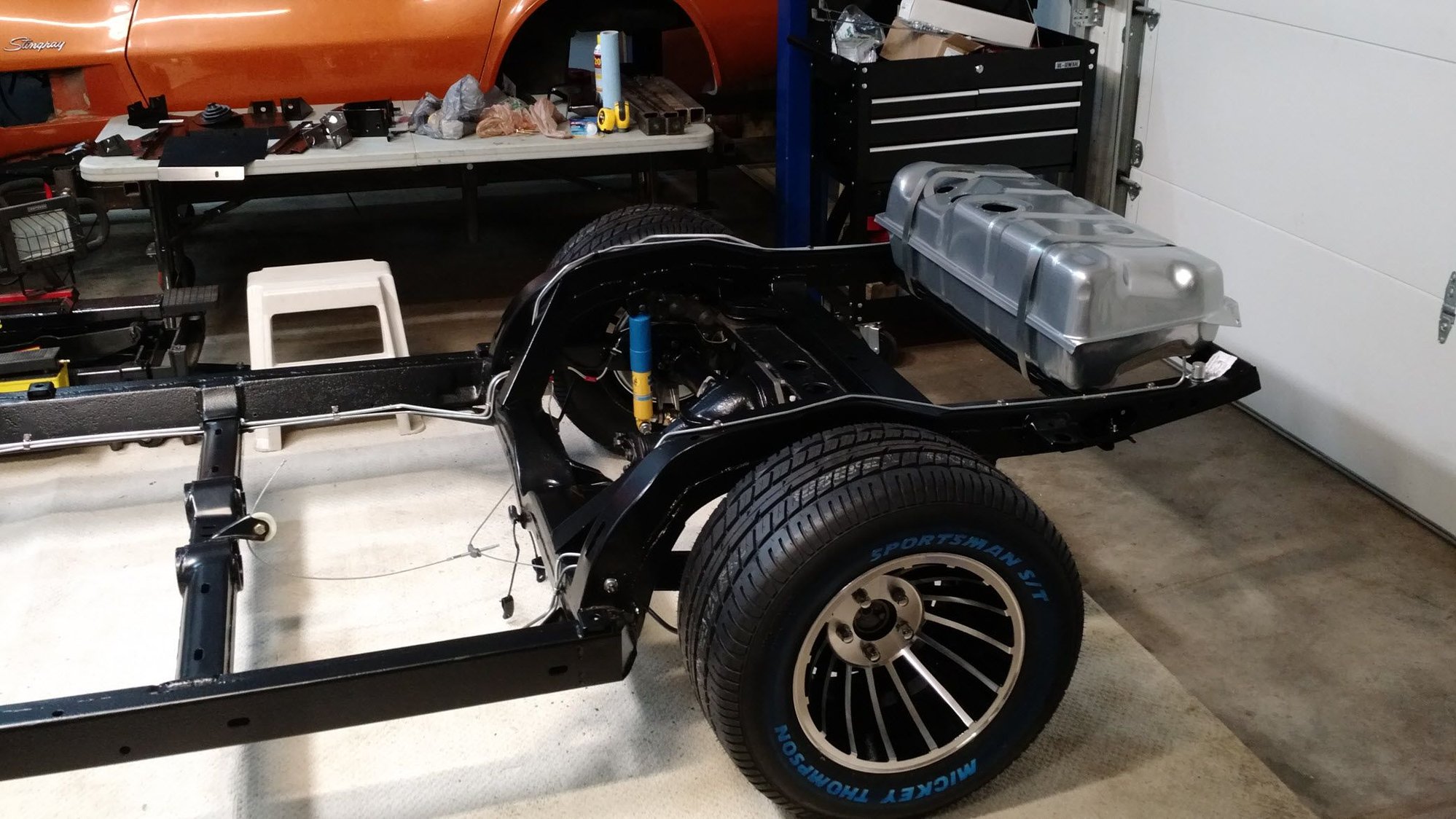

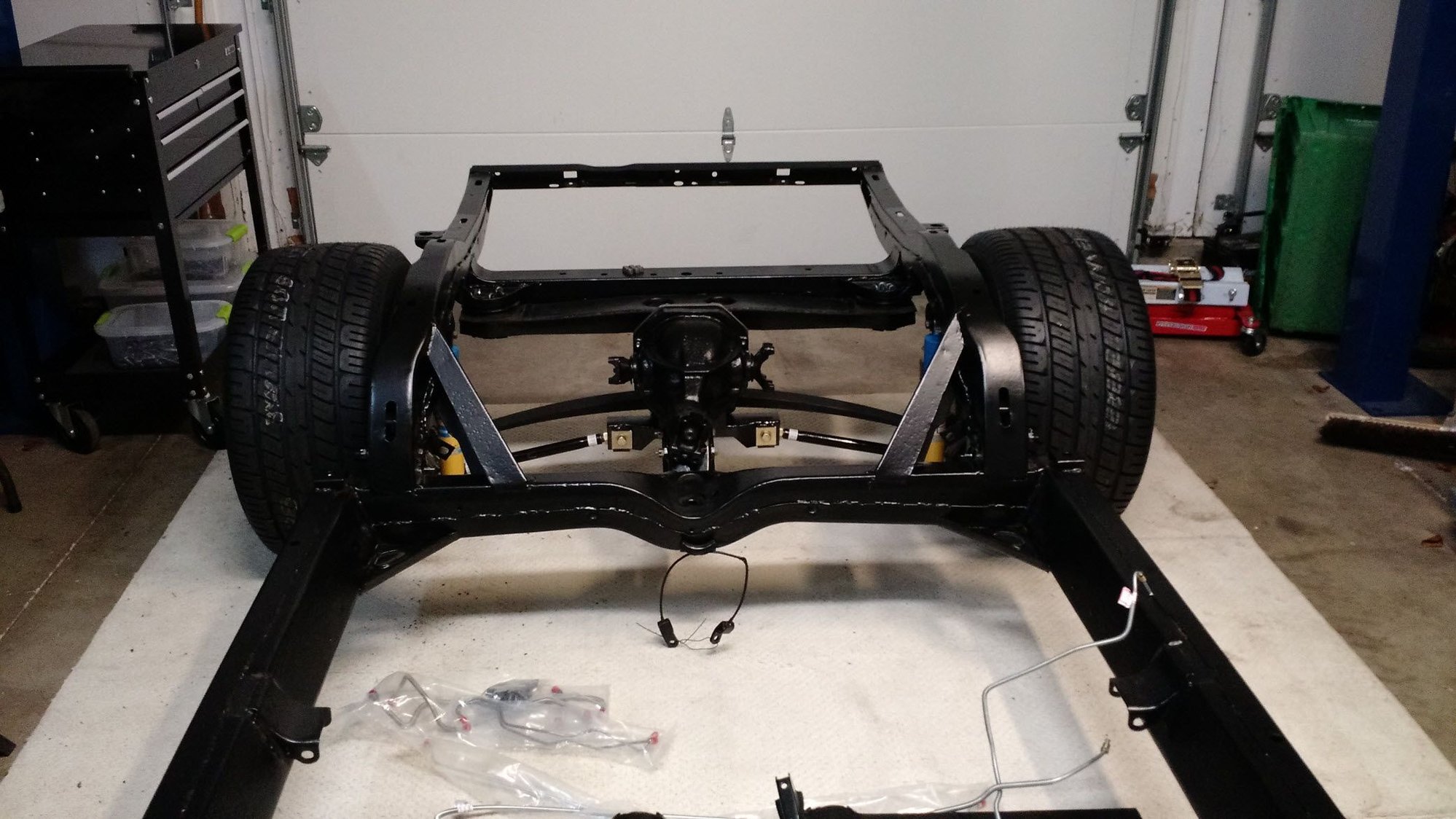

The 1976 frame is quite different as mentioned by several people, specifically the rear part of the frame that is squared off to accept the shocks mentioned. Here is a 1976 frame and you can see the space where those shocks are mounted.

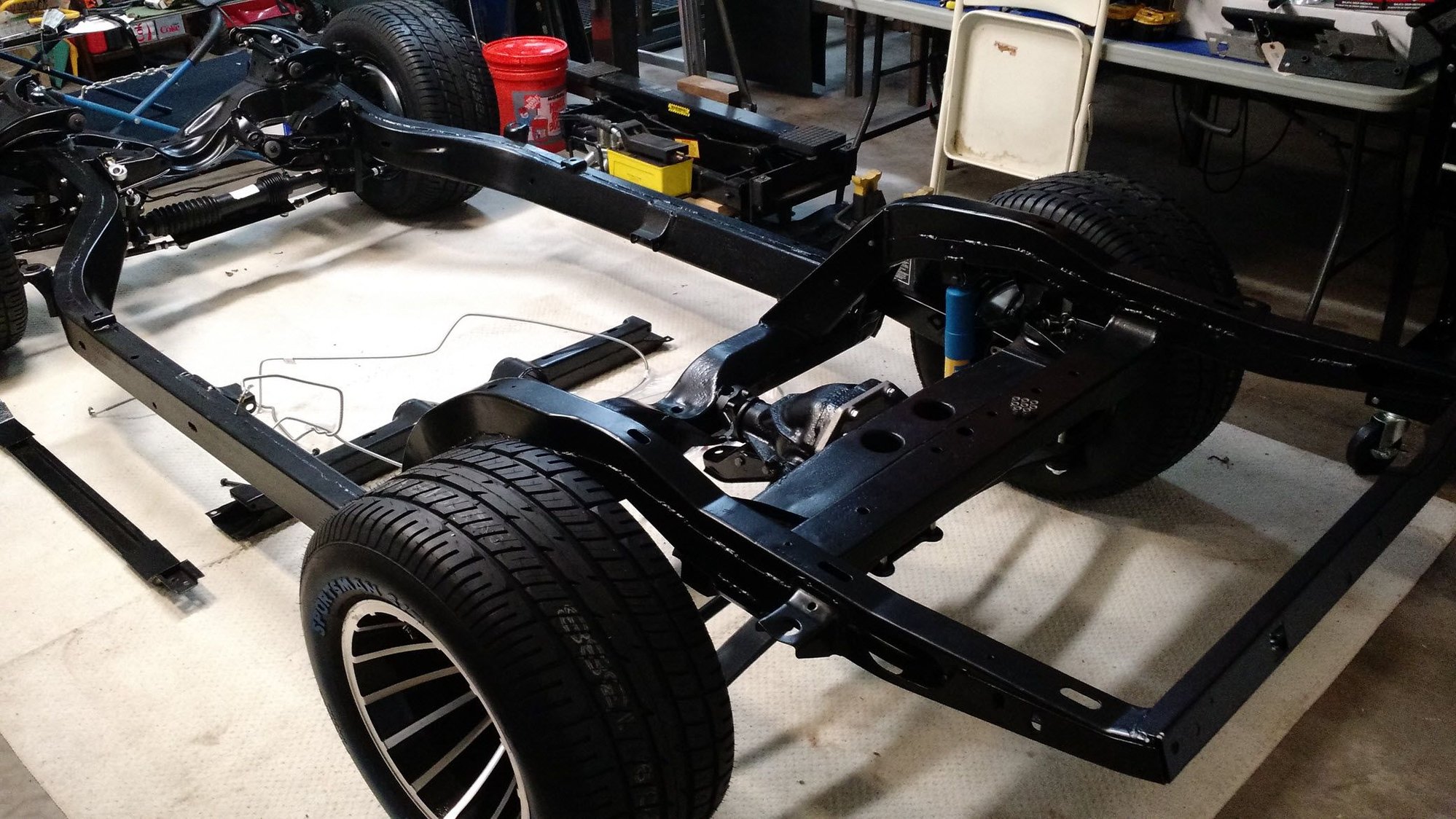

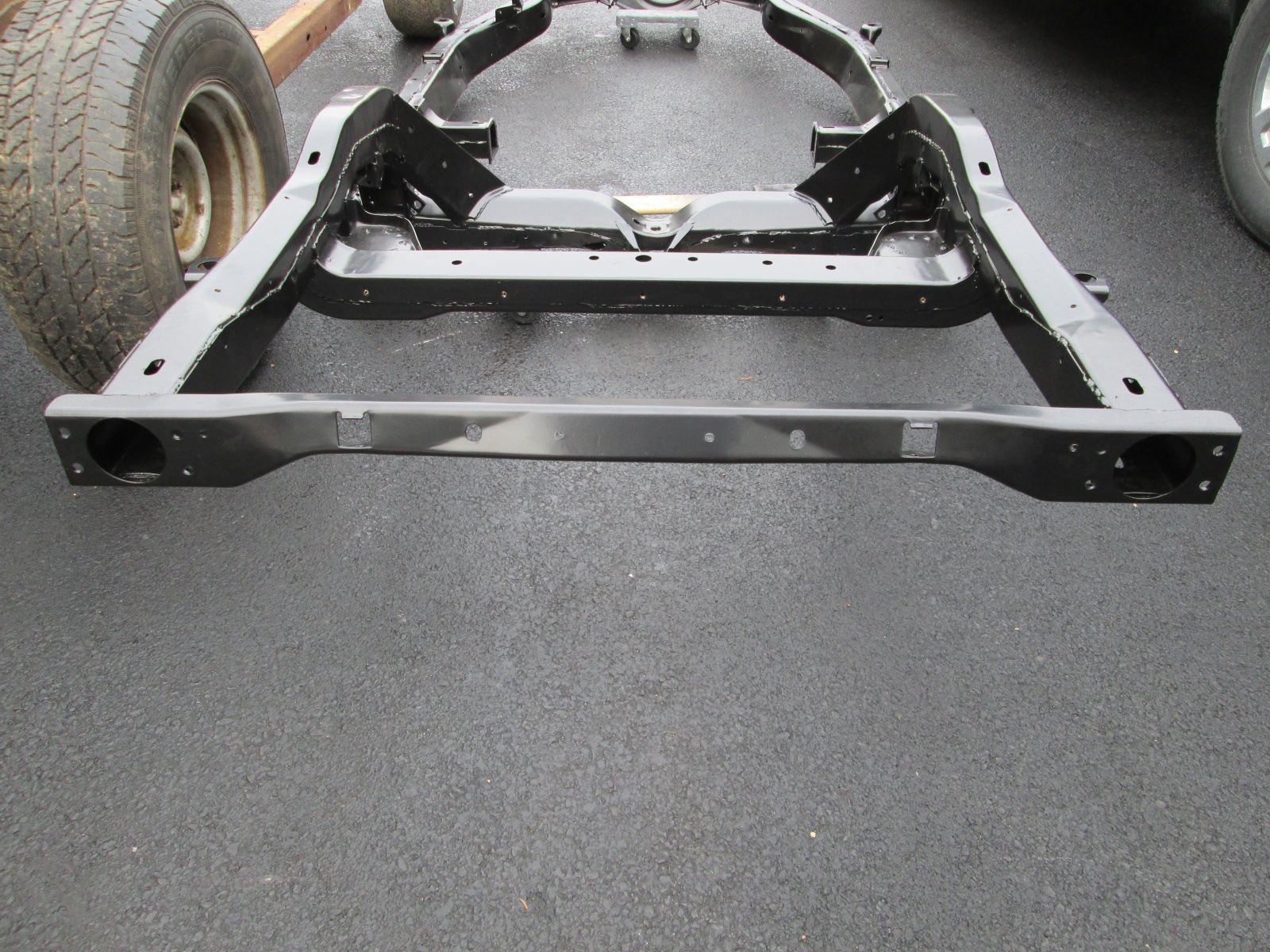

Compare this rear with the rear of a 1969 and you will see that height and shape are different. This is a 72 frame for comparison, I used this frame on my 1972 road race replica build.

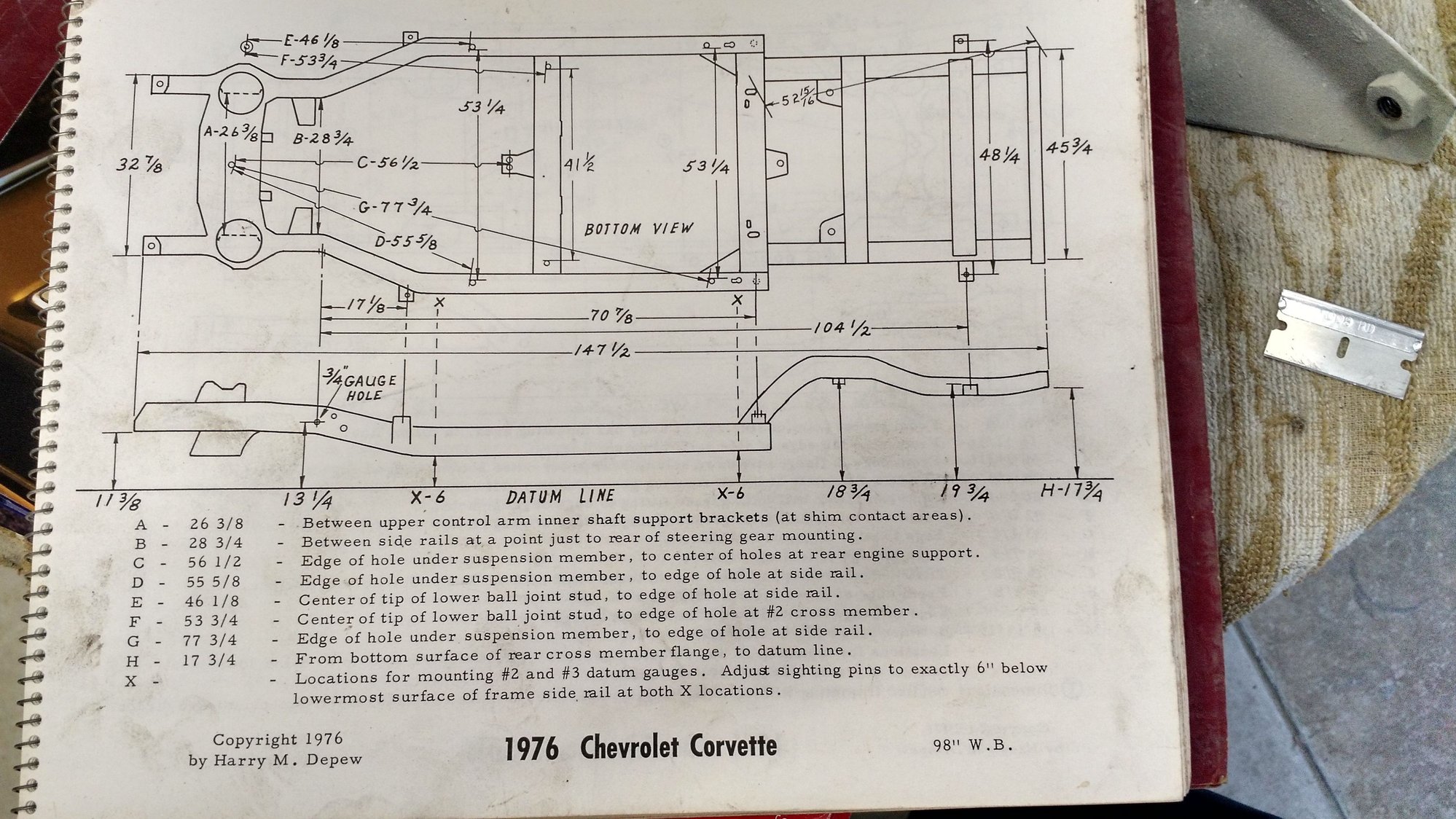

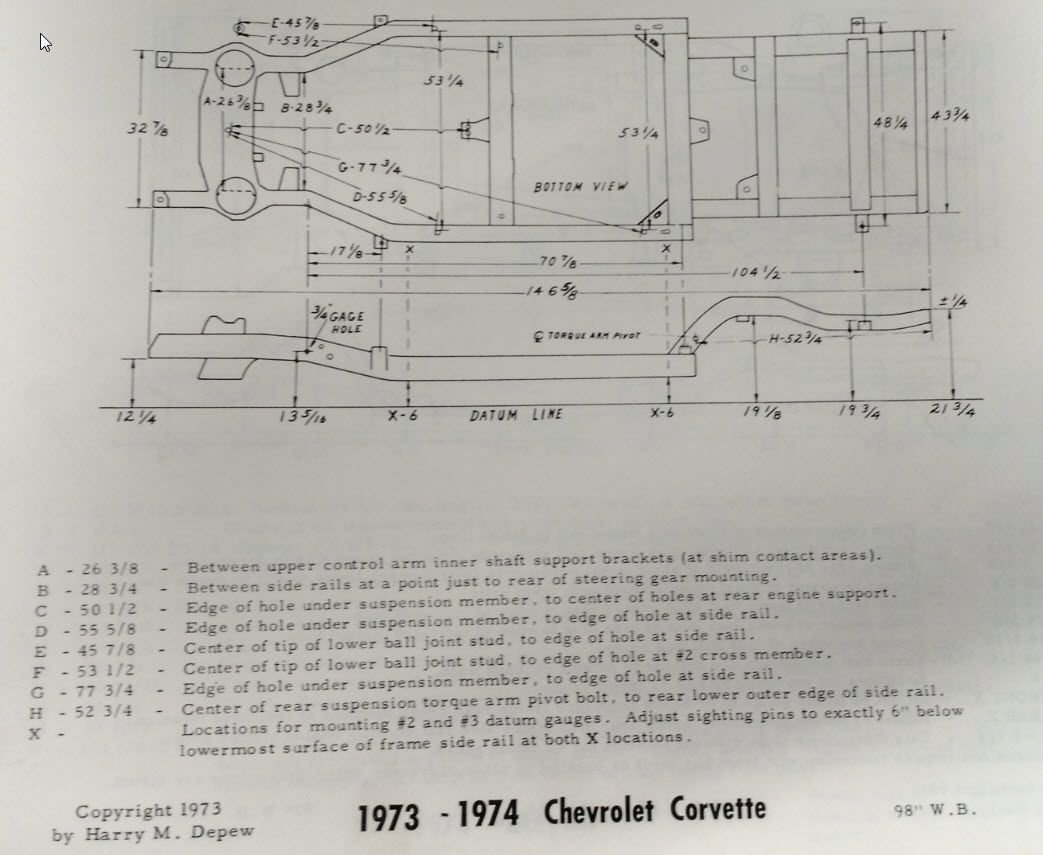

And here are three drawings showing the dimensional differences and similarities.




So I guess anything can be done if you want to do it badly enough. I have never made this modification myself when there are so many good frames in the correct configuration to work with it seemed pointless to me to do this much work and maybe get it right, maybe not, but that is just me.

Note the drawings are copywrighted and are being shown only for comparison purposes. Reproduction of them is protected.

Good luck with your decision and I hope this was helpful.

David
David Howard is offline
The Following User Says Thank You to David Howard For This Useful Post:
20round (01-12-2019)
Old 01-12-2019, 06:53 PM
  #10
20round
CF Senior Member
Support Corvetteforum!
Thread Starter

20round's Avatar

Member Since: Apr 2014
Location: montague michigan
Posts: 1,306
Thanked 38 Times in 35 Posts
Default

thanks david for the info.. i was just at chucks today looking at a 76 frame he has. and he said you did his frame resto. i am gonna keep looking for now.. hopefully i find one in my price range..
20round is offline
Old 01-12-2019, 06:58 PM
  #11
David Howard
CF Senior Member
Support Corvetteforum!

David Howard's Avatar

Member Since: Jan 2008
Location: Easton PA
Posts: 10,040
Thanked 620 Times in 470 Posts
St. Jude Donor '10
Default

Originally Posted by 20round View Post
thanks david for the info.. i was just at chucks today looking at a 76 frame he has. and he said you did his frame resto. i am gonna keep looking for now.. hopefully i find one in my price range..
I enjoyed helping Chuck with his 68. Great project for a great guy. I'll send you a PM.
David
David Howard is offline
Old 01-12-2019, 07:08 PM
  #12
chazde3
CF Senior Member

chazde3's Avatar

Member Since: Mar 2013
Location: Lansing MI
Posts: 1,644
Thanked 170 Times in 163 Posts
Default

My ears were ringing. Nice write up on the frames David!
chazde3 is offline
