replacement front clip = fit issue
Thread Starter
Pro
Joined: Apr 2002
Posts: 545
Likes: 10
From: NY
replacement front clip = fit issue

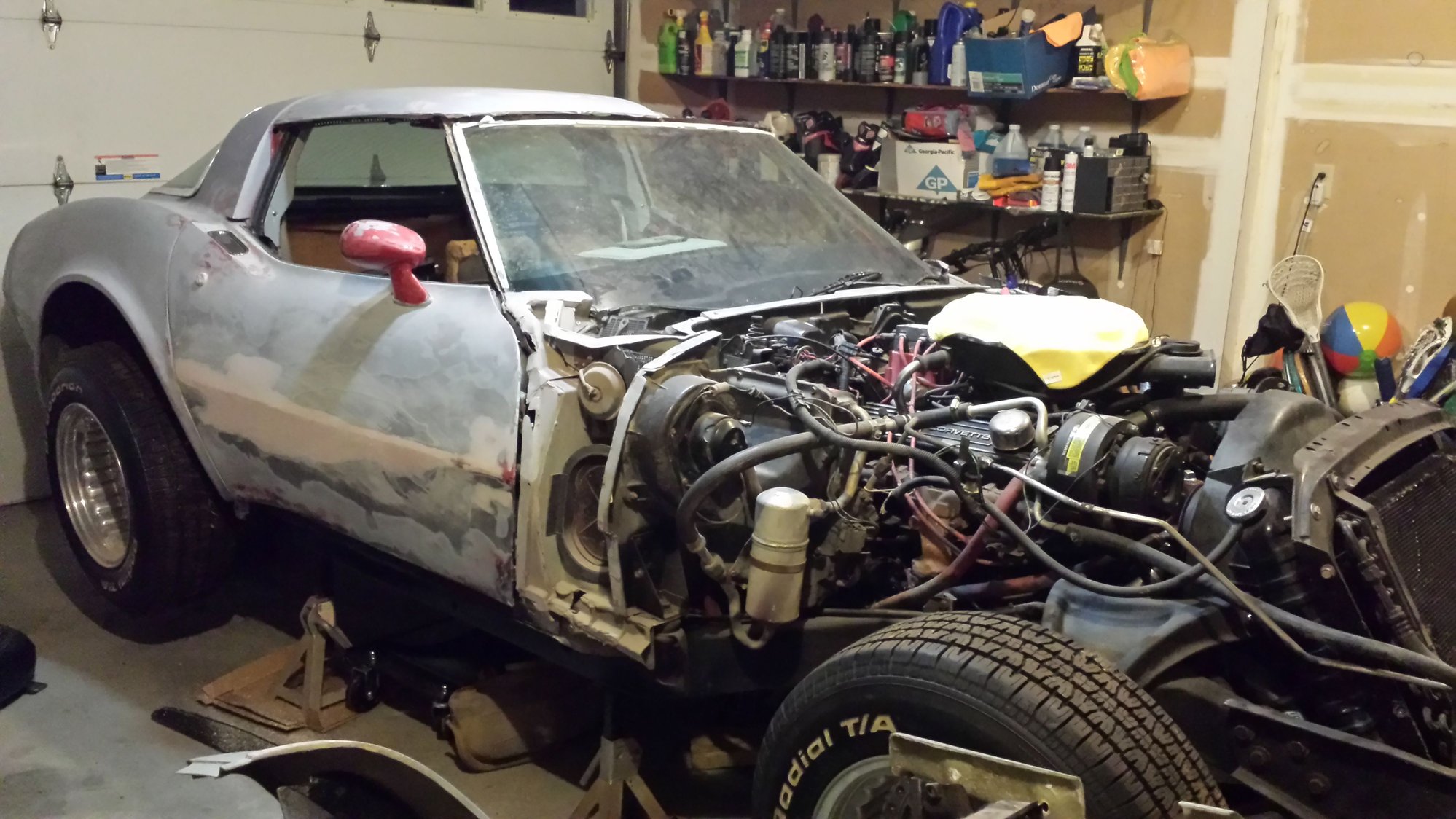

I am in the process of fitting a replacement front clip to my 1978. I have leveled the car in the garage and placed my floor jack under the radiator support. I have loosened the bolts on the support, I am running into 2 issues:
1. The fender skirt on the driver's side is noticeably higher that the passenger's side skirt (about 1 inch?). The driver's side skirt and the reinforcing plate are both replacements.
2. Neither skirt seems to fit well with the front clip.
Any help would be appreciated, as usual.
Thanks
1. The fender skirt on the driver's side is noticeably higher that the passenger's side skirt (about 1 inch?). The driver's side skirt and the reinforcing plate are both replacements.
2. Neither skirt seems to fit well with the front clip.
Any help would be appreciated, as usual.
Thanks
Le Mans Master
Joined: Jul 2006
Posts: 8,117
Likes: 104
From: charlotte north carolina
The only advice that I can give is to adjust the clip so that the bumper, hood and door (cowl) extensions fit. Set the hood first using extra shims under the hinges, because if it's a bit high when you finish it can be lowered if shims are present.
Thread Starter
Pro
Joined: Apr 2002
Posts: 545
Likes: 10
From: NY
I think I solved the problem of the height issue on the driver's side fender. The one thing that I am still struggling with is fitting the rear of the fender skirts to the coontour of the front clip. The skirts have a "tab" which seems to be preventing the skirts from fitting well in the fender wells. I have the Eckler's book and the Glass-Ra series of books on corvette body repair but nothing seems to address this. Looking in my asembly manual now.
Thread Starter
Pro
Joined: Apr 2002
Posts: 545
Likes: 10
From: NY
78 - inner skirt fit problems
.

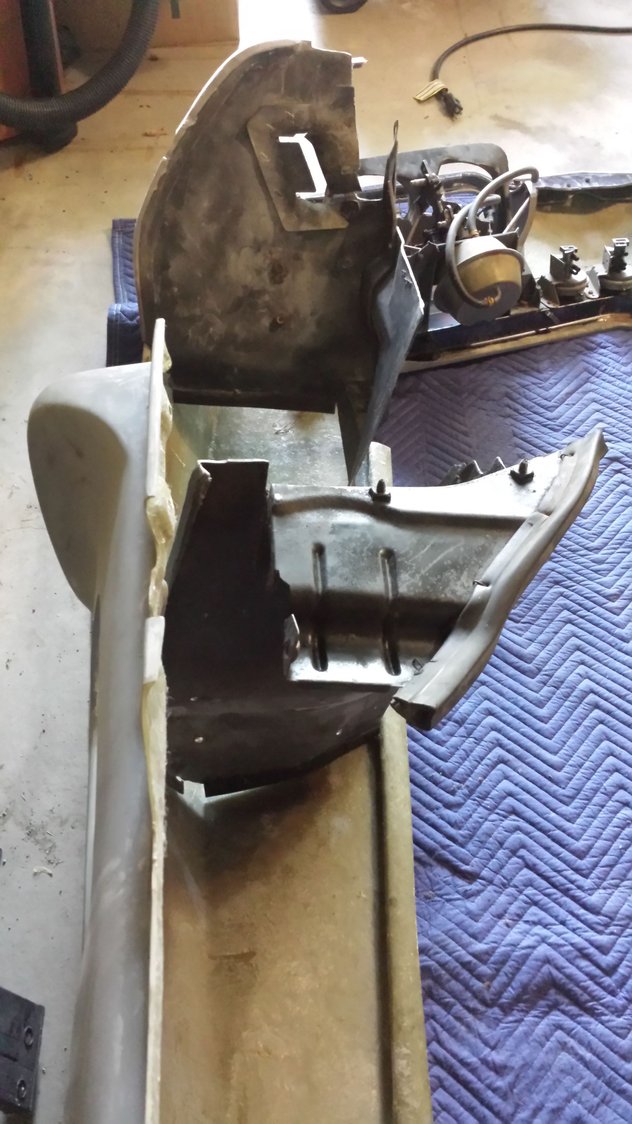

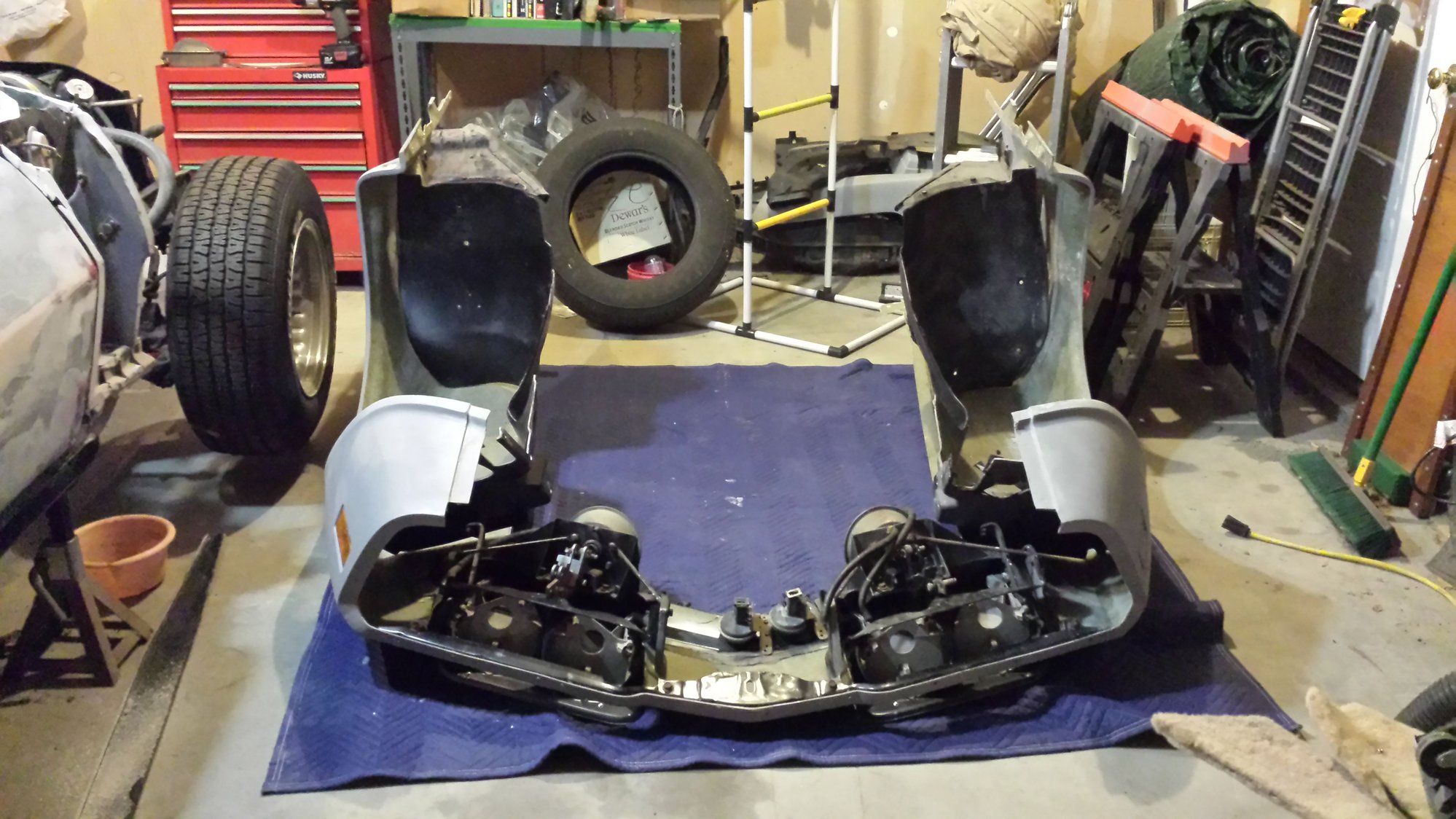

We pulled the front clip back off. This is a photo of one of the inner skirts set inside the clip. The splash plate is inches away from the body. Is it possible that these are the wrong year fender skirts? Or is it a problem with this aftermarket clip? Any help, as always is appreciated.
Last edited by 4rensic22; Jul 15, 2015 at 06:34 PM.
