after market efi relay?
#2
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,476
Received 3,218 Likes
on
1,730 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
I like using Bosch-can still find NOS ones on eBay- now owned by Tyco.
I also like the Ford inertia/rollover shut off- just in case.
About $30 at Summit Racing and almost free at the junkyard- used on on a lot of 90-00 Fords
In the battery compartment-
and when the inertia /shut off is switched- I'm using a blown led/fuse that lights and tells me my fuel pump is shut off-
I also like the Ford inertia/rollover shut off- just in case.
About $30 at Summit Racing and almost free at the junkyard- used on on a lot of 90-00 Fords
In the battery compartment-
and when the inertia /shut off is switched- I'm using a blown led/fuse that lights and tells me my fuel pump is shut off-
#3
Drifting
Thread Starter
I like using Bosch-can still find NOS ones on eBay- now owned by Tyco.
I also like the Ford inertia/rollover shut off- just in case.
About $30 at Summit Racing and almost free at the junkyard- used on on a lot of 90-00 Fords
In the battery compartment-
and when the inertia /shut off is switched- I'm using a blown led/fuse that lights and tells me my fuel pump is shut off-
I also like the Ford inertia/rollover shut off- just in case.
About $30 at Summit Racing and almost free at the junkyard- used on on a lot of 90-00 Fords
In the battery compartment-
and when the inertia /shut off is switched- I'm using a blown led/fuse that lights and tells me my fuel pump is shut off-
#4
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,476
Received 3,218 Likes
on
1,730 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
I sort of did like "sub panels" through out the car-
I have a fusebox (water sealed & up, out of the way) at the headlights used for horn/fans/headlights/electric headlight motors-
And behind the pass side dash- it controls ECU/Starter/injectors/AC/PW/lighting
(says fuel pump- but that's been changed to injectors)
Did away with the stock fusepanel- and made one you can get to!!!
#5
Drifting
Thread Starter
I sort of did like "sub panels" through out the car-
I have a fusebox (water sealed & up, out of the way) at the headlights used for horn/fans/headlights/electric headlight motors-
And behind the pass side dash- it controls ECU/Starter/injectors/AC/PW/lighting
(says fuel pump- but that's been changed to injectors)
Did away with the stock fusepanel- and made one you can get to!!!
I have a fusebox (water sealed & up, out of the way) at the headlights used for horn/fans/headlights/electric headlight motors-
And behind the pass side dash- it controls ECU/Starter/injectors/AC/PW/lighting
(says fuel pump- but that's been changed to injectors)
Did away with the stock fusepanel- and made one you can get to!!!
#6
Race Director
I'm using those same Bosch relays in my EFI install. In 15 years not a single Bosch relay has ever failed. They're the real deal. I keep a couple spares in the car anyway just in case.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
#7
Drifting
Thread Starter
I'm using those same Bosch relays in my EFI install. In 15 years not a single Bosch relay has ever failed. They're the real deal. I keep a couple spares in the car anyway just in case.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
Last edited by Kacyc3; 07-16-2017 at 06:23 PM.
#8
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,476
Received 3,218 Likes
on
1,730 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
http://www.ebay.com/itm/BOSCH-488253...JVAywz&vxp=mtr
Or you can go to your local u-pull-it type junkyard-
Look at the mid 90's 5 &7 series BMWs- they will have a dozen or so of the Bosch relays. Maybe a $1?
For some reason (charge more?) they usually haves pins 86 and 30 swapped as compared to the standard 5 pin socket. Easy fix w/ a small screwdriver to your sockets.

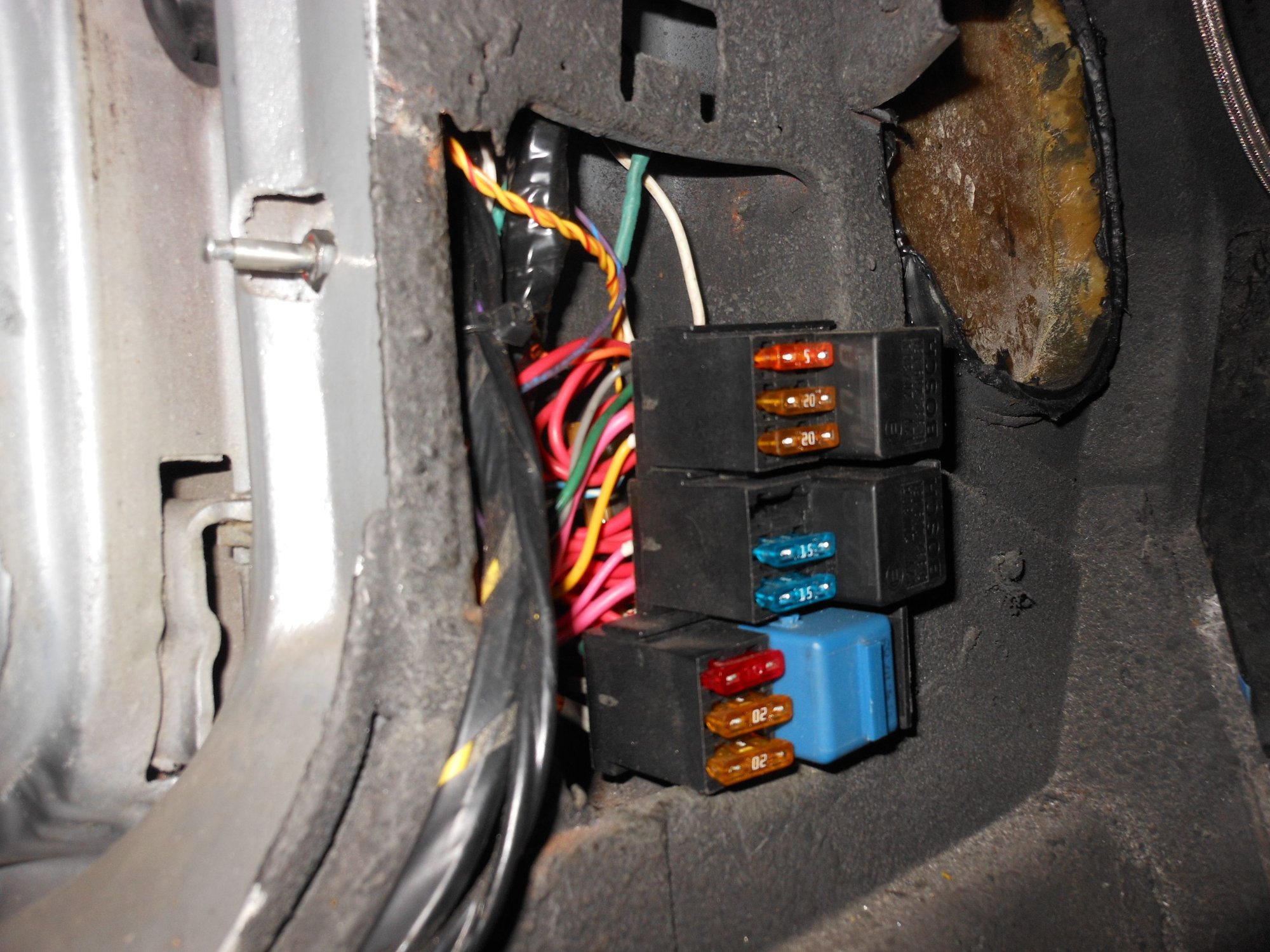

Here's a few "used" Boschs being used for door locks and power windows- Just swapped the yellow wire with the black one.
I'm using those same Bosch relays in my EFI install. In 15 years not a single Bosch relay has ever failed. They're the real deal. I keep a couple spares in the car anyway just in case.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
They're available at any parts store although it will be knock-offs and not genuine Bosch.
Last edited by Richard454; 07-16-2017 at 07:05 PM.
#9
Drifting
Thread Starter
Here's one -the real deal Bosch- on ebay- about $11- well worth it!!!
http://www.ebay.com/itm/BOSCH-488253...JVAywz&vxp=mtr
Or you can go to your local u-pull-it type junkyard-
Look at the mid 90's 5 &7 series BMWs- they will have a dozen or so of the Bosch relays. Maybe a $1?
For some reason (charge more?) they usually haves pins 86 and 30 swapped as compared to the standard 5 pin socket. Easy fix w/ a small screwdriver to your sockets.
Here's a few "used" Boschs being used for door locks and power windows- Just swapped the yellow wire with the black one.
Years ago -I use to call on Bluebird Bus 's division "Wanderlodge Bus." Used over 300 Bosch relays and they swore by them!!!
http://www.ebay.com/itm/BOSCH-488253...JVAywz&vxp=mtr
Or you can go to your local u-pull-it type junkyard-
Look at the mid 90's 5 &7 series BMWs- they will have a dozen or so of the Bosch relays. Maybe a $1?
For some reason (charge more?) they usually haves pins 86 and 30 swapped as compared to the standard 5 pin socket. Easy fix w/ a small screwdriver to your sockets.
Here's a few "used" Boschs being used for door locks and power windows- Just swapped the yellow wire with the black one.
Years ago -I use to call on Bluebird Bus 's division "Wanderlodge Bus." Used over 300 Bosch relays and they swore by them!!!
#10
Drifting
Thread Starter
So I took the number from that ebay add, cross referenced it on Oreilly autos site which gave me part number R681. Searched that number in BWD ecatalog here http://ecatalog.smpcorp.com/bwd/#/ve...um/R681?type=s which tells me that relay is no rated for continuous use.
Last edited by Kacyc3; 07-16-2017 at 08:41 PM.
#11
Race Director
Member Since: Apr 2007
Location: South Western Ontario
Posts: 11,061
Received 845 Likes
on
721 Posts
The Bosch style relays always seem to be continuous duty capable. Not sure what you're seeing there.
What you should be concerned about is the socket. The terminal using a flat piece that is just rolled around in curves on each side to grab the spade are junk. You need the high current connectors to be built like Packard 59 terminals if you want reliability.
I've used various knock-off relays for years and the only failures I've had were the junk terminals in the cheap pre-made sockets. I don't worry about the brand of relay but I never use cheap connectors anymore.
What you should be concerned about is the socket. The terminal using a flat piece that is just rolled around in curves on each side to grab the spade are junk. You need the high current connectors to be built like Packard 59 terminals if you want reliability.
I've used various knock-off relays for years and the only failures I've had were the junk terminals in the cheap pre-made sockets. I don't worry about the brand of relay but I never use cheap connectors anymore.
Last edited by lionelhutz; 07-16-2017 at 10:40 PM.
#12
Drifting
Thread Starter
The Bosch style relays always seem to be continuous duty capable. Not sure what you're seeing there.
What you should be concerned about is the socket. The terminal using a flat piece that is just rolled around in curves on each side to grab the spade are junk. You need the high current connectors to be built like Packard 59 terminals if you want reliability.
I've used various knock-off relays for years and the only failures I've had were the junk terminals in the cheap pre-made sockets. I don't worry about the brand of relay but I never use cheap connectors anymore.
What you should be concerned about is the socket. The terminal using a flat piece that is just rolled around in curves on each side to grab the spade are junk. You need the high current connectors to be built like Packard 59 terminals if you want reliability.
I've used various knock-off relays for years and the only failures I've had were the junk terminals in the cheap pre-made sockets. I don't worry about the brand of relay but I never use cheap connectors anymore.
#13
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,476
Received 3,218 Likes
on
1,730 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
Here you go-
Hmmm- if we were talking several hundred dollars difference..then the cheap knock off ( the term Bosch type relay is used for that very reason) would make sence- but we are talking about $5-6 more? Really?
Specs-
General Specifications
Bosch Part Number: 0332209150
Voltage: 12V
Current: 30A
SPDT
Enclosure: Standard Cover W/Bracket
Suppression: Resistor
Footprint: ISO 5 pin
Coil Specifications
Coil Operating Current: 160 mA
Equivalent Coil Resistance: 69 - 80 Ohms
Pull-in Voltage: 8 V
Drop-out Voltage: 1.2 - 5 V
Operating Conditions
Operating Temperature: -40 - 100 C
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Days
Life Tests
Resitive Load - N/O: 30 A - 150,000 cycles
Resitive Load - N/C: 20 A - 100,000 cycles
Motor Load - N/O: 40 A - 150,000 cycles
Motor Load - N/C: 15 A - 75,000 cycles
Lamp Load - N/O: 30 A - 150,000 cycles
Lamp Load - N/C: 15 A - 50,000 cycles
Mechanical life: 1,000,000 cycles
Specs-
General Specifications
Bosch Part Number: 0332209150
Voltage: 12V
Current: 30A
SPDT
Enclosure: Standard Cover W/Bracket
Suppression: Resistor
Footprint: ISO 5 pin
Coil Specifications
Coil Operating Current: 160 mA
Equivalent Coil Resistance: 69 - 80 Ohms
Pull-in Voltage: 8 V
Drop-out Voltage: 1.2 - 5 V
Operating Conditions
Operating Temperature: -40 - 100 C
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Days
Life Tests
Resitive Load - N/O: 30 A - 150,000 cycles
Resitive Load - N/C: 20 A - 100,000 cycles
Motor Load - N/O: 40 A - 150,000 cycles
Motor Load - N/C: 15 A - 75,000 cycles
Lamp Load - N/O: 30 A - 150,000 cycles
Lamp Load - N/C: 15 A - 50,000 cycles
Mechanical life: 1,000,000 cycles
#14
Race Director
Member Since: Jan 2000
Location: Corsicana, Tx
Posts: 12,603
Received 1,874 Likes
on
912 Posts
2020 C2 of the Year - Modified Winner
2020 Corvette of the Year (performance mods)
C2 of Year Winner (performance mods) 2019
2017 C2 of Year Finalist
I've used the parts store versions for years running my fuel pumps. Continuous duty on cross country trips with no issues.
I think my last ones were bought from Pep Boys with a connector harness.
JIM
I think my last ones were bought from Pep Boys with a connector harness.
JIM
#15
Drifting
Thread Starter
#16
Drifting
Thread Starter
Here you go-
Hmmm- if we were talking several hundred dollars difference..then the cheap knock off ( the term Bosch type relay is used for that very reason) would make sence- but we are talking about $5-6 more? Really?
Specs-
General Specifications
Bosch Part Number: 0332209150
Voltage: 12V
Current: 30A
SPDT
Enclosure: Standard Cover W/Bracket
Suppression: Resistor
Footprint: ISO 5 pin
Coil Specifications
Coil Operating Current: 160 mA
Equivalent Coil Resistance: 69 - 80 Ohms
Pull-in Voltage: 8 V
Drop-out Voltage: 1.2 - 5 V
Operating Conditions
Operating Temperature: -40 - 100 C
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Days
Life Tests
Resitive Load - N/O: 30 A - 150,000 cycles
Resitive Load - N/C: 20 A - 100,000 cycles
Motor Load - N/O: 40 A - 150,000 cycles
Motor Load - N/C: 15 A - 75,000 cycles
Lamp Load - N/O: 30 A - 150,000 cycles
Lamp Load - N/C: 15 A - 50,000 cycles
Mechanical life: 1,000,000 cycles
Hmmm- if we were talking several hundred dollars difference..then the cheap knock off ( the term Bosch type relay is used for that very reason) would make sence- but we are talking about $5-6 more? Really?
Specs-
General Specifications
Bosch Part Number: 0332209150
Voltage: 12V
Current: 30A
SPDT
Enclosure: Standard Cover W/Bracket
Suppression: Resistor
Footprint: ISO 5 pin
Coil Specifications
Coil Operating Current: 160 mA
Equivalent Coil Resistance: 69 - 80 Ohms
Pull-in Voltage: 8 V
Drop-out Voltage: 1.2 - 5 V
Operating Conditions
Operating Temperature: -40 - 100 C
Humidity Test: 95% for 7 Days
Salt Spray Test: 144 Hours
Dust Test: 8 Days
Life Tests
Resitive Load - N/O: 30 A - 150,000 cycles
Resitive Load - N/C: 20 A - 100,000 cycles
Motor Load - N/O: 40 A - 150,000 cycles
Motor Load - N/C: 15 A - 75,000 cycles
Lamp Load - N/O: 30 A - 150,000 cycles
Lamp Load - N/C: 15 A - 50,000 cycles
Mechanical life: 1,000,000 cycles
#17
Race Director
Member Since: Apr 2007
Location: South Western Ontario
Posts: 11,061
Received 845 Likes
on
721 Posts
I can get them easily and immediately and they've never been an issue for me so why would I spend any extra time or money on them? I'll put the effort into other things that matter more.
#18
Race Director
Member Since: Apr 2007
Location: South Western Ontario
Posts: 11,061
Received 845 Likes
on
721 Posts
I have no idea what BWD is doing. If they actually do manufacture them then maybe they aren't rated. If they re-sell them from another source then they likely got the specs wrong. I've never seen a Bosch style relay that was marked as not continuous duty rated before and I've never had one fail because I ran it continuously.
#19
Race Director
Member Since: Apr 2007
Location: South Western Ontario
Posts: 11,061
Received 845 Likes
on
721 Posts
Look at 88-94 range full-size GM pickups. The relay was on the firewall passenger side. It has a weatherpack type sealed connector and both the relay and connector are quality parts.
#20
Drifting
Thread Starter
Actually that's what started this, I was planning to use one but I have that system in a truck and know there is a oil pressure switch that also allows voltage to pass when pressure is up. Two sources of smaller gauge wire to supply voltage to stock low pressure pump. I have a walboro pump that draws more voltage and wasn't sure of the voltage rating for that gauge and the length to go almost the entire length of the car. While checking the specs on it I noticed it is not rated for continuous use, guess gm intended for that oil pressure switch to take over.
Last edited by Kacyc3; 07-17-2017 at 10:27 AM.
