A/C Compressor Mount with Headers???

Old 07-13-2018, 05:00 PM
  #1
C3FIXER
Junior Member
Thread Starter

Member Since: May 2018
Posts: 23
Thanked 0 Times in 0 Posts
Default A/C Compressor Mount with Headers???

I have a '77 L82 4 speed with A/C , recently purchased. The previous owner never used the A/C for 12 yrs or more. I am planning to buy the required compnonents from ZIP and hopefully bring it back to life. The exhaust system is in need of replacement so I am thinking might as well put on some quality headers, don't have to be long tube. Does it make more sense to install the new exhaust first and will the current compressor bracket work or do I go a different direction. Thanks!!!
C3FIXER is offline
Old 07-13-2018, 09:06 PM
  #2
Street Rat
CF Senior Member
Support Corvetteforum!

Street Rat's Avatar

Member Since: Aug 2010
Location: Georgetown Texas
Posts: 4,437
Thanked 246 Times in 230 Posts
Default

Originally Posted by C3FIXER
I have a '77 L82 4 speed with A/C , recently purchased. The previous owner never used the A/C for 12 yrs or more. I am planning to buy the required compnonents from ZIP and hopefully bring it back to life. The exhaust system is in need of replacement so I am thinking might as well put on some quality headers, don't have to be long tube. Does it make more sense to install the new exhaust first and will the current compressor bracket work or do I go a different direction. Thanks!!!
Depending on the headers that you choose you will need a new bracket. The factory bracket will not work in most cases. The header manufacturer should have a bracket to fit with their specific headers.

Craig
Street Rat is offline
The Following User Says Thank You to Street Rat For This Useful Post:
C3FIXER (07-14-2018)
Old 07-14-2018, 12:45 AM
  #3
7T1vette
CF Senior Member

7T1vette's Avatar

Member Since: Jan 2006
Location: Crossville TN
Posts: 29,758
Thanked 898 Times in 806 Posts
Default

If you have to replace most of the A/C parts, you should seriously think about getting an R-134a conversion kit. That will include a new Senden compressor, new filter/drier and replacement for the POA valve gizmo. It also comes with a new mount system that will work with headers (I believe). Give Classic Auto Air a look (website). The Senden compressor is much lighter and MUCH more efficient than that R-6 "monster". Go stock if you need to; otherwise, convert to modern A/C system. Most of the original A/C stuff can be reused. It just needs to be flushed out well and recharged with R-134a refrigerant.
7T1vette is offline
The Following User Says Thank You to 7T1vette For This Useful Post:
C3FIXER (07-14-2018)
Old 07-14-2018, 11:24 AM
  #4
REELAV8R
CF Senior Member

REELAV8R's Avatar

Member Since: Apr 2011
Location: Hermosa
Posts: 3,955
Thanked 250 Times in 230 Posts
Default

Your 77 should have the R4 compressor not the long R6. When I put my headers on all I had to do was use a piece of threaded rod in the manifold hole that connected to the ac bracket. Keep the spacer that is there as you will need it too. 3/8” rod and nuts should be all you’ll need.
REELAV8R is offline
Old 07-14-2018, 04:17 PM
  #5
KapsSA
CF Senior Member

KapsSA's Avatar

Member Since: Jun 2004
Location: Beecher Illinois
Posts: 3,980
Thanks: 0
Thanked 58 Times in 57 Posts
Default

KapsSA is offline
Old 07-14-2018, 04:20 PM
  #6
KapsSA
CF Senior Member

KapsSA's Avatar

Member Since: Jun 2004
Location: Beecher Illinois
Posts: 3,980
Thanks: 0
Thanked 58 Times in 57 Posts
Default

A spacer the length of the difference in thickness between the manifold and the header flange(or a stack of washers)
KapsSA is offline
Old 07-19-2018, 05:41 PM
  #7
Rods 79
Junior Member

Member Since: Jan 2014
Location: Oakland TN
Posts: 17
Thanked 5 Times in 4 Posts
Default

Originally Posted by C3FIXER View Post
I have a '77 L82 4 speed with A/C , recently purchased. The previous owner never used the A/C for 12 yrs or more. I am planning to buy the required compnonents from ZIP and hopefully bring it back to life. The exhaust system is in need of replacement so I am thinking might as well put on some quality headers, don't have to be long tube. Does it make more sense to install the new exhaust first and will the current compressor bracket work or do I go a different direction. Thanks!!!

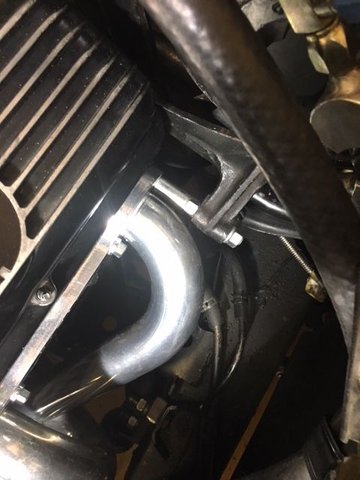

My Patriot Shorty headers came with this spacer, this spacer is available at CorvetteCentral (SKU #453092 for 77' - 82')
Rods 79 is offline
