Autometer Gauges, probably will need help with install
The following users liked this post:
gw82vette (03-13-2019)
#22
Advanced
Thread Starter
Update to my gauge cluster, the 5inch speedo and tach look great, but don't fit the bezel perfectly, so I've taken a bunch of measurements and will be 3D printing a direct fit bezel that not only will allow me to just plug and play to the original bezels, but will allow me to mount the turn signal lights as well as the parking brake, highbeams, door ajar, and headlight door ajar lights so i can move them from the center to the cluster. below is a pic of my 3d design as well as a pic of the the prototype being printed right now so i can fit test and modify as needed.

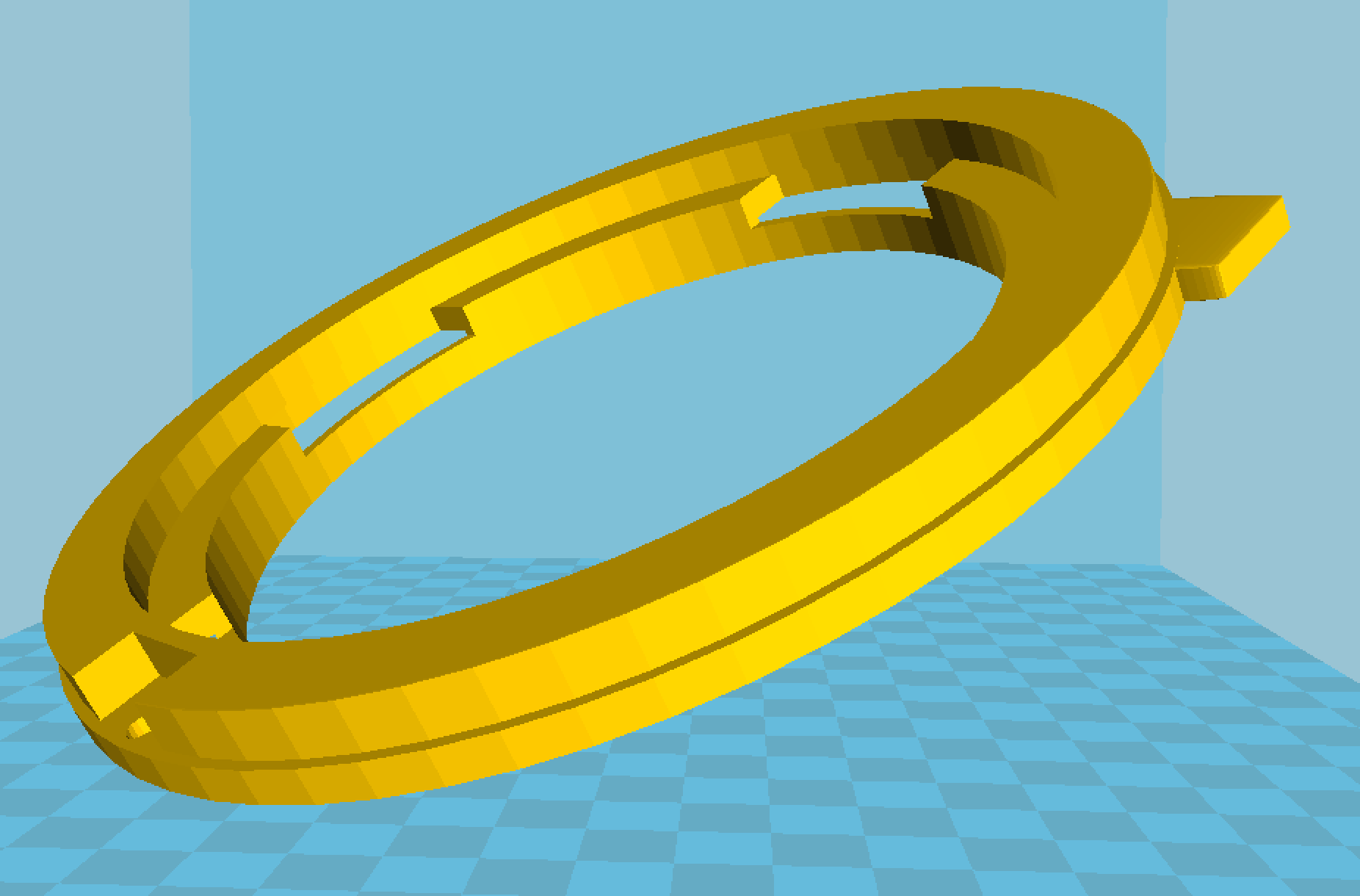

3d design
prototype being printed on my 3D printer
3d design
prototype being printed on my 3D printer
#24
Advanced
Thread Starter
the prototype has been completed and I am very happy with the results. a few very small modifications and I'll be ready to print the actual pieces in black. As you guys can see the gauge sits slightly recessed to keep from pressing on the clear angled cover and fits into the keyed bezel without any movement. Ill fix the tabs and drill the holes to utilize the stock screws and tabs to hold it in place. the smaller gague fits the bezel perfectly and secures with the autometer components. the three holes/dashes around the sides of the gauge will be for turn signal, brights, and door ajar lights that will be LED's mounted into clear 3d printed blocks that fit into it those slots.

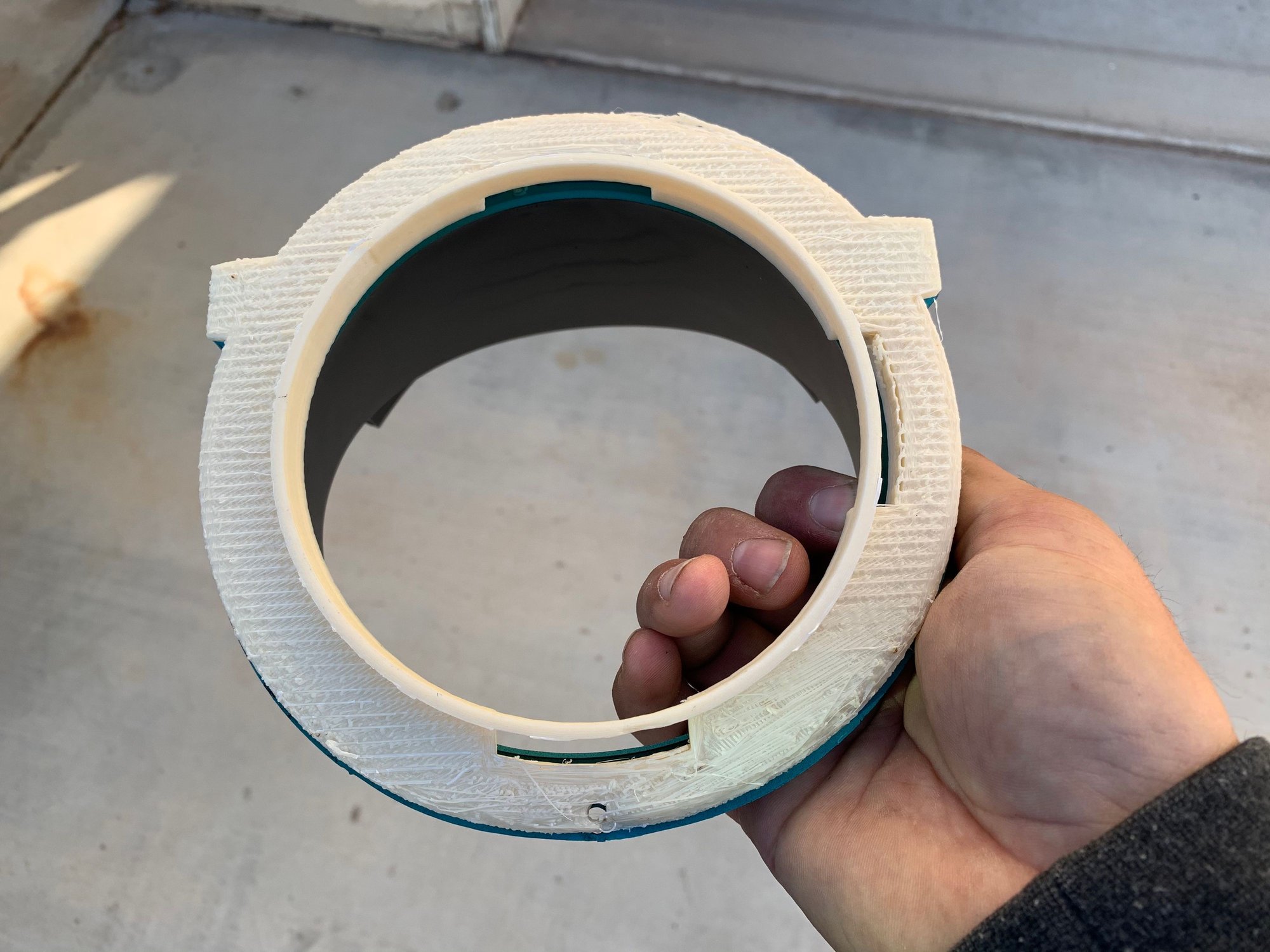

hot off the printer.
keyed tab at bottom and tabs need drilling but fits into recessed perfectly

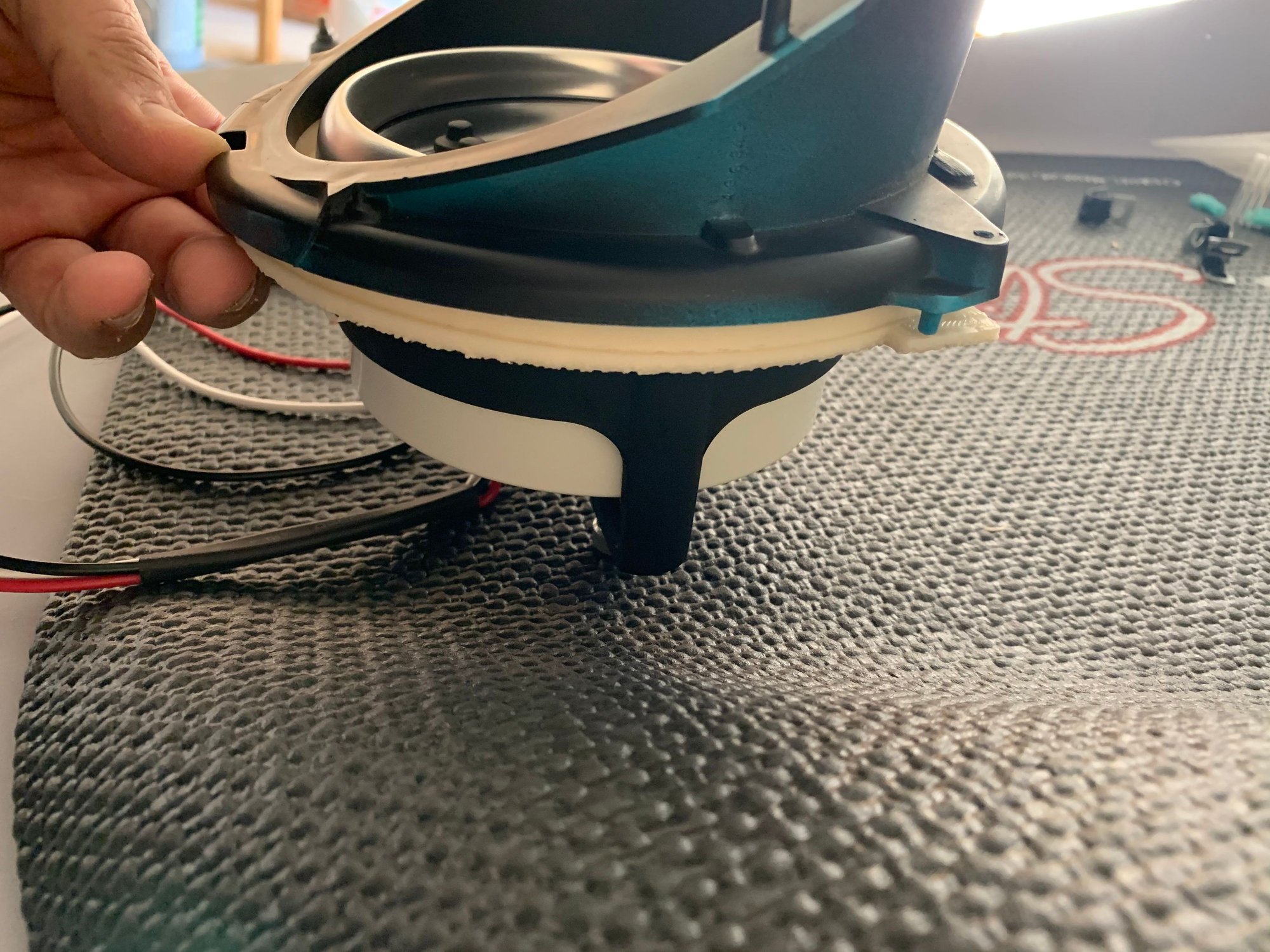

flush and recessed, rearview

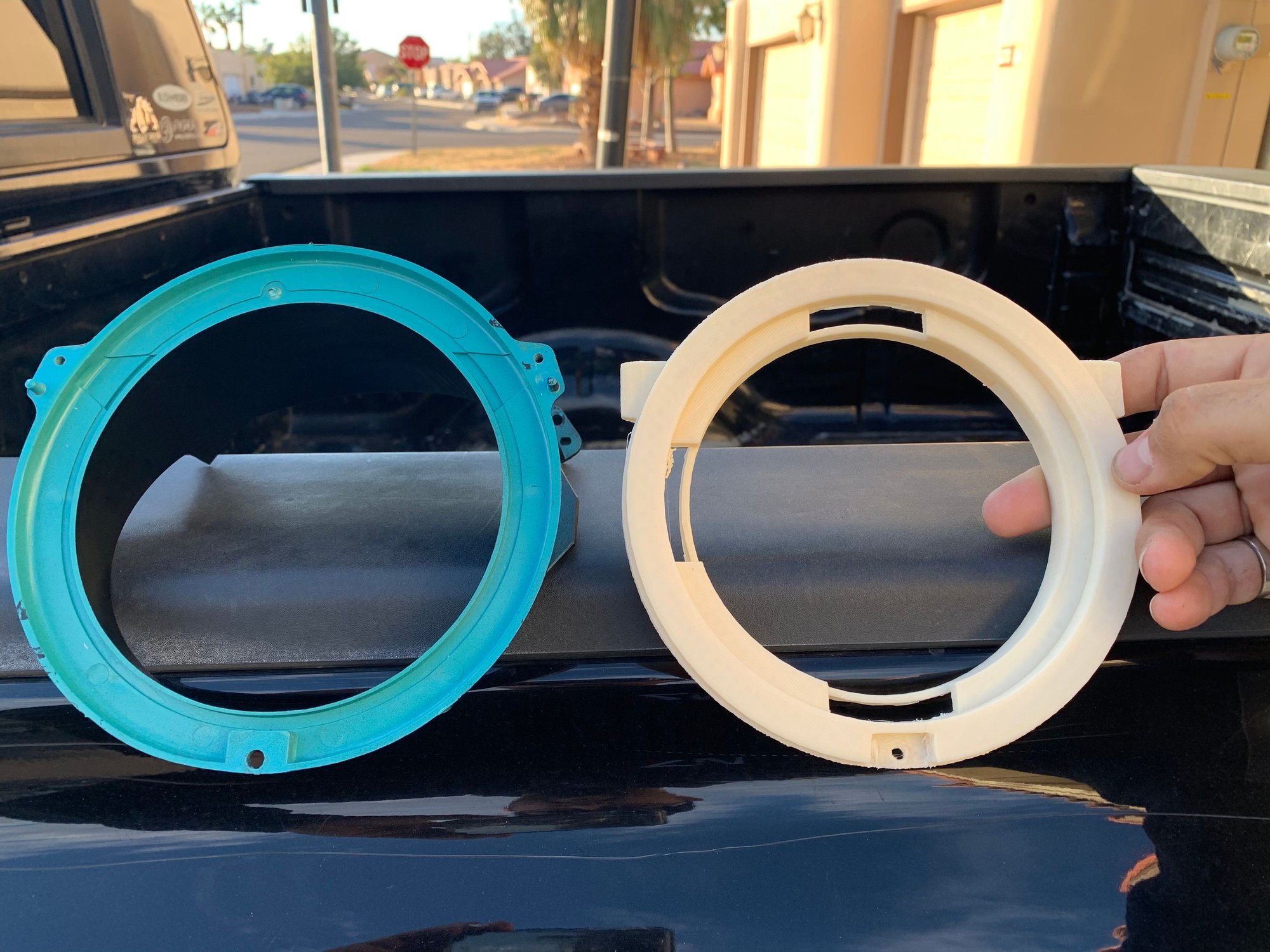

flush front view, keyed into stock gauge cover

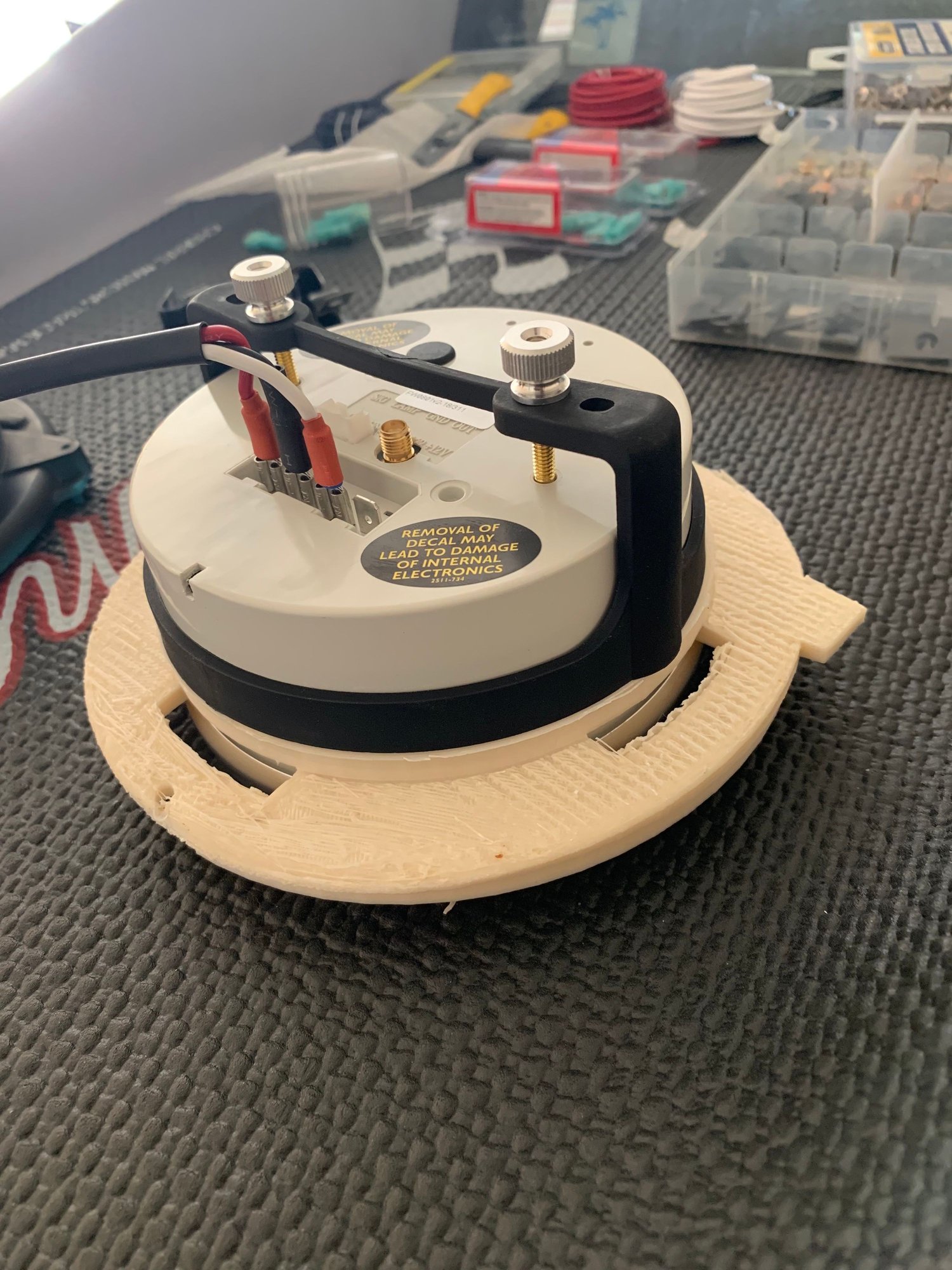

rear fitment of new gauge into prototype bezel
front view, snug and centered

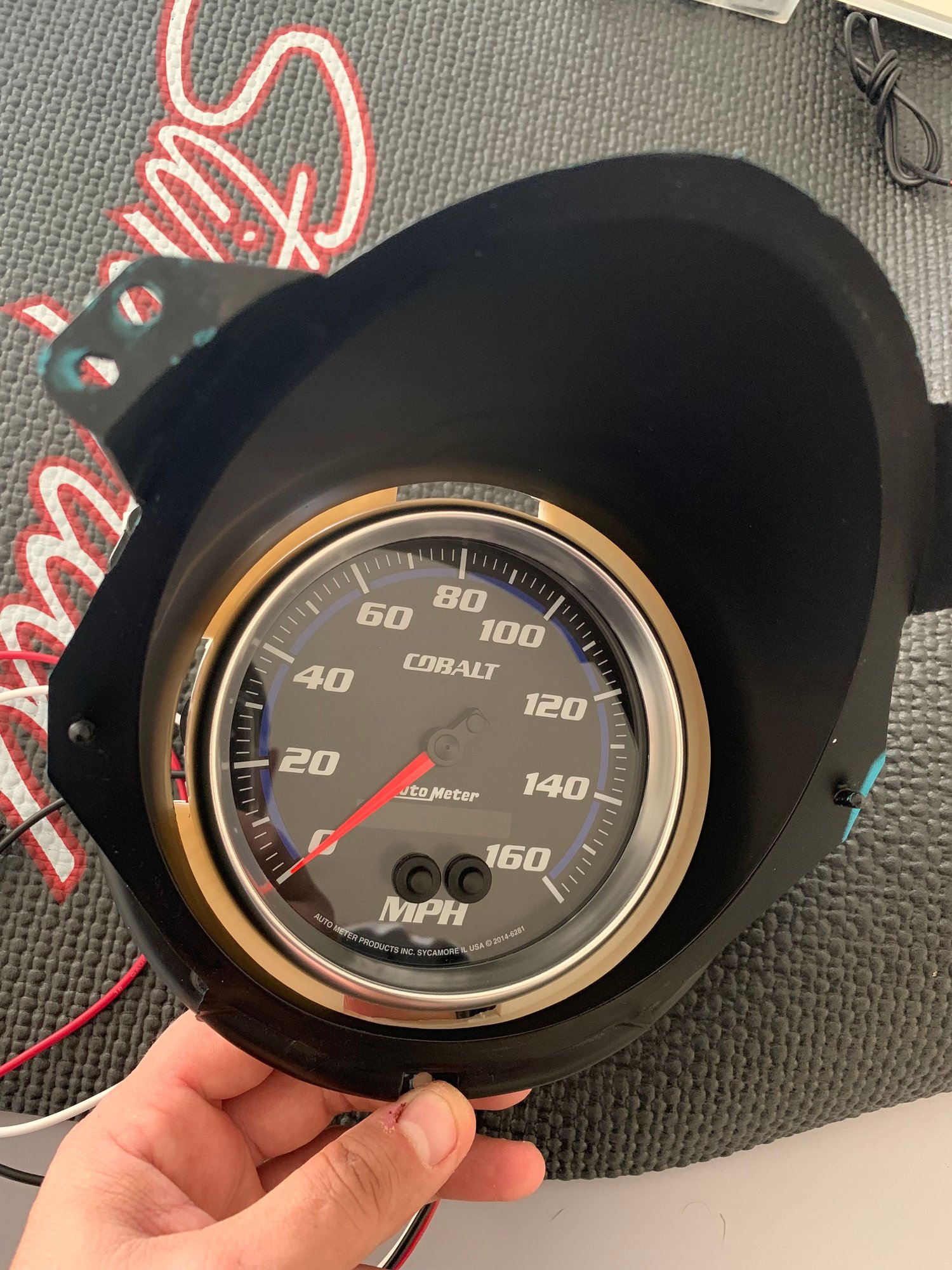

mounted in stock gauge, recessed to fit and centered
3 open tabs on the edges will be for left signal (left, green), parking brake warning light (upper, red), and highbeam indicator light (upper, blue)
full bezel fitment side view
hot off the printer.
keyed tab at bottom and tabs need drilling but fits into recessed perfectly
flush and recessed, rearview
flush front view, keyed into stock gauge cover
rear fitment of new gauge into prototype bezel
front view, snug and centered
mounted in stock gauge, recessed to fit and centered
3 open tabs on the edges will be for left signal (left, green), parking brake warning light (upper, red), and highbeam indicator light (upper, blue)
full bezel fitment side view
