Fuel Gauge Oddity?

My fuel gauge has not worked since I bought the car. I was attempting a stereo install and had the gauge cluster out and thought I'd check the gauge out. So, armed with the Wilcox printout on how to check the gauge, I noticed this:

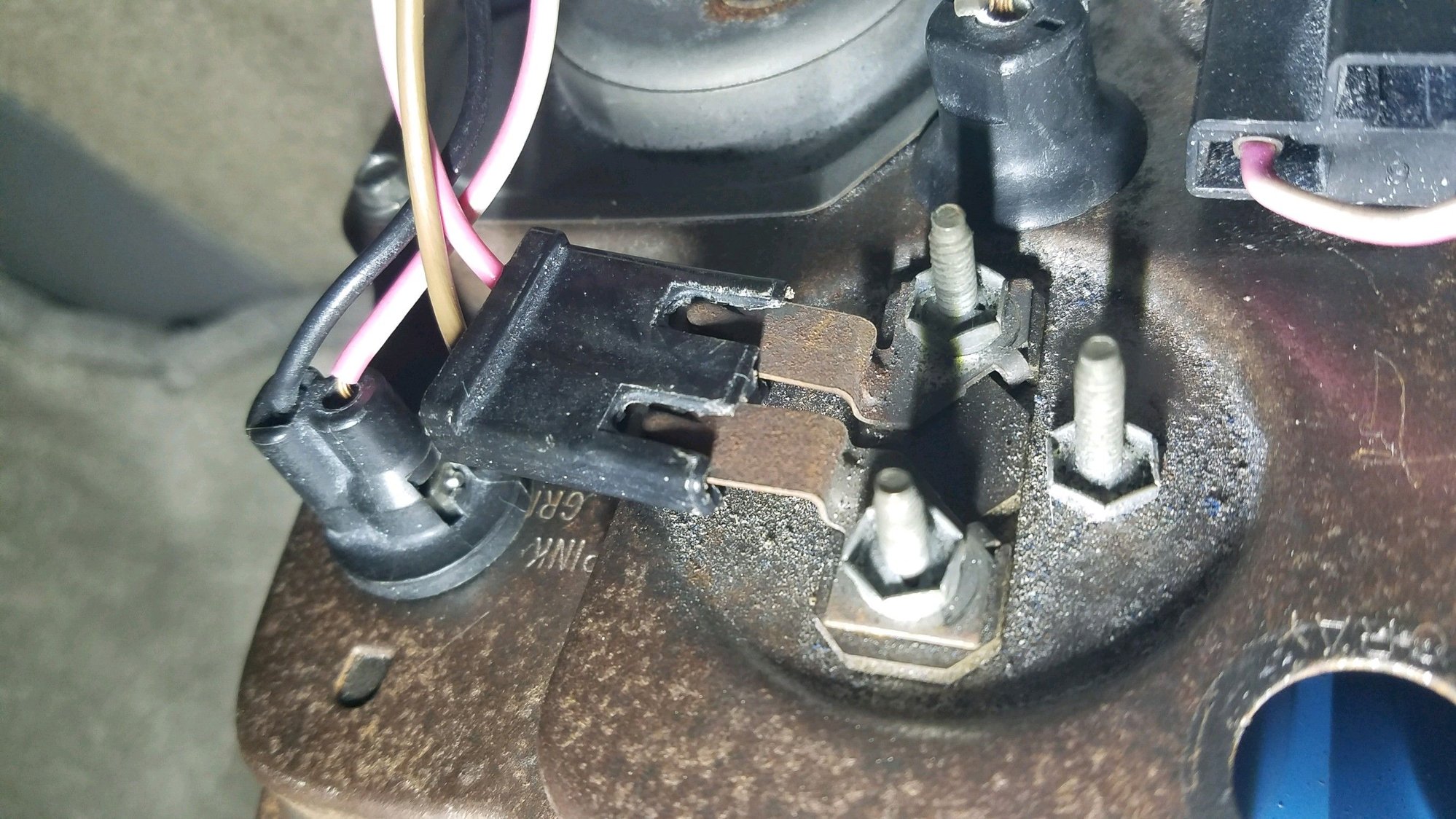

Fuel Gauge

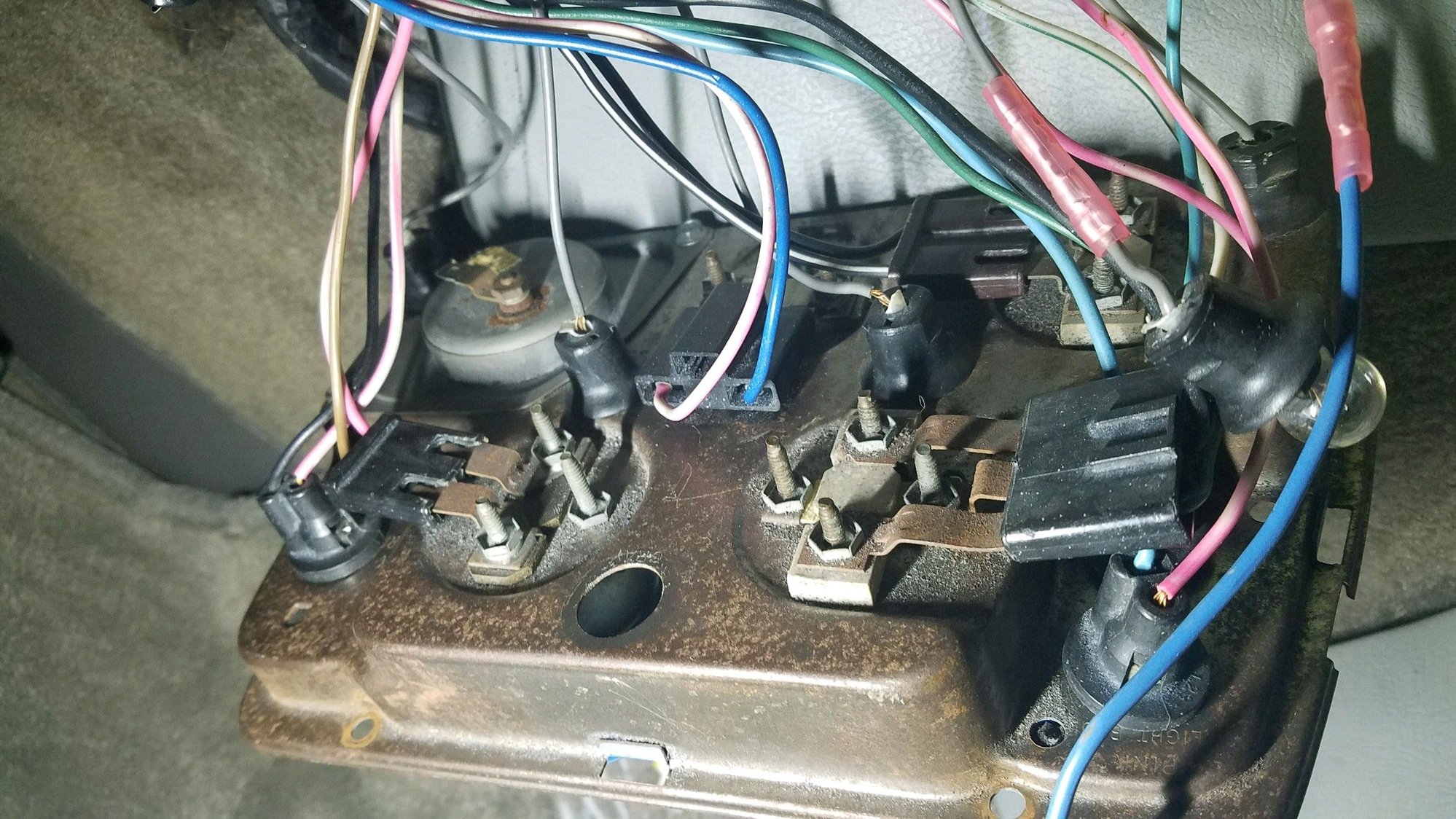

Back of the entire cluster

I was completely confused when I did not see a 3rd wire.... am I simply missing a ground wire? I know the connection tabs need cleaning up, but my first thought is I am missing the 3rd wire, and I'm thinking ground. Also, note there is no resistor so it appears to be a newer gauge. Help!

Oct 16, 2019 | 09:51 AM

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,169

Likes: 9,296

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

What year is your car

Oct 16, 2019 | 02:43 PM

C3_DH

Thread Starter

Racer

Joined: Jan 2019

Posts: 360

Likes: 147

1976

Oct 16, 2019 | 05:39 PM

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,169

Likes: 9,296

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

http://repairs.willcoxcorvette.com/category/fuel-gauge-info/

If you scroll down you'll find the 76 info.
gauge assembly, gauge testing and wiring which looks correct in your picture

the whole gauge console acts as the ground. I had to run a seperate grouund from the bezel to the dash birdcage frame

Last edited by Rescue Rogers; Oct 16, 2019 at 05:49 PM.

Oct 17, 2019 | 10:53 AM

C3_DH

Thread Starter

Racer

Joined: Jan 2019

Posts: 360

Likes: 147

Thanks, you "rescued" this thread...lol. I have a copy of something from Wilcox, but not what you link.
