C4 Tech/Performance L98 Corvette and LT1 Corvette Technical Info, Internal Engine, External Engine

Bolt sizes in FSM


Old 05-06-2019, 05:50 PM
  #1
az_camaro
Junior Member
Thread Starter

az_camaro's Avatar

Member Since: Aug 2008
Location: Glendale AZ
Posts: 43
Received 1 Like on 1 Post
Default Bolt sizes in FSM

Where in the Factory Service Manual does it refer to the bolt size used for a specific application/part install?
I'm trying to put my car back together after the person who took it apart just dumped the bolts in a Rubbermaid tub all mixed together.
All help appreciated!!!!
az_camaro is offline
Old 05-06-2019, 08:47 PM
  #2
1971chevroletnova
Junior Member

Member Since: Dec 2018
Location: North Port, FL
Posts: 9
Likes: 0
Received 1 Like on 1 Post
Default

good luck! mine in PDF format only shows "bolt" seems to be a mix of metric and US on the engine at least
1971chevroletnova is offline
Old 05-07-2019, 02:59 PM
  #3
ctmccloskey
CF Senior Member
Support Corvetteforum!

Member Since: May 2001
Location: Fairfax Virginia
Posts: 798
Received 176 Likes on 154 Posts
Default

That is good information to know! Thank you ihatebarkingdogs!

I used to have a couple early 1960's British motorcycles that used Wentworth Threads (sp?) I used to have three tools sets to be able to work on my early British Toys. Then I learned about Lucas, The Prince of darkness and his connection with British Engineers and gave up on British cars and motorcycles.

In the assembly manual they list out the bolts used where and when. I have always wondered why they don't make any assembly manuals for the C4 Corvettes. They are very handy.

Best Regards!
Chris
ctmccloskey is offline
Old 05-08-2019, 08:30 AM
  #4
Randy M
CF Senior Member
Support Corvetteforum!

Randy M's Avatar

Member Since: Sep 2017
Location: Stoughton Wisconsin
Posts: 238
Received 29 Likes on 28 Posts
Default

Chris,

I agree, it would be nice to have an assembly manual for the C4. Unfortunately the C3 was the last assembly manuals they offered.
Randy M is offline
The following users liked this post:
ctmccloskey (05-08-2019)
Old 05-08-2019, 09:14 AM
  #5
NavAir
CF Senior Member

NavAir's Avatar

Member Since: Apr 2016
Location: San Antonio TX
Posts: 139
Received 11 Likes on 10 Posts
Default

Originally Posted by ctmccloskey View Post
I have always wondered why they don't make any assembly manuals for the C4 Corvettes. They are very handy.
Probably because the manufacturer wanted to discourage non-dealer mechanics (including DIYs) from sourcing fasteners from suppliers other than the (way overpriced) dealers. If you needed to get a part, you would go to the dealer, who would look it up in the parts manual, and order by part number (not SAE or DIN designation).
NavAir is offline
Old 05-08-2019, 02:11 PM
  #6
Randy M
CF Senior Member
Support Corvetteforum!

Randy M's Avatar

Member Since: Sep 2017
Location: Stoughton Wisconsin
Posts: 238
Received 29 Likes on 28 Posts
Default

Well, I am thinking that, no assembly manuals, and assembly manuals that exist and are not available for us to buy is kinda the same thing.
Randy M is offline
Old 05-10-2019, 07:41 PM
  #7
az_camaro
Junior Member
Thread Starter

az_camaro's Avatar

Member Since: Aug 2008
Location: Glendale AZ
Posts: 43
Received 1 Like on 1 Post
Default

Thank you for the responses. Knowledge is a powerful thing
az_camaro is offline
Old 05-13-2019, 08:02 PM
  #8
Joe C
CF Senior Member

Member Since: Aug 2000
Posts: 10,845
Received 518 Likes on 451 Posts
Default

Originally Posted by az_camaro View Post
Where in the Factory Service Manual does it refer to the bolt size used for a specific application/part install?
I'm trying to put my car back together after the person who took it apart just dumped the bolts in a Rubbermaid tub all mixed together.
All help appreciated!!!!

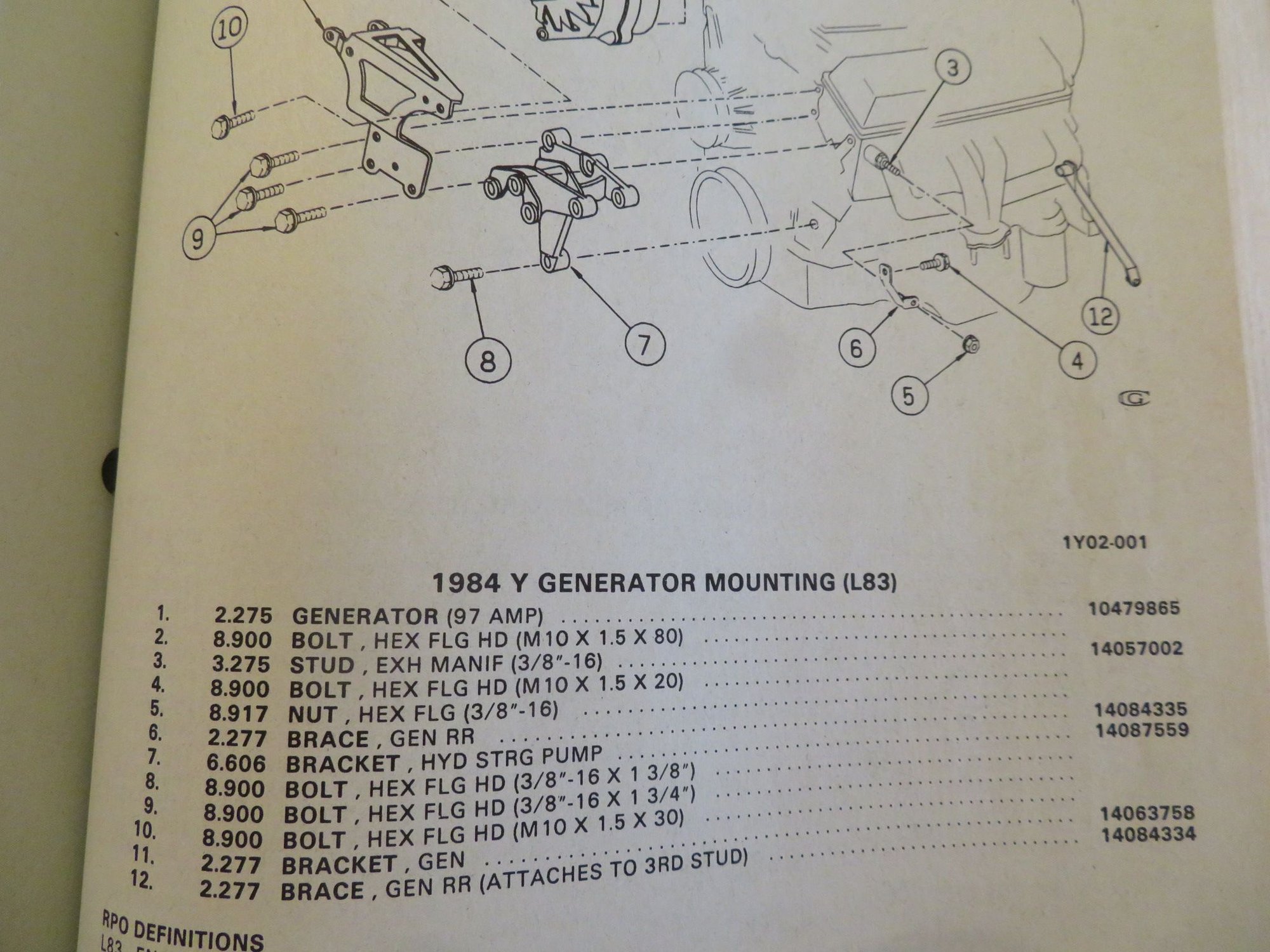

in most cases, the factory parts and illustration manual, will list the specs of the hardware. here's a simple case showing the alternator mounting for a 1984, L83 corvette. in addition to the FSM, parts manuals are a must have. some of the abbreviations in the description can be a bit challenging at times. hard copies are available thru 1993 (last printing), 94-96 (i'm thinking) on-line .pdf.



note mixture of unified national thread and metric.

.

Last edited by Joe C; 05-14-2019 at 06:31 AM.
Joe C is offline
Old 05-14-2019, 05:35 AM
  #9
Joe C
CF Senior Member

Member Since: Aug 2000
Posts: 10,845
Received 518 Likes on 451 Posts
Default

Originally Posted by 1971chevroletnova View Post
good luck! mine in PDF format only shows "bolt" seems to be a mix of metric and US on the engine at least
engines (long blocks) are assembled in national fractional. anything that bolts to the engine, e.g., accessories, will be metric.

Originally Posted by ctmccloskey View Post
That is good information to know! Thank you ihatebarkingdogs!

I used to have a couple early 1960's British motorcycles that used Wentworth Threads (sp?) I used to have three tools sets to be able to work on my early British Toys. Then I learned about Lucas, The Prince of darkness and his connection with British Engineers and gave up on British cars and motorcycles.

In the assembly manual they list out the bolts used where and when. I have always wondered why they don't make any assembly manuals for the C4 Corvettes. They are very handy.

Best Regards!
Chris
"whitworth" - major difference between national and british whitworth is the thread profile - in most cases unified national hardware will have a "V" cut @ 60 thread, whereas, whitworth are smooth cut at 55. I have an old 74 Norton Commando 850 - in a pinch and in non-critical applications, I've swapped out whitworth for national. they seem to torque OK, however, I only do this if it's my only option, and always with blue thread locker.

https://www.rustmag.com/gear/2018/1/...thread-systems


Originally Posted by NavAir View Post
Probably because the manufacturer wanted to discourage non-dealer mechanics (including DIYs) from sourcing fasteners from suppliers other than the (way overpriced) dealers. If you needed to get a part, you would go to the dealer, who would look it up in the parts manual, and order by part number (not SAE or DIN designation).
only partially true - see my post on the parts and illustration -

speaking of other suppliers, I've purchased small quantities from the Bolt Barn - they are fleabay vendors/sellers. stuff appears to be decent quality, along with decent pricing. here's an example -

https://www.ebay.com/itm/5-M10-1-5x3...IAAMXQgb1RP9LZ


Last edited by Joe C; 05-14-2019 at 07:29 AM.
