1985 C4 LQ4/4L60E conversion
Melting Slicks
Joined: Mar 2016
Posts: 2,778
Likes: 580
From: Langley BC
Nice work, you got it wired up FAST!
Btw, I talked to Dakota Digital's tech and he said only one SG1-100BT box is required for both the tach and speedo. They have them in stock right now too. Mine just shipped on Friday.
Btw, I talked to Dakota Digital's tech and he said only one SG1-100BT box is required for both the tach and speedo. They have them in stock right now too. Mine just shipped on Friday.
Thread Starter
Racer
Joined: Jan 2013
Posts: 403
Likes: 87
From: Cincinnati OH
Thanks, I planned out all the connections in advance and triple and quadruple checked them. I hate having electrical issues so I hope I did it all right. I'm seriously close to starting it up, but will be on vacation next week. Hoping by the end of the month.....
Melting Slicks
Joined: Mar 2016
Posts: 2,778
Likes: 580
From: Langley BC
Well vacations are important too, hope yours is a fun one. I'm on vaction now also. If i hadn't been away I would have helped my buddy at the shop pull my engine + trans out yesterday as he wanted a second set of hands to do it. We still have to paint/PC all the mounts and fabbed pieces before putting everything back together the final time and wiring it all, but it will have to wait until after he comes back from having a baby now.
Can't wait to see you get your started! Its going to be awesome.
Can't wait to see you get your started! Its going to be awesome.
Thread Starter
Racer
Joined: Jan 2013
Posts: 403
Likes: 87
From: Cincinnati OH
I got my custom 4 corner steam vent system installed this week. Also recieved the correct starter relay plug so I hope to install that after vacation. AND need to figure out where to run another vacuum for the holley map sensor. Or configure the software to use an external map sensor. The wiring harness is set up for one and ive plugged the ls2 port with a used one. But I'm willing to bet the built in holley sensor is more accurate than anything else. You guys have thoughts?
Burning Brakes
Joined: Nov 2015
Posts: 762
Likes: 94
From: Airdrie Alberta
Hey Bandit buddy, you get your car done? You putting a ton of miles in? Just re-read the thread some and noticed that you are running a vapor/steam line to your heater diverter valve. Just throwing this out there but I ran mine into the top rad hose coming off the thermostat. I've also seen people tap a line into the top of the thermostat housing.
Its awesome that you got your AC on, curious on how its been working for you. I just drive my car with the top off and it hasn't been above 70 deg's here yet, so AC isn't really needed yet.
Its awesome that you got your AC on, curious on how its been working for you. I just drive my car with the top off and it hasn't been above 70 deg's here yet, so AC isn't really needed yet.
Thread Starter
Racer
Joined: Jan 2013
Posts: 403
Likes: 87
From: Cincinnati OH
Hey Bandit buddy, you get your car done? You putting a ton of miles in? Just re-read the thread some and noticed that you are running a vapor/steam line to your heater diverter valve. Just throwing this out there but I ran mine into the top rad hose coming off the thermostat. I've also seen people tap a line into the top of the thermostat housing.
Its awesome that you got your AC on, curious on how its been working for you. I just drive my car with the top off and it hasn't been above 70 deg's here yet, so AC isn't really needed yet.
Its awesome that you got your AC on, curious on how its been working for you. I just drive my car with the top off and it hasn't been above 70 deg's here yet, so AC isn't really needed yet.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Every 2027 Corvette Engine Explained
Joe Kucinski
Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette
Verdad Gallardo
10 Ugly Corvettes That We Still Kinda Love
Joe Kucinski
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Burning Brakes
Joined: Nov 2015
Posts: 762
Likes: 94
From: Airdrie Alberta
Your wiring harness quality looks outstanding. I'm pretty impressed, My fast harness is the worst and I can't believe that they would sell it in that fashion. Have an awesome holiday buddy, thanks for responding.
Thread Starter
Racer
Joined: Jan 2013
Posts: 403
Likes: 87
From: Cincinnati OH
Well I'm back from a full week in Hilton Head SC and 2 days in Pigeon Forge TN. It was great to be at the beach and eat lots of seafood. I am off work tomorrow and am going to get after it as much as possible. Things to achieve tomorrow:
Torque convertor bolts
Starter & solder in new pigtail
Transmission cooler lines
Permanent trans dipstick mount
If more time allows I'll be going after the intake install. I need to install a hose fitting in the intake to install a vacuum hose that goes to the holley map sensor which is located in the original computers location (which means a vacuum hose into the cockpit). The holley wiring harness has a connection for an external map sensor, and the wiring reaches the front of the dorman LS2 intake where the original map would be located. I am going to install a map sensor I had laying around, onto the intake to plug the hole, but it will be modified so that the actual electrical connection is not made. This way the holley wiring connection will look correct and there won't be a weatherpak connection dangling around in the engine compartment. I could cut it off and tape off where it exits the harness but I don't want to do that just yet. Options......
Torque convertor bolts
Starter & solder in new pigtail
Transmission cooler lines
Permanent trans dipstick mount
If more time allows I'll be going after the intake install. I need to install a hose fitting in the intake to install a vacuum hose that goes to the holley map sensor which is located in the original computers location (which means a vacuum hose into the cockpit). The holley wiring harness has a connection for an external map sensor, and the wiring reaches the front of the dorman LS2 intake where the original map would be located. I am going to install a map sensor I had laying around, onto the intake to plug the hole, but it will be modified so that the actual electrical connection is not made. This way the holley wiring connection will look correct and there won't be a weatherpak connection dangling around in the engine compartment. I could cut it off and tape off where it exits the harness but I don't want to do that just yet. Options......
Thread Starter
Racer
Joined: Jan 2013
Posts: 403
Likes: 87
From: Cincinnati OH

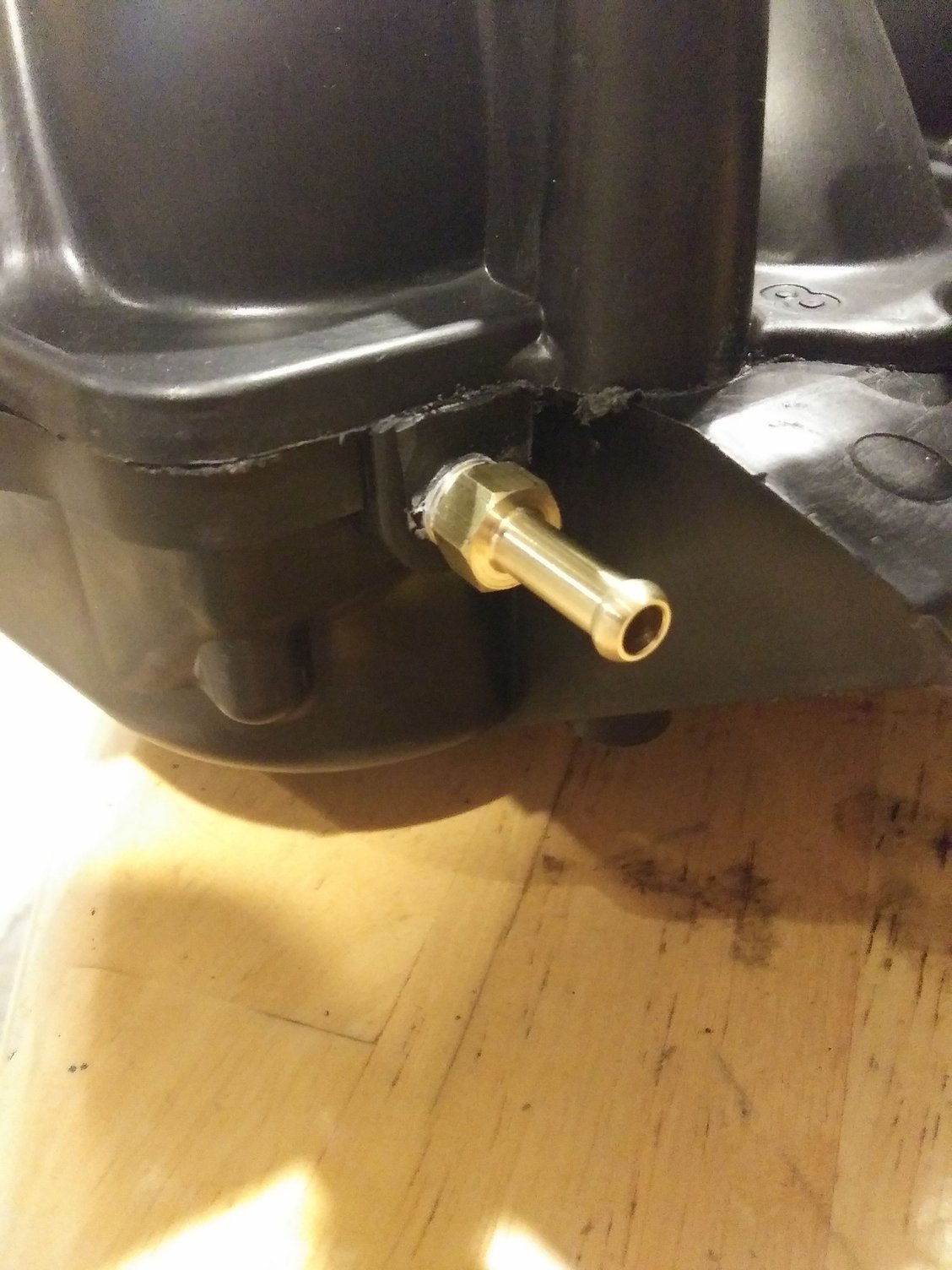

I was able to get the first 3 items accomplished although my flaring tool screwed up the end that goes to the top of the radiator. For the moment I'll just use a hose barb at the radiator and 4 clamp a piece of rubber hose to the cooling line and hose barb. Also drilled and tapped for 1/8" NPT on the back of the intake for a 1/4" hose barb; there is a small screw that you remove and just drill it out. Easy work on a plastic intake. This will feed the MAP sensor located on the Holley ECU. Ran that hose and hooked it up to the ECU. Also discovered that the power brake vacuum barb built into the intake is more like 1/2", not the typical 3/8" that usually feeds a power brake booster. So I took a 1/2" drill and worked the end of a piece of 3/8" rubber hose a little and it does go onto the barb. Must be an LS thing? I'll get some pics later tonight or tomorrow.
