Old 05-11-2018, 10:02 PM   #21
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

OK, here's the deal...the machine shop says they are super busy and won't be able to start on them for 3-4 weeks. I also found out that they wouldn't be able to mill any sharp corners on the lettering, it would end up being rounded. So I nixed that plan and went to a friend of mine who does laser engraving and today he got a sample done for me. Wow, it looks awesome! So that's what I'm going with. He should be finished with the lot of 25 pcs. by Monday, and I'll find out how much the cost will be....I'm thinking it will be less than expected. I've got the sample here but I was experimenting with a red marker and some red engine paint to see what looked best as I wanted mine to have red lettering, but most of you will probably want just the untouched aluminum color I'm guessing.

Stay tuned!

Last edited by ZeeAreOne94; 05-11-2018 at 10:03 PM.
ZeeAreOne94 is offline   Reply With Quote
Old 05-14-2018, 09:01 PM   #22
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

Yay, they are finally done. I want to paint the lettering with red engine paint on mine. Second photo shows a test I did using a red "Sharpie" on the "L", and red engine paint on the "1". The sharpie gave it sort of an anodized look. These were lasered with the special adhesive-backed masking paper applied, shown in last photo, which leaves an absolutely perfect stencil, ready for painting if so desired.
Attached Images

ZeeAreOne94 is offline   Reply With Quote
Old 05-14-2018, 09:17 PM   #23
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

Was able to keep the total cost down to under $20. Price with shipping is $17.94 to members of the forum. Any unsold ones will be sold on the 'Bay for around $25.
Cheers!
Jon
ZeeAreOne94 is offline   Reply With Quote
Old 05-14-2018, 09:28 PM   #24
Torchred Vette
CF Member

Member Since: Jul 2012
Posts: 64
Thanked 3 Times in 3 Posts
Default

PM sent
Torchred Vette is offline   Reply With Quote
Old 05-14-2018, 09:40 PM   #25
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

Yes, Paypal is fine.
ZeeAreOne94 is offline   Reply With Quote
Old 05-14-2018, 11:36 PM   #26
wizardlen
Junior Member

Member Since: Feb 2017
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Default Next Step?

Quote:
Originally Posted by ZeeAreOne94 View Post
Was able to keep the total cost down to under $20. Price with shipping is $17.94 to members of the forum. Any unsold ones will be sold on the 'Bay for around $25.
Cheers!
Jon
How do I get money to you for one? If PayPal, what name to send to? Perhaps you may want to PM with that...will definitely understand. Ready to get my paws on one of those. They are looking sweet!
wizardlen is offline   Reply With Quote
Old 05-14-2018, 11:57 PM   #27
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

PM sent!

Quote:
Originally Posted by wizardlen View Post
How do I get money to you for one? If PayPal, what name to send to? Perhaps you may want to PM with that...will definitely understand. Ready to get my paws on one of those. They are looking sweet!
ZeeAreOne94 is offline   Reply With Quote
Old 05-15-2018, 06:41 PM   #28
Torchred Vette
CF Member

Member Since: Jul 2012
Posts: 64
Thanked 3 Times in 3 Posts
Default

Payment sent. Thanks !!
Torchred Vette is offline   Reply With Quote
The Following User Says Thank You to Torchred Vette For This Useful Post:
ZeeAreOne94 (05-18-2018)
Old 05-15-2018, 08:48 PM   #29
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

Got it, thank you! Will ship Wednesday morning...you should have it in a few days.

Cheers!
Jon


Quote:
Originally Posted by Torchred Vette View Post
Payment sent. Thanks !!
ZeeAreOne94 is offline   Reply With Quote
Old 05-18-2018, 12:57 AM   #30
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

This is what an original throttle body plate gasket looks like after 24 years. Mine was in pretty rough shape as shown. After a quick cleaning I installed a new gasket and one of these newly made plates, although I had painted the lettering with high temp engine paint. Seems to go well with the intake and engine covers, but then again maybe it's TOO much red?

Have plenty of these plates left, which comes with a new gasket, and it's one of the quickest and easiest upgrades you can do to your Vette.

Cheers!
Jon
Attached Images

ZeeAreOne94 is offline   Reply With Quote
Old 05-18-2018, 05:37 PM   #31
wizardlen
Junior Member

Member Since: Feb 2017
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Default

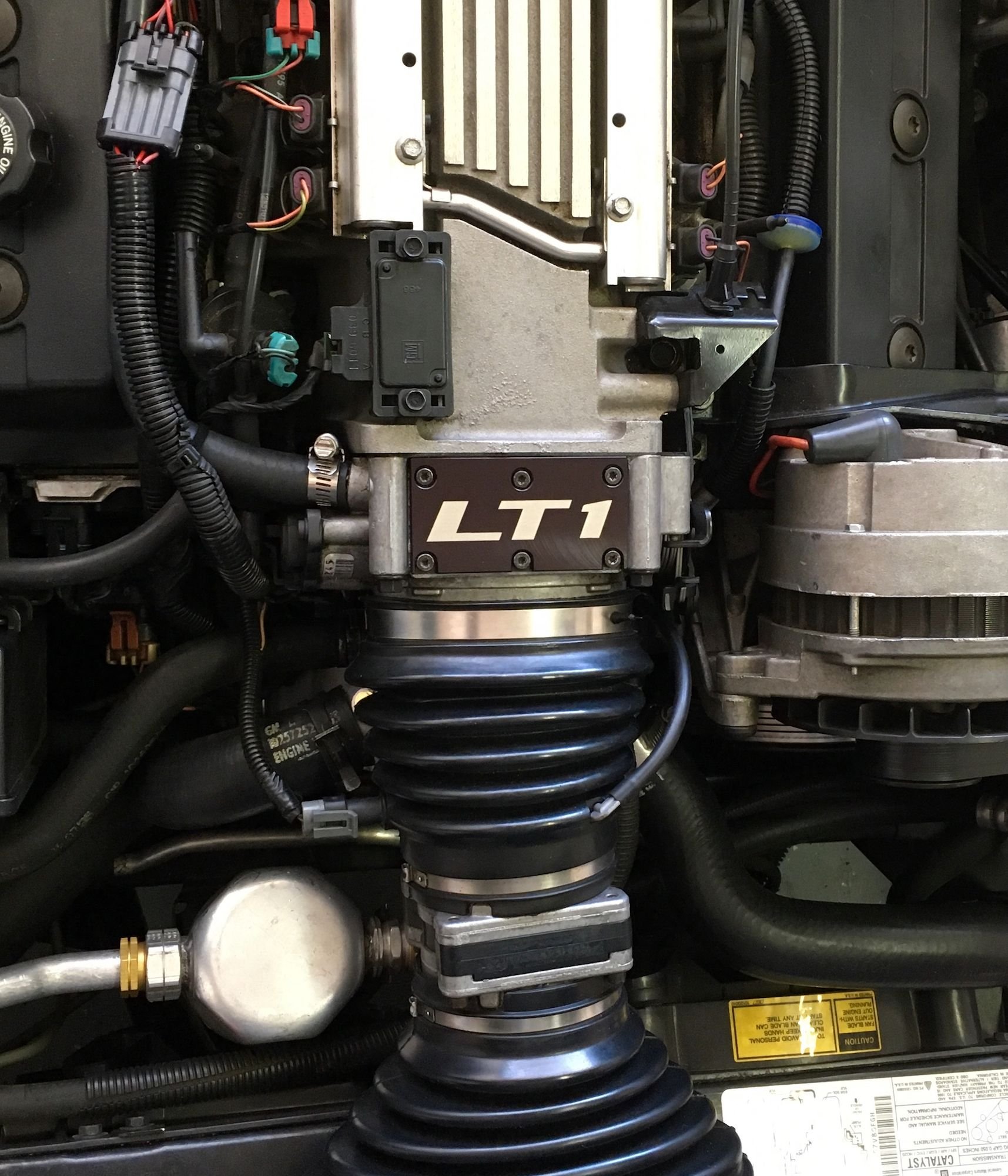

I decided to install mine just as it arrived. I figured the black would look good and I think it does. Am very pleased. Thanks for your efforts!
wizardlen is offline   Reply With Quote
The Following User Says Thank You to wizardlen For This Useful Post:
ZeeAreOne94 (05-18-2018)
Old 05-18-2018, 09:23 PM   #32
ZeeAreOne94
CF Member
Thread Starter

ZeeAreOne94's Avatar

Member Since: Oct 2015
Posts: 56
Thanked 6 Times in 5 Posts
C4 of Month Finalist 2016
Default

Glad you liked it Len. Thanks again for the purchase!

Jon
