Headlight gear fix (highly pictorialized)

Reply




Old 08-18-2013, 08:55 PM
  #161
sebvegas
Junior Member

Member Since: May 2013
Posts: 41
Thanks: 0
Thanked 0 Times in 0 Posts
Default

This is a great "how to" thread, and again, thank you very much, it helped me a lot to replace mine.
But I have a question though " despite everything works just fine and quietly, I can hear a little "bump noise" when the headlight closes.

Any idea anyone ?
thanks
sebvegas is offline
Reply With Quote
Old 11-18-2013, 08:33 PM
  #162
ScumOne
CF Senior Member

Member Since: May 2013
Location: Whittier California
Posts: 409
Thanks: 0
Thanked 4 Times in 4 Posts
Default

Thanks to Patches, and the others for tips/hints. My 04 CE got fixed up today but I got one of my mechanically inclined friends (with smaller hands than mine!) to help.

I ordered the complete set of bumper stops and metal gears for both lights from Rodney Dickman, they worked like a champ (included the T bracket and washers) on mine.

I was glad I did, when I opened the driver's side (which worked) there were bits of plastic already flaking off the gear, so it wouldn't have been long before that one took a dump and I'd be doing this all over again.

So thanks again, Patches, for the great write up!

Jim (no longer a one-eyed bandit in So Cal)

Last edited by ScumOne; 11-19-2013 at 09:01 AM.
ScumOne is offline
Reply With Quote
Old 02-25-2014, 11:32 AM
  #163
Pseudomind
CF Senior Member

Pseudomind's Avatar

Member Since: Jan 2006
Location: Jacksonville Florida
Posts: 802
Thanks: 0
Thanked 0 Times in 0 Posts
Default

A couple of questions for T-Bar Install and headlight removal?

These are very good instructions by the way. Patches did an excellent job. I copied and printed them and have perused them a number of times.

1. Where exactly does the round white washer go when installing the T-Bar does it go between the T-Bar and motor cover? Where does it belong? I have seen no instructions which explain anything about this washer

2. Why has no one mentioned about just removing the top two headlight swivel screws and then just setting the headlight down inside the front well. With mine (2002 Convertible) once the actuator arm is disconnected and the headlight connections disconnected you can take the complete headlight assembly out. Look at this Youtube video

I got my brass kit from "Top Down Solutions" and it comes with a new rubber inside bushing with the gear, grease and the epoxy. I did as recommended and clamped and cured for 24 hours.

I still have not however been able to find out where the white washer included goes?

I will add this as well with the headlight up as you know you can turn the headlight control back half way and kill the lights. I did this then disconnected the battery. Once I had the assembly out I reconnected the battery and turned the lights to off. When I was ready to put my repaired assembly back in, I turned the headlight back on to raise the drivers side, obviously I wanted both lights to full upturned the headlight back to half off and then disconnected the battery again.

I would recommend before you reinstall the black bezel you complete all the assemble, reconnect the battery and lower the hood. I had to readjust the inside headlight cover screw, which you cannot do with the bezel on.

When you pull the motor note the actuator rods flat surface location. I marked mind with a china pin. When I put mind back in the flat side was off just a tad, so I removed the motors rubber cap and adjusted it back to the alignment then reattached the actuator rod

Last edited by Pseudomind; 02-26-2014 at 10:25 AM.
Pseudomind is offline
Reply With Quote
Old 09-27-2014, 08:40 AM
  #164
vets2vette
Junior Member

vets2vette's Avatar

Member Since: Feb 2011
Location: Fayetteville NC
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks Ed! I just finished with my gear swap, oh yeah, I tied a shoe lace to my ratchet wrench and secured it to the hood bumpers, so I was able to fish it out every time I dropped the @#!$ thing.
vets2vette is offline
Reply With Quote
Old 10-29-2014, 05:29 PM
  #165
NJD
CF Member

Member Since: Feb 2013
Location: CA
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Ok, I replace my drive side motor completely. However, when I turn of the lights, the drive side head light will close, but then raise up again and stay in that position. Do you have any tips?

Thanks
NJD is offline
Reply With Quote
Old 10-29-2014, 09:27 PM
  #166
Bill Curlee
Tech Contributor
Support Corvetteforum!

Bill Curlee's Avatar

Member Since: Jun 2001
Location: Gales Ferry CT
Posts: 30,250
Thanked 1,099 Times in 878 Posts
CI 6,7,8,9,11 Vet
St. Jude Donor '08
Default

Originally Posted by NJD View Post
Ok, I replace my drive side motor completely. However, when I turn of the lights, the drive side head light will close, but then raise up again and stay in that position. Do you have any tips?


There are white plastic stops that the headlight stop against. See if they are cracked or missing. There are replacements that you can purchase from GM.

They Item #4 in the picture and they come in a kit with the spacers:



Bill
Thanks
There are white plastic stops that the headlight stop against. See if they are cracked or missing. There are replacements that you can purchase from GM.

They Item #4 in the picture and they come in a kit with the spacers:



Bill
Bill Curlee is offline
Reply With Quote
Old 12-01-2014, 10:34 AM
  #167
rsl2715
CF Senior Member

Member Since: Feb 2013
Location: Desoto Texas
Posts: 518
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Yep,my next project,parts on order new motors,also going with the brass gears.R
rsl2715 is offline
Reply With Quote
Old 12-30-2014, 12:30 AM
  #168
GCG
CF Senior Member

GCG's Avatar

Member Since: Jan 2009
Location: Miami FL
Posts: 1,652
Thanked 208 Times in 187 Posts
Default

Originally Posted by Patches View Post
...I clamped the cover snugly to maintain pressure while the adhesive cured overnight. I used the remaining adhesive to form a bead around the outside of the case/cover interface.


The next morning, I removed the clamps and checked for a good bond...
What's the size of the C-Clamps you used?
GCG is offline
Reply With Quote
Old 12-30-2014, 12:23 PM
  #169
Patches
CF Senior Member
Support Corvetteforum!
Thread Starter

Patches's Avatar

Member Since: Sep 2001
Location: Lake Elsinore, CA
Posts: 22,928
Thanked 633 Times in 424 Posts
Default

Originally Posted by GCG View Post
What's the size of the C-Clamps you used?
3" C-clamps
Patches is offline
Reply With Quote
Old 12-30-2014, 12:33 PM
  #170
GCG
CF Senior Member

GCG's Avatar

Member Since: Jan 2009
Location: Miami FL
Posts: 1,652
Thanked 208 Times in 187 Posts
Default

Thanks!

Sent from my DROID TURBO XT1254 using IB AutoGroup
GCG is offline
Reply With Quote
Old 06-07-2015, 05:16 PM
  #171
StealthStrike42
CF Senior Member

StealthStrike42's Avatar

Member Since: Apr 2015
Posts: 197
Thanked 6 Times in 6 Posts
Default

Thank you, Patches!

Had the same issue as NJD, was trying to fix it via replacing the bumper stops. The bottom two were badly damaged. When trying to get them back on, one was no problem, second one was a real pain because part of the actuator arm had fallen far enough down to where it was blocking the lip where the new stop needed to go. I was following a YouTube video to try to remove the two screws at the top where the headlight pivots but could not get it off, I didn't have the right tools. Thanks to your guide I was able to remove the nut holding on that arm, move the arm, put on the new stop, and then throw the arm and nut back on and BAM! Problem solved.

Thanks again man
StealthStrike42 is offline
Reply With Quote
Old 12-19-2015, 04:23 PM
  #172
Chief3333
Junior Member

Member Since: Dec 2015
Posts: 2
Thanked 0 Times in 0 Posts
Default C-5 Headlight Repair

The article was well written and the photos were a big help, however, by necessity, I found another quick repair method for these headlight problems. As one author mentioned on this forum, the headlight motor only uses one half of the plastic gear to operate the headlight! Therefore, when you get to the point where you disconnect the linkage from the motor, try "manually" turning the headlight motor until the linkage shaft is 180 degrees from the point where you have removed the linkage. Replace the linkage arm, and you will find that your headlight works normally again!!! There is no need to take the motor off, or pry open the gear box!! It worked for me this morning.
Chief3333 is offline
Reply With Quote
Old 12-19-2015, 05:28 PM
  #173
Pappy11
CF Senior Member

Pappy11's Avatar

Member Since: Aug 2014
Location: Brighton Tennessee
Posts: 741
Thanked 89 Times in 70 Posts
Default

Nice............Thanks...........
Pappy11 is offline
Reply With Quote
Old 12-19-2015, 07:06 PM
  #174
Mr Russ
CF Senior Member

Mr Russ's Avatar

Member Since: Mar 2014
Location: Chandler Arizona
Posts: 191
Thanks: 0
Thanked 2 Times in 2 Posts
Default

@Chief3333,

.....however the other side of the plastic gear will also eventually fail. Take it as a warning to get the brass gears, then do the repair at your leisure.
Mr Russ is offline
Reply With Quote
Old 12-20-2015, 10:43 AM
  #175
hdff
CF Senior Member

hdff's Avatar

Member Since: Jan 2006
Location: pasadena in the great state of TEXAS
Posts: 1,554
Thanked 0 Times in 0 Posts
St. Jude Donor '09-'10-'11-'12-'13-'14-'15-'16-'17
Default

Originally Posted by Chief3333 View Post
The article was well written and the photos were a big help, however, by necessity, I found another quick repair method for these headlight problems. As one author mentioned on this forum, the headlight motor only uses one half of the plastic gear to operate the headlight! Therefore, when you get to the point where you disconnect the linkage from the motor, try "manually" turning the headlight motor until the linkage shaft is 180 degrees from the point where you have removed the linkage. Replace the linkage arm, and you will find that your headlight works normally again!!! There is no need to take the motor off, or pry open the gear box!! It worked for me this morning.
your right but the gear is plastic and now ~15 years old and more brittle so go ahead and buy the gears in the near future and study up on the procedure...
hdff is offline
Reply With Quote
Old 09-18-2017, 12:24 AM
  #176
2001CamaroGuy
CF Senior Member

Member Since: Apr 2002
Location: Phoenix AZ
Posts: 508
Thanked 28 Times in 25 Posts
Default

Still a useful thread. Just fixed mine tonight!
2001CamaroGuy is offline
Reply With Quote
Old 09-18-2017, 07:34 PM
  #177
SDVette
CF Senior Member

SDVette's Avatar

Member Since: Jan 2000
Location: Poway CA
Posts: 3,623
Thanked 220 Times in 176 Posts
2016 C1 of Year Finalist
Default



I just fixed my driver's side motor with a metal gear.
Much thanks to this thread.

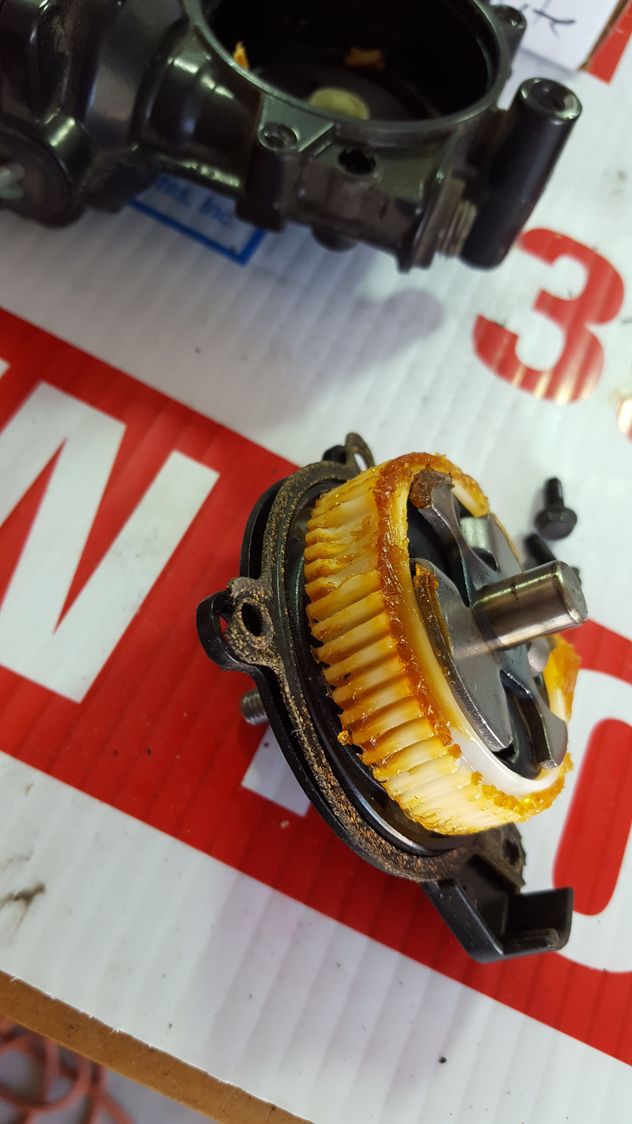

Looks like the grease has caked up and been pushed out of the way... may be the trigger that causes the failure.

One odd thing: I have a 98.. For some reason, 90% of the help and info is for later C5s.
The design is slightly different on the 98 (probably up to 2000).
The motor is not epoxied together - it's held by screws, and there is a gasket.
Also the configuration of the bolts holding the motor in is different - there is only 1 with a nut, the other 2 holes are threaded.

Take care to note the position of bushing and spacers on both sides of the gear... they need to be re-used (at least my kit didn't include new ones)

Fred

Last edited by SDVette; 09-18-2017 at 10:49 PM.
SDVette is offline
Reply With Quote
Old 09-19-2017, 08:10 AM
  #178
CPO Rob
CF Senior Member

CPO Rob's Avatar

Member Since: Jul 2017
Location: Barnegat NJ
Posts: 171
Thanked 39 Times in 17 Posts
Default

Great Post. This is a keeper for sure
CPO Rob is offline
Reply With Quote
Old 09-19-2017, 08:39 AM
  #179
C52002Vert
CF Senior Member

C52002Vert's Avatar

Member Since: Sep 2016
Location: O'Neill (Home of St. Pat's Weekend) NE
Posts: 135
Thanked 20 Times in 19 Posts
Default

C52002Vert is offline
Reply With Quote
Old 09-23-2017, 11:21 PM
  #180
corvet786c
CF Senior Member

corvet786c's Avatar

Member Since: Sep 2007
Location: Port St Lucie Florida
Posts: 1,586
Thanked 19 Times in 17 Posts
Default

In Rodney's kit, where do the small rubber o-ring go? The ones with the metal T in same bag?
corvet786c is offline
Reply With Quote
