Old 04-13-2019, 09:59 PM
  #21
lewislgZ06
CF Senior Member

lewislgZ06's Avatar

Member Since: Aug 2015
Location: Cunningham TN
Posts: 947
Received 169 Likes on 152 Posts
St. Jude Donor '18-'19
Default

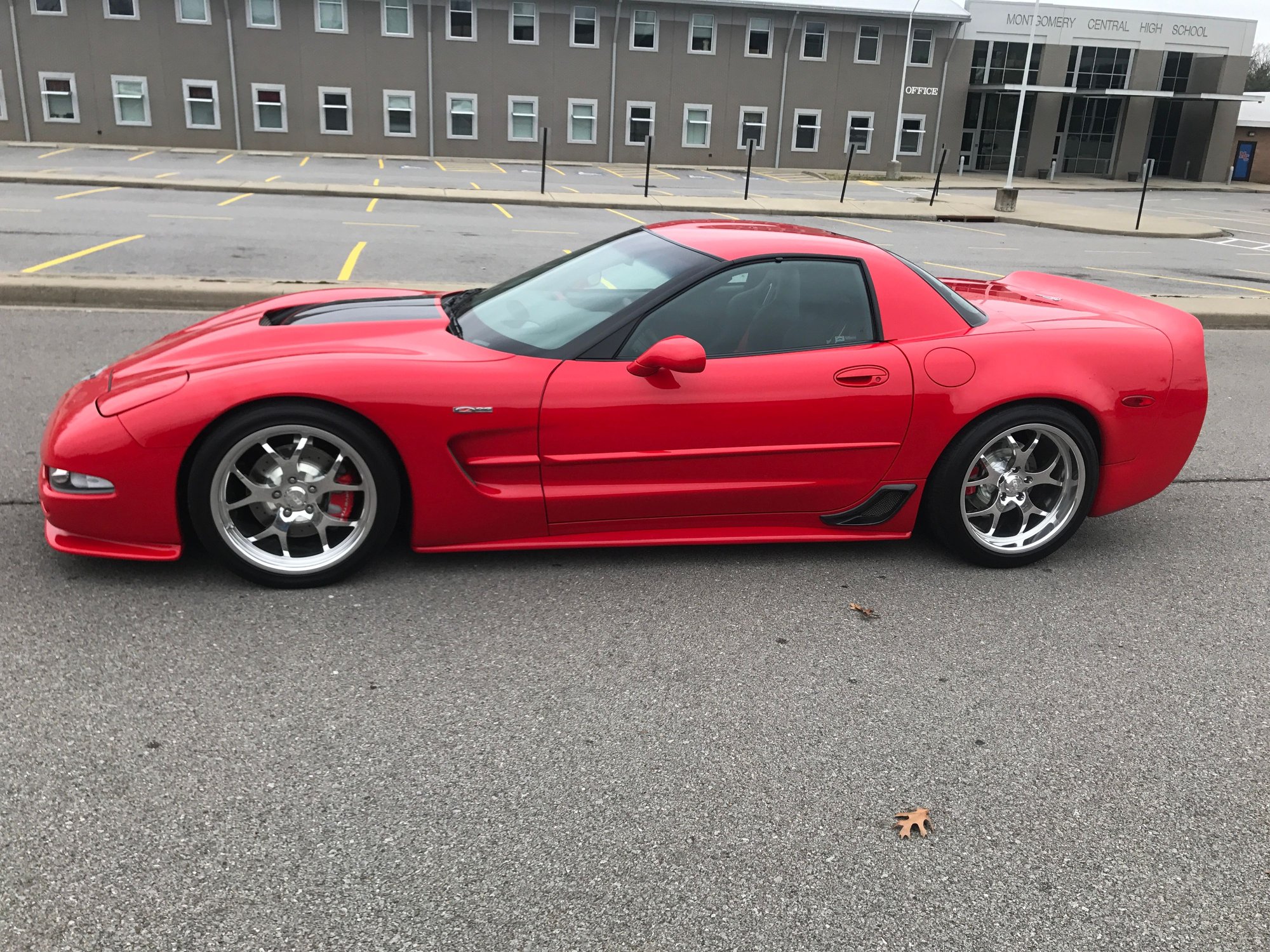

Wheel Make: CCW

Wheel Model: SP 510

Front Wheel Size: 19 x 10 with 2" lip

Front Offset or Backspace: +57 offset 7.75 backspace

Rear Wheel Size: 19 x 13 with 3" lip

Rear Offset or Backspace: +48 offset 8.875 backspace

Front Tire Size: 275/35/19 Nitto Invo

Rear Tire Size: 345/30/19 Nitto Invo

Suspension mods: Lowered on LG drop spindles and coilovers.

Problems or Issues, such as clearance/rubbing problems: Had to remove rear brake ducts to run the 345 rears. No problems after I got the shock rebound and height adjusted properly on the coilovers.

Misc.Comments: Still running OEM brake calipers with Powerstop drilled and slotted zinc coated rotors, and ceramic brake pads. Also using Customadeonly billet

Wheel Spacers - 5X4.75 (5X120.7) 70.3CB - 5mm on rear wheels. Rear fenders are TPE T2's.


Last edited by lewislgZ06; 04-15-2019 at 02:18 PM.
lewislgZ06 is online now
The following 4 users liked this post by lewislgZ06:
dreamr616 (04-19-2019), FYRARMS (04-15-2019), jd_black_00 (05-05-2019), USAZR1 (04-13-2019)
Old 04-13-2019, 10:37 PM
  #22
tommypenguin
CF Senior Member

tommypenguin's Avatar

Member Since: Jul 2011
Location: Phoenix AZ
Posts: 1,382
Received 162 Likes on 111 Posts
Default

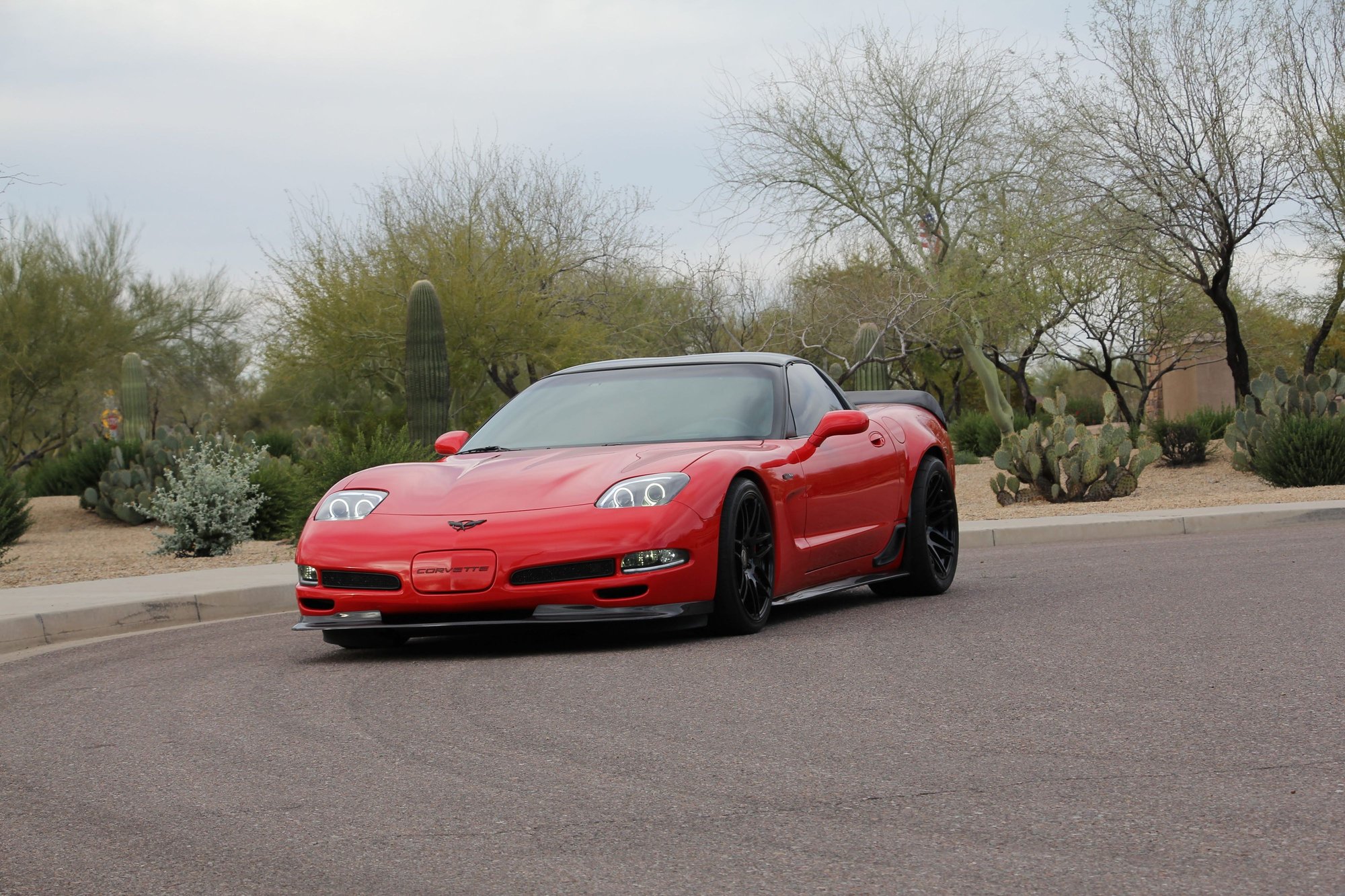

Wheel Make: Forgestar

Wheel Model: f14 black

Front Wheel Size: 19x9

Front Offset or Backspace: +44

Rear Wheel Size: 19x12

Rear Offset or Backspace: +23

Front Tire Size: 255 35 19 invo

Rear Tire Size: 345 30 19 nt05r

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: lowered on stock bolts

Problems or Issues, such as clearance/rubbing problems: Needed 3mm spacer to clear c6z brakes in the front should have ordered a different offset.

Misc.Comments: Running tpe 2" wide fenders






Last edited by tommypenguin; 04-13-2019 at 10:40 PM.
tommypenguin is online now
The following 2 users liked this post by tommypenguin:
lewislgZ06 (04-21-2019), USAZR1 (04-13-2019)
Old 04-14-2019, 07:10 AM
  #23
WayneCar
CF Senior Member

WayneCar's Avatar

Member Since: Nov 2000
Location: Harrisonburg Virginia
Posts: 546
Received 17 Likes on 14 Posts
Default

Wheel Make: ForgeStar

Wheel Model: CF10

Front Wheel Size: 19 X 9

Front Offset or Backspace: Listed as C5 Flush-Fit

Rear Wheel Size: 20 X 11

Rear Offset or Backspace: Listed as C5 Flush-Fit

Front Tire Size: 275/30/19

Rear Tire Size: 305/25/20

Suspension mods:Lowered .75" on stock bolts

Problems or Issues, such as clearance/rubbing problems: None



Misc.Comments:
WayneCar is offline
The following 3 users liked this post by WayneCar:
lewislgZ06 (04-21-2019), Stokes1 (05-03-2019), USAZR1 (04-14-2019)
Old 04-15-2019, 08:54 AM
  #24
jd_black_00
CF Senior Member

jd_black_00's Avatar

Member Since: Sep 2007
Location: Passaic County NJ
Posts: 1,848
Received 141 Likes on 50 Posts
2016 C5 of the Year Finalist
St. Jude Donor '12, '14
Default

Originally Posted by USAZR1 View Post
A C5 Custom Wheel & Tire Database has been needed on this site, since these cars were built. If your C5 has a custom wheel and tire combination, please add their specs into this database. Feel free to Copy & Paste the information parameters, in this first post. This is a database, not a question & answer forum. Please ask your questions in the forum below, not this thread.
NOTICE: If your C5 has the original equipment wheels, it is preferred you do not post in this database, for obvious reasons. Thanks
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel Make: Forgestar

Wheel Model: CF5

Front Wheel Size: 18x8.5

Front Offset or Backspace: +40

Rear Wheel Size: 19x10.5

Rear Offset or Backspace: +55

Front Tire Size: 235/40/R18

Rear Tire Size: 275/35/R19

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: C5 Z06 Springs w/Bilstein Sport Shocks, Aftermarket Rear Lowering Bolts, No front bolts

Problems or Issues, such as clearance/rubbing problems: Spring-on-Control Arm contact makes a creaking noise at low speed when turning

Misc.Comments:



jd_black_00 is offline
The following users liked this post:
USAZR1 (04-15-2019)
Old 04-15-2019, 08:59 AM
  #25
acroy
CF Senior Member

acroy's Avatar

Member Since: Jun 2013
Location: DFW TX
Posts: 1,711
Received 122 Likes on 92 Posts
Default

Wheel Make: CCW / Weld

Wheel Model: SP018

Front Wheel Size: 18

Front Offset or Backspace: (exact unknown)

Rear Wheel Size: 19

Rear Offset or Backspace: (exact unknown)

Front Tire Size: 275/35/18

Rear Tire Size: 305/30/19

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: Lowered on bolts

Problems or Issues, such as clearance/rubbing problems: 3mm spacers all around. Backspacing unknown. Rear brake ducts were removed a long time ago. Zero rubbing.

Misc.Comments: Will measure backspacing. Fits C6Z51 brakes. Tires (Potenza S04) run narrow for their size. Plenty of room to lower it a bit more.



acroy is offline
The following users liked this post:
USAZR1 (04-15-2019)
Old 04-15-2019, 11:15 AM
  #26
Dark Sarcasm
CF Senior Member

Member Since: Nov 2012
Location: Aurora IL
Posts: 372
Received 80 Likes on 59 Posts
Default

Wheel Make: Flow One

Wheel Model: F4

Front Wheel Size: 18 x 9.5

Front Offset or Backspace: +50

Rear Wheel Size: 19 x 10.5

Rear Offset or Backspace: +54

Front Tire Size: 275/35/18

Rear Tire Size: 305/30/19

Suspension mods: Lowered on factory bolts
Problems or Issues, such as clearance/rubbing problems: Axle stubs had to be ground down to install center caps. Supposedly Tire Rack has fixed this issue.


I donít have any good pics. Sorry. Iíll work on that

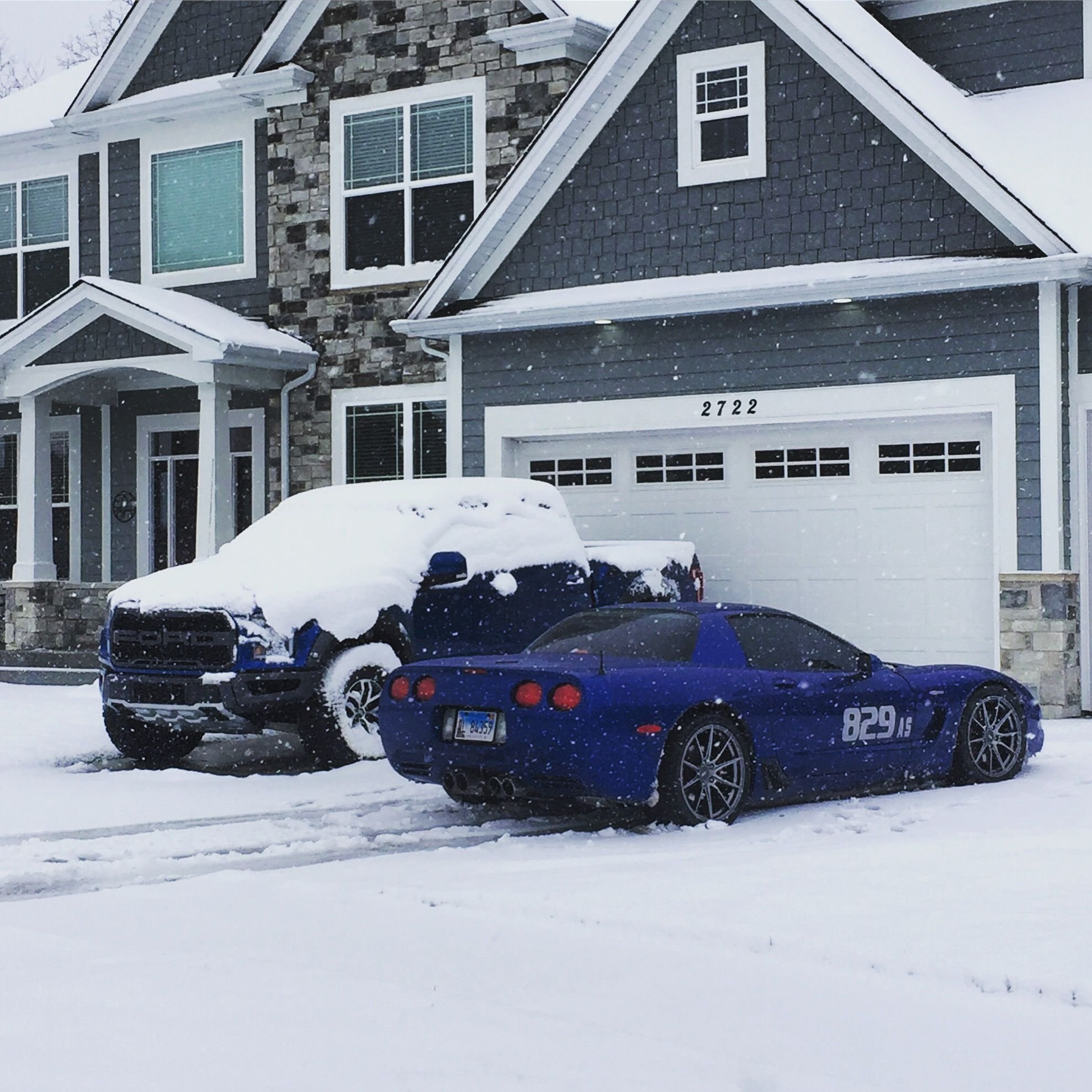

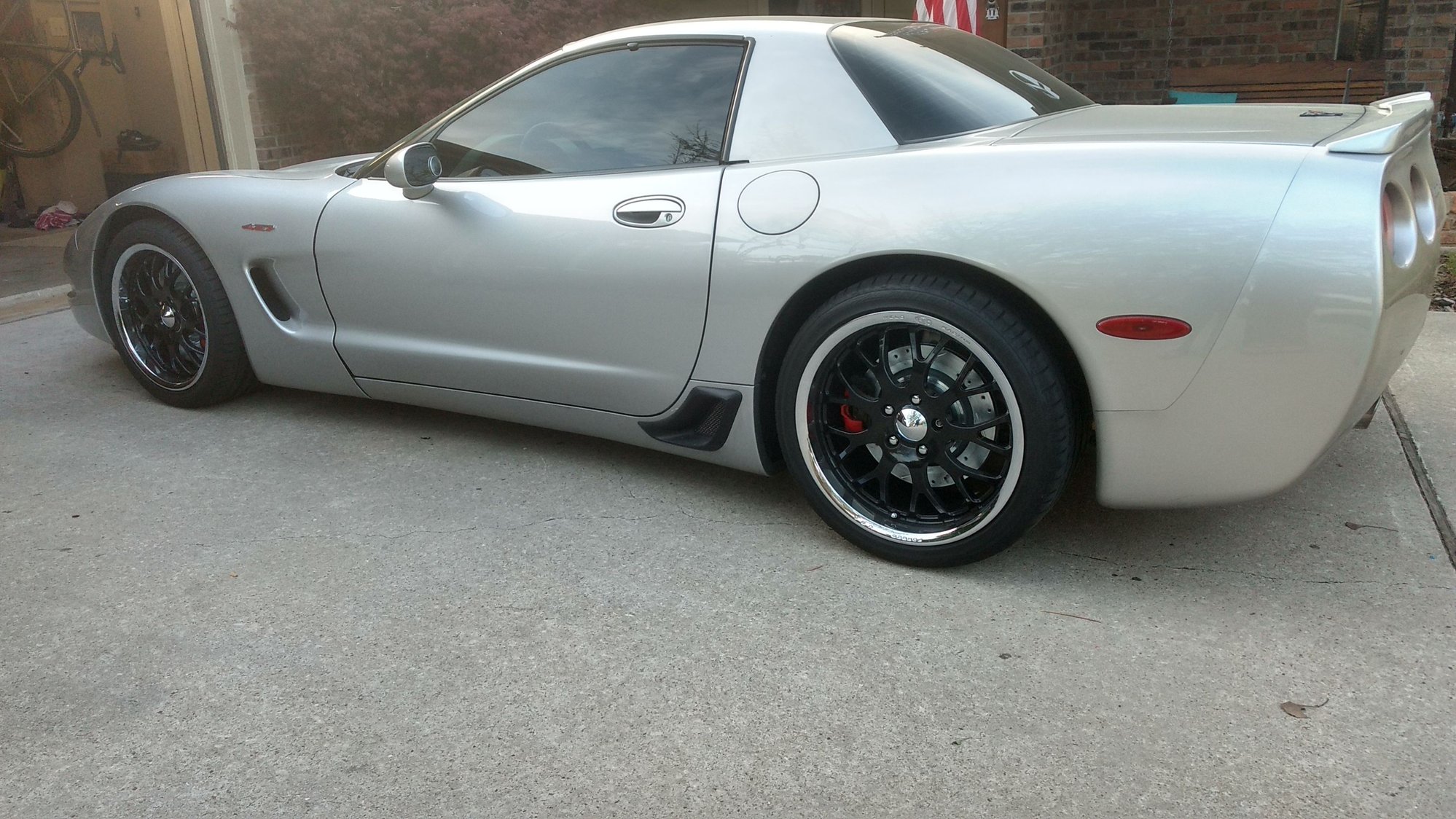

heres what it looked like before I lowered it



Last edited by Dark Sarcasm; 04-15-2019 at 11:23 AM.
Dark Sarcasm is offline
The following 3 users liked this post by Dark Sarcasm:
dreamr616 (04-19-2019), FYRARMS (04-15-2019), USAZR1 (04-15-2019)
Old 04-19-2019, 10:36 AM
  #27
workmanw
CF Senior Member
Support Corvetteforum!

workmanw's Avatar

Member Since: Jul 2014
Location: Charlotte NC
Posts: 482
Received 121 Likes on 94 Posts
Default

Wheel Make: BC Forged

Wheel Model: HB05

Front Wheel Size: 19x10

Front Offset or Backspace: +55

Rear Wheel Size: 19x11

Rear Offset or Backspace: +60

Front Tire Size: 275/35/19

Rear Tire Size: 305/35/19

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: LG2 coilovers lowered

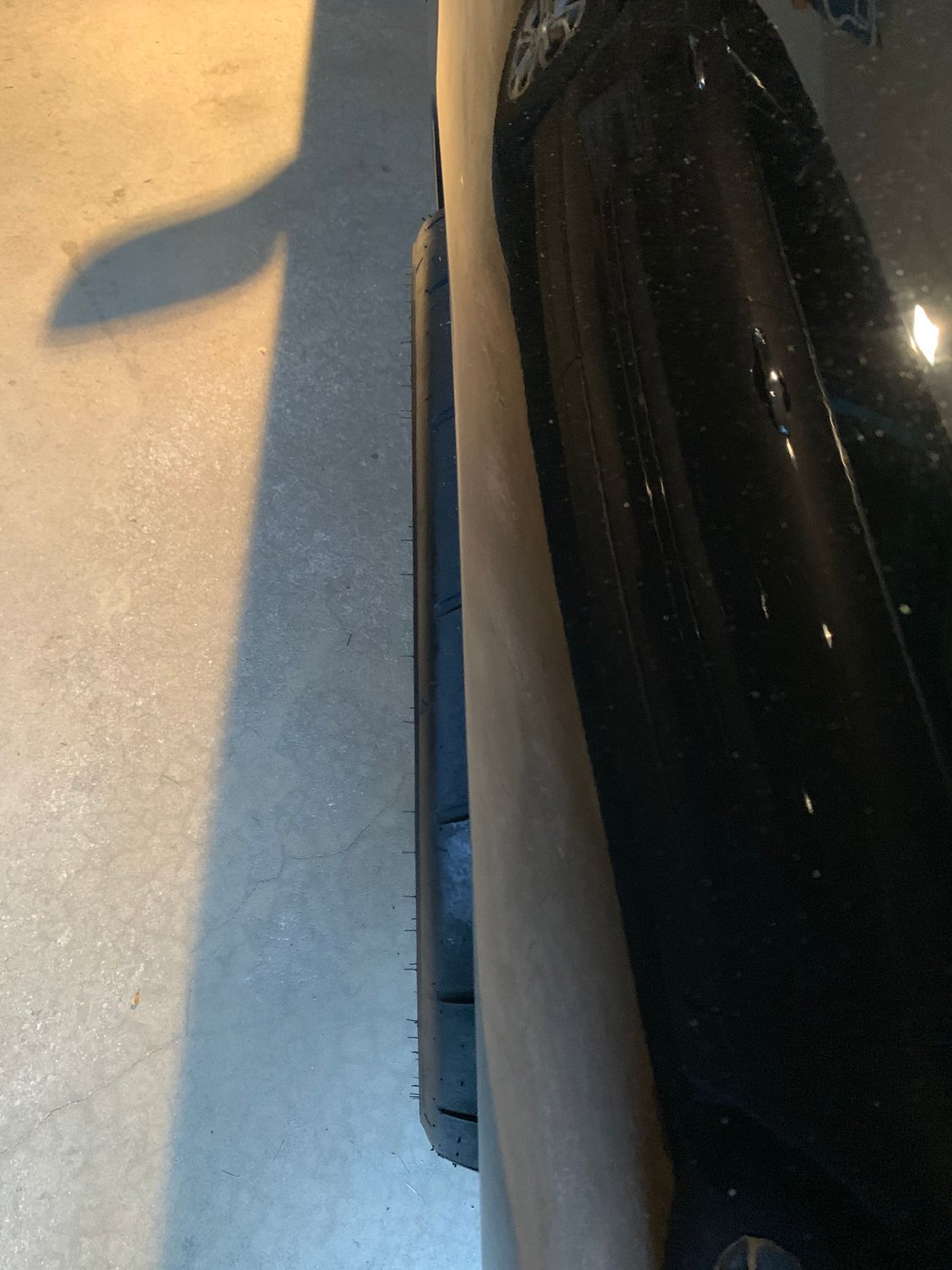

Problems or Issues, such as clearance/rubbing problems: rear tires are too tall at 27.4", they hit the front top of the fender liner over dips when lowered too much. I have since raised it to 1" fender gap and it just skims occasionally.

Misc.Comments: Plan to change rear tires to 325/30/19 for a 26.7" diameter to completely alleviate the issue. Not shown: I have 1Ē flared fenders from Vette Nuts which will cover any ďpokeĒ from the 325ís. Iím currently using 5mm spacer for the 305ís to be flush.

Last edited by workmanw; 04-20-2019 at 12:18 AM.
workmanw is offline
The following 3 users liked this post by workmanw:
dreamr616 (04-19-2019), lewislgZ06 (04-21-2019), USAZR1 (04-19-2019)
Old 04-20-2019, 07:47 PM
  #28
NHrdking
Junior Member

Member Since: Sep 2012
Location: Alton Bay NH
Posts: 26
Received 4 Likes on 4 Posts
Default

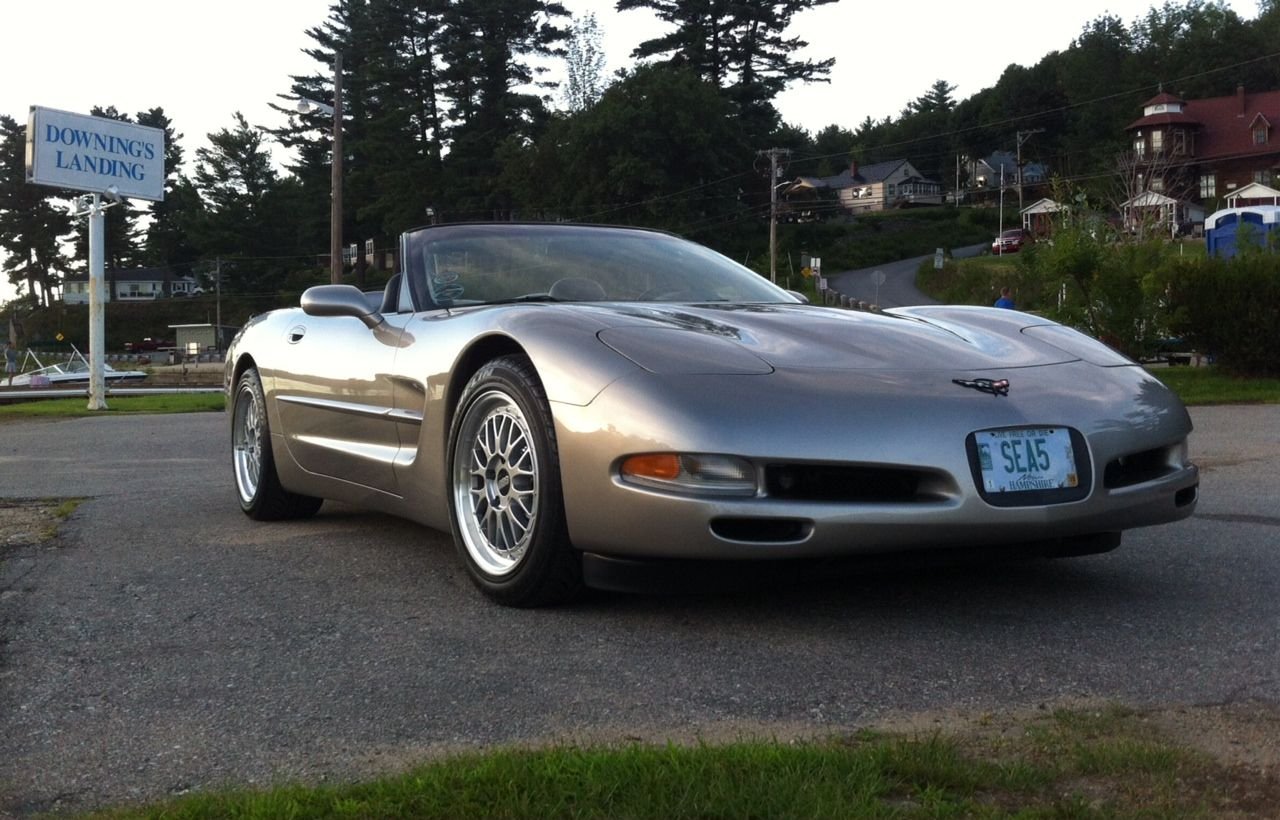

Wheel Make: BBS

Wheel Model: LeMans 2 pc alloy

Front Wheel Size: 17 x 9 Mfg# 9JX17H2ET52

Front Offset or Backspace: +52

Rear Wheel Size: 18 x 10 Mfg# 10JX18H2ET54

Rear Offset or Backspace: +54

Front Tire Size: 245/45ZR17 Nitto NT555 G2

Rear Tire Size: 275/40ZR18 Nitto NT555 G2

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilers: Z51 rear sway bar

Problems or Issues, such as clearance/rubbing problems: None

Misc Comments: BBS LeMans wheels were one of the earliest high end ($3200 set) after market wheels made for the C5, mfg to base OEM specs. Limited production and total sales of approx 220 sets. Mfg part numbers are stamped into front of wheels.



Last edited by NHrdking; 05-17-2019 at 07:38 PM.
NHrdking is offline
The following users liked this post:
USAZR1 (04-20-2019)
Old 04-22-2019, 03:20 PM
  #29
Vert'd Z0
CF Senior Member

Vert'd Z0's Avatar

Member Since: Jul 2007
Location: Orangevale Ca.
Posts: 588
Received 13 Likes on 8 Posts
Default

Wheel Make: CCW

Wheel Model: T-10

Front Wheel Size: 19 x 10

Front Offset or Backspace: +57

Rear Wheel Size: 20 x 11

Rear Offset or Backspace: +54

Front Tire Size: 285-30-19 Pirelli P-Zero

Rear Tire Size: 325-25-20 Pirelli P-Zero

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: Lowered on stock bolts

Problems or Issues, such as clearance/rubbing problems: None

Misc.Comments: Yes....It's a true Z06





Vert'd Z0 is offline
The following 5 users liked this post by Vert'd Z0:
dreamr616 (04-22-2019), FYRARMS (04-24-2019), lewislgZ06 (04-22-2019), NHrdking (04-23-2019), USAZR1 (04-22-2019)
Old 04-24-2019, 08:58 AM
  #30
jerkyboy
CF Senior Member

jerkyboy's Avatar

Member Since: Jun 2002
Location: Purcellville VA
Posts: 1,902
Received 14 Likes on 12 Posts
Default

Wheel Make: I-Forged

Wheel Model: TE14S

Front Wheel Size: 18 x 9.5

Front Offset or Backspace: can't remember

Rear Wheel Size: 19 x 11

Rear Offset or Backspace: can't remember

Front Tire Size: 265-35-18 Hankook Ventus

Rear Tire Size: 305-30-19 Hankook Ventus

Suspension mods: Stock, Lowered on stock or aftermarket bolts



Problems or Issues, such as clearance/rubbing problems: None

Last edited by jerkyboy; 04-24-2019 at 09:00 AM. Reason: detail edit
jerkyboy is offline
The following 2 users liked this post by jerkyboy:
FYRARMS (04-24-2019), USAZR1 (04-24-2019)
Old 05-15-2019, 07:30 AM
  #31
Joe_Joe
CF Senior Member

Joe_Joe's Avatar

Member Since: Mar 2005
Location: Davidsonville Maryland
Posts: 356
Received 96 Likes on 69 Posts
Default

Wheel Make: iForged

Wheel Model: Concave Series (Milano's)

Front Wheel Size: 19 x 9.5

Front Offset or Backspace: N/A

Rear Wheel Size: 20 x 10.5

Rear Offset or Backspace: N/A

Front Tire Size: 265-30-19 Nitto Invo's

Rear Tire Size: 305-25-20 Nitto Invo's

Suspension mods: LG C5 GT2 Adjustable Coilovers

Problems or Issues, such as clearance/rubbing problems: N/A




Joe_Joe is offline
The following 4 users liked this post by Joe_Joe:
dreamr616 (05-15-2019), FYRARMS (05-15-2019), Johnson 92 (05-22-2019), workmanw (05-16-2019)
Old 05-19-2019, 08:07 PM
  #32
02corvetteboy
Junior Member

Member Since: Sep 2016
Posts: 30
Received 7 Likes on 5 Posts
Default




Wheel Make:Forgestar

Wheel Model:CF5

Front Wheel Size:18x9.5

Front Offset or Backspace:+50

Rear Wheel Size:19x11

Rear Offset or Backspace:+55

Front Tire Size:275/35

Rear Tire Size:305/30

Suspension mods: Stock, Lowered on stock or aftermarket bolts, or coilovers: lowered on stock bolts

Problems or Issues, such as clearance/rubbing problems: no issues so far

Misc.Comments:


Quote

Last edited by 02corvetteboy; 05-20-2019 at 07:56 PM.
02corvetteboy is offline
The following users liked this post:
USAZR1 (05-19-2019)
