Default Stock Hpipe Converted to Xpipe

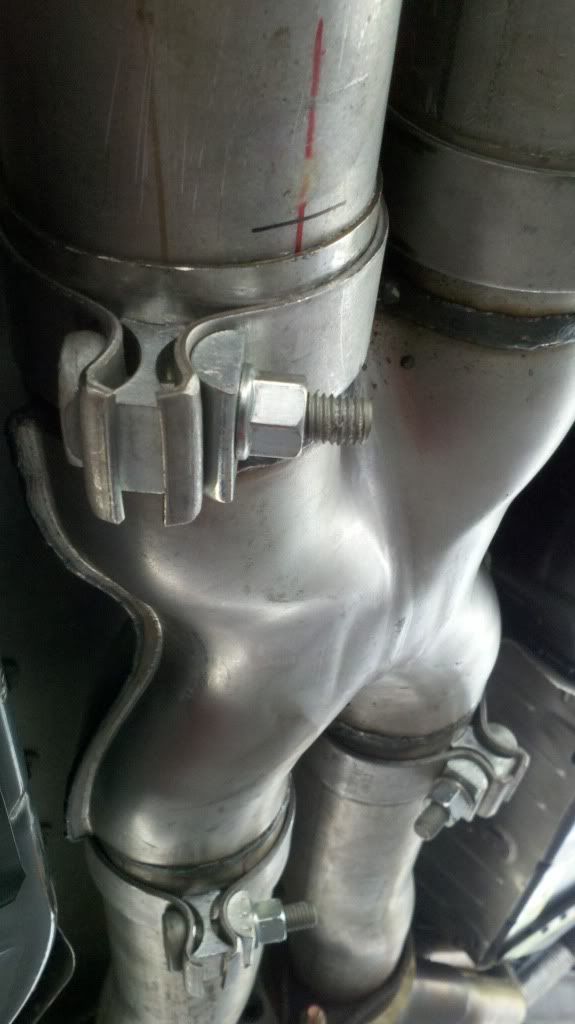

Awhile back I bought B&B Headers without the X pipe because i did not want to pay $400+ for a glorified pipe! Anyways I proceeded to buy the Magnaflow Tru-X 12in pipe that is suppose to take place of the "H" in the Hpipe, but it does not work with long tube headers because it is too wide to fit in the tunnel and the longtubes stick to far back to put it right before the narrow tunnel. I began searching again and what I found was a $20 Xpipe on ebay that is ony 8inches wide so it would fit in the tunnel like I needed. I do not have the auction number, but all I did was search 3in. Xpipe and it came up. Here are the pics I got of it completed (sorry about the one of it installed, I did this on jackstands and it was near impossible to get a pic!)



getburnt is offline
Old 01-22-2012, 07:10 PM
  #2
MTPZ06
CF Senior Member
Support Corvetteforum!

MTPZ06's Avatar

Member Since: Dec 2008
Location: Honolulu HI
Posts: 12,793
Thanked 1,154 Times in 1,023 Posts
Default

You have cut outs welded in before the over axle pipes?
MTPZ06 is offline
Old 01-22-2012, 07:18 PM
  #3
04_Z06_CE
CF Senior Member

04_Z06_CE's Avatar

Member Since: Jun 2006
Location: Westlake Village, Ca
Posts: 3,717
Thanks: 0
Thanked 0 Times in 0 Posts
Default

i did something similar , had my exhaust guy weld in a X where the H is . Sounds better and iam sure it flows a little better than the H
04_Z06_CE is offline
Old 01-22-2012, 07:18 PM
  #4
getburnt
CF Senior Member
Thread Starter

Member Since: Jan 2011
Location: Evington VA
Posts: 554
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Yea the exhaust shoots sideways and down, plus I wanted to do everything in the X pipe that way if I ever decide to sell I have an extra stock Hpipe in the garage that I can install.
getburnt is offline
Old 01-22-2012, 07:21 PM
  #5
getburnt
CF Senior Member
Thread Starter

Member Since: Jan 2011
Location: Evington VA
Posts: 554
Thanks: 0
Thanked 0 Times in 0 Posts
Default

It wasn't worth me buying a new X pipe, but I have a big cam and will have heads done soon so the Hpipe probably was costing me a few ponies and when I get the heads done it would've limited my numbers so I found a solution. Not to mention the sweet burble and pop I get on decel now!
getburnt is offline
Old 01-22-2012, 07:31 PM
  #6
07AOZO6
CF Senior Member
Support Corvetteforum!

07AOZO6's Avatar

Member Since: Jun 2010
Location: Charlotte NC
Posts: 521
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Nice job! A while ago I sectioned the Magnaflow one down the middle and rewelded it to make it fit in the tunnel. Your idea is much easier
07AOZO6 is offline
Old 01-22-2012, 07:35 PM
  #7
getburnt
CF Senior Member
Thread Starter

Member Since: Jan 2011
Location: Evington VA
Posts: 554
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Went back and found the auction number for anyone looking to do the same thing. 140672980559
getburnt is offline
Old 01-23-2012, 09:25 PM
  #8
Just Enough
CF Senior Member

Member Since: Nov 2004
Location: Livermore CA
Posts: 988
Thanks: 0
Thanked 1 Time in 1 Post
Default

Great job,
I did a similar mod to an h-pipe. I made a boom box section forward of the midpoint of the h. It retained the h-pipe burble/stagger sound, less popping and smooth very low RPM pulling (6th gear 55 mph highway uphill grades).







Just Enough is offline
Old 04-25-2012, 01:30 AM
  #9
vvlf
CF Senior Member

vvlf's Avatar

Member Since: Sep 2010
Location: San Diego CA
Posts: 501
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Just Enough View Post
Great job,
I did a similar mod to an h-pipe. I made a boom box section forward of the midpoint of the h. It retained the h-pipe burble/stagger sound, less popping and smooth very low RPM pulling (6th gear 55 mph highway uphill grades).

WoW, I'm surprised there been no comments on your "boom box"
How do you like it ? Did it make your car much louder?
And Great looking welds by the way
vvlf is offline
Old 04-25-2012, 09:01 AM
  #10
Just Enough
CF Senior Member

Member Since: Nov 2004
Location: Livermore CA
Posts: 988
Thanks: 0
Thanked 1 Time in 1 Post
Default

Originally Posted by vvlf View Post
WoW, I'm surprised there been no comments on your "boom box"
How do you like it ? Did it make your car much louder?
And Great looking welds by the way
Just a touch louder. I did the same boom box mod on my 02 Z06 and the results were the same, basement RPM partial throttle torque increase. I learned about boom boxes through an article on performance exhausts, they said that the volume of the boom box should approach the displacement of the engine if possible. You will gain the pressure pulse relief with less but bigger is better for full flow with some decent noise reduction. I figure I am at about 2 liters.
Thank you for the compliment.
Just Enough is offline
Old 11-17-2013, 10:48 PM
  #11
MAJ_Charlie
CF Senior Member
Support Corvetteforum!

MAJ_Charlie's Avatar

Member Since: Apr 2013
Location: Wilkes-Barre, PA area and Northern VA
Posts: 733
Thanked 30 Times in 29 Posts
Default

Glad I saw this post before dropping $300.
MAJ_Charlie is offline
Old 11-18-2013, 08:40 AM
  #12
u1arunit
CF Senior Member

u1arunit's Avatar

Member Since: Apr 2010
Location: Pittsburgh PA
Posts: 2,133
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Just Enough View Post
Great job,
I did a similar mod to an h-pipe. I made a boom box section forward of the midpoint of the h. It retained the h-pipe burble/stagger sound, less popping and smooth very low RPM pulling (6th gear 55 mph highway uphill grades).







Looks similar to the MAC Prochamber that I had on my '04 Cobra. Good job!
u1arunit is offline
Old 11-18-2013, 09:25 AM
  #13
lebvette
CF Senior Member

lebvette's Avatar

Member Since: Oct 2001
Location: Pine Bluff Arkansas
Posts: 6,785
Thanked 24 Times in 22 Posts
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15-'16-'17-'18-19

Default

The local exhaust guy made me a X pipe. $90 and one hour of looking at old magazines.
lebvette is offline
Old 11-19-2013, 11:24 PM
  #14
MAJ_Charlie
CF Senior Member
Support Corvetteforum!

MAJ_Charlie's Avatar

Member Since: Apr 2013
Location: Wilkes-Barre, PA area and Northern VA
Posts: 733
Thanked 30 Times in 29 Posts
Default

The shops here wanted anywhere from $250 to $400. My x-pipe like the one getburnt mentions at the beginning of this post arrives tomorrow. I saw a "how to" video on YouTube by Corsa showing them cutting the stock pipes with a chain cutter instead of a torch. Looks a lot easier and more efficient. My total output to do an x-pipe like his was $30 for the x-pipe and another $20 for band clamps. Rented the chain cutter from Advance Auto. Sure beats forking out $250 or more for a pre made one and shipping!
MAJ_Charlie is offline
Old 11-23-2013, 12:20 AM
  #15
MAJ_Charlie
CF Senior Member
Support Corvetteforum!

MAJ_Charlie's Avatar

Member Since: Apr 2013
Location: Wilkes-Barre, PA area and Northern VA
Posts: 733
Thanked 30 Times in 29 Posts
Default

Following getburnt's example I acquired a 2.5" x-pipe from ebay for $28. I also got two small exhaust pipes from Advance Auto Parts because I figured I would need them as well as a cutting chain I saw used by Corsa Performance on a "how to" video they have for their exhaust. It showed the installer cutting the stock pipes down from the cats using a chain cutter instead of a welder's torch. I found it provided a clean and uniform cut around each pipe. I decided to make my first cuts behind the H section of the pipe. After determining what length I wanted to extend past the x-pipe I trimmed the extra pipes to fit that length. The x-pipe turned out to be somewhat thinner than the width of the original h-pipe so I was able to force the pipes into the x-pipe without much difficulty. I fully tightened the clamps on the extensions I made along with the front openings of the x-pipe. I had enough length on the aft section to make fitting adjustments to the exhaust I was installing. I couldn't believe how small the hole inside the H section actually was!.
Attached Images

Last edited by MAJ_Charlie; 11-23-2013 at 10:20 AM.
MAJ_Charlie is offline
Old 11-23-2013, 12:26 AM
  #16
MAJ_Charlie
CF Senior Member
Support Corvetteforum!

MAJ_Charlie's Avatar

Member Since: Apr 2013
Location: Wilkes-Barre, PA area and Northern VA
Posts: 733
Thanked 30 Times in 29 Posts
Default

I did notice an increase in performance with the x-pipe as well as the elimination of the "diesel" sound when idling or when I turn the car off. My total $$ output for this was under $50.

Attached Images

Last edited by MAJ_Charlie; 01-19-2015 at 09:48 PM.
MAJ_Charlie is offline
