Default CSM Performance LLC Precision Hub Stands

Here at CSM Performance LLC we are dedicated to making the foremost Hub Stands, if you want best you’ve come to the right place. Our Mk II Precision Hub Stands are unrivaled in weight capacity, versatility, accuracy, and finish quality. The best way to create a product is to go directly to the users and that’s exactly what we’ve done. The Mk II Precision Hub Stands have been designed with the help of racers, mechanics, and engineers using modern Finite Element Analysis tools to optimize every aspect. By mounting directly to the wheel bearing hub they ensure the highest accuracy possible. Followed by slashing your alignment times compared to other methods and even eliminate the need for strings when used with our specially designed Laser Thrust Alignment System (LTAS).

We offer an exact fit wheeled Pelican™ Case, the best cases in the world, to ensure easy transportation. We exclusively CNC machine our components from billet aircraft grade aluminum at an ISO 9001 facility right here in the USA. We’ve integrated our proprietary Lock-A-Lug system which employs tapered Lug Washers to perfectly match any pattern from 5x100mm (5×3.937″) all the way to 5x130mm (5×5.118″). Need a set for 5/8″ lug studs? We can precision drill and chamfer an addition pattern on the Hub Mount Plate, see options. Our Hub Stands take advantage of Ball Transfer technology to create a virtually frictionless surface for extremely precise alignment measurements. We have even included a positional locking system to hold the Mk II Hub Stands in place when needed. We’re able to do all of this and retain a fine height adjustment system to match practically any vehicle. We also include all the needed tools to assemble and utilize the Mk II Stands. Every tool proudly comes from a Made in USA source including Proto® and Bondhus®. Each component flawlessly fits together; The Mk II Precision Hub Stands are a true blend of perfect form and incredible function.

Need Centerlocks or any other requirement? Give us a call or send us an email, we can do almost any custom work!

https://csmperformance.com/product/m...on-hub-stands/
https://csmperformance.com/home/

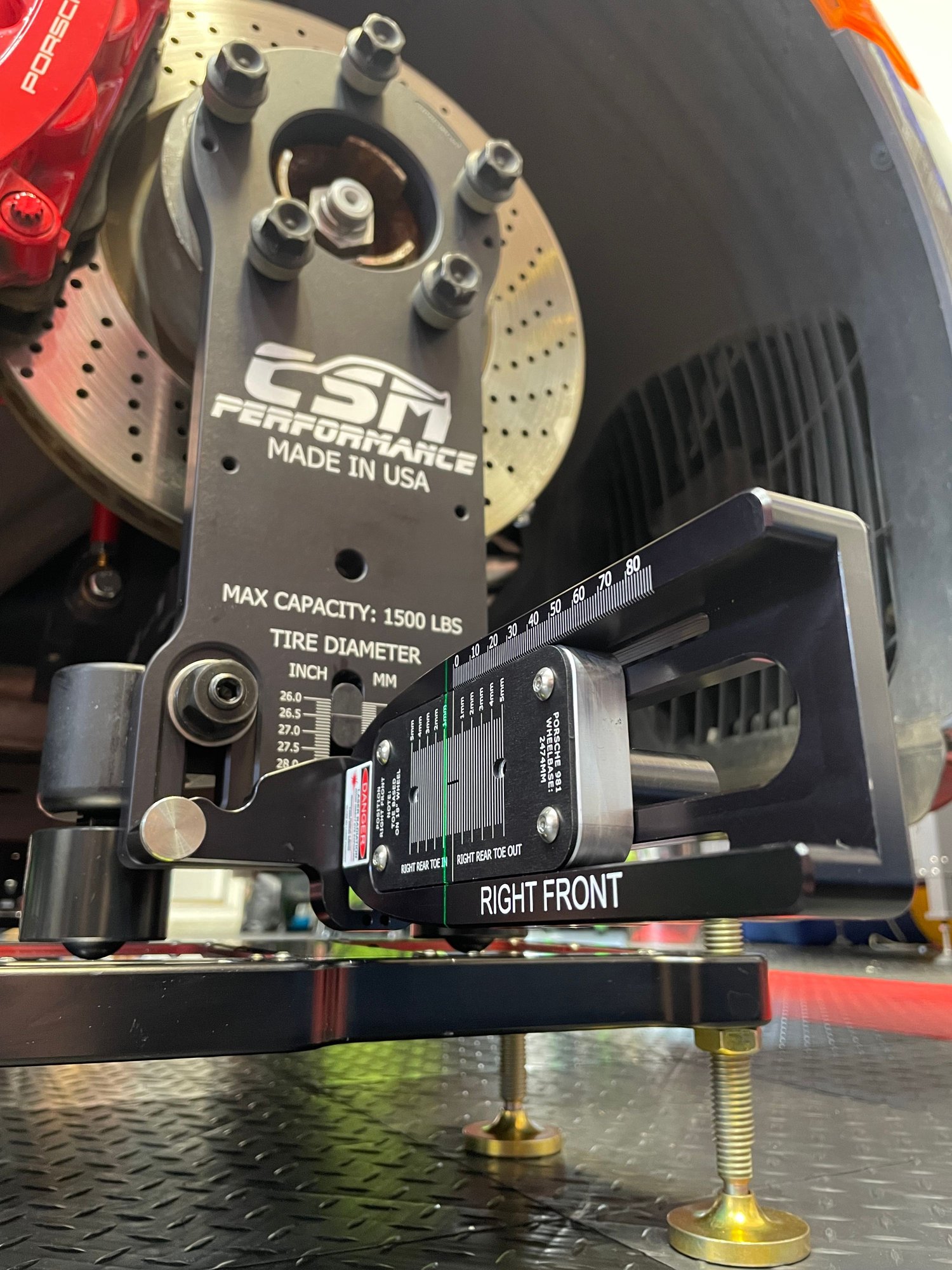

Product Photos:














And everyone loves some CNC Photos:







We're also running a special through the weekend!


Last edited by CSM Performance; 04-13-2019 at 12:00 PM.
CSM Performance is offline
Old 04-15-2019, 02:11 PM
  #2
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

Check out our revolutionary Laser Alignment System:
https://csmperformance.com/product/l...gnment-system/

Step 1: Install the Toe Bars in the lowest possible position of both front Precision Hub Stands (PHS) and in the highest possible position of the rear PHS (same height as the hub).Install the Lasers onto the Toe Bars on the front PHS and the Laser Grid Plates on the Toe Bars on the rear PHS as outlined in the above figure with the supplied Thumb Screws. Turn on the Lasers in the first ON position (pendulum locked) and point them towards the Laser Grid Plates on the rear PHS until the center line (cross) is in the vertical center of the Laser Grid Plate.



Laser Grid Plate installed on PHS

Step 2: Utilize tape measures to measure and set the Toe at the Front of the Vehicle. While doing so ensure the position of the laser line center (cross) is the same measurement on both Laser Grid Plates (passenger and driver side). This sets the front wheels angularly aligned with the centerline of the vehicle (thrust). Your front toe and thrust have been set. See Figure 2 for visual.



Figure 2: Setting Front Thrust with LTAS

Step 3: Remove the Laser Grid Plates from the rear and utilize the Precision Scale to measure from the front of the rear PHS Toe Bar to the laser line and from the rear of the rear PHS Toe Bar to the laser line. To find the Toe at the rear wheel, add ½ the total Toe at the front (amount of the Toe at each front wheel) to the Toe measured with the Precision Ruler with the proper sign convention found below. See Figure 3 for visual. Since the Front Toe has been angularly aligned with the centerline of the vehicle (thrust), the Rear Thrust is also aligned since it is set off of the front (laser line), ensuring proper thrust angles throughout the vehicle.



Figure 3: Setting Rear Toe With LTAS

LTAS Guidelines and Examples:

When measuring Toe between the Toe Bars on either side use the following convention: Measurement between rear of Toe Bars minus (-) measurement between front of Toe Bars. This means that Toe In is a positive value and Toe Out is a negative value.

When measuring Toe between the Toe Bars and the Laser Line use the following convention: Measurement between Front of Toe Bar and the Laser Line minus (-) the measurement between the Rear of Toe Bar and the Laser Line. This means that Toe In is a positive value and Toe Out is a negative value as with above.

To convert the Toe relative to the laser line to the Toe relative to the center-line of the vehicle (Actual Toe) simply add the Rear Toe relative to the laser to ½ the Front Toe.

EXAMPLE: If a vehicle has 1/4” Total Toe In at the front then each front wheel has 1/8” of Toe In (Positive). Measuring from the rear driver Toe Bar (D) to the laser at the front and rear of the Toe Bar (D) results in the following measurements, 5” at the front and 5 ½” at the rear (I and J in Figure 12). This shows that relative to laser line, the rear wheel has a Toe Out of ½” (Negative) so –½” of Toe. To convert this from the Toe relative to the laser line to the Toe relative to the vehicle centerline (actual Toe) add the Toe values for the front and rear wheels.

1/8” (Positive, Front) + -1/2” (Negative, Rear) = -3/8” of Toe or 3/8” of Toe Out at the rear driver wheel.
CSM Performance is offline
Old 04-16-2019, 09:06 AM
  #3
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

We recently had a customer put together an unboxing video!
CSM Performance is offline
Old 04-18-2019, 10:55 AM
  #4
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

One of our fellow forum members, Froggy47, is putting together a series of videos on our Mk II Precision Hub Stands! You can watch the first video here: Thanks Froggy!


Colton @ CSM Performance LLC
CSM Performance is offline
Old 04-22-2019, 11:04 AM
  #5
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

We had a customer with a new WRX corner balancing and aligning his car with strings!



Colton @ CSM Performance LLC
CSM Performance is offline
Old 04-22-2019, 10:41 PM
  #6
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

We're placing a hardware order for our Mk II Precision Hub Stands tomorrow so we're able to offer a significant discount through 3:00 PM CST tomorrow!

Our customers have been blown away by the quality, finish, and accuracy of our stands!

https://csmperformance.com/home/








Colton @ CSM Performance LLC
CSM Performance is offline
Old 04-23-2019, 01:36 PM
  #7
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

Last 2.5 hours to get in on this discount! This is the biggest one since the Pre-Order sale and won't happen again for a long time!











Colton @ CSM Performance LLC
CSM Performance is offline
Old 04-27-2019, 05:54 PM
  #8
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

Shipping out another Full Set w/LTAS and Digital Caster/Camber Gauge! If you're interested or have any questions feel free to send us a PM or give us a call!


https://csmperformance.com/home/




Thanks!
Colton @ CSM Performance LLC
CSM Performance is offline
Old 05-01-2019, 01:08 PM
  #9
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

Fellow Forum Member froggy47 put together a series of videos over our Mk II Precision Hub Stands and put them into a thread! You can check out the thread at:
https://www.corvetteforum.com/forums...by-froggy.html
Please read through the thread as well as there are some clarifications in the discussion!

Race On!

Colton @ CSM Performance LLC
CSM Performance is offline
Old 05-04-2019, 09:44 PM
  #10
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

A little throwback to our Original Precision Hub Stands!
CSM Performance is offline
Old 05-07-2019, 11:08 AM
  #11
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

Are you a NASA Member? We are an official NASA Sponsor and offer all NASA members a 10% discount on all of our products!
If you're not a member, it only costs $45 a year which....you'll save that in the first purchase!



https://www.nasaproracing.com/benefits

You can check out our customer reviews on our website as well!

"...My car is driving better than it has, perhaps, ever. I’m very happy that I went with CSM Performance. I feel like I got the best quality stand for the best price I could find. These were exactly what I was looking for. Thanks for making a great product and having excellent customer service! Keep up the good work!" -Dane M

"I’ve had the pleasure of using CSM Hubstand to align 3 cars in my first week of ownership, and they are worth every penny. The hubstands have improved my alignments in every way...." - Shannon Y

https://csmperformance.com/home/
Race On!

Last edited by CSM Performance; 05-07-2019 at 11:24 AM.
CSM Performance is offline
Old 05-10-2019, 09:21 PM
  #12
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

We have a couple sets of our Original Precision Hub Stand sets left minus the Hub Mount Plates that were looking to clear from our inventory. We'll combine the Original components with the new and improved Mk II Hub Mount Plate and various other new hardware for $1199. This is a great option for those on a tight budget looking to upgrade their alignment setup! If you're interested shoot us a PM or contact us through our website @
https://csmperformance.com/home/

Original Precision Hub Stands (Shown with Laser):


Mk II Hub Mount Plate:


Thanks!
Colton @ CSM Performance LLC
CSM Performance is offline
Old 05-15-2019, 03:40 PM
  #13
CSM Performance
Supporting Vendor
Thread Starter

CSM Performance's Avatar

Member Since: Mar 2018
Location: Carrollton Illinois (IL)
Posts: 556
Received 28 Likes on 21 Posts
Default

One of our customers put together a series of videos Corner Balancing and Aligning his WRX with our Mk II Precision Hub Stands:

Ready to re-imagine the way your car is aligned?
https://csmperformance.com/home/

Race On!
Colton @ CSM Performance LLC
