So I'm driving down the road minding my own business and all of a sudden I hear a loud bang coming from the rear of the car. I take the car home and jack it up to see the rear shock is loose. I removed the shock (Bilstein) and find that the little snap ring that keeps the boot from falling down the shaft is gone, broken in two. I went to the local parts store and they had nothing like it in the store so I put one of those E shaped clips on to get me by. I've been looking at GM web sites for this little clip but cannot find it anywhere. Does anyone know where to get these clips? I'll have to say that at this time I am not very impressed with Bilstein shocks. I replaced my Z51 shocks with Bilstein and have found that the Bilstein boot, bushings and bump stop are all inferior in quality to the stock GM parts. They did not even include these little clip type snap rings with their shocks and the shock has the groove for it, I had to reuse the old snap ring from my GM shocks, maybe that is why it broke just too old. Anyone have any Good ideas?

timd38

Picture?

ls1121

I don't have and cannot find a picture of the shock. It's a little snap ring a couple of inches below the threads. A terrible design. With all the people that have replaced their shocks no one knows what i am talking about?

Kenny94945

Idea...contact Bilstein and purchase an inventory of these ancillary shock parts.
Yes, I know what you are talking about and for example the jouces at least for me have a very short life.
Not sure where you will find that clip other than Bilstein.

Gearhead Jim

The local dealer has put two sets of Bilsteins on for us:
Sports on our 2001 and recently HDs on our 2009.

The 2001 went another 60k miles on their installation of the Bilsteins, with no problems.
The 2009 has only 100 miles, ok so far.

I did order all new GM hardware for the installation, so they used what would fit and that may be the difference. Or perhaps the fact that the tech has probably installed a ton of shocks on Corvettes, gave him some insight on how to do things a little differently.

The Bilstein instruction sheets were hopelessly generic- designed to cover any shock Bilstein makes, and written over 50% in German. I took one look at them and said "this is a job for the dealer", who seems to do good work.

timd38

I had Bilstein Sports and did not have any issues with them. In fact, when my Pfadt coil overs broke, I bought Bilstein coil overs to replace them from LG Motorsports.

Al Gumby

I know what you're talking about. When I installed my Bilstein's a few weeks ago I noticed that little "C" clip in its shallow groove on the shaft. After some thought it's apparent that little "C" clip takes all the compression force from the suspension, i.e. when you hit a bump, big or small, that little clip takes all that force. Seems under-built to me.

flyby763

It doesn't take as much force as you'd think.

ls1121

It took enough to break it. Bilstein is so cheap they could not even supply these clips with the New shocks. I can say without a doubt that i will not buy another pair of bilstein's ever again. Next time I get the urge to try aftermarket I might try KONI. If I cannot find a good substitute for this clip you might see these on ebay lol. I am Very dissapointed to say the least.

Al Gumby

Oh, really? Sure, the blow is absorbed a bit by the "shock" absorber, but then sometimes the travel goes all the way to the bump stop. That little clip is the only thing keeping the shock shaft from punching up through your coolant reservoir (left front).

Al Gumby

Those clips were included with my DRM's. That really blows that Bilstein didn't supply yours.

ls1121

I agree. I think they could have designed this a little better, or just make it like the shocks on most cars.

0Randy@DRM

Bilstein east is located in Mooresville, NC. I'm up in Burlington, NC, so you can have clips on Tuesday. Please PM me your address and it will happen Sorry I didn't see this thread sooner.

Randy

Gearhead Jim

Can anyone post some pictures or diagrams?

As mentioned in post #5, I let the dealer do it and also ordered some new hardware for them to use. But that doesn't mean the job was done correctly.

ls1121

I'm going to get in touch with Randy@DRM. When I remove the shock to install the clip I will take a picture and post it here.

Gearhead Jim

Thanks.

Bill Dearborn

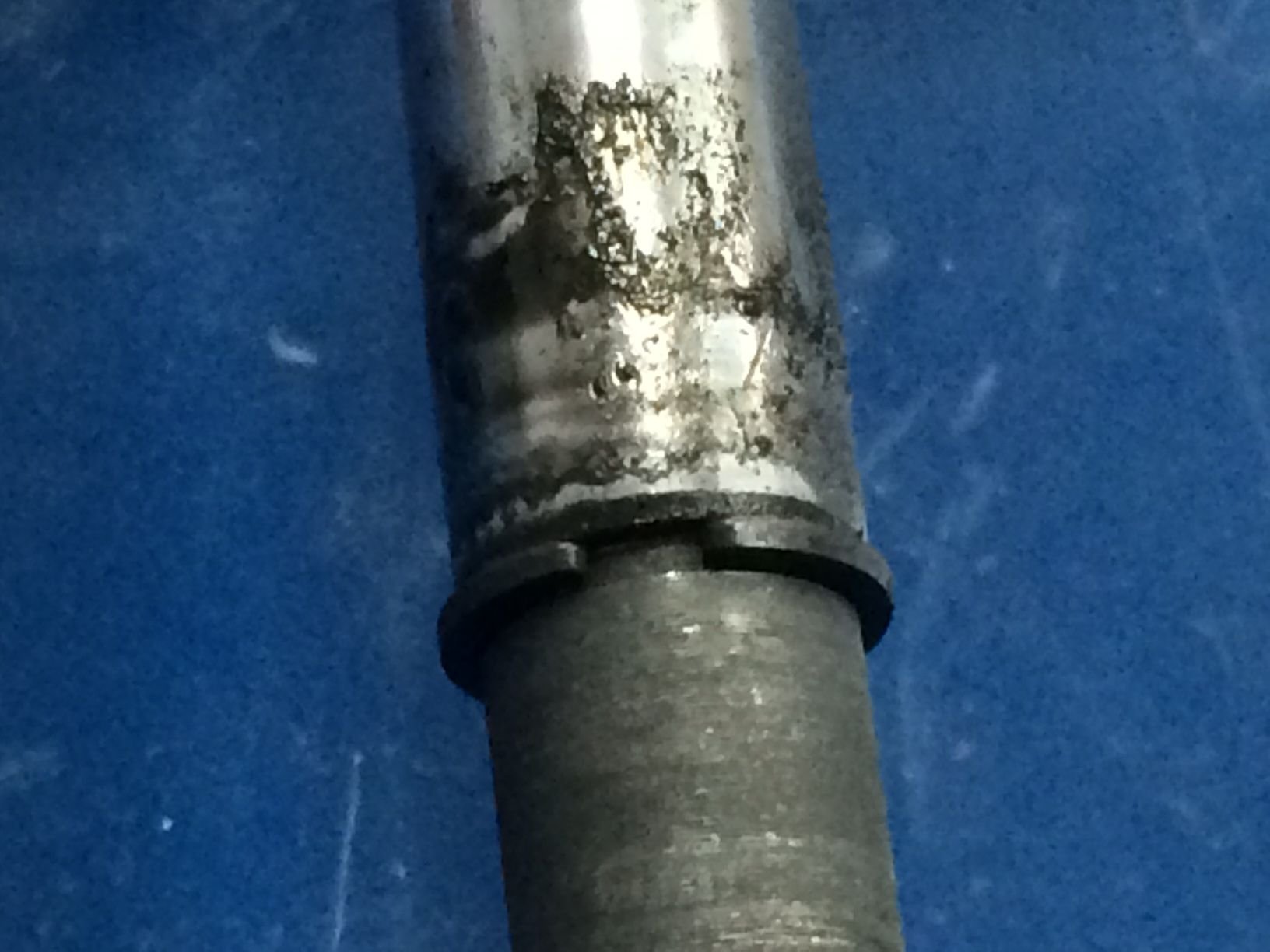

These the pictures you are looking for?


Bill

Gearhead Jim

Interesting, thanks.

Gearhead Jim

I'm trying to figure out how all the parts fit together at the top of the shock, and how that little clip can keep the shaft from moving upward.
It looks good enough to keep the dust boot from flopping up and down, but to hold the whole assembly in place?

Can someone supplement Bill's pictures, with one or two of everything put together but not installed on the car?

ls1121

Look at my post you will see what you are looking for. I , myself just find it amazing how they put this together.

https://www.corvetteforum.com/forums...-bushings.html
