I have a C6Z with Bose and in process of replacing the Head Unit with a Sony AX210. Been looking for one (200 or 210) for a while, excited to install. I am running into a slight hiccup. On the Sony harness, there is no orange/white wire (illumination) to connect to the respective orange/white wire on the RP5-GM11 harness. Is there anyway I can buy a pin to pin it in? I believe it should exist right next to the red wire in the Sony harness.
I have a C6Z with Bose and in process of replacing the Head Unit with a Sony AX210. Been looking for one (200 or 210) for a while, excited to install. I am running into a slight hiccup. On the Sony harness, there is no orange/white wire (illumination) to connect to the respective orange/white wire on the RP5-GM11 harness. Is there anyway I can buy a pin to pin it in? I believe it should exist right next to the red wire in the Sony harness.
Thanks in advance for all your help,
George
Who did you buy the unit from ? If you bought it from Crutchfield I suggest you contact them and tell them you got a harness missing one of the leads, they have good customer service and should take care of you. Sure, you could probably re-pin it assuming you know what type of pins used and are able to find them, and you're positive you have the right position on the connector, guessing is not a good idea, because if you guess incorrectly, you could potentially fry the whole unit as the illumination circuit runs at 12+ when energized.

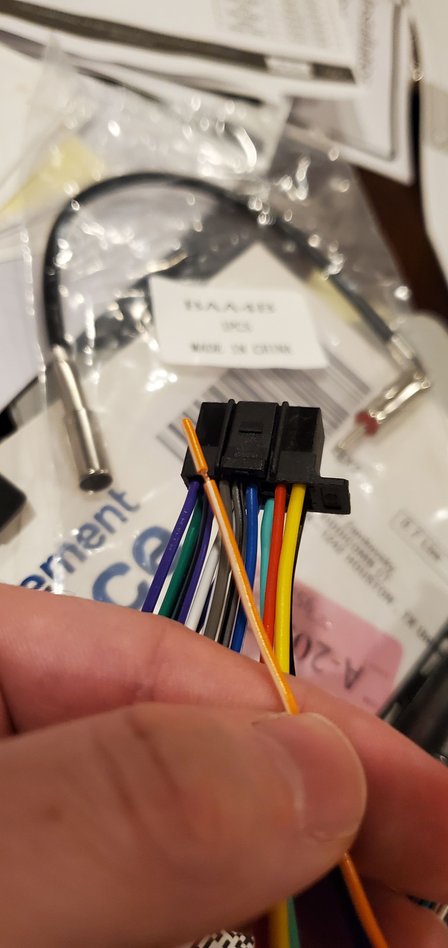

Or you could just buy a replacement harness such as this one, looking at the picture of it, you might be on the right track as far as pin location for the illumination.
Or you could just buy a replacement harness such as this one, looking at the picture of it, you might be on the right track as far as pin location for the illumination. https://www.amazon.com/Wire-Replacem.../dp/B0B1WKY1GF
I think that's going to be the plan honestly, pick up a new harness and redo it or try to de-pin the single wire I need. Either option will be time consuming lol. It's impossible finding information out related to pins that's are made of these types of connectors.
Sony AX210 Illumination Wire?
