Eight Leaf Spring???
Thread Starter
Pro
Joined: Jul 2001
Posts: 714
Likes: 240
From: Niagara Falls Ontario
Eight Leaf Spring???
I decided to pull the rear leaf spring on my 67 small block car.
I took the spring apart in order to clean and repaint it.
Then I noticed I only had eight leaves......am I missing one?

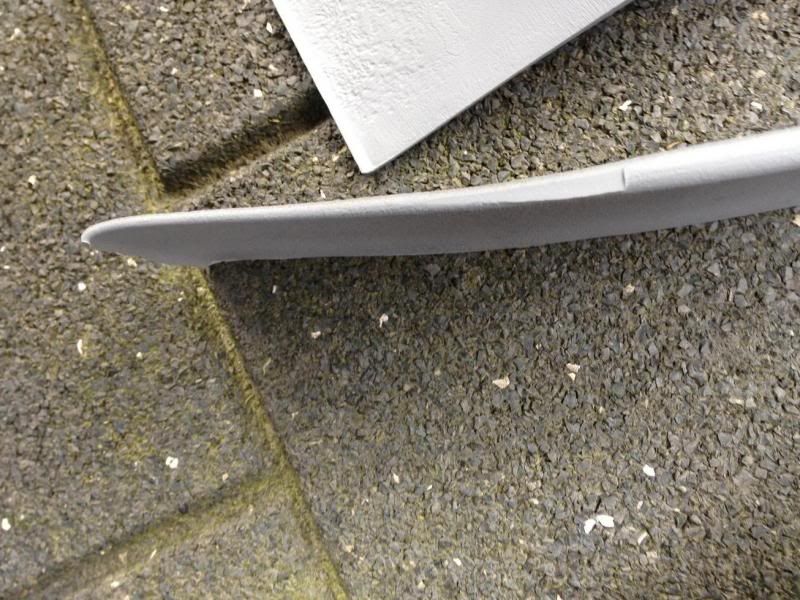

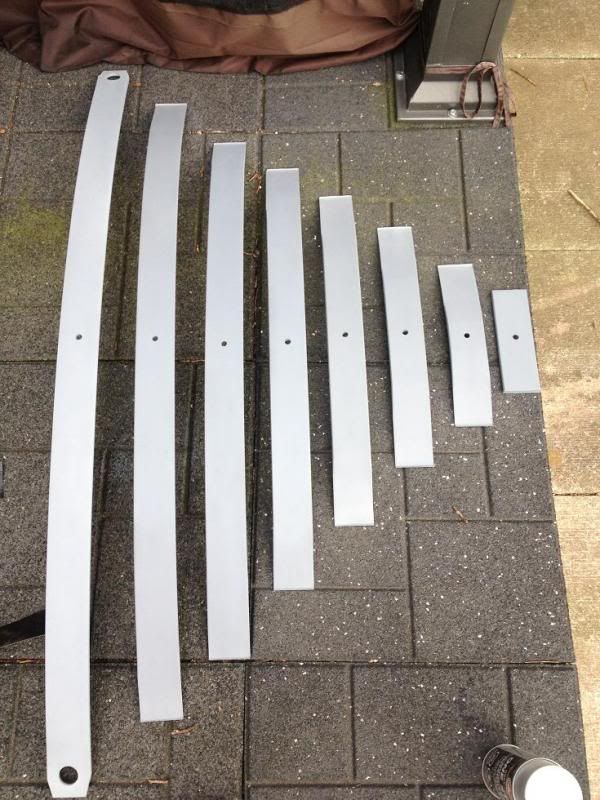

Check out the pics, and if anyone knows what I've got or what I'm missing I'd love to know.
On a side note....I envy those of you who have the guts to pull the body and do a proper chassis restoration.
I've been doing little resto jobs component by component...master cylinder, leaf spring and shocks, driveshaft, etc.
But I keep telling myself I'll never get the car the way I'd like it unless I have access to the entire chassis.
Kudos to those of you who have done it or are doing it.
I took the spring apart in order to clean and repaint it.
Then I noticed I only had eight leaves......am I missing one?
Check out the pics, and if anyone knows what I've got or what I'm missing I'd love to know.
On a side note....I envy those of you who have the guts to pull the body and do a proper chassis restoration.
I've been doing little resto jobs component by component...master cylinder, leaf spring and shocks, driveshaft, etc.
But I keep telling myself I'll never get the car the way I'd like it unless I have access to the entire chassis.
Kudos to those of you who have done it or are doing it.
Le Mans Master
Joined: Apr 2006
Posts: 5,347
Likes: 36
From: San Clemente CA
I've never heard of any C2 coming from the factory with an 8 leaf spring. The standard would have been 9 and the heavy duty 7. Not sure where that one is from but perhaps someone will know.
Melting Slicks
Joined: Mar 2006
Posts: 2,640
Likes: 67
From: Livin' large and havin' fun in wonderful Oklahoma
Hard to tell from the distance, but your top leaf doesn't look like it belongs with the rest....too short. Doesn't appear to the 'curled' ends.
Last edited by RestoMike; Sep 2, 2013 at 01:28 PM.
Melting Slicks
Joined: Apr 2010
Posts: 2,142
Likes: 282
2018 C2 of Year Finalist
2015 C2 of the Year Finalist
The 6/3 nine leaf spring configuration should look something like this when assembled. The lower six leaves are arched, the top three flat, in the free state.
Last edited by Mike67nv; Sep 1, 2013 at 11:18 PM.
Thread Starter
Pro
Joined: Jul 2001
Posts: 714
Likes: 240
From: Niagara Falls Ontario
Here's a pic I found on the Eaton website. The pictured spring is just like
mine...7 leaves and a short piece of flatstock at the top.
http://www.eatonsprings.com/corvettespringends.html
mine...7 leaves and a short piece of flatstock at the top.
http://www.eatonsprings.com/corvettespringends.html
Melting Slicks
Joined: Oct 2004
Posts: 3,345
Likes: 87
From: Northern MN
St. Jude Donor '13-'14-'15-'16-'17
Here's a pic I found on the Eaton website. The pictured spring is just like
mine...7 leaves and a short piece of flatstock at the top.
http://www.eatonsprings.com/corvettespringends.html
mine...7 leaves and a short piece of flatstock at the top.
http://www.eatonsprings.com/corvettespringends.html
If you go to their site and try to order the "8" leaf like shown, they do not have one. They have the 6/3, the 7 and the 9 leaf units. Not sure what they are showing in the photo that you posted. Maybe they are considering this the 7 leaf unit and the top one isn't considered. Maybe someone who has a 7 leaf unit can comment. Mine is a 6/3 in my car.
Racer
Joined: May 2013
Posts: 496
Likes: 16
From: Wall Township New Jersey
St. Jude Donor '14-'15-'16
I just removed original 7 leaf spring, (up for sale) and replaced with a 9 leaf, the 9 leaf is exactly as posted above and this is picture of 7 leaf spring, Also notice head of center bolt has a round head and notice shape on end of each leaf turned up and tapered. I would venture to say your spring is not original
Race Director
Joined: Jan 2003
Posts: 17,658
Likes: 3,665
From: Central Arkansas
Mine looks like Mike67nv above. Not sure about your photo and what Eaton is showing there - that's a puzzle. Having never owned a 7 leaf sping, did it by chance have a short flat length (#8) at top to fit flat against the diff cover? Doesn't seem right if they were calling it a 7-leaf spring.
