operating headlights C2
Thread Starter
Instructor
Joined: Sep 2016
Posts: 182
Likes: 6
From: Anderson SC
operating headlights C2
I am restoring a 64 roadster.. I'm working on the headlights. How do they operate.. I wired everything in. To open the doors I push the button down, to lower I lift up. Is that backwards? Smooth operation, lucky me! How does the limiter switch work. Does it just light up a light on the gauge cluster or does it do something else? Where are all the indicator lights and how do they work. on, off, blinking, etc. The cluster looks like it was stored in a old barn for 50 years but I believe it will clean up.. I need to know where and what are all the indicator lights. I want to test everything before I make it look nice.
are those clips by the headlight motor necessary. looks like they would prevent the motor from sliding sideways if the bracket became loose. I could use c-clips if the hardware store doesn't carry the correct ones, should they be spaced with washers.
are those clips by the headlight motor necessary. looks like they would prevent the motor from sliding sideways if the bracket became loose. I could use c-clips if the hardware store doesn't carry the correct ones, should they be spaced with washers.
Team Owner
Joined: Jul 2006
Posts: 22,153
Likes: 4,165
From: Kannapolis NC
Pulling up on the switch should open the headlights, pushing down should close them.
There are no limit switches, only "telltale" switches that illuminate the light on the dash that says "lights" in red and it should flash after a while. It should come on only when headlights are on and EITHER bucket is not fully up. The telltale switch is normally closed providing a ground for that light when lights are on and then opening and removing the ground when both buckets are fully open, turning off the light. It has a special bulb that flashes after a slight warmup period, as does the parking brake warning in the other nearby rectangular opening.
Those switches don't stop anything, the motors will drive as long as you hold the switch in either position and they operate with or without ignition.
The only other indicator lights on the dash are the round center one for lights on bright, and the left and right turn signal lights. Those are all regular bulbs and not flashing bulbs.
I don't know what clips you are asking about in the other question.
There are no limit switches, only "telltale" switches that illuminate the light on the dash that says "lights" in red and it should flash after a while. It should come on only when headlights are on and EITHER bucket is not fully up. The telltale switch is normally closed providing a ground for that light when lights are on and then opening and removing the ground when both buckets are fully open, turning off the light. It has a special bulb that flashes after a slight warmup period, as does the parking brake warning in the other nearby rectangular opening.
Those switches don't stop anything, the motors will drive as long as you hold the switch in either position and they operate with or without ignition.
The only other indicator lights on the dash are the round center one for lights on bright, and the left and right turn signal lights. Those are all regular bulbs and not flashing bulbs.
I don't know what clips you are asking about in the other question.
Last edited by 65GGvert; May 16, 2018 at 07:50 PM.
Thread Starter
Instructor
Joined: Sep 2016
Posts: 182
Likes: 6
From: Anderson SC
it looks like there is approx 1/8" between the clip groove and motor block, should spacers be placed within that gap?
I did not install the clips yet but the motor seems tightly attached with the band bracket alone but I will install the clips after I paint the car and reinstall the doors.
I did not install the clips yet but the motor seems tightly attached with the band bracket alone but I will install the clips after I paint the car and reinstall the doors.
Thread Starter
Instructor
Joined: Sep 2016
Posts: 182
Likes: 6
From: Anderson SC

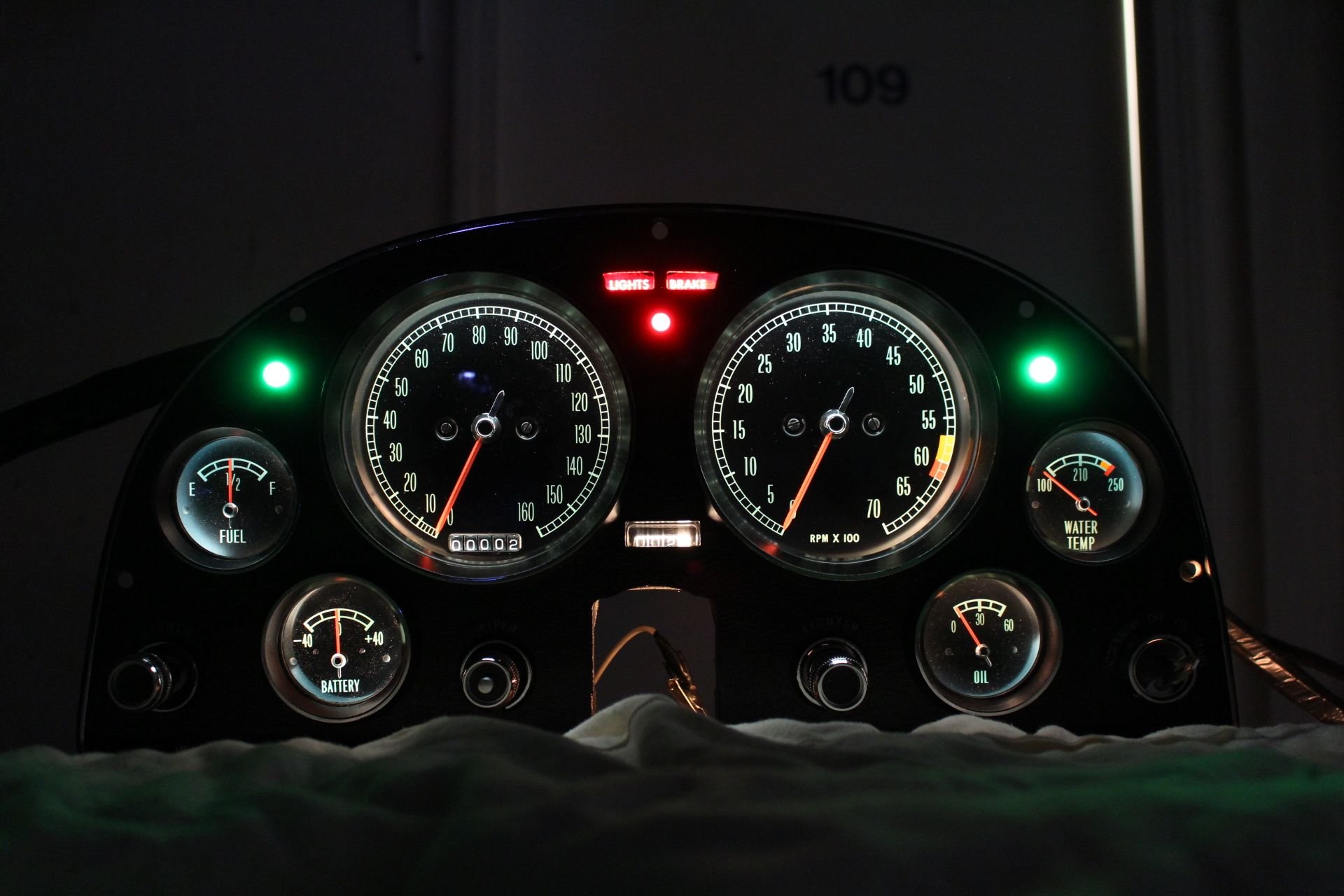

do the 2 red center indicators work together or separately? the green ones.. I assume the far left and far right are directional, whats the center green
yes I will look for a owners manual.. thanks for the info
yes I will look for a owners manual.. thanks for the info
Last edited by ohpoppy; May 16, 2018 at 08:31 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Team Owner
Joined: Jul 2006
Posts: 22,153
Likes: 4,165
From: Kannapolis NC

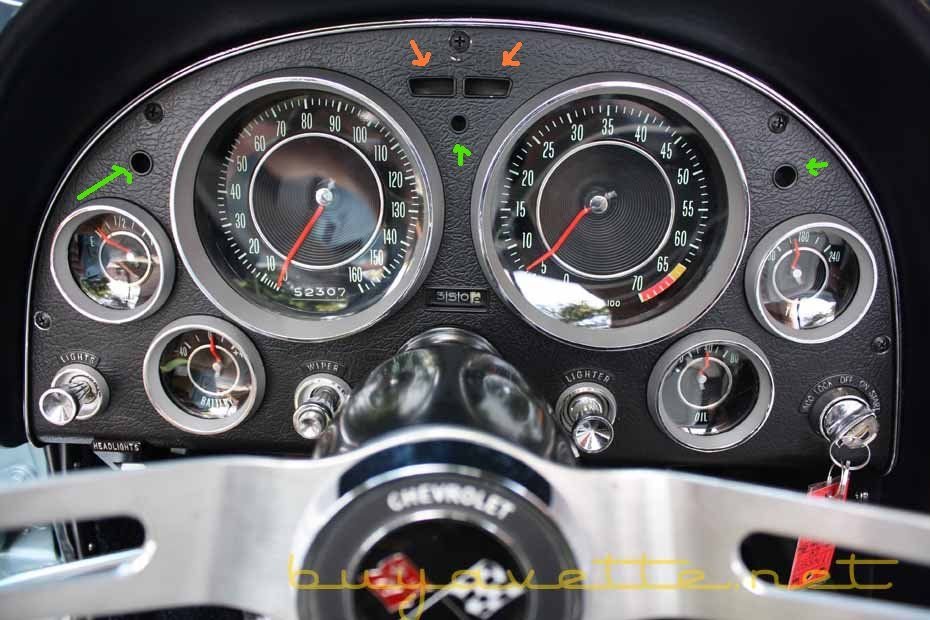

One of the red ones is parking brake, one is "lights", the center round one is lights on bright, the other two are turn signals.
