Clutch Brackets
Hello All;

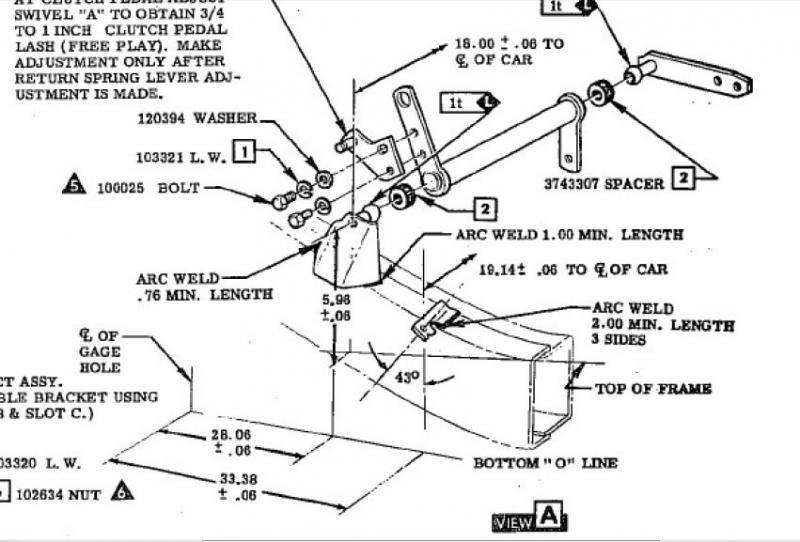

Does anyone have a drawing with measurements showing the location of the 2 clutch brackets that weld to the frame on an early 1958.
The cross shaft one is the (forward Tall bracket welded to the top of the frame rail, and the rear spring bracket also welded to the frame.
Bubba did not understand at all how important this geometry is to the proper clutch setup.

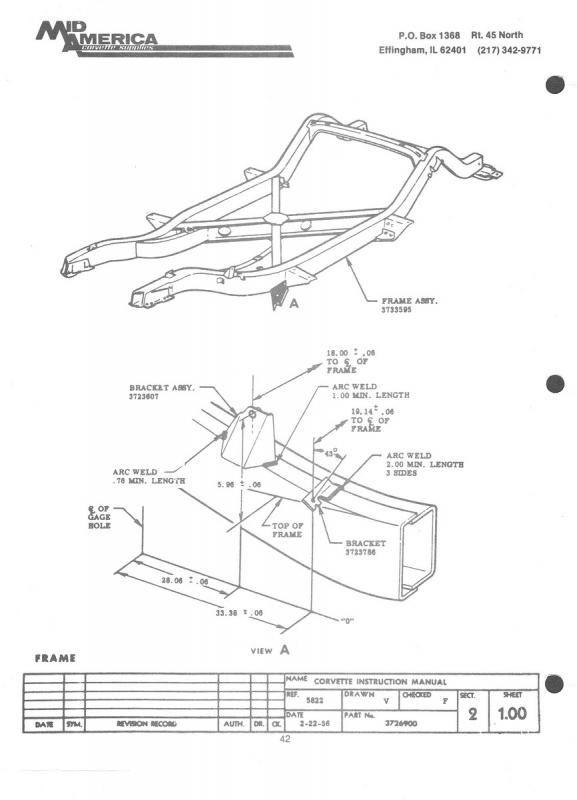

I have the AIM book with that drawing but it is really difficult to read. (old eyes etc.)
Has anybody seen a better drawing or at least the proper measurements anywhere?
Thanks. As always I appreciate your help.
