[C1] 57 trunk lock pics

Thread Tools

Search this Thread

Old Nov 3, 2022 | 03:47 PM
Share
  #1
Dr L-88's Avatar
Dr L-88
Thread Starter
Le Mans Master
15 Year Member
Liked
Loved
Top Answer: 5

Joined: Oct 2007
Posts: 6,007
Likes: 1,746
From: Richmond Kentucky
2025 Corvette of the Year Winner- Modified
2024 C2 of the Year Winner - Modified
2022 Corvette of the Year Finalist -- Modified
2021 C2 of the Year Winner - Modified
2021 C1 of the Year Winner - Modified
2020 Corvette of the Year (stock)
C2 of Year Winner (stock) 2019
2017 C1 of the Year Finalist
Default 57 trunk lock pics
Would someone please post pics (exterior and interior) of the trunk lock on a 56-57? Mine was glassed over by a previous owner and I need to redrill the hole for the key cylinder.

Thanks,
Rex
Reply
0
Old Nov 3, 2022 | 07:23 PM
Share
  #2
adamsocb's Avatar
adamsocb
Melting Slicks
Supporting Member
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 3,145
Likes: 537
From: Upland CA
Default
Originally Posted by Dr L-88
Would someone please post pics (exterior and interior) of the trunk lock on a 56-57? Mine was glassed over by a previous owner and I need to redrill the hole for the key cylinder.

Thanks,
Rex
Mine is disassembled will that help you?
Reply
1
Old Nov 3, 2022 | 08:40 PM
Share
  #3
Dr L-88's Avatar
Dr L-88
Thread Starter
Le Mans Master
15 Year Member
Liked
Loved
Top Answer: 5

Joined: Oct 2007
Posts: 6,007
Likes: 1,746
From: Richmond Kentucky
2025 Corvette of the Year Winner- Modified
2024 C2 of the Year Winner - Modified
2022 Corvette of the Year Finalist -- Modified
2021 C2 of the Year Winner - Modified
2021 C1 of the Year Winner - Modified
2020 Corvette of the Year (stock)
C2 of Year Winner (stock) 2019
2017 C1 of the Year Finalist
Default
Originally Posted by adamsocb
Mine is disassembled will that help you?
Not really.................................. ... but thanks anyway

Reply
0
Old Nov 3, 2022 | 10:44 PM
Share
  #4
adamsocb's Avatar
adamsocb
Melting Slicks
Supporting Member
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 3,145
Likes: 537
From: Upland CA
Default
The hole is 1.25 inch diameter and has a notch to locate the escutcheon and lock cylinder in the correct position. The pics may help you. I will post when I get back to my computer.
Reply
1
Old Nov 4, 2022 | 09:54 AM
Share
  #5
roberts427's Avatar
roberts427
Drifting
Supporting Member
10 Year Member
Photogenic
Liked
Loved

Joined: Oct 2012
Posts: 1,422
Likes: 184
From: Wolcott CT.
Default

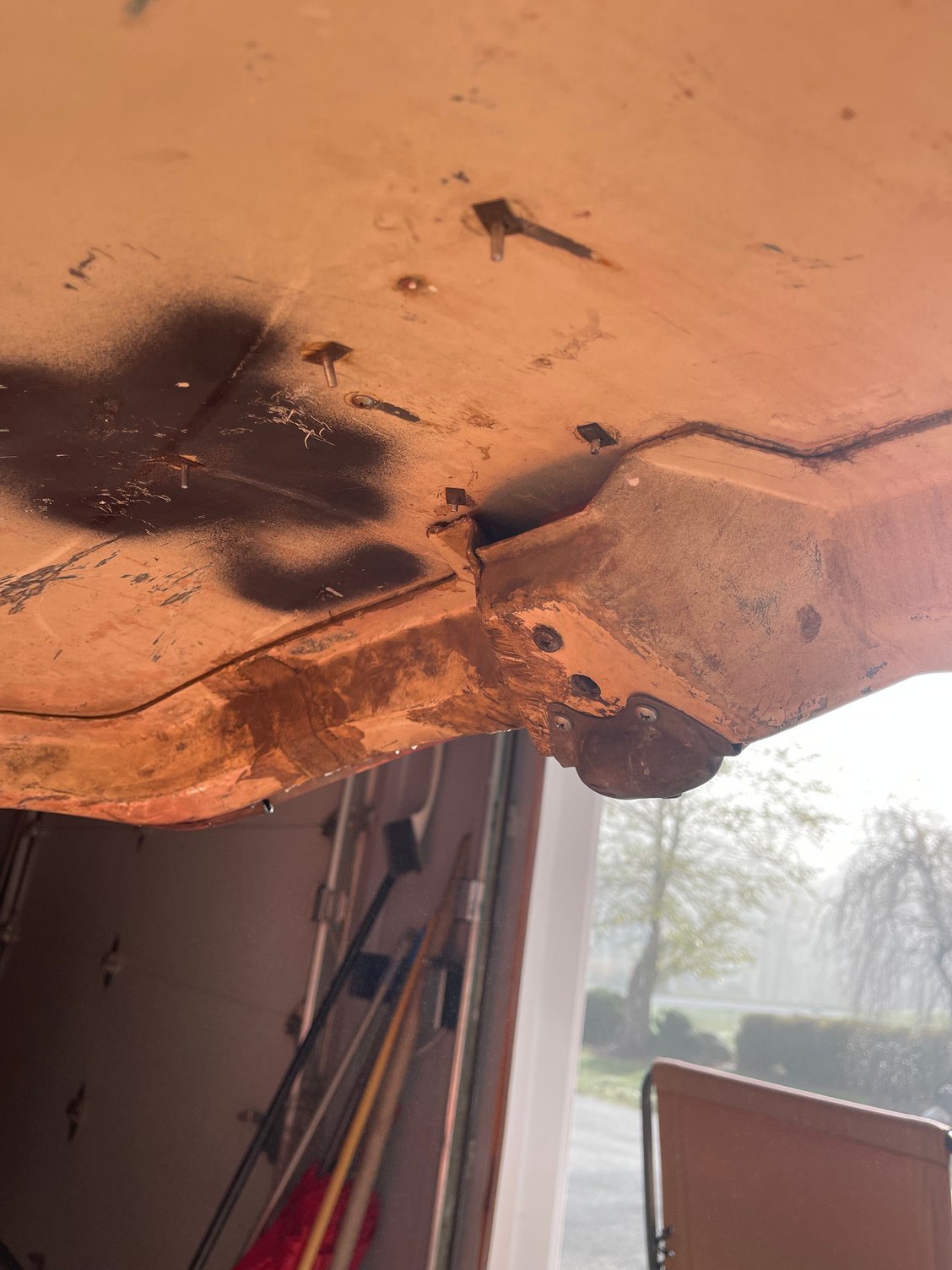

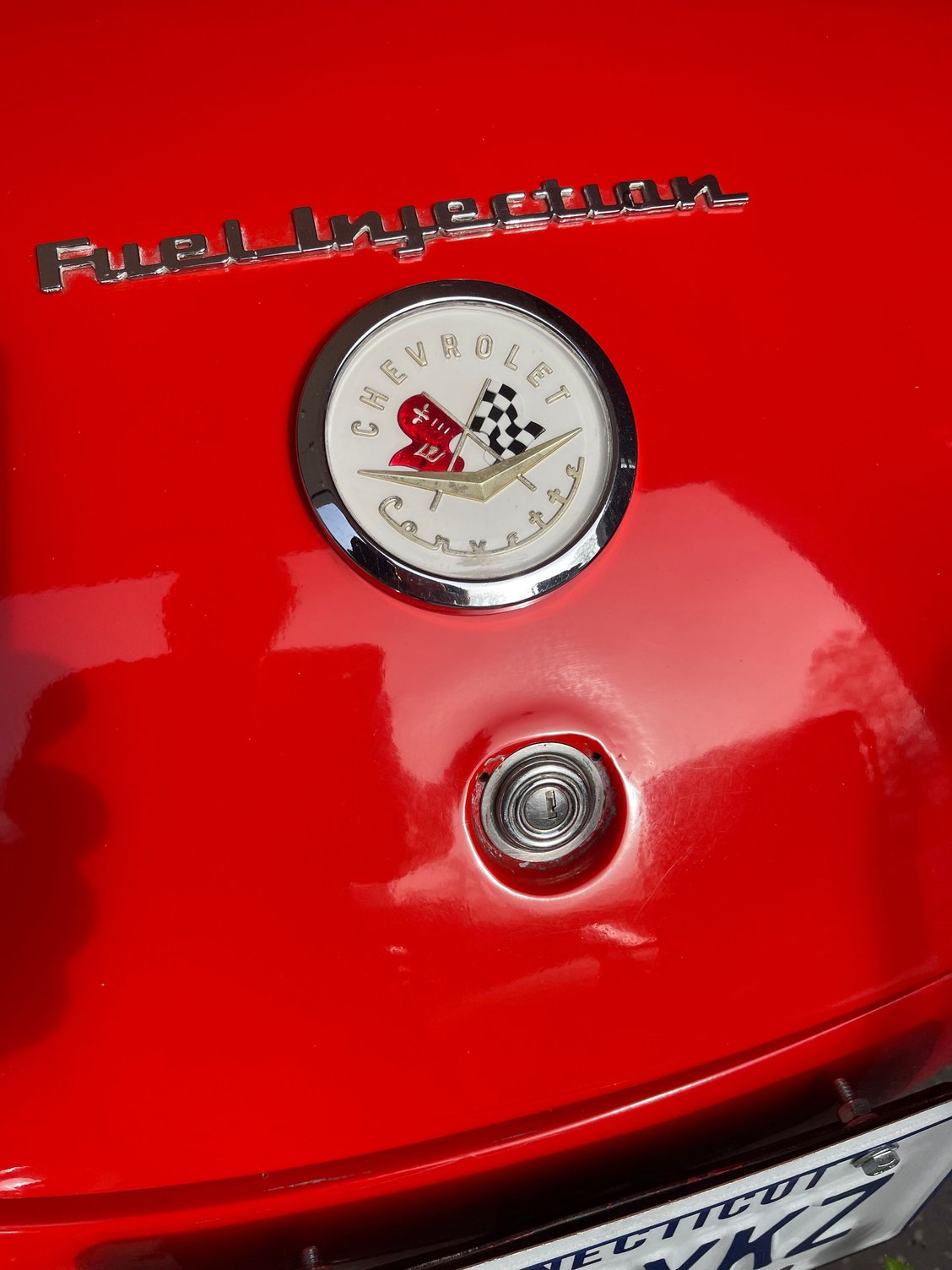

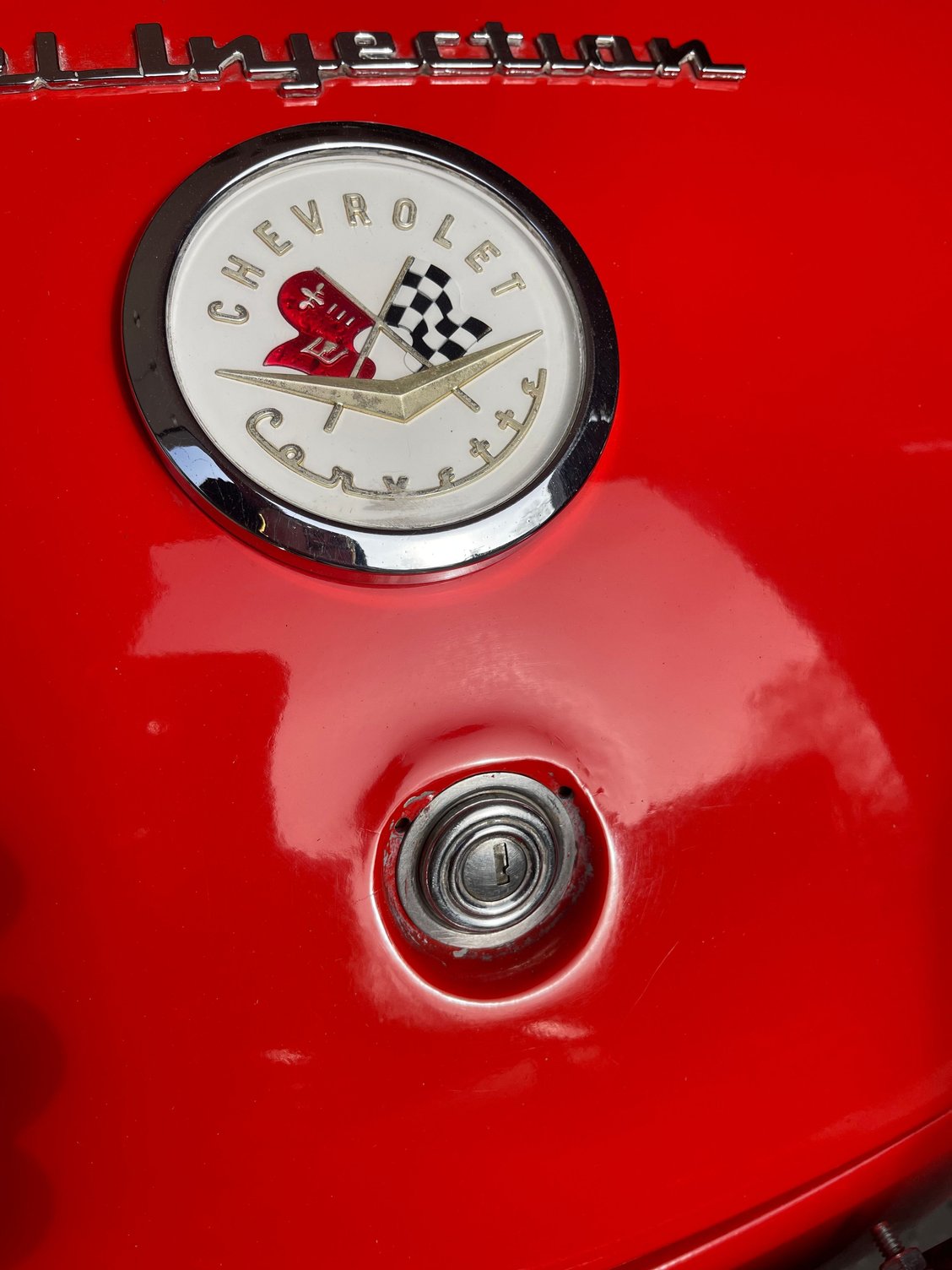

my 57, not sure if this is what ur looking for
Reply
0
Old Nov 4, 2022 | 12:30 PM
Share
  #6
adamsocb's Avatar
adamsocb
Melting Slicks
Supporting Member
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 3,145
Likes: 537
From: Upland CA
Default Pics With Lock Removed
Here are the pics I took:

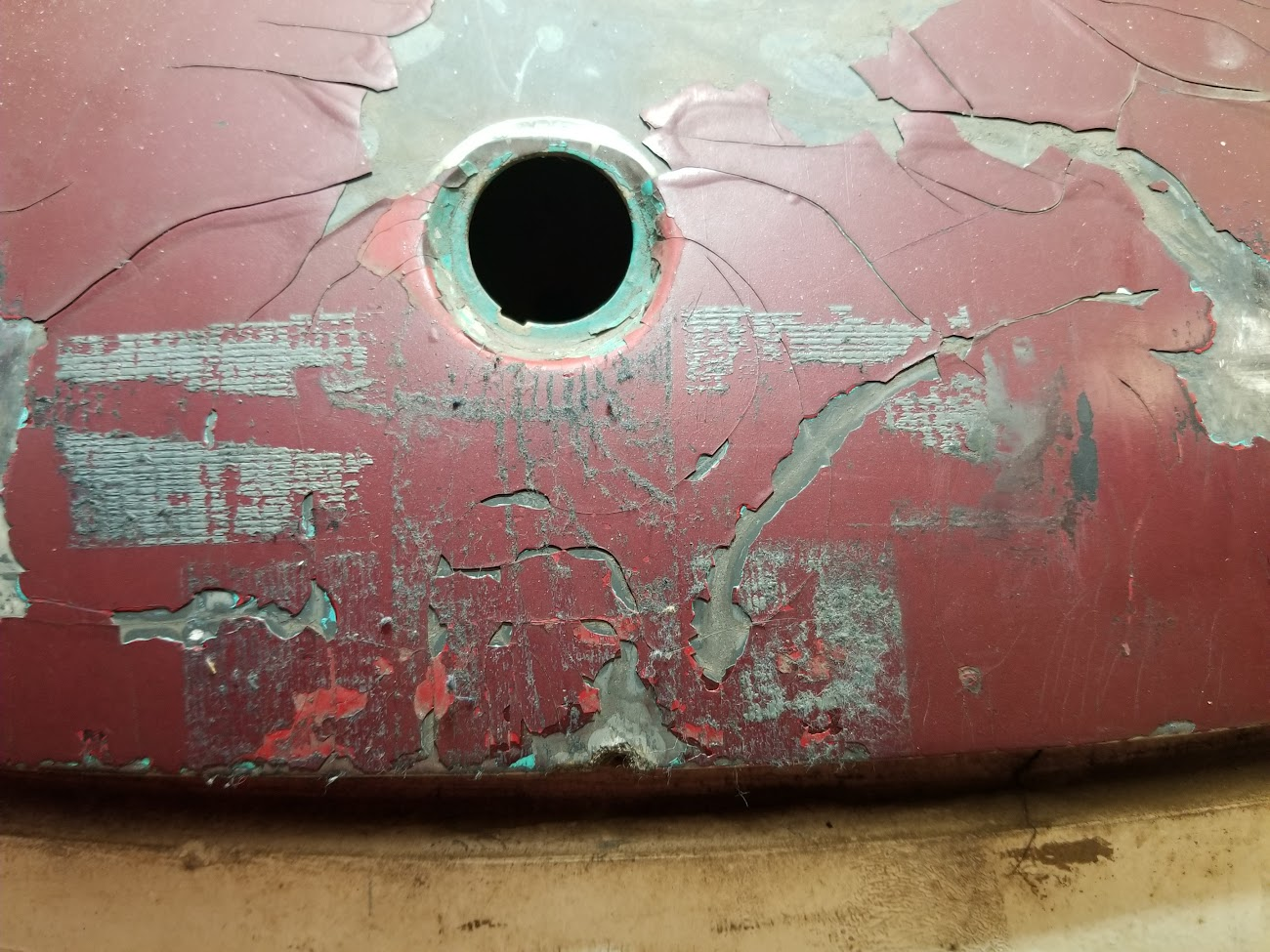

Lock cylinder hole from the outside.

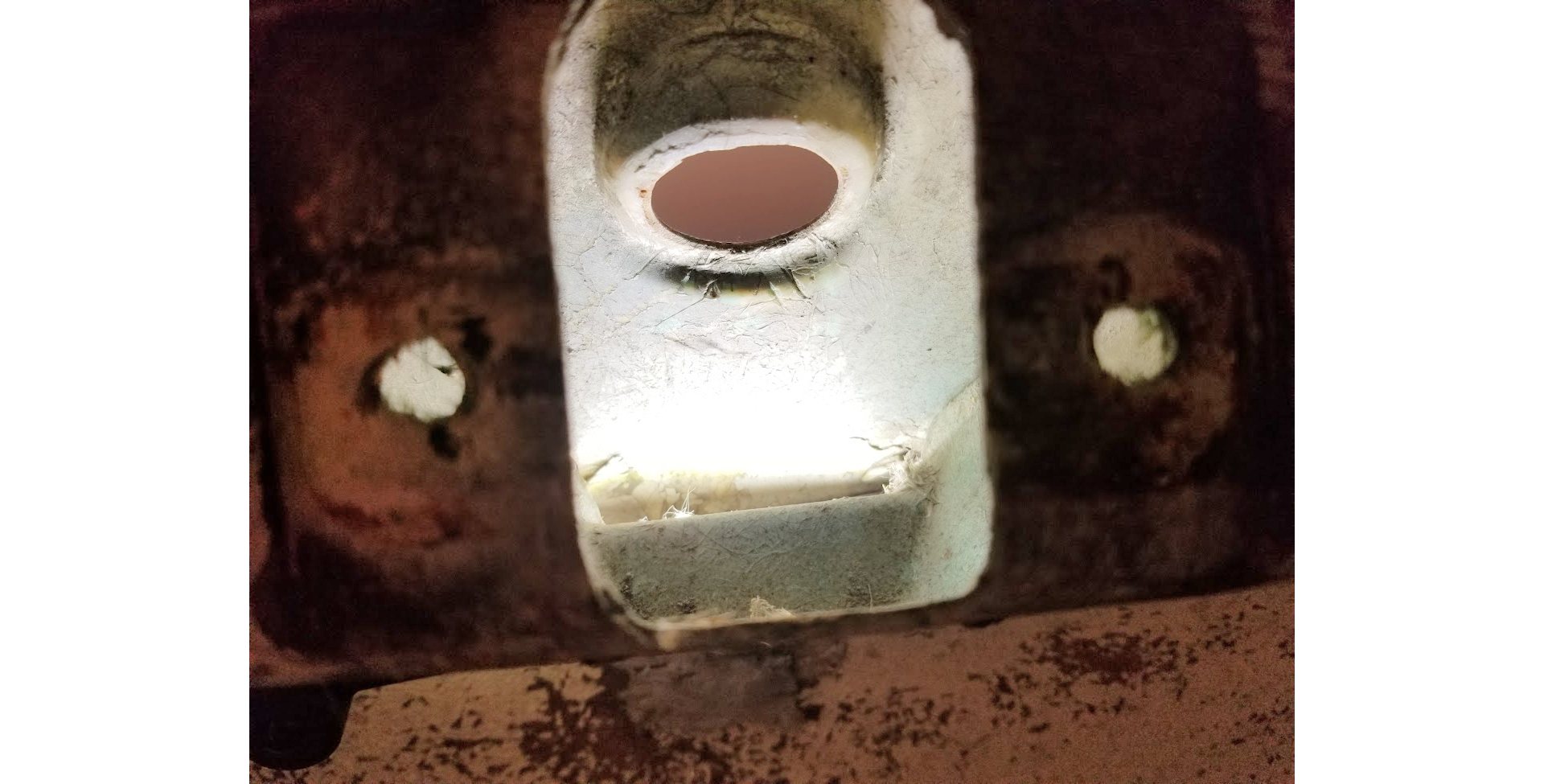

From the inside

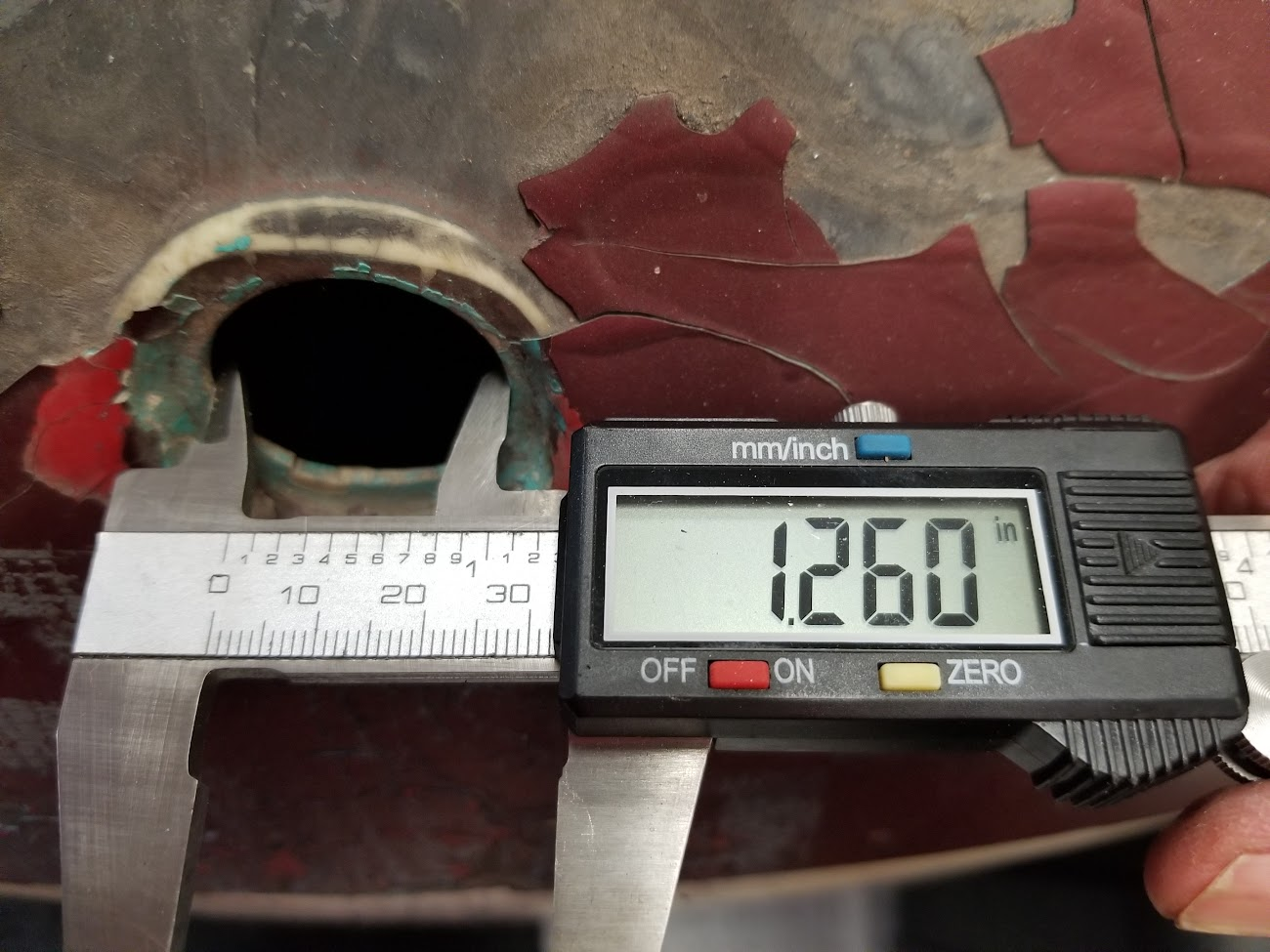

Hole measurement

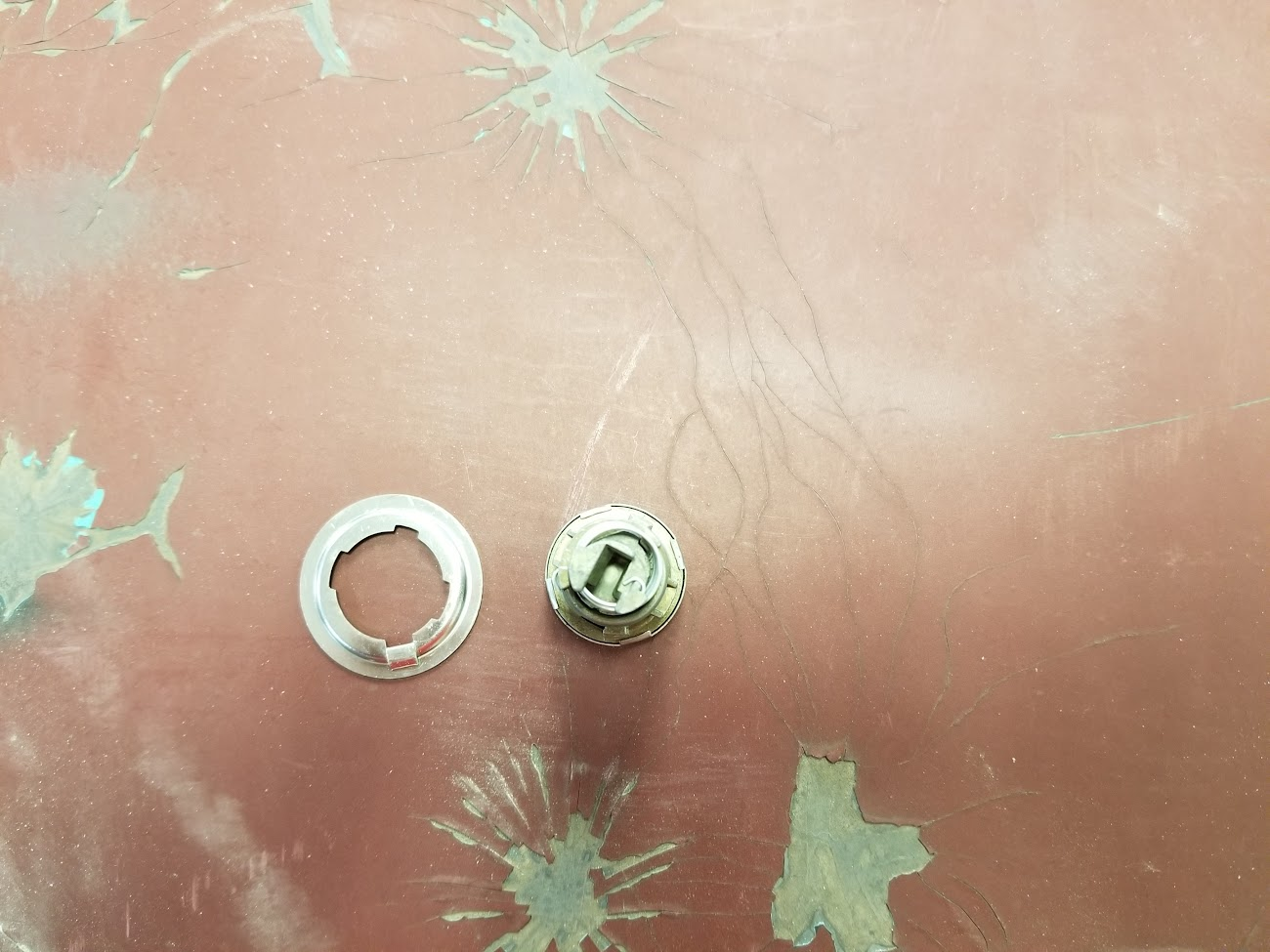

Lock and escutcheon separate


Lock and escutcheon together

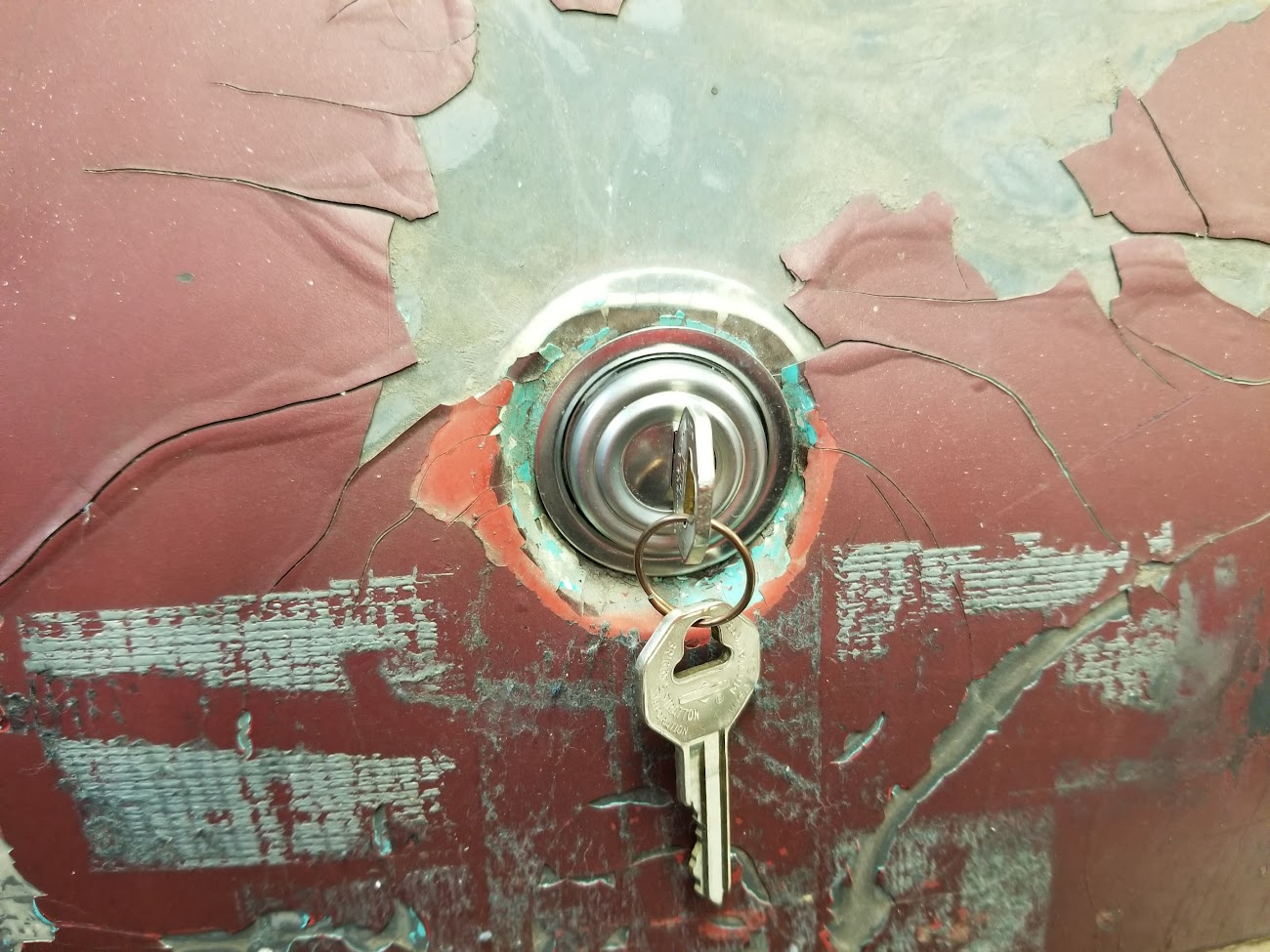

Lock and escutcheon inserted in trunk hole

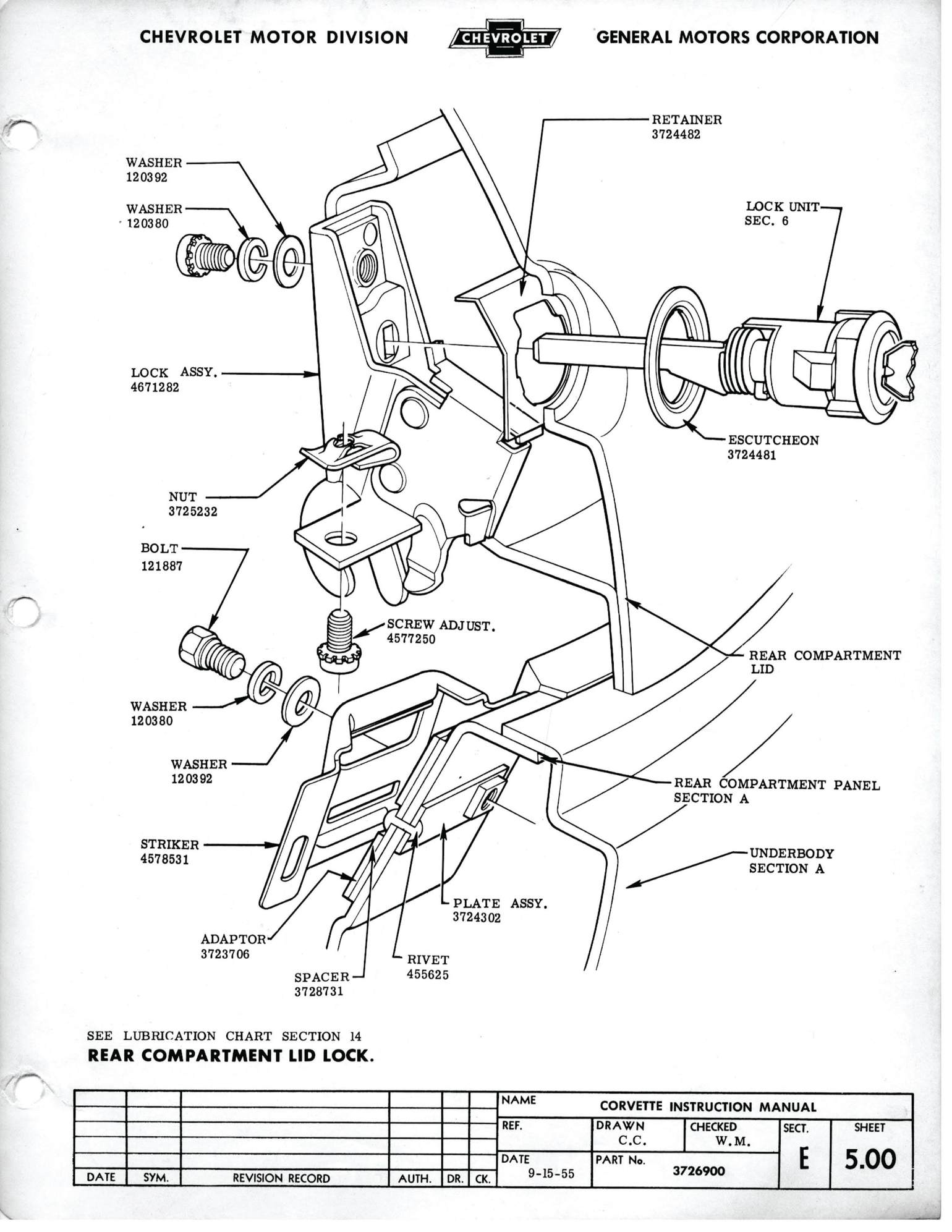

AIM section E sheet 5.00

Good Luck!

Charles
Last edited by adamsocb; Nov 4, 2022 at 12:45 PM. Reason: Added AIM page
Reply
2
Old Nov 4, 2022 | 01:20 PM
Share
  #7
Dr L-88's Avatar
Dr L-88
Thread Starter
Le Mans Master
15 Year Member
Liked
Loved
Top Answer: 5

Joined: Oct 2007
Posts: 6,007
Likes: 1,746
From: Richmond Kentucky
2025 Corvette of the Year Winner- Modified
2024 C2 of the Year Winner - Modified
2022 Corvette of the Year Finalist -- Modified
2021 C2 of the Year Winner - Modified
2021 C1 of the Year Winner - Modified
2020 Corvette of the Year (stock)
C2 of Year Winner (stock) 2019
2017 C1 of the Year Finalist
Default
Originally Posted by adamsocb
here are the pics i took:

lock cylinder hole from the outside.


from the inside


hole measurement


lock and escutcheon separate


lock and escutcheon together


lock and escutcheon inserted in trunk hole


aim section e sheet 5.00

good luck!

Charles

perfect !!! Thank you !!!
