8080 wheels
Wahhh.Finally got my wheels and tires back, dismounted, so I could examine the stamps on the inside of the rims before I have the Diamond Backs mounted. Wanted to document the originality and 63 stamps and markings and…
… didn’t recognize the markings on the face of the first one. Had the nubs by the valve stem, but no GM stamp. Instead, a “K1, 89.” Then I noticed the mild “step” design of the contour of the inner rim, rather than the smooth curve of the 63-4.
The inner stamp was right… 15x5 1/2 K… but everything else was wrong and the other 2 expected stamps werent there. Then on the third wheel (they are all the same), a remaining sticker:
GM over the counter replacement, correct?
I guess I could make the argument that I’d rather drive on essentially new wheels (the car was barely driven after its restoration in the 90s), than wheels that have been banging around for 60 years. Still disappointed.
Any other input on 8080 wheels?

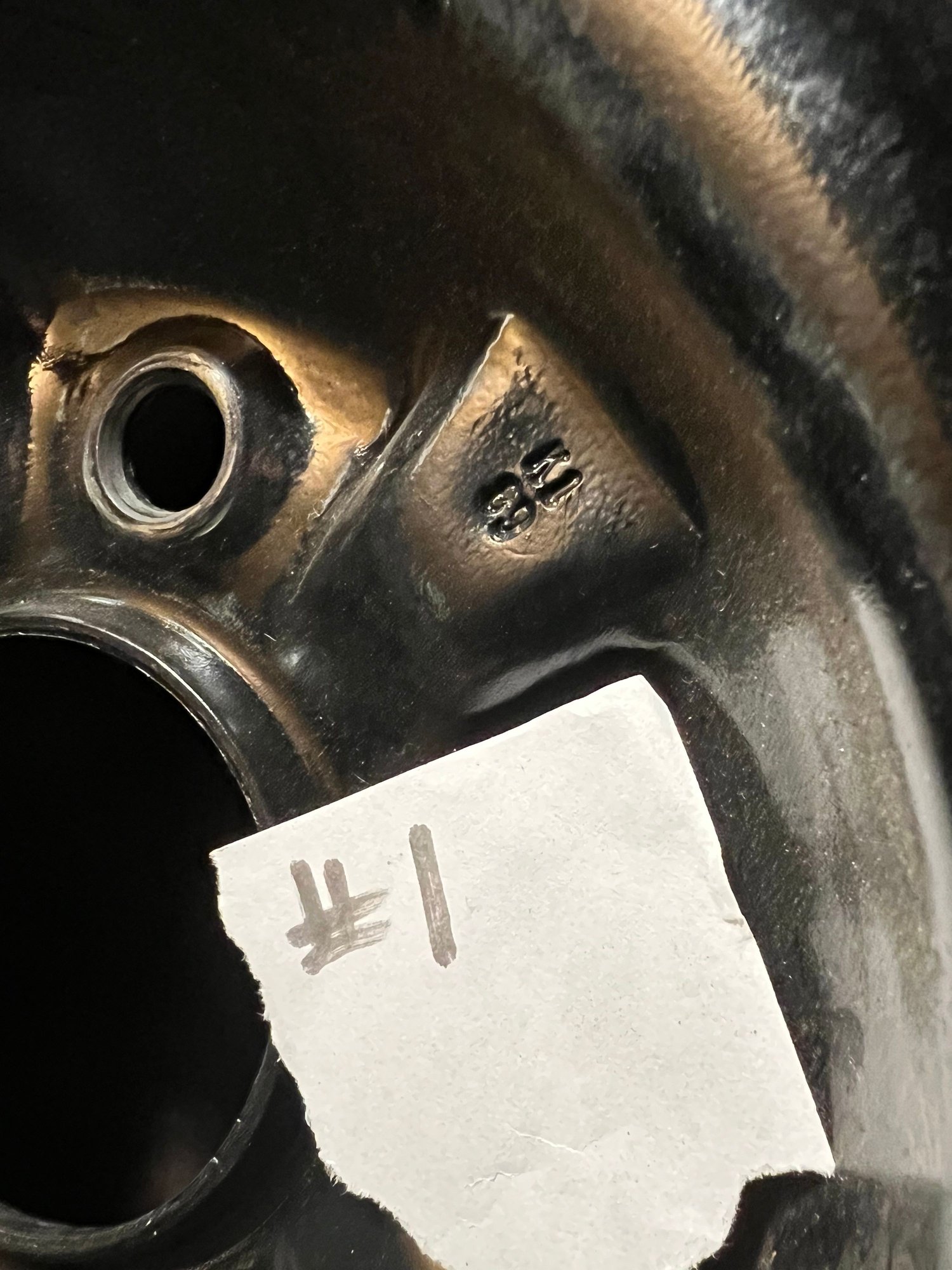

More pics of stamps:
Thread Starter
Administrator
Joined: Jul 2000
Posts: 53,988
Likes: 6,212
From: About 1100 miles from where I call home.
Safety Car
Joined: May 2014
Posts: 3,785
Likes: 657
The 8080 wheels were the GM service replacement wheels for all 64 earlier drum brake cars with 5 1/2" rims. The 1965-66 5 1/2" rim for disc brakes was available in service for years and is different than the 8080, the 8080 will not fit over the disc brake caliper of a 65-66 car.
Hemi, what is "the bug"?
Hemi, what is "the bug"?
Race Director
Joined: Nov 2003
Posts: 10,696
Likes: 3,092
From: Cottonwood AZ
C1 of Year Finalist (performance mods) 2019
The 8080 wheels were the GM service replacement wheels for all 64 earlier drum brake cars with 5 1/2" rims. The 1965-66 5 1/2" rim for disc brakes was available in service for years and is different than the 8080, the 8080 will not fit over the disc brake caliper of a 65-66 car.
Hemi, what is "the bug"?
Hemi, what is "the bug"?
Thread Starter
Administrator
Joined: Jul 2000
Posts: 53,988
Likes: 6,212
From: About 1100 miles from where I call home.
It is an imprint on the inside of the wheel that the manufacturer stamped in them. I too was not aware of them until prompted to look when I was selling my factory installed wheels from my 1965 coupe. They may not have been a 1964 wheel thing. I deleted the pictures of this from my photos after I sold the wheels or I would post the picture of it. Maybe someone else has a picture they can post.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Every 2027 Corvette Engine Explained
Joe Kucinski
Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette
Verdad Gallardo
10 Ugly Corvettes That We Still Kinda Love
Joe Kucinski
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Race Director
Joined: Nov 2003
Posts: 10,696
Likes: 3,092
From: Cottonwood AZ
C1 of Year Finalist (performance mods) 2019
Thread Starter
Administrator
Joined: Jul 2000
Posts: 53,988
Likes: 6,212
From: About 1100 miles from where I call home.
Le Mans Master
Joined: Mar 1999
Posts: 5,401
Likes: 986
From: Itasca IL
The 8080 wheels are totally fine for a driver. Very easy to differentiate from the OE 63-64 wheels visually, but nearly all original 63-64 wheels are bound to have some condition issues at this point in time.
The repro 63-64 wheels have the same profile as the original, but they have a wide MIG weld between the web and the rim. So, really not solving any issue versus having the 8080 wheels because both are visually incorrect.
The repro 63-64 wheels have the same profile as the original, but they have a wide MIG weld between the web and the rim. So, really not solving any issue versus having the 8080 wheels because both are visually incorrect.
Thread Starter
Administrator
Joined: Jul 2000
Posts: 53,988
Likes: 6,212
From: About 1100 miles from where I call home.
Its looks fine with these wheels on it but it bugs me.
Le Mans Master
Joined: Mar 1999
Posts: 5,401
Likes: 986
From: Itasca IL
That's a nice-looking car. My point was that nearly all original 63-64 wheels are going to have some condition issues, whereas it's far more likely to have a straight set of 8080's.
I have a set of original 63-64 wheels, and a set of repros if you can't live without them.
I have a set of original 63-64 wheels, and a set of repros if you can't live without them.
