C2 paedal assembly install

Thread Tools

Search this Thread

Old Mar 11, 2023 | 03:05 AM
Share
  #1
Steve 66's Avatar
Steve 66
Thread Starter
Instructor

Joined: Dec 2022
Posts: 112
Likes: 96
Default C2 paedal assembly install
My reproduction Z bar has no captive nuts , am I right in thinking the pedal assembly bolts to that then the column hangs of it ? If so is there a dimension from hinge pilar to these nuts ?
thanks
Reply
0
Old Mar 11, 2023 | 05:48 AM
Share
  #2
65 Pro Vette's Avatar
65 Pro Vette
Safety Car
Supporting Lifetime
15 Year Member
Liked
Loved
Community Favorite

Joined: Aug 2006
Posts: 3,881
Likes: 1,283
From: Horsham Pa
C2 of Year Finalist (appearance mods) 2019
Default
Is your z bar installed yet? If so are your 2 round support rods in? If yes bolt your pedal assembly to the firewall and it will locate the holes for you. Yes the column hangs from it.I can get the measurements later today.
Reply
2
Old Mar 11, 2023 | 06:00 AM
Share
  #3
Steve 66's Avatar
Steve 66
Thread Starter
Instructor

Joined: Dec 2022
Posts: 112
Likes: 96
Default
Originally Posted by 65 Pro Vette
Is your z bar installed yet? If so are your 2 round support rods in? If yes bolt your pedal assembly to the firewall and it will locate the holes for you. Yes the column hangs from it.I can get the measurements later today.
still got fabricate the 2 support rods
Thanks
Reply
0
Old Mar 11, 2023 | 07:18 AM
Share
  #4
Steve 66's Avatar
Steve 66
Thread Starter
Instructor

Joined: Dec 2022
Posts: 112
Likes: 96
Default

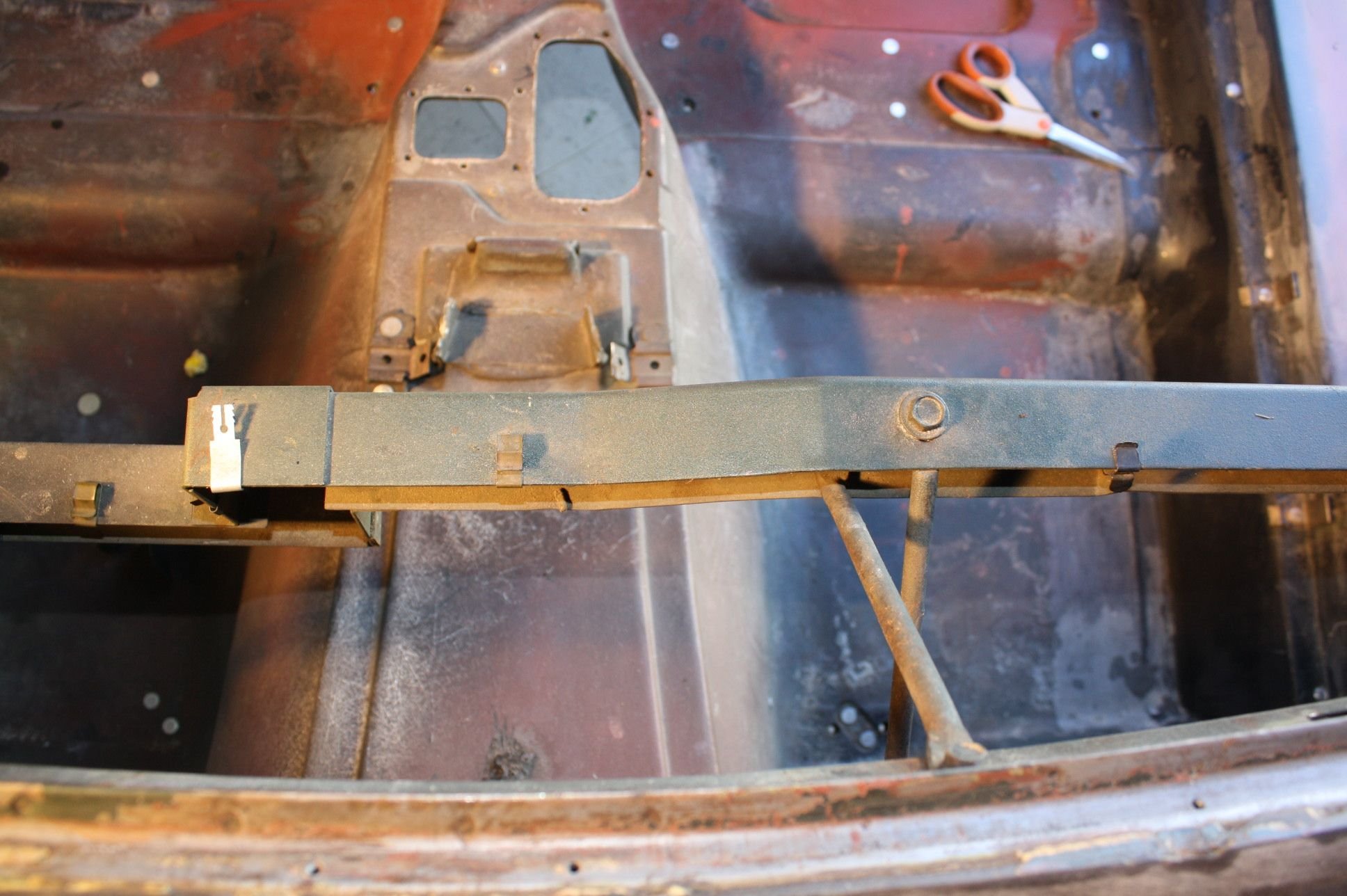

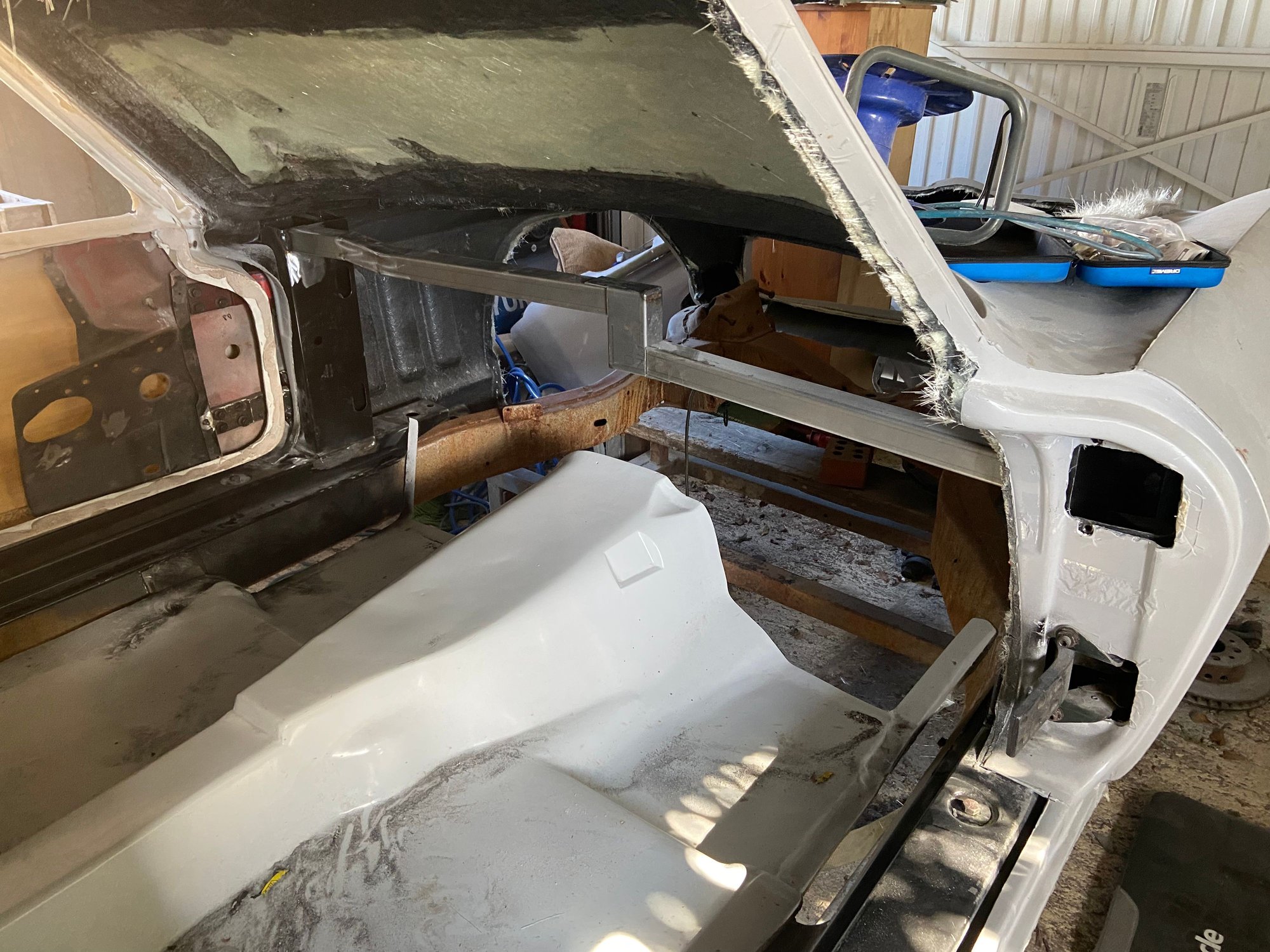

Tacked Z bar in and hoping to use it to set hinge support angle . As you can see I can’t get top hinge in now hinge support is in car
Last edited by Steve 66; Mar 11, 2023 at 07:36 AM.
Reply
0
Old Mar 11, 2023 | 06:27 PM
Share
  #5
Greg Hollowaty's Avatar
Greg Hollowaty
Instructor
10 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2014
Posts: 241
Likes: 87
From: Los Angeles California
Default



67 AC Coupe - I will look at and locate the nuts on Monday.....
Reply
1
Old Mar 12, 2023 | 06:50 PM
Share
  #6
Greg Hollowaty's Avatar
Greg Hollowaty
Instructor
10 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2014
Posts: 241
Likes: 87
From: Los Angeles California
Default

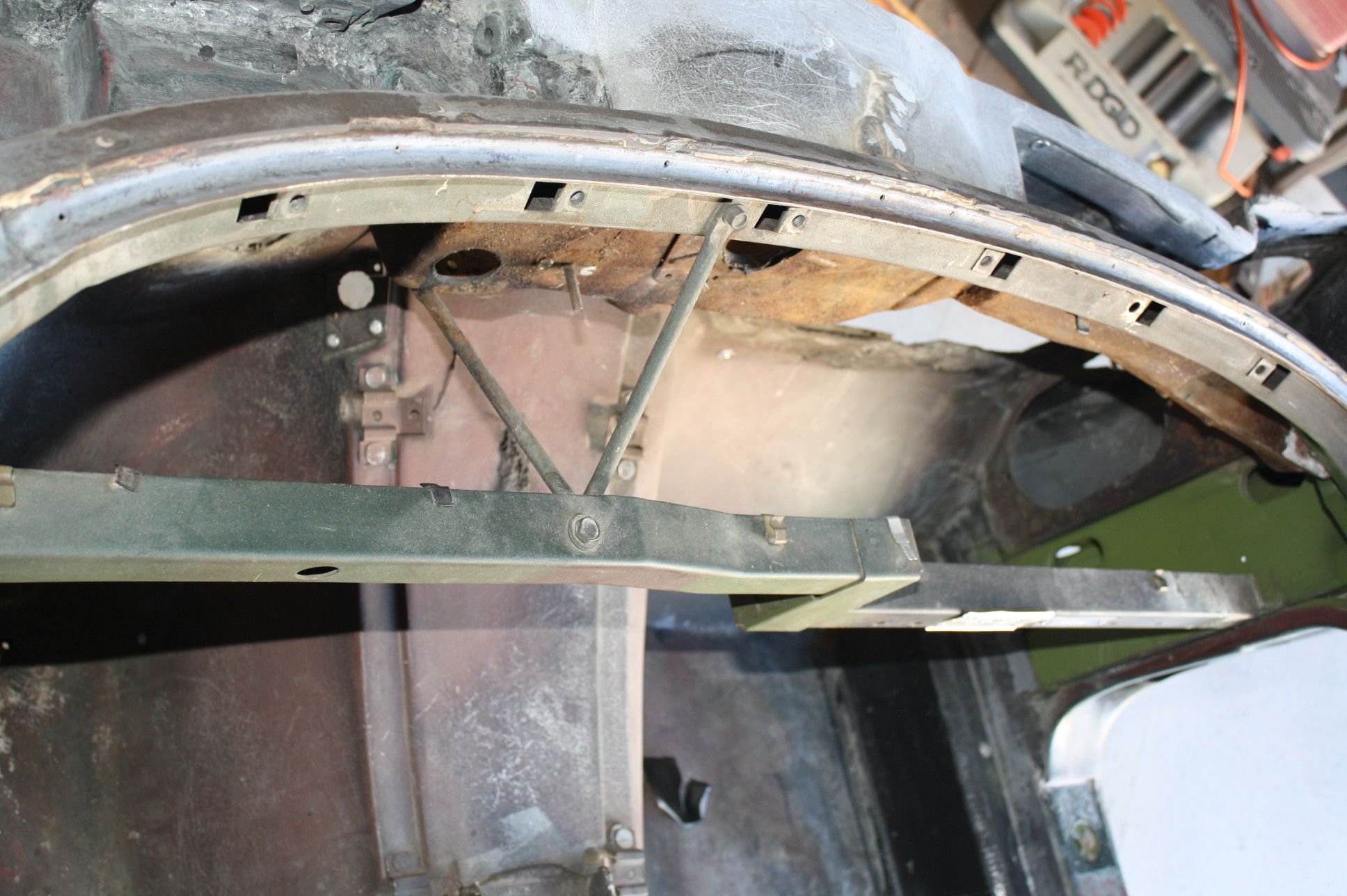

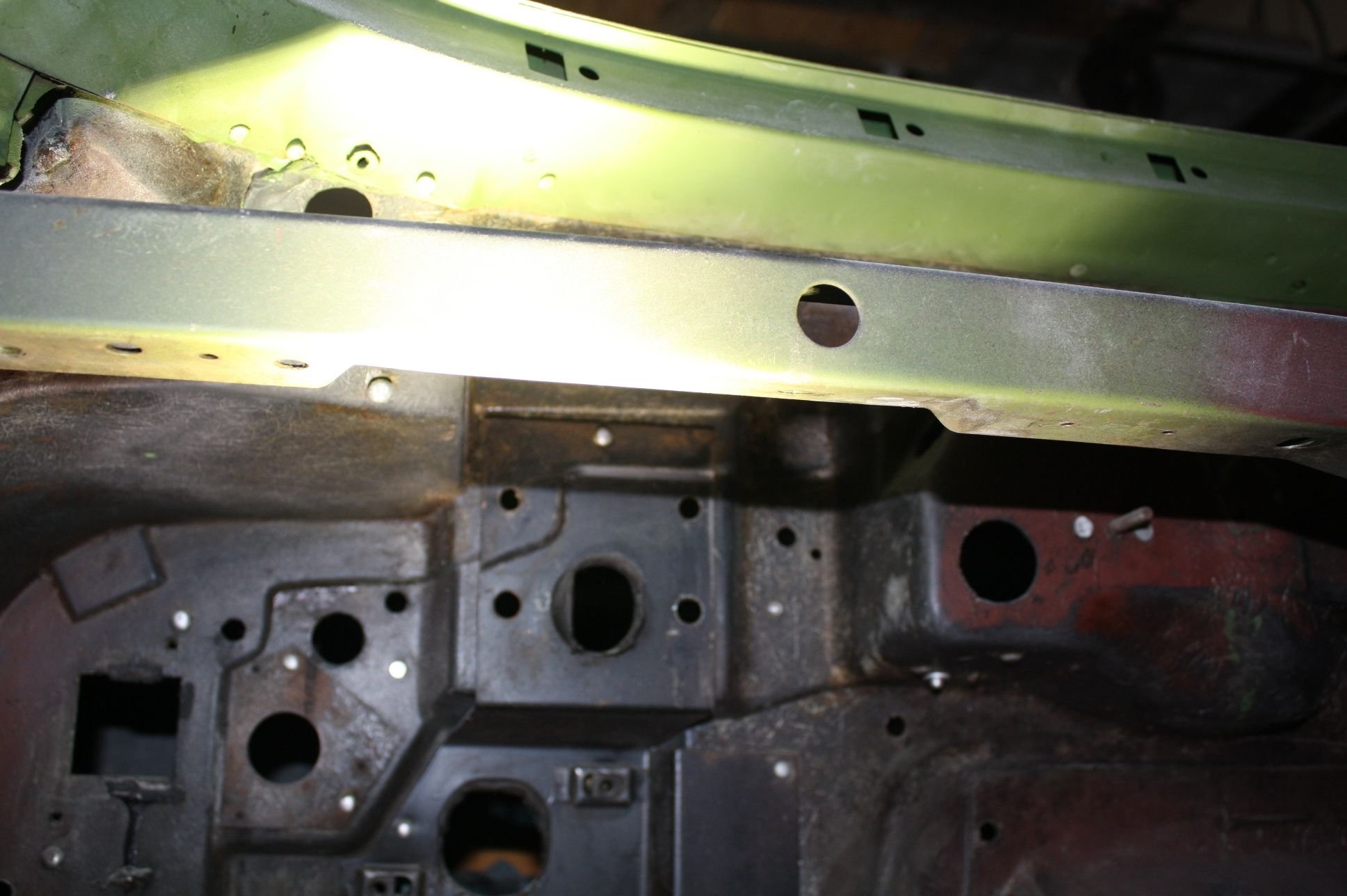

Brake Pedal Housing Attachment to Z Bar

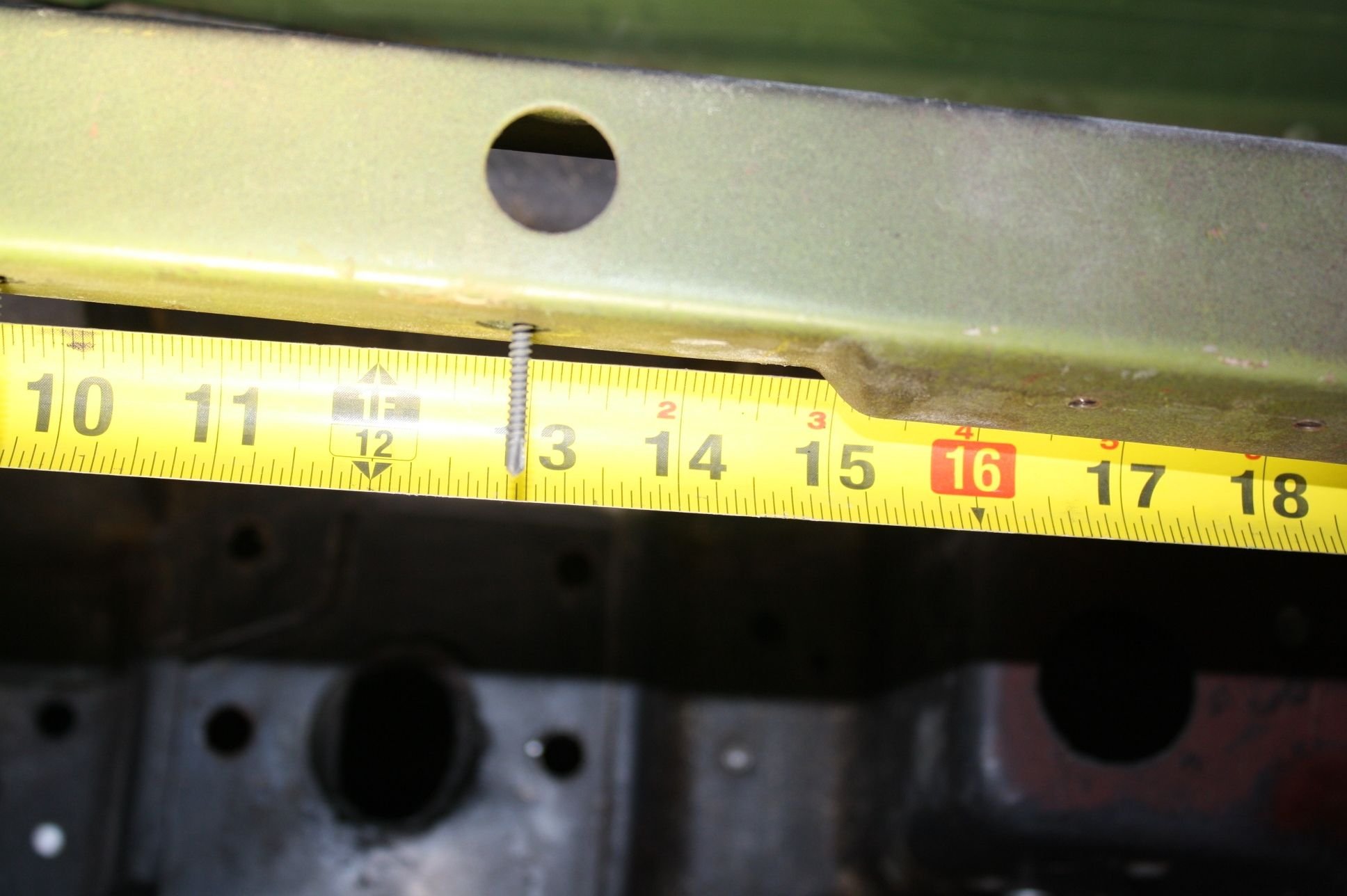

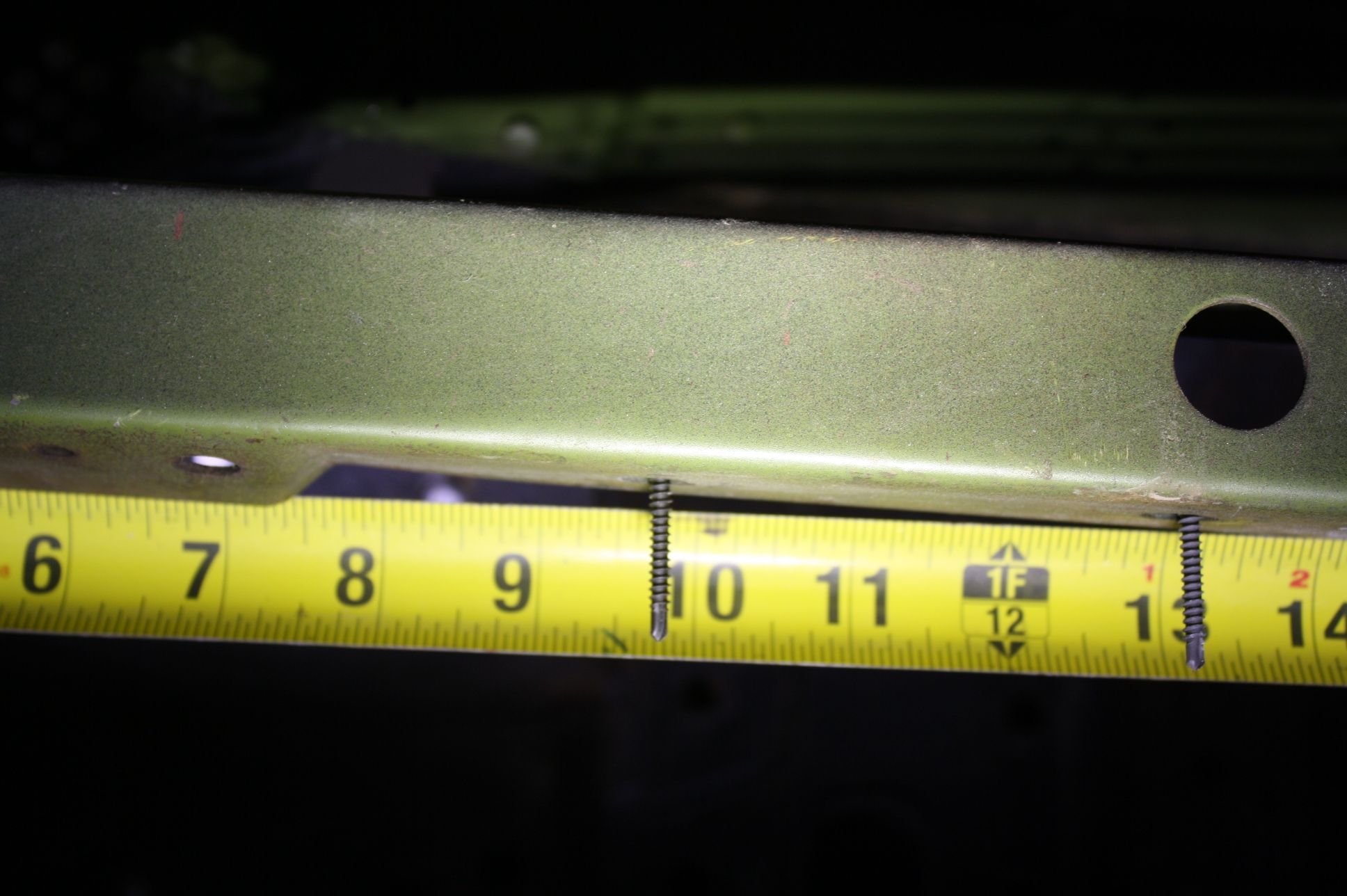

Left Nut @ 9-7/8"




Right Nut @ 12-15/16"





Note that this mounting surface is not formed at that same angle as the surrounding metal.

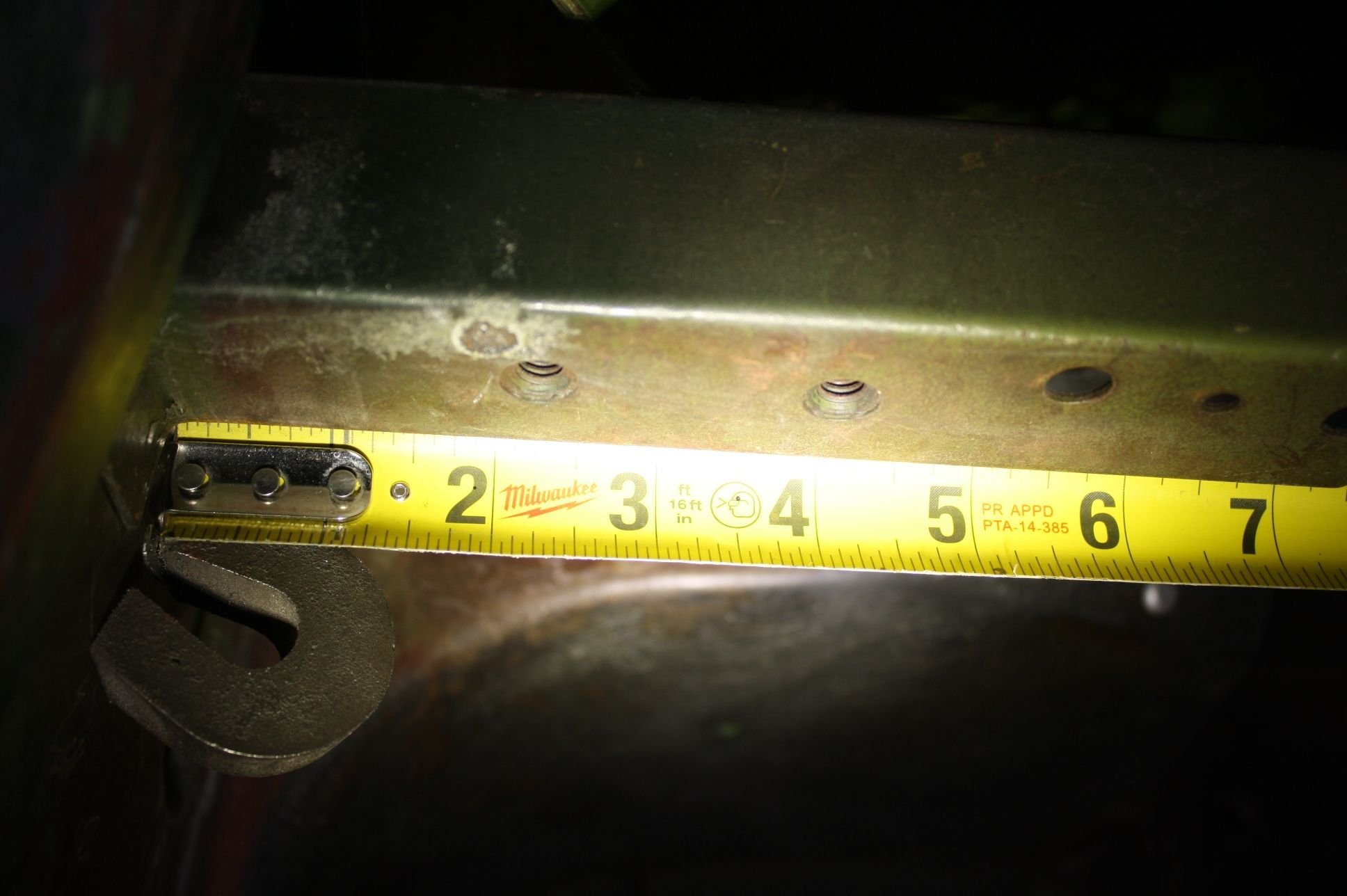

This is the location for the Hood Release Bracket mounting.

Reply
0
Old Mar 13, 2023 | 01:10 AM
Share
  #7
Steve 66's Avatar
Steve 66
Thread Starter
Instructor

Joined: Dec 2022
Posts: 112
Likes: 96
Default
That’s great thank you
Reply
0
Old Mar 19, 2023 | 07:20 AM
Share
  #8
Steve 66's Avatar
Steve 66
Thread Starter
Instructor

Joined: Dec 2022
Posts: 112
Likes: 96
Default

Thanks to this group I have sourced and fitted my pedal assembly
