Fuse block

Struggling with trying to get the new fuse block into the firewall. Does anyone have some tricks or tips?

Feb 21, 2024 | 05:26 PM

raypilot65

Thread Starter

Burning Brakes

Joined: Mar 2008

Posts: 815

Likes: 15

From: Palm City Florida

Quote:

Originally Posted by raypilot65

Struggling with trying to get the new fuse block into the firewall. Does anyone have some tricks or tips?

Ok, I got it in. Removed the firewall insulation and managed to get it in. Helps to bend the harness so it lays flat before putting the screws in. I used a wire to make sure I had the alignment right. Now I'm trying to determine which harness goes where. Since I took it apart long
ago and didn't mark it I'm not sure. Looks like the engine harness goes inboard and the front light harness goes outboard.

Feb 22, 2024 | 10:10 AM

raypilot65

Thread Starter

Burning Brakes

Joined: Mar 2008

Posts: 815

Likes: 15

From: Palm City Florida

Can someone please look at their C2 and follow the fwd lamp harness to the fuse block. I think it goes to the drivers side of the fuse block. The engine harness plugs into the inboard side.

Feb 22, 2024 | 10:21 AM

smacota1

Drifting

Joined: Nov 2016

Posts: 1,582

Likes: 559

From: LA-LOWER ALABAMA

I will take a look this afternoon when I get back. My car is a ‘65 with factory air.

Feb 22, 2024 | 12:39 PM

R66

Le Mans Master

Joined: Nov 2015

Posts: 7,479

Likes: 2,648

From: Really Central IL Illinois

On R66, the headlight harness connector is to the outside (fender side) and the engine harness is to the inside (engine side).
Hope this helps, can't give you a picture as I have cruise and a mess of wires above it.

Feb 22, 2024 | 01:11 PM

smacota1

Drifting

Joined: Nov 2016

Posts: 1,582

Likes: 559

From: LA-LOWER ALABAMA

Quote:

Originally Posted by R66

I agree

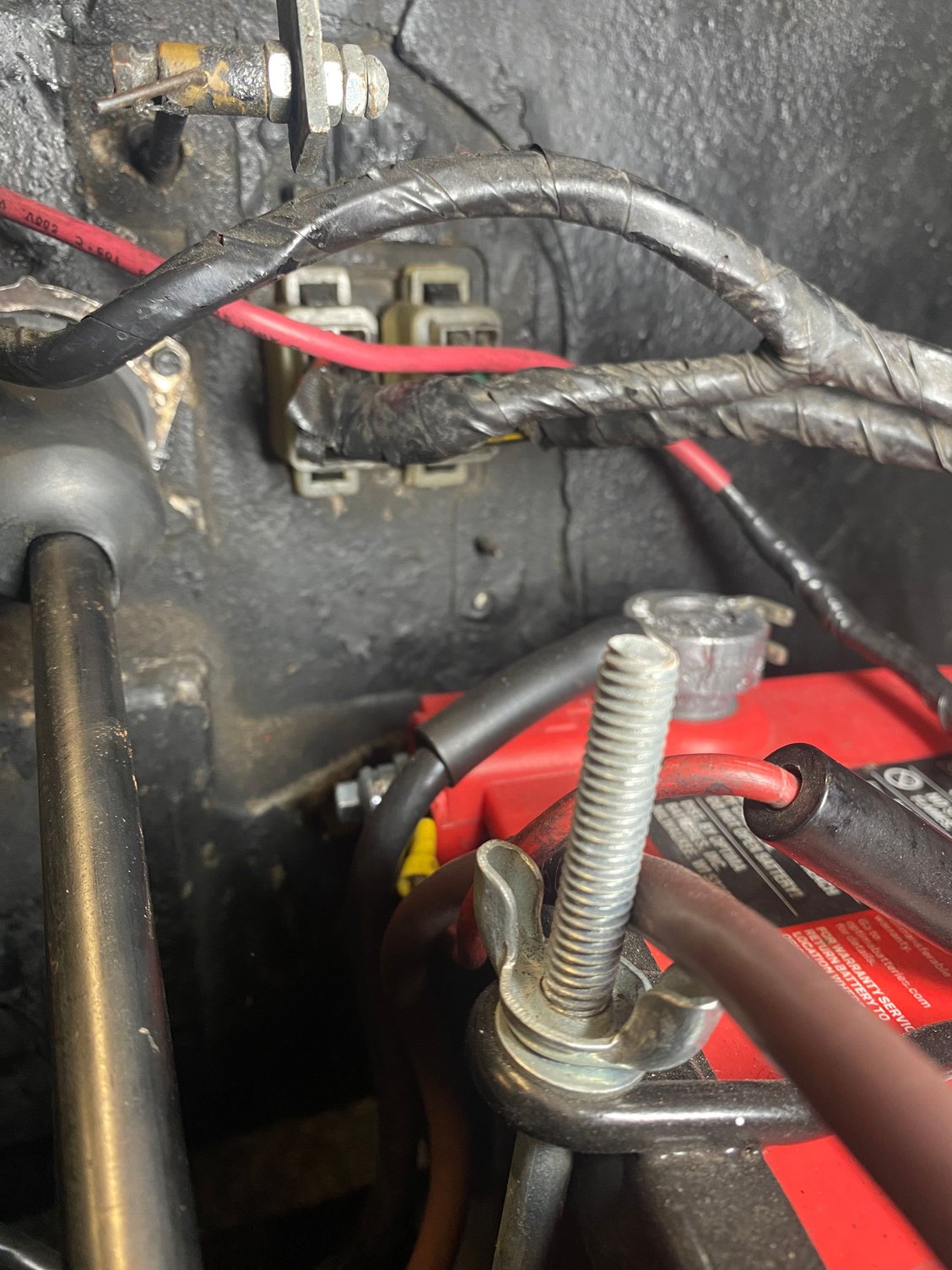

here is a pic.

Feb 22, 2024 | 01:21 PM

mike mccagh

Racer

Joined: Dec 2008

Posts: 423

Likes: 246

From: cumberland md

the configuration of the plastic housings are such that they can't be reversed. mike

Feb 22, 2024 | 03:48 PM

smacota1

Drifting

Joined: Nov 2016

Posts: 1,582

Likes: 559

From: LA-LOWER ALABAMA

That’s good info.

thanks
