Voltmeter
I had my ammeter converted to a voltmeter years ago on my 63. Just finished my American auto wire install. I had tested along the way and everything was working. Now that i am done my voltmeter is not working. I measure voltage on the bolts on the back. But gauge not reading. I checked and it has a good ground. Thoughts????
Thread Starter
Racer
Joined: Aug 2005
Posts: 377
Likes: 41
From: Highland IN
It has worked for years
i tested a couple times during the install of the harness and it worked
i measured the voltage on the back. At the post and it measures correct. Gauge just won’t read
i tested a couple times during the install of the harness and it worked
i measured the voltage on the back. At the post and it measures correct. Gauge just won’t read
Racer
Joined: Dec 2005
Posts: 385
Likes: 218
From: Seattle
Team Owner
Joined: Jul 2006
Posts: 22,140
Likes: 4,156
From: Kannapolis NC
I don't see a wire on the other gauge post. One for one side of the gauge, one for the other post on the gauge. The case doesn't need a ground on an aftermarket voltmeter. The way yours is connected (it looks like to me), nothing is flowing through the gauge winding, so no deflection.
Leave the ign off, connect a small square 9v battery (like used in a smoke detector) across the two upper posts and see if your gauge doesn't show 9v.
Leave the ign off, connect a small square 9v battery (like used in a smoke detector) across the two upper posts and see if your gauge doesn't show 9v.
Thread Starter
Racer
Joined: Aug 2005
Posts: 377
Likes: 41
From: Highland IN

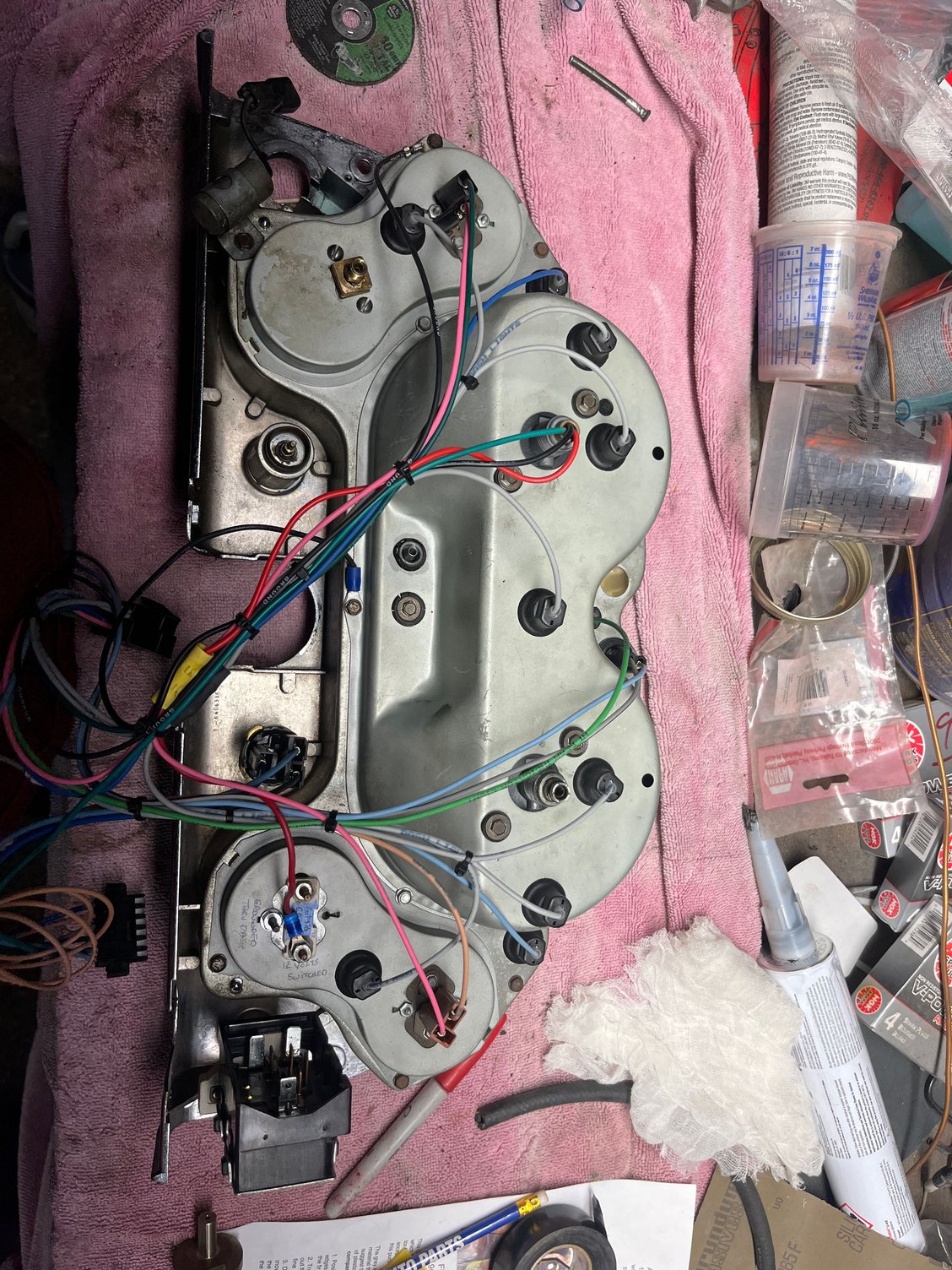

I can add a ground to the post. But it never had one. Look at the attached pic. It says that post is grounded through the dash. It worked during early test after i had it partially installed. The battery was always disconnected during circuit connections.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Team Owner
Joined: Jul 2006
Posts: 22,140
Likes: 4,156
From: Kannapolis NC
Is one of the posts supposed to be connected to the light or does your voltage gauge not have a light? Or a light that comes on with the ignition? You should've gotten a diagram with the gauge.
Team Owner
Joined: Apr 2008
Posts: 31,655
Likes: 2,368
From: Middle TN by way of KY, OH, VA, IL, CA, FL, NY, SC, HI

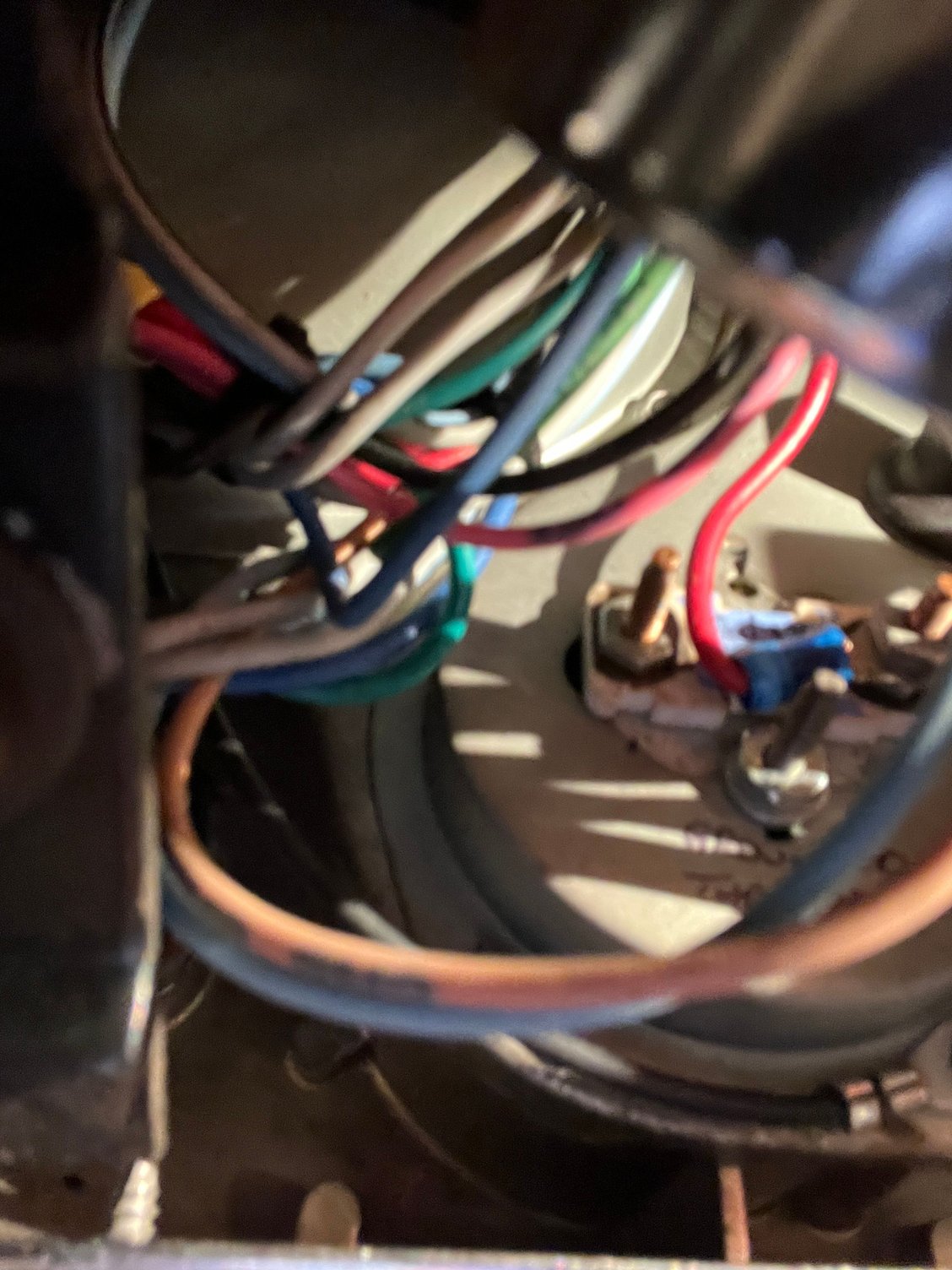

I may be looking at this wrong, but the picture appears to show only one wire - the dark red one - attached to a terminal on your voltmeter. Is that supposed to be a single wire application wiring?
