Alternator mounting question

I know this is a dumb question but here it is. On my 69 where does the bottom bracket attach to on the block? It's not the sme on my 75 and it was missing on the car when I got it. I looked in the aim but it really does not show.

Apr 5, 2015 | 10:07 PM

goodguys282

Pro

Joined: Oct 2010

Posts: 520

Likes: 30

From: Mooresville NC

Quote:

Originally Posted by tyrant

It actually mounts to the end of the exhaust manifold.

Apr 5, 2015 | 10:27 PM

tyrant

Thread Starter

Pro

Joined: Sep 2002

Posts: 747

Likes: 54

From: Dunmore PA

To the end mounting bolt? Or is there a special manifold for those styles?

Apr 5, 2015 | 10:30 PM

goodguys282

Pro

Joined: Oct 2010

Posts: 520

Likes: 30

From: Mooresville NC

Quote:

Originally Posted by tyrant

To the end mounting bolt? Or is there a special manifold for those styles?

Yes the manifolds are specific to the 69'. Do you have headers?

Apr 5, 2015 | 10:39 PM

tyrant

Thread Starter

Pro

Joined: Sep 2002

Posts: 747

Likes: 54

From: Dunmore PA

That's what I was afraid of. No no headers just the wrong manifolds

Apr 5, 2015 | 10:44 PM

goodguys282

Pro

Joined: Oct 2010

Posts: 520

Likes: 30

From: Mooresville NC

Quote:

Originally Posted by tyrant

That's what I was afraid of. No no headers just the wrong manifolds

A lower mounting bracket from a 72' corvette will let you mount to the side of the head. This is what I used when I installed long tube headers.

Apr 5, 2015 | 11:02 PM

goodguys282

Pro

Joined: Oct 2010

Posts: 520

Likes: 30

From: Mooresville NC

Quote:

Originally Posted by goodguys282

A lower mounting bracket from a 72' corvette will let you mount to the side of the head. This is what I used when I installed long tube headers.

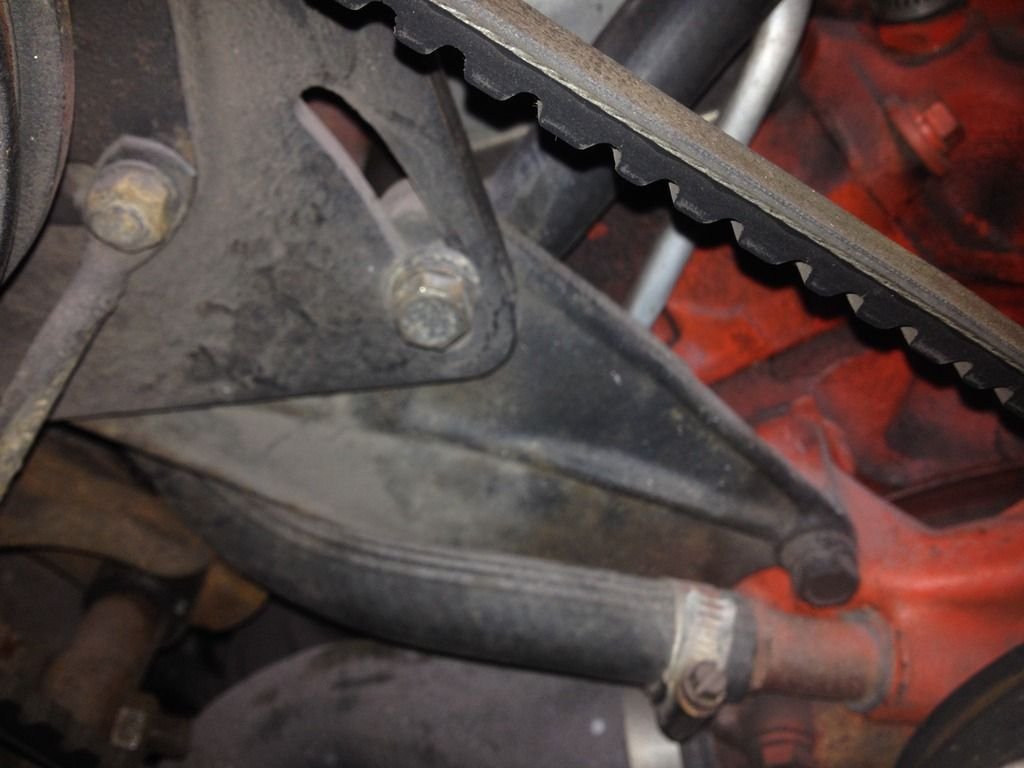

Original manifold would have looked like this.

Apr 6, 2015 | 01:15 PM

Tbone4432

Instructor

Joined: Oct 2014

Posts: 144

Likes: 9

Good info.

Gentlemen, Thanks for this on-going thread. This is the information I am looking for. But I have a ? or two. I know the bolt pictured in the bracket goes into the alt. What about the opposite end of the bracket, does that get bolted (stud) into the water pump along with that long, ugly top bracket? That side bolt? does that connect to the exhaust manifold? Last question, will I need a different bracket for hooker headers sidemount?
Thanks for your guidance.
Todd

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

5 Best & 5 Most Overrated Corvette Track Packages of All Time!

Joe Kucinski

Every 2027 Corvette Engine Explained

Joe Kucinski

Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette

Verdad Gallardo

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Apr 6, 2015 | 06:32 PM

tyrant

Thread Starter

Pro

Joined: Sep 2002

Posts: 747

Likes: 54

From: Dunmore PA

looks like ill go with the other mounting since i already bought the manifolds.

Apr 6, 2015 | 07:04 PM

#10

goodguys282

Pro

Joined: Oct 2010

Posts: 520

Likes: 30

From: Mooresville NC

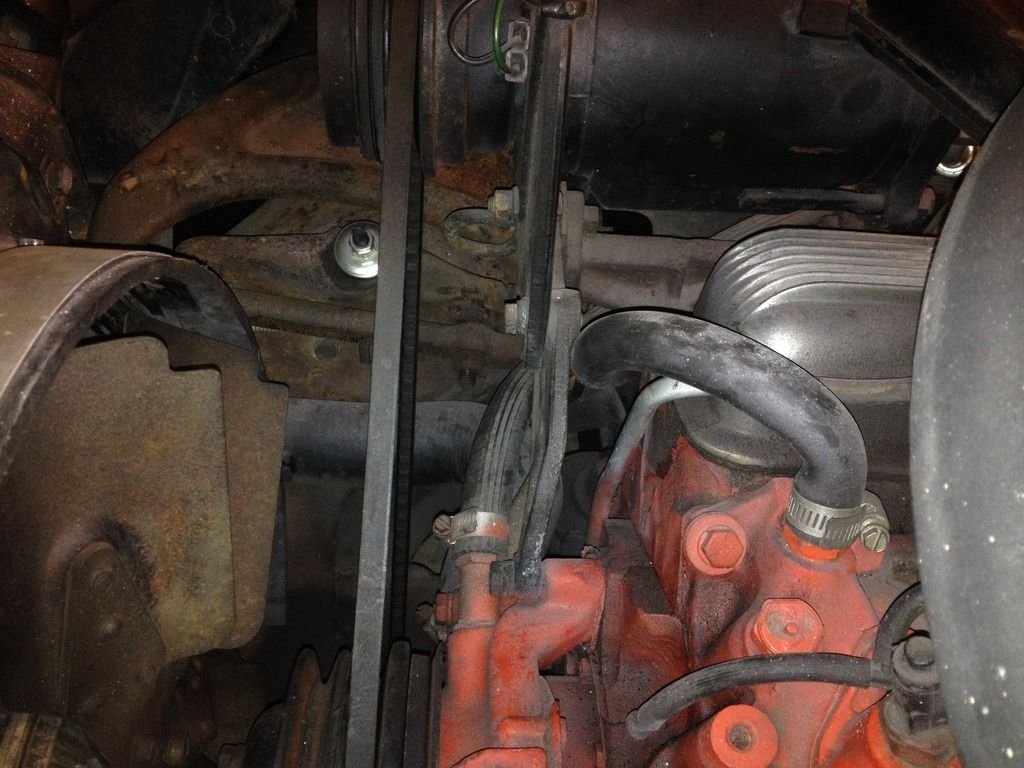

OK, so your correct on the long bolt going through the bottom of the alternator. The other 2 holes mount to the side of the head as you can see in this picture. No special bracket for hookers.
