Help identifying a dash wire appreciated!
Thread Starter
Racer
Joined: May 2014
Posts: 318
Likes: 8
From: Houston Texas
Help identifying a dash wire appreciated!

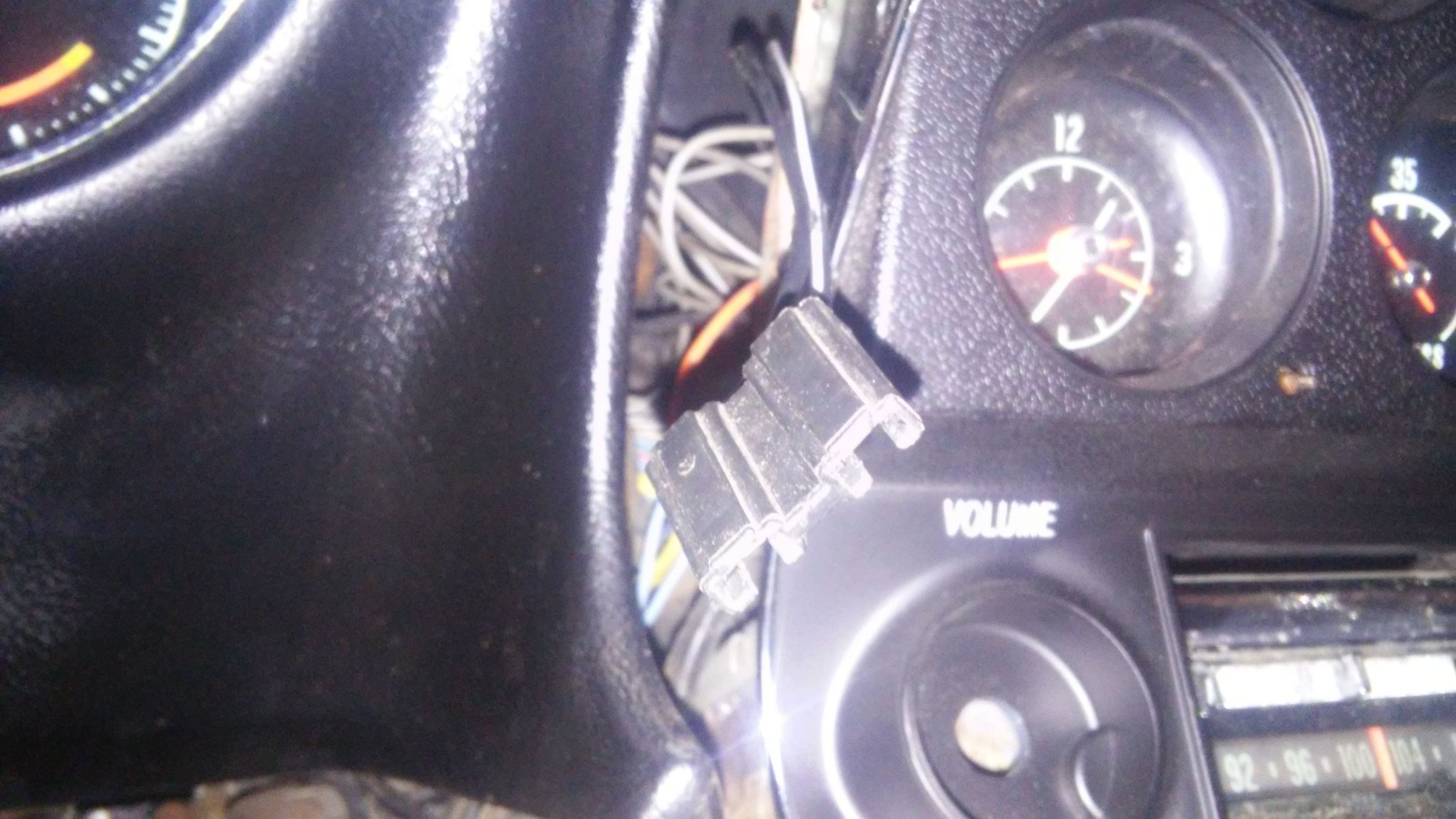

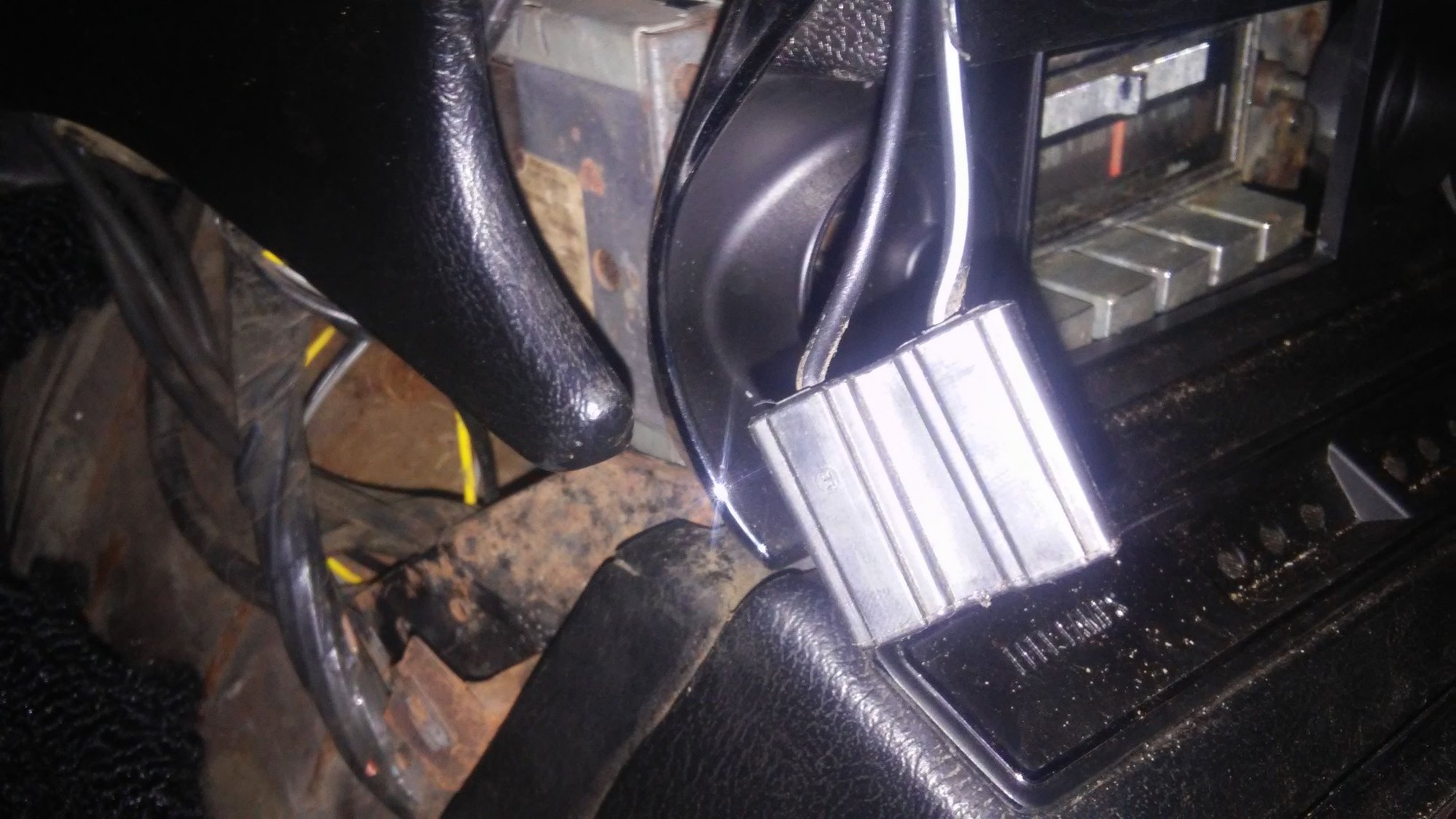

While installing new carpet and repairing a dash gauge in cluster I noticed a wire hanging around and I can't figure out what it's for... I do have a photo of it but my computer crashed and I just bought a new one and haven't got everything sorted out yet to insert the photo and I know there are some pretty smart fellows here that probably know what this wire is for with out the photo as I am working on car as I write this but about to call it a night.. Anyway it is a 2 prong wire clip with a solid black wire on one side and a black wire with a thin white stripe on the other side... The wire comes from the main assembly harness that comes from behind the speedo and tach and then the plastic 2 prong clip ends behind gauge cluster? I have the AIM and a chassis assembly manual but I couldn't seem to locate that wire.. It for a 69 no air Corvette. I will be working adding photo in the mean time... thanks for you help in advance...Russell
