What is this?
Thread Starter
Burning Brakes
Joined: Jun 2007
Posts: 948
Likes: 1
From: ANGLETON TX
What is this?

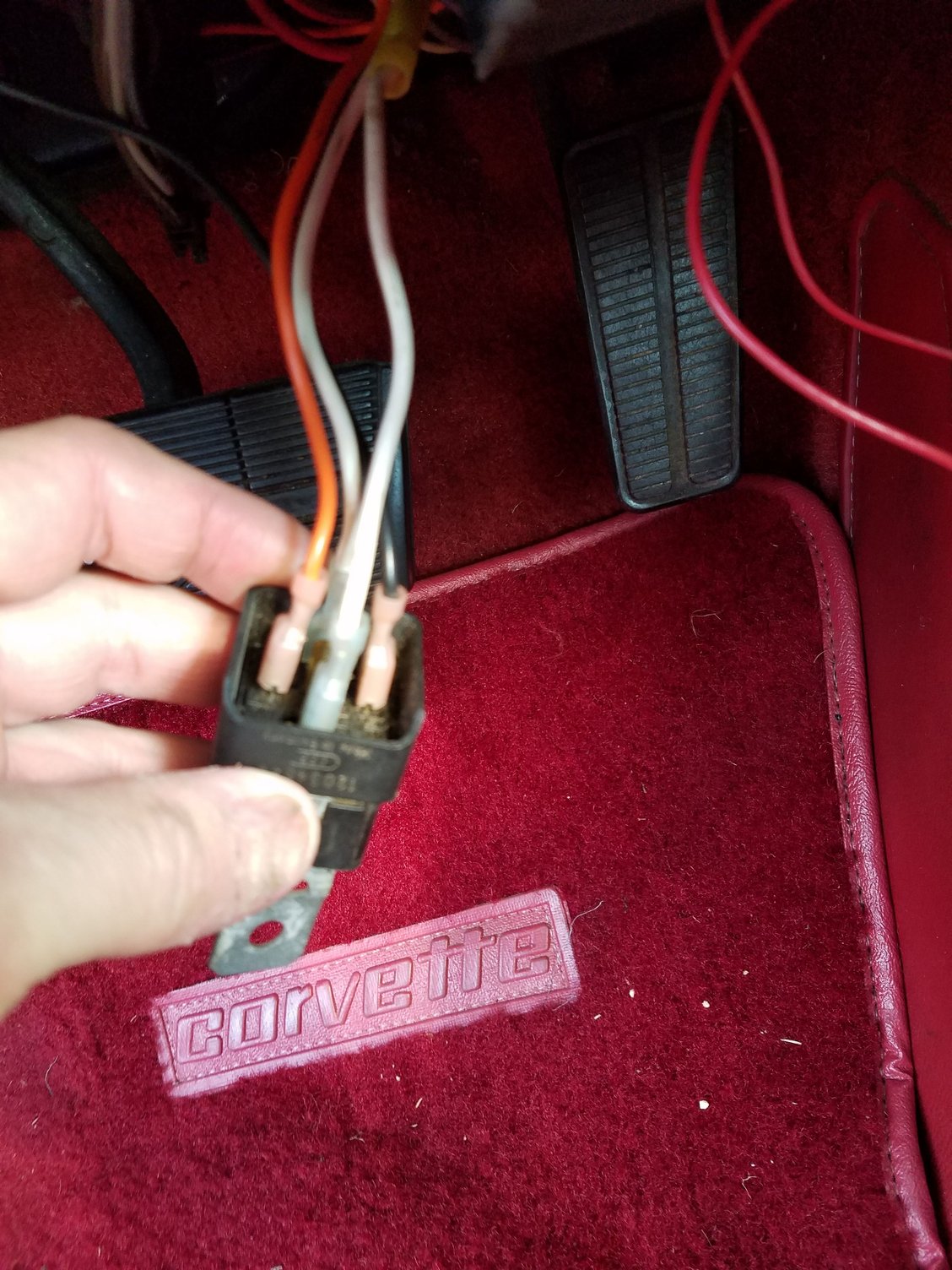

If you look on the back the white line was cut going Through the kick panel down by the driver's door in the driver side doesn't look like it went anywhere as there is not a following white wire going anywhere to the back now the car won't start
Race Director
Joined: Mar 2003
Posts: 11,608
Likes: 780
From: Eustis ( Area 51 Bat Cave ) Fl
That relay and the crimp connectors are not stock to the car...someone did that to it so I guess start tracing where the wires go what did they do as we have no clue what the person did that modded it
Le Mans Master
Joined: May 2003
Posts: 8,877
Likes: 3,556
From: Fernandina Beach FL
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
It certainly COULD be what's keeping your car from starting.
Looks like someone possibly added a starter cut relay for a security.
Look closely at the relay- the wire connected to "30" and the connected to "87."
Take those two wires and connect them together- what that will do is bypass the relay.
And if it was installed to "kill" the starter- problem is solved.
Richard
Looks like someone possibly added a starter cut relay for a security.
Look closely at the relay- the wire connected to "30" and the connected to "87."
Take those two wires and connect them together- what that will do is bypass the relay.
And if it was installed to "kill" the starter- problem is solved.
Richard
Thread Starter
Burning Brakes
Joined: Jun 2007
Posts: 948
Likes: 1
From: ANGLETON TX
ok thx yes I was doing some wire clean up and it had some aftermarket 80s alarm on it...not to mention a linear amp wired to stereo in center console...no cb not looks like any was evr installed????? lol go figure
Safety Car
Joined: Apr 2006
Posts: 4,057
Likes: 421
From: BC
Those relays are used for starters, fuel pumps and air conditioning but I don't think on C3's. Does the engine turn over with the starter but not start (fuel pump on later C3's) or does it not turn over at all? I'm no electrical wizard but does the metal mounting tab also act as a ground and it is not connected?
Race Director
Joined: Mar 2003
Posts: 11,608
Likes: 780
From: Eustis ( Area 51 Bat Cave ) Fl
Those relays are used for starters, fuel pumps and air conditioning but I don't think on C3's. Does the engine turn over with the starter but not start (fuel pump on later C3's) or does it not turn over at all? I'm no electrical wizard but does the metal mounting tab also act as a ground and it is not connected?
Thread Starter
Burning Brakes
Joined: Jun 2007
Posts: 948
Likes: 1
From: ANGLETON TX
Thanks I stuck those two wires together and it started right up now I just gotta figure out where the other two wires go and if it's safe to take them off and disconnect them from wherever they go I hate missing with wires especially when people have gone in and mess with factory wiring
