Horn relay hookup

Thread Tools

Search this Thread

Old Jun 5, 2018 | 04:38 PM
Share
  #1
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default Horn relay hookup
I recently replaced engine harness on my 71 with air. I did take pictures but the pic of horn relay isn’t clear. I have 5 wires going to the 2 screws on the relay. 4 are heavy gauge red the fifth one is actually 2 wires together orange and black. I know the red ones go to the starter, alternator, blower for ac and left side firewall tcs switch I think. Does it matter which of the 2 screws on the relay all of these individually go to?
Thanks
Fred
Reply
0
Old Jun 5, 2018 | 05:05 PM
Share
  #2
henrikse's Avatar
henrikse
Pro

Joined: Nov 2016
Posts: 729
Likes: 118
From: Kelowna British Columbia
Default 1971 horn relay
Does this help? On page 1 it shows the horn relay
Attached Files
File Type: docx
Doc1.docx (488.8 KB, 164 views)
Reply
0
Old Jun 5, 2018 | 07:54 PM
Share
  #3
sullyman56's Avatar
sullyman56
Drifting
10 Year Member
Liked
Loved
Community Favorite

Joined: Nov 2013
Posts: 1,547
Likes: 282
From: Scottsdale Arizona
Default

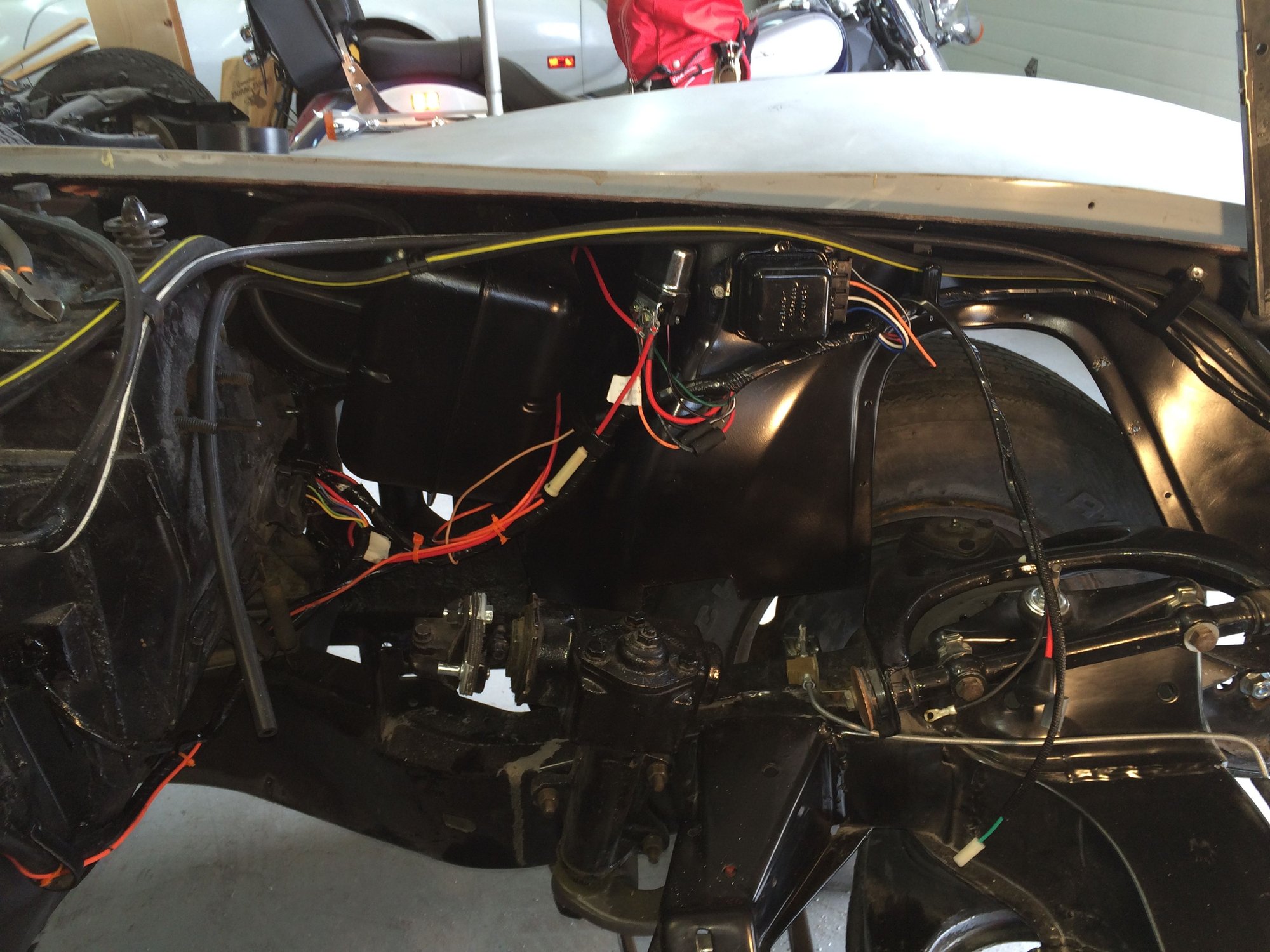

This is on my 68. Hope it helps.
Reply
0
Old Jun 5, 2018 | 10:24 PM
Share
  #4
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default
Originally Posted by henrikse
Does this help? On page 1 it shows the horn relay
Thanks henrikse for your quick response. I’ve checked the aim diagram but it doesn’t show all of those various wires I listed and which of the two busses they attach to on the relay. I know they all fit but I don’t want to attach to wrong wires together or on the wrong bus and burn something.
Reply
0
Old Jun 5, 2018 | 10:34 PM
Share
  #5
chazde3's Avatar
chazde3
Drifting
10 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2013
Posts: 1,926
Likes: 304
From: Lansing MI
Default
Name: 5fHIYtk.jpg Views: 613 Size: 828.2 KB

This was what came off of my 68. Hope it might help some.
Reply
0
Old Jun 6, 2018 | 11:50 AM
Share
  #6
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default
Originally Posted by sullyman56


This is on my 68. Hope it helps.
Thanks sullyman. When I expand the picture the actual hookup is fuzzy. Can’t tell which terminal wires are hooked to, fender side or engine. I know it’s a lot to ask Is there anyway you might take a closer pic of the front? Also if I traced your wires right the fused wire is ac blower, the one over the vacuum tank is to starter and the one going back into your harness with the orange and black is to alternator is this correct? The one wire that I don’t see that mine has goes to a relay by tcs box on left side of firewall by brake booster with a red and an orange wire going into firewall. Does any one know which terminal it attaches to?
Much thanks
Fred
Reply
0
Old Jun 6, 2018 | 11:55 AM
Share
  #7
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default
Originally Posted by chazde3


This was what came off of my 68. Hope it might help some.
I see the alternator wire and orange and black connection not sure what the bottom wire goes to. That does give me the location for those two. Thanks for the picture chazde.
Fred
Reply
0
Old Jun 6, 2018 | 12:15 PM
Share
  #8
sullyman56's Avatar
sullyman56
Drifting
10 Year Member
Liked
Loved
Community Favorite

Joined: Nov 2013
Posts: 1,547
Likes: 282
From: Scottsdale Arizona
Default


This may work better for you. You are correct about the wires in your previous post.
Reply
1
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old Jun 6, 2018 | 02:45 PM
Share
  #9
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default
Originally Posted by sullyman56


This may work better for you. You are correct about the wires in your previous post.
Excellent. Thank you sir.
Does anyone know about my fifth red wire from horn relay to the 2 wire relay on firewall with an orange wire?
Reply
0
Old Jun 10, 2018 | 08:18 AM
Share
  #10
ftf396's Avatar
ftf396
Thread Starter
Instructor
10 Year Member

Joined: Nov 2012
Posts: 124
Likes: 3
Default
Originally Posted by ftf396
Excellent. Thank you sir.
Does anyone know about my fifth red wire from horn relay to the 2 wire relay on firewall with an orange wire?
I finally found out the wire in question comes from my power window relay on firewall, it has an orange and red wire. Does anyone have power windows and this relay if so can you tell me which terminal the red wire connects to on horn relay?
Thanks
Fred
Reply
0
