I am looking for a picture of how the brake line looks going into the frame. I can see where the hard line transitions into flex line but Im wondering if the line I show attaches to the frame or is there another short hard line in between. I thought I took plenty of pictures taking the car apart but didnt get a good enough one of this area.
2020 Corvette of the Year Finalist (performance mods)
2019 C3 of Year Winner (performance mods)
2016 C3 of Year Finalist
Editted

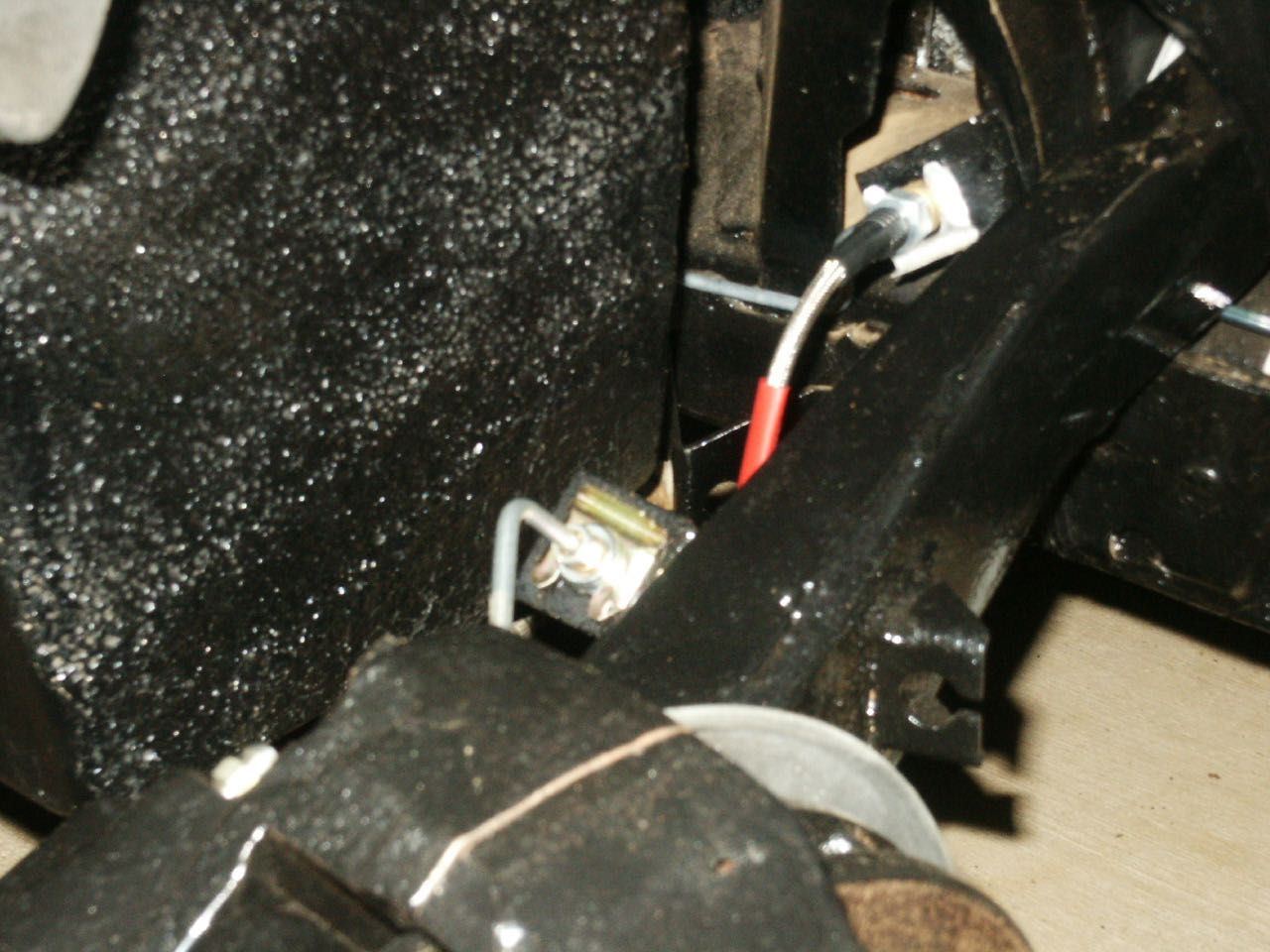

What year is your lline for. My 68 ends at the welded arm in a junction block mounted to the frame. Flex line from the block to the arm. then the final line to the caliper. I can go crawl under the car and take some pics in a few, but its a 68.
the bent line on mine goes up over the cross member

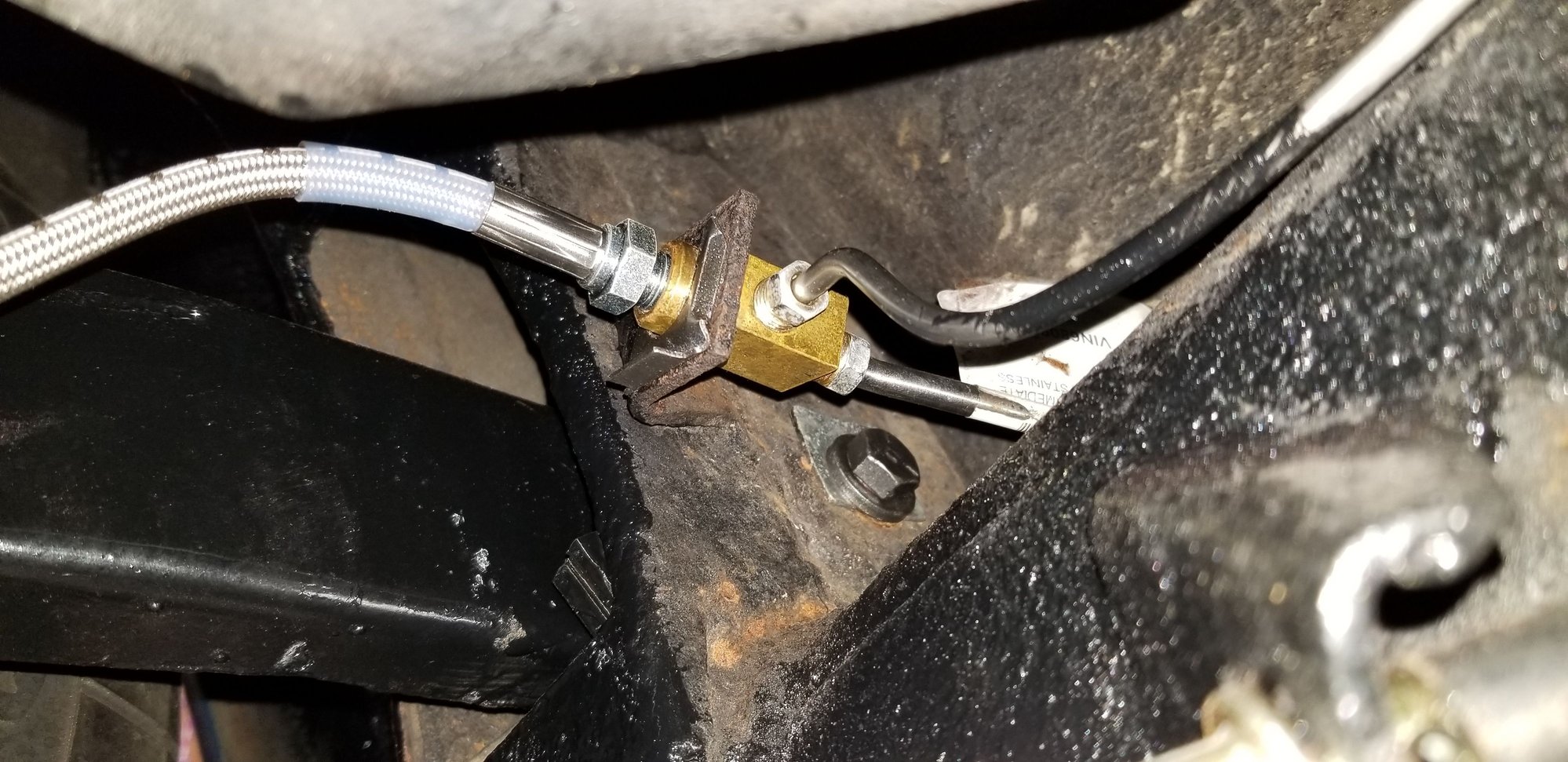

it has the white label paper on it and it ends in the junction block. Thats the flex line and the crossover line to the passenger side
Last edited by Rescue Rogers; Apr 15, 2019 at 08:05 AM.

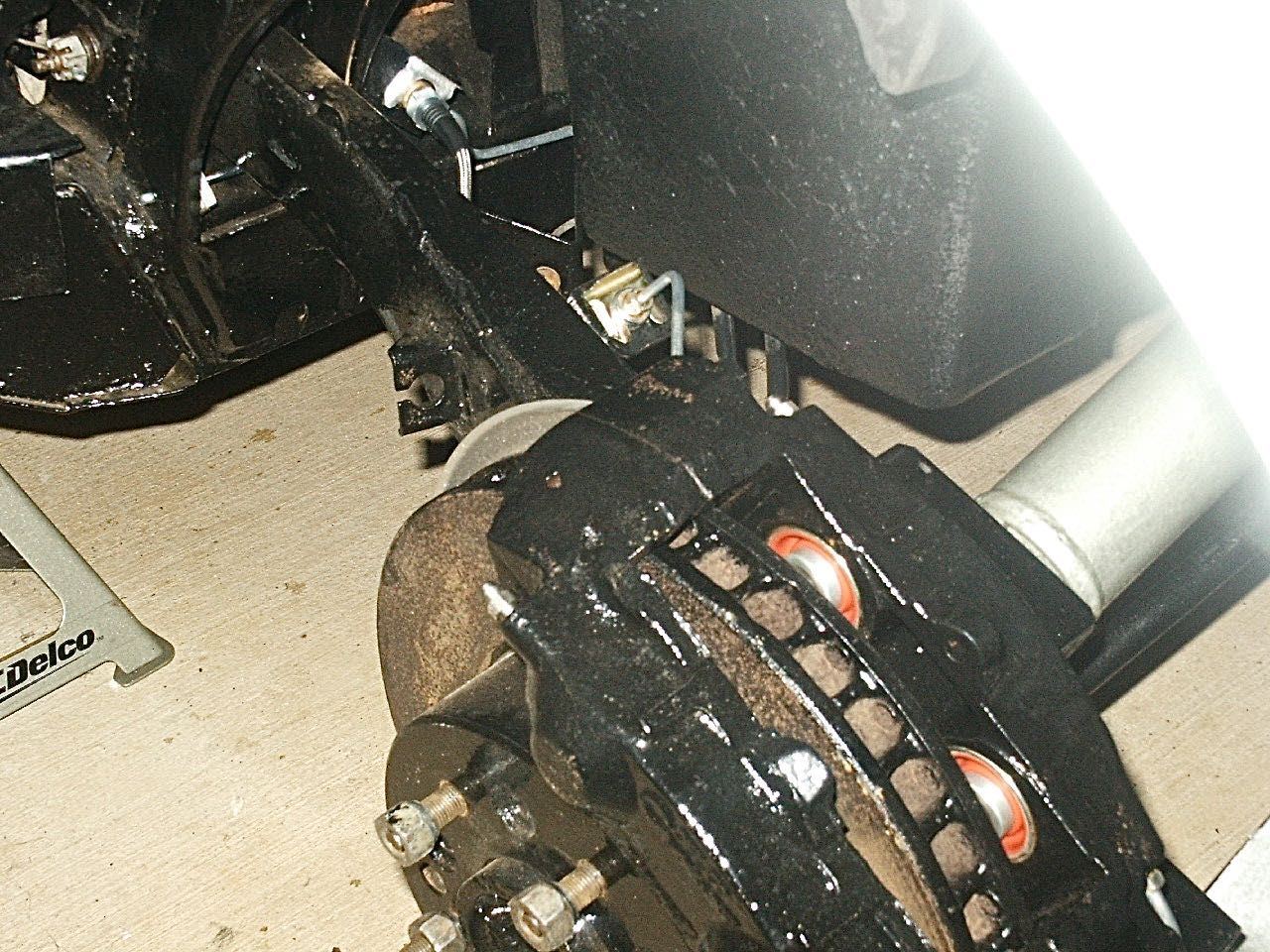

Not that it matters, not much room for being installed wrong or anything, but here's the closest thing found to the front line routing on my 72, I believe it was original
Seems like maybe they sent you the wrong line, time to get on the horn with them and have them fix it
M

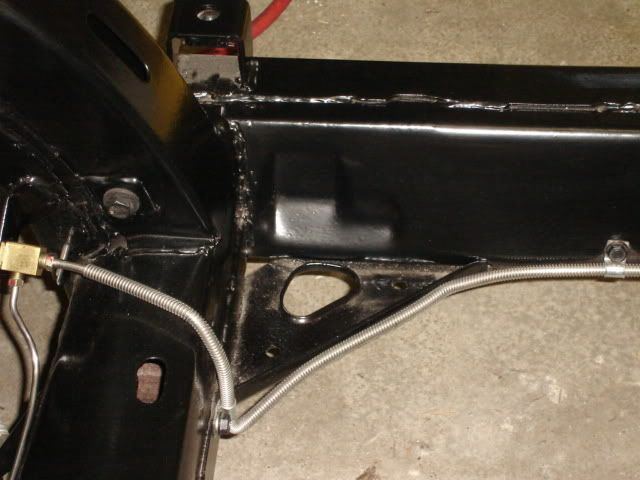

After looking at the pix you guys put up I pulled the line back and the tube ends up right where you guys have it, halfway between the steering box and the control arm.
The only thing I have to do is re bend the part that feeds into the block on the frame.
Need a picture
