Wire Size Conversions?
Thread Starter
Le Mans Master
Joined: Aug 2010
Posts: 5,339
Likes: 546
From: Central Texas
Wire Size Conversions?
Man I must be real stupid because I'm not finding what I need.
The metric wire sizes in the '81 wiring diagrams are confusing me some.
I have a 3.0 which I'm replacing with a 12ga wire. Is this the same size as the 3.0 or bigger?
There are some .8 and 1.0 that need to be replaced as well. What gauge sizes should I use in those replacements?
Craig
The metric wire sizes in the '81 wiring diagrams are confusing me some.
I have a 3.0 which I'm replacing with a 12ga wire. Is this the same size as the 3.0 or bigger?
There are some .8 and 1.0 that need to be replaced as well. What gauge sizes should I use in those replacements?
Craig
Race Director
Joined: Nov 2006
Posts: 19,445
Likes: 353
From: Athens GA
St. Jude Donor '12-'13, '15- '16-'17-'18-'19, '21
Google is your friend...
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
Last edited by bmans vette; Jun 24, 2019 at 05:30 PM.
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Google is your friend...
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
I believe that 3mm would be diameter rather than sectional area.... Now I'm not sure if the GM book is going to be dia or mm^2 ?
M
Thread Starter
Le Mans Master
Joined: Aug 2010
Posts: 5,339
Likes: 546
From: Central Texas
Originally Posted by bmans vette
Google is your friend...
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
3.0 mm = 9 ga approx. Here we have 8 ga as a standard wire available.
Good luck...
https://www.pyromation.com/Catalog/W03.pdf
Race Director
Joined: Nov 2006
Posts: 19,445
Likes: 353
From: Athens GA
St. Jude Donor '12-'13, '15- '16-'17-'18-'19, '21
OK...I am confused.
The chart I posted was diameter of the wire.

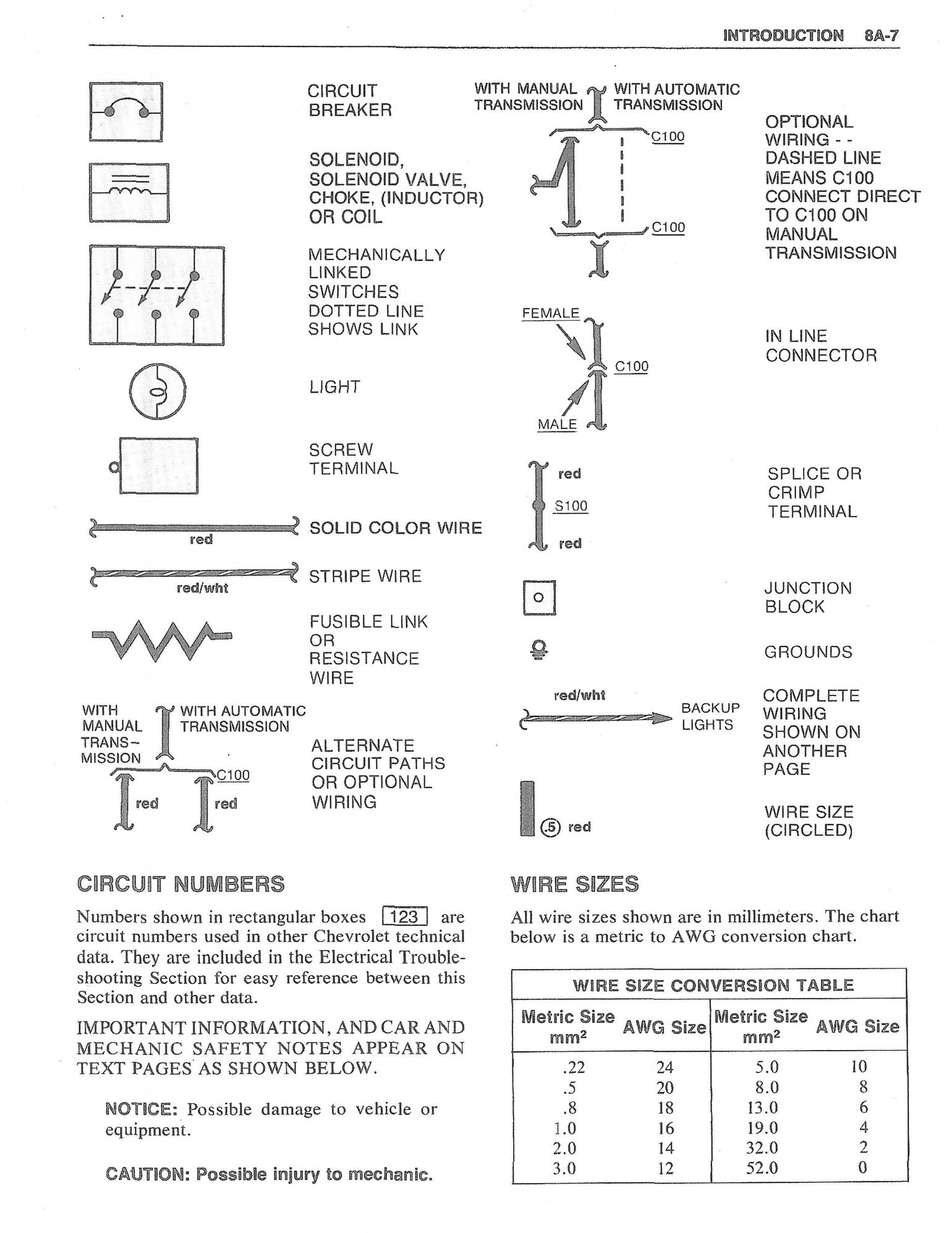

StreetRats chart in the bottom corner shows the metric measurement as mm2. Isn't that square mm s?????
Head scratcher for sure....
Looks like 12 ga wire will equate to 3 mm. Now....is that stranded wire or solid wire?
The chart I posted was diameter of the wire.
StreetRats chart in the bottom corner shows the metric measurement as mm2. Isn't that square mm s?????
Head scratcher for sure....
Looks like 12 ga wire will equate to 3 mm. Now....is that stranded wire or solid wire?
Last edited by bmans vette; Jun 24, 2019 at 09:02 PM.
