gauge cluster mystery wire ;-)

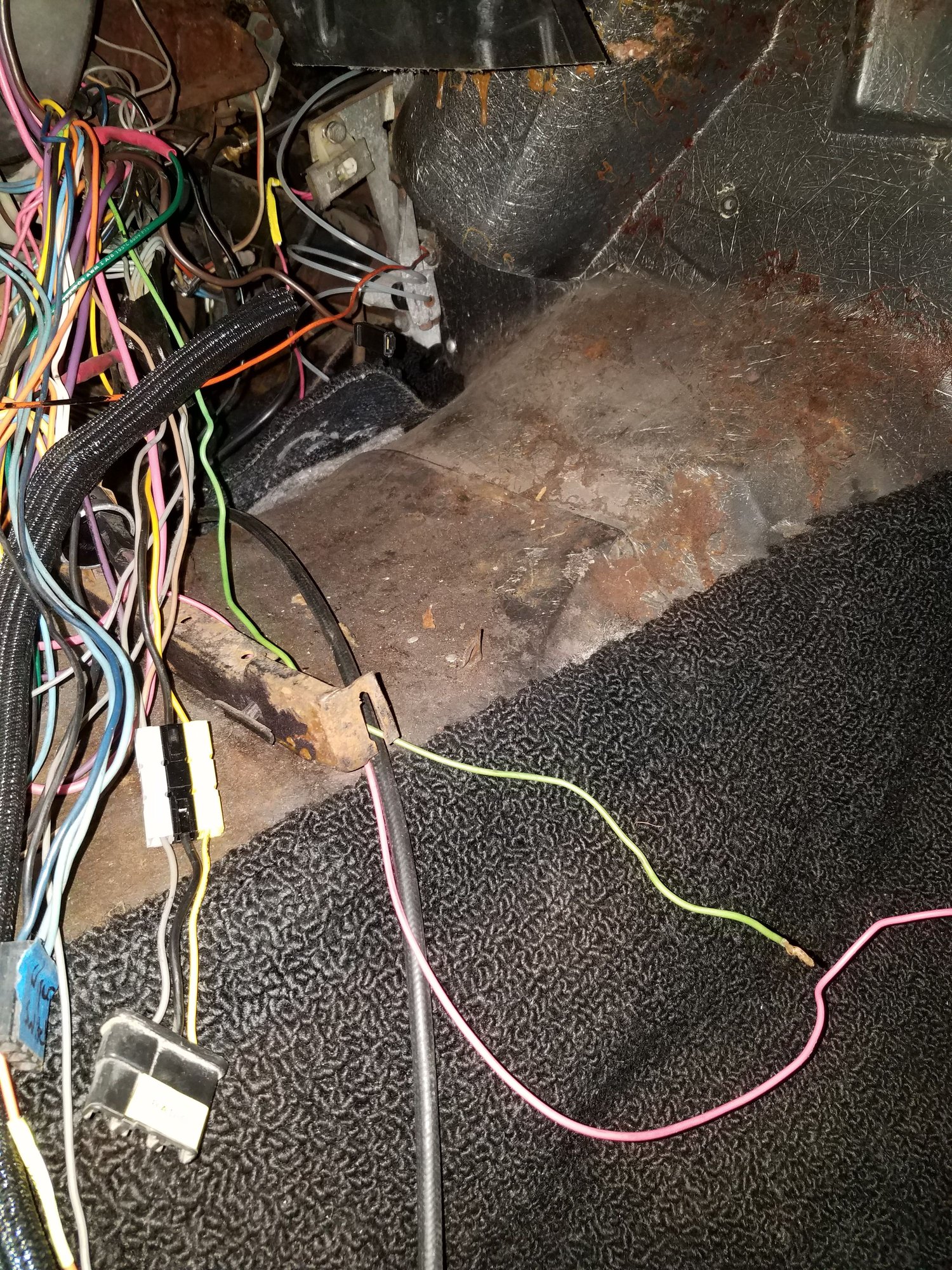

ok, I'm finding a mystery light green wire in the bundle for the center gaugle cluster
in a 68 no option convertible....

anyone have any clues.?

I do have both Dr. rebuild color wiring laminated sheets.
just don't see this wire..

Last edited by garyguinn; Aug 28, 2019 at 06:34 PM. Reason: Spelling

Aug 28, 2019 | 06:58 PM

doorgunner

2026 Loser of the Year

Joined: Sep 2013

Posts: 36,594

Likes: 7,041

From: New Or-leens Loo-z-anna

Sorry, but my car is at the paint shop......I would trace the wire for you.

Aug 28, 2019 | 07:53 PM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,877

Likes: 3,556

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

High beam indicator light? Looks to small a gauge for the reverse lights.
See if it goes to the floor dimmer switch.

Richard

Last edited by Richard454; Aug 28, 2019 at 07:54 PM.

Aug 28, 2019 | 08:41 PM

sullyman56

Drifting

Joined: Nov 2013

Posts: 1,547

Likes: 282

From: Scottsdale Arizona

I believe it’s the wire that goes to the parking brake switch.

Aug 28, 2019 | 11:30 PM

garyguinn

Thread Starter

Burning Brakes

Joined: Sep 2007

Posts: 803

Likes: 69

From: Tulsa Ok

I’ll check both suggestions
and advise
thanks

Aug 29, 2019 | 07:35 AM

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,209

Likes: 9,347

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

is it early 68 or late 68. I dont recall light green off the top of my head either.....

Aug 29, 2019 | 08:48 AM

garyguinn

Thread Starter

Burning Brakes

Joined: Sep 2007

Posts: 803

Likes: 69

From: Tulsa Ok

early car. dec 67
#405814

Aug 29, 2019 | 08:49 AM

garyguinn

Thread Starter

Burning Brakes

Joined: Sep 2007

Posts: 803

Likes: 69

From: Tulsa Ok

I also see a ground wire with a ring terminal...maybe tach ground....but not sure where to attach it. won't reach to speedo ground....

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Aug 29, 2019 | 09:29 AM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,877

Likes: 3,556

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

Quote:

Originally Posted by garyguinn

I also see a ground wire with a ring terminal...maybe tach ground....but not sure where to attach it. won't reach to speedo ground....

IIRC- the parking brake switch wire is tan. Light green is used on the headlights-but

Just a thought-

There are wires that have been added- can easily see one - but there might be others - I would follow the wires back and see if they have been buggered with....

And just because it's black - doesn't mean its a ground- might have been the only color wire they had laying around- just sayin....

Aug 29, 2019 | 09:34 AM

#10

garyguinn

Thread Starter

Burning Brakes

Joined: Sep 2007

Posts: 803

Likes: 69

From: Tulsa Ok

hi Richard.
the green one I spliced in to fix one that was smoked somehow in the past...unfortunately I didn't have the correct green.
it is about a 2 ft splice that terminates back to the correct color fortunately....

I checked the ring lug black wire and it ties in to the other grounds...just not sure where is hooks up.

oh boy, the wiring fun I have on these cars.....

Last edited by garyguinn; Aug 29, 2019 at 09:35 AM.

Aug 29, 2019 | 12:19 PM

#11

Kevin68

Drifting

Joined: Jun 2008

Posts: 1,495

Likes: 134

From: Blanco County, TX

Back-up lights.

Richard is also right that there is a light green used for the high beams.

Aug 29, 2019 | 12:41 PM

#12

garyguinn

Thread Starter

Burning Brakes

Joined: Sep 2007

Posts: 803

Likes: 69

From: Tulsa Ok

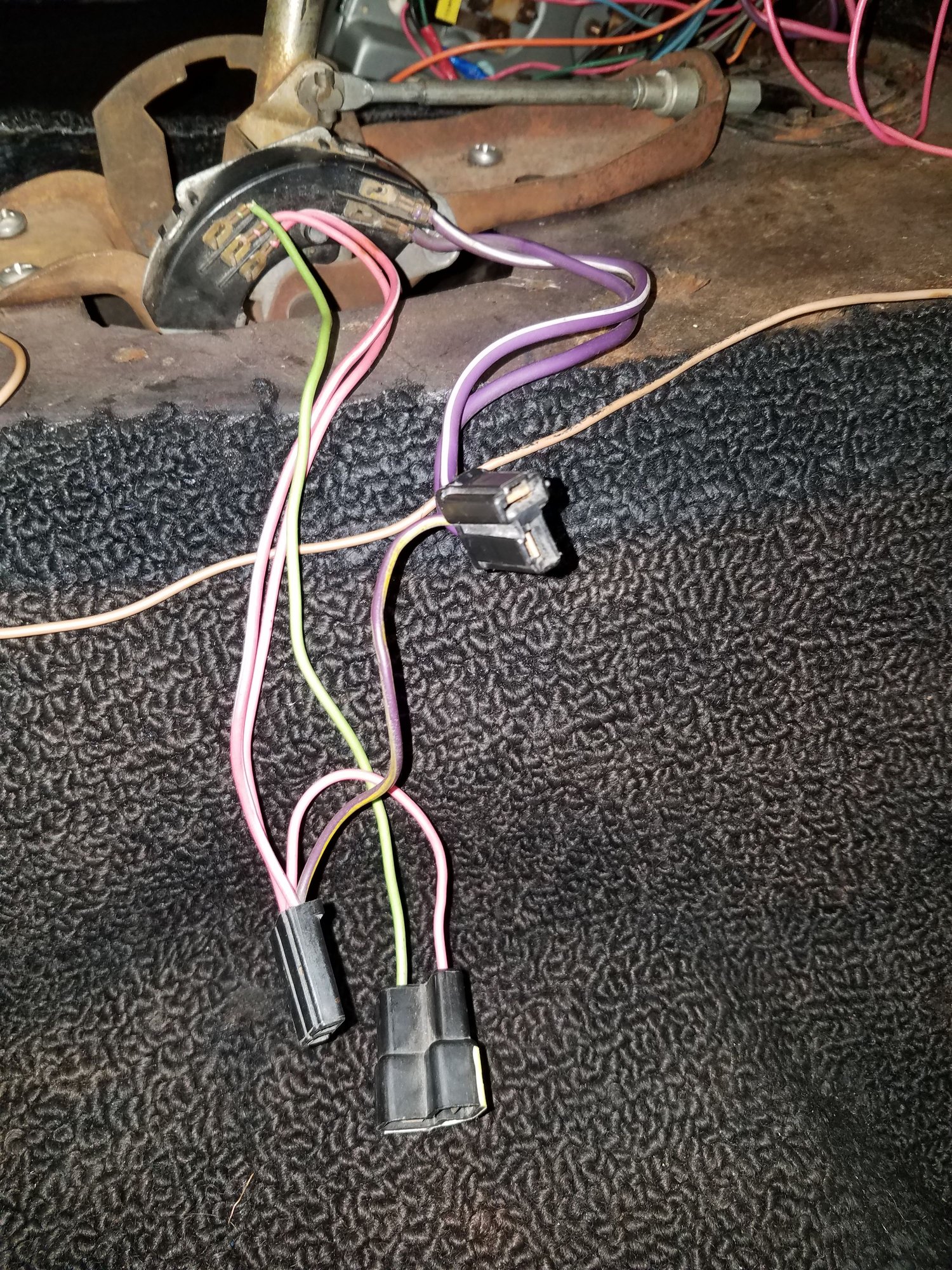

I checked the backup light suggestion. i have the wiring an plug from the shifter....it looks wired correctly with light green and purple.
