68 frame adding kick up gussets

Reply Subscribe

Thread Tools

Search this Thread

Sep 9, 2019 | 06:56 AM

dave19054

Thread Starter

8th Gear

Joined: Sep 2018

Posts: 8

Likes: 0

68 frame adding kick up gussets

I have a early 68 frame and I am adding the gussets to the frame and need some dimensions, does any have the correct measurements.

Sep 9, 2019 | 08:12 AM

doorgunner

2026 Loser of the Year

Joined: Sep 2013

Posts: 36,594

Likes: 7,041

From: New Or-leens Loo-z-anna

Same question for me...I'll do a forum search .

I couldn't find any pics in search, I found this on web......

you can use ratios to determine position of gussets.....bottom of gusset overlaps frame hole/top of gusset is at kickup frame hole....I'm guessing the gusset is 2" x 2" heavy-wall mild steel square tubing

Last edited by doorgunner; Sep 9, 2019 at 08:40 AM.

Sep 9, 2019 | 08:33 AM

davidchristopher

Racer

Joined: Mar 2009

Posts: 276

Likes: 31

From: Brant County Ontario

Are they the same as on a '69? I'll take a pic of my frame when I get in tonight.

Sep 9, 2019 | 08:50 AM

Easy Mike

Team Owner

Joined: Jun 2000

Posts: 38,923

Likes: 1,481

From: Southbound

Cruise-In II Veteran

Quote:

Originally Posted by davidchristopher

...Are they the same as on a '69?...

Yes.

Sep 9, 2019 | 12:01 PM

L-46man

Melting Slicks

Joined: Feb 2017

Posts: 3,232

Likes: 1,232

From: PHX AZ

You might want to consider 'going the extra mile'.
The Frame is out and accessible.
Notice how Chevy 'stitch-welded' the frame? You might want to consider continuous welding it. With out pouring untold extra heat into it...(Patience).
this WILL make it stronger.

Good luck.

Unkahal

Sep 10, 2019 | 03:03 AM

SB64

Safety Car

Joined: Jun 2013

Posts: 4,399

Likes: 793

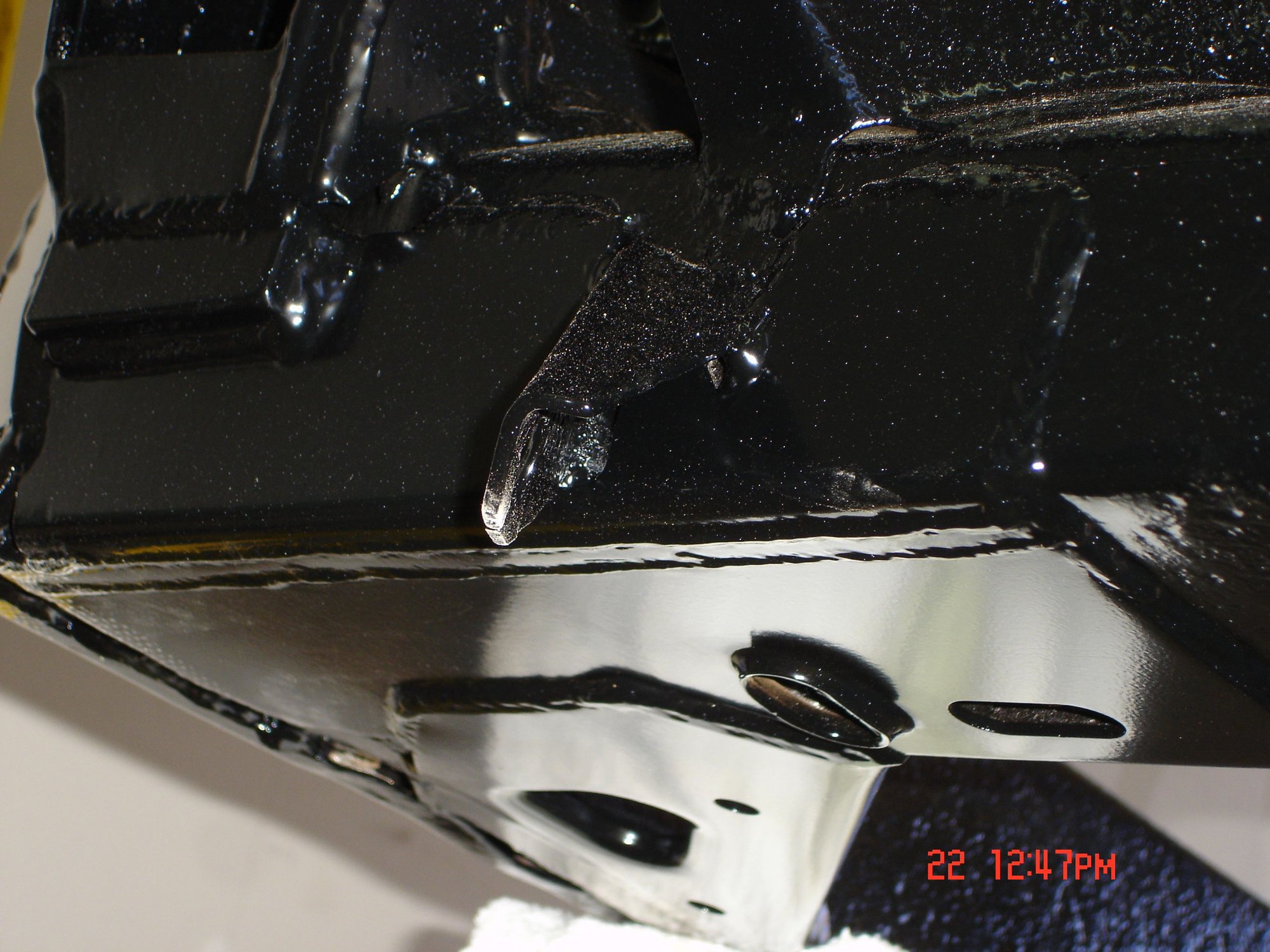

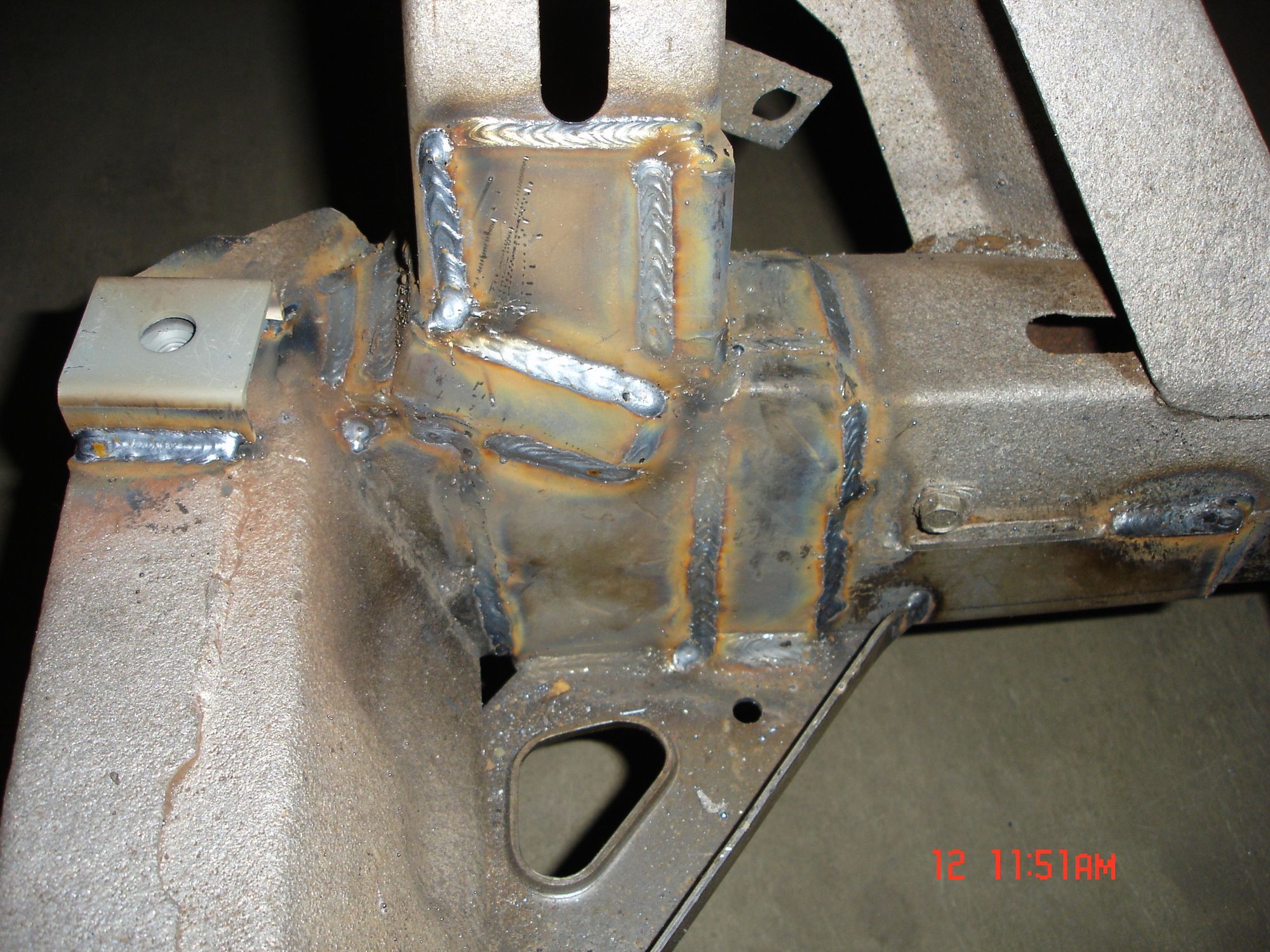

Had to repair the upkick rails on my 69. It is a good idea to go over the entire frame while it is open. Maybe a little overkill but I wanted these rails to be as strong as I could make them. Also used a few or the after market frame replacement parts which fit like crap but can be modified. Also added new cages and nuts while at it.

ZIO

Sep 10, 2019 | 03:10 AM

sug

Drifting

Joined: Aug 2013

Posts: 1,263

Likes: 512

From: perth Aus w.a

2020 Corvette of the Year Finalist (stock)

C3 of Year Winner (stock) 2019

Nice looking welding Zio ,that's not going to move or flex at all

Sep 10, 2019 | 06:18 AM

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,209

Likes: 9,347

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

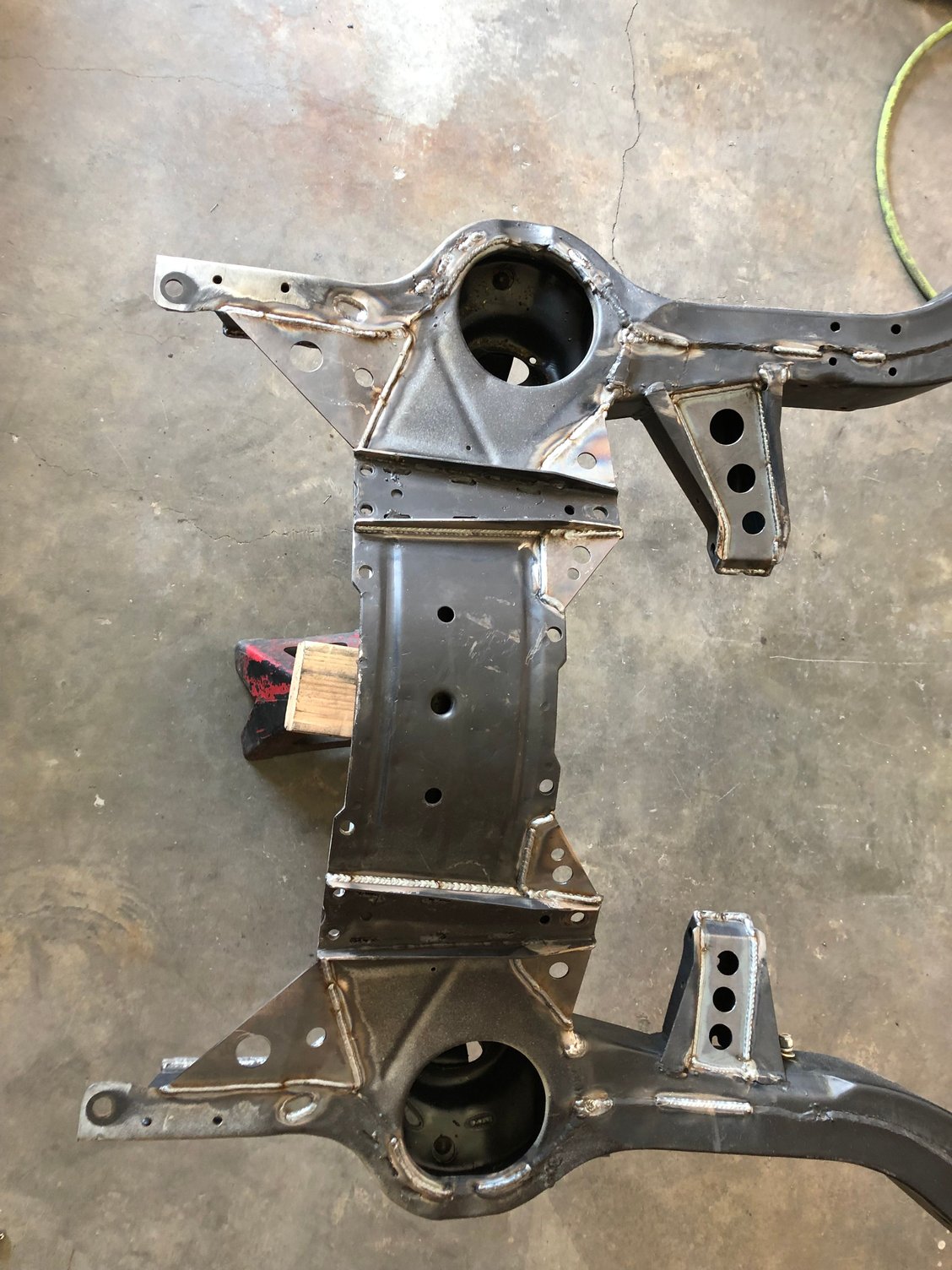

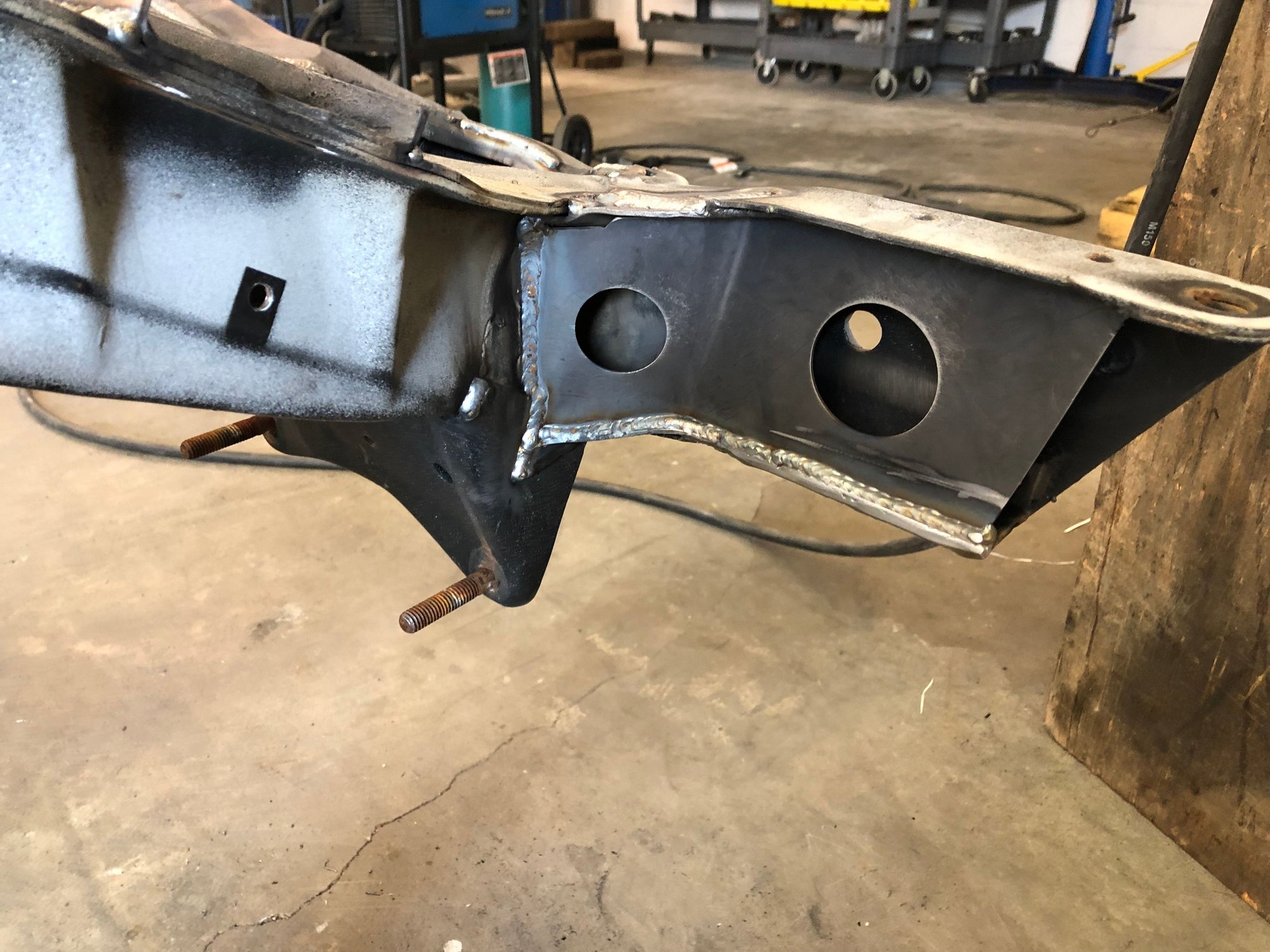

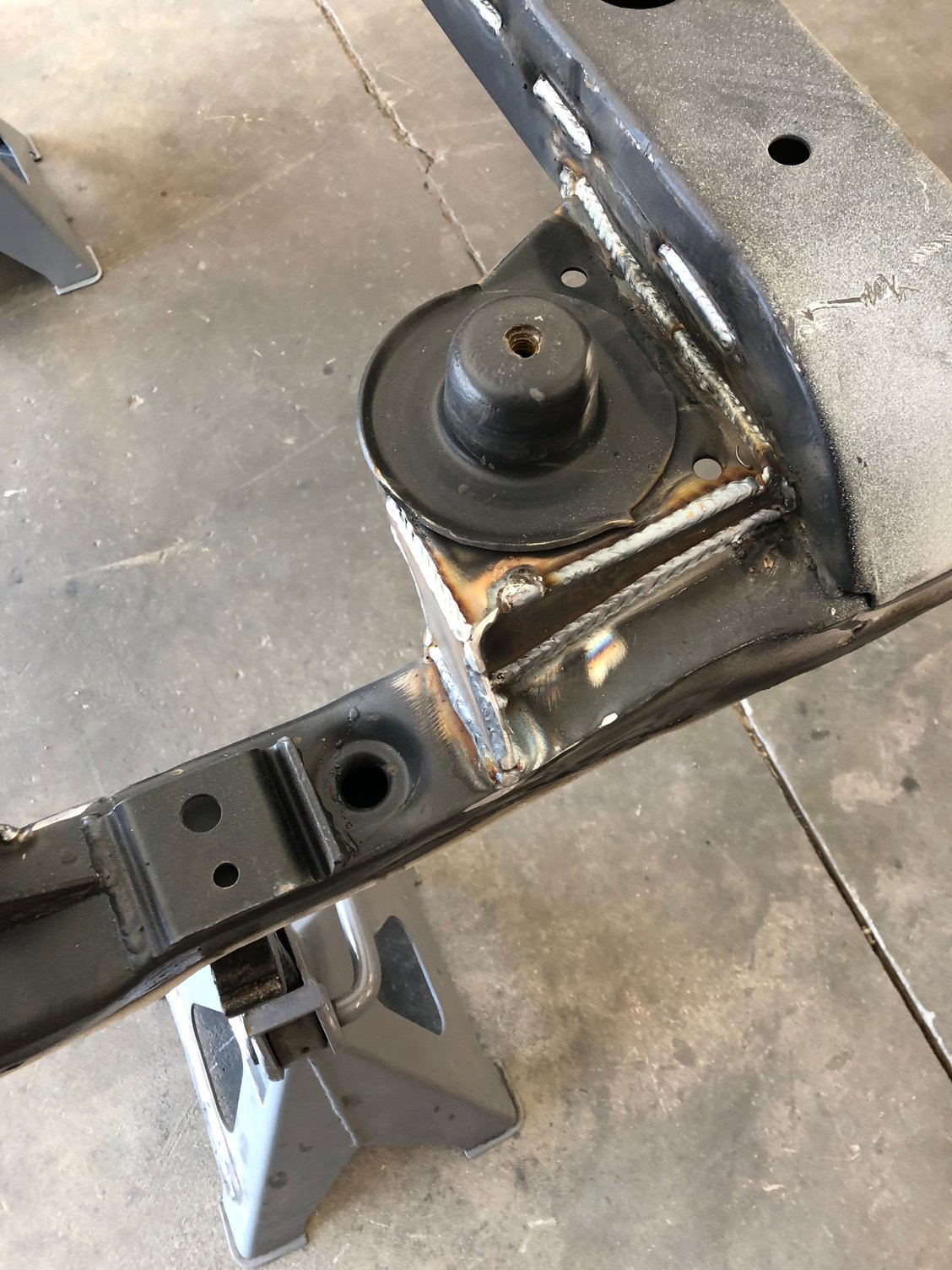

I wanted to go this route if I ever get my body and frame seperated

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Sep 10, 2019 | 10:14 AM

Rodnok1

Melting Slicks

Joined: Sep 2016

Posts: 3,004

Likes: 104

From: NC

Quote:

Originally Posted by Rescue Rogers

I wanted to go this route if I ever get my body and frame seperated

That's a stout looking setup. Any more info on it? Thanks.

Sep 10, 2019 | 11:27 AM

#10

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,209

Likes: 9,347

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

I got it from a story.

https://www.chevydiy.com/c3-corvette...-modification/

Sep 10, 2019 | 11:36 AM

#11

Rodnok1

Melting Slicks

Joined: Sep 2016

Posts: 3,004

Likes: 104

From: NC

Thanks man, all the articles I've read don't think ever saw that one.

Sep 10, 2019 | 10:19 PM

#12

davidchristopher

Racer

Joined: Mar 2009

Posts: 276

Likes: 31

From: Brant County Ontario

Quote:

Originally Posted by dave19054

I have a early 68 frame and I am adding the gussets to the frame and need some dimensions, does any have the correct measurements.

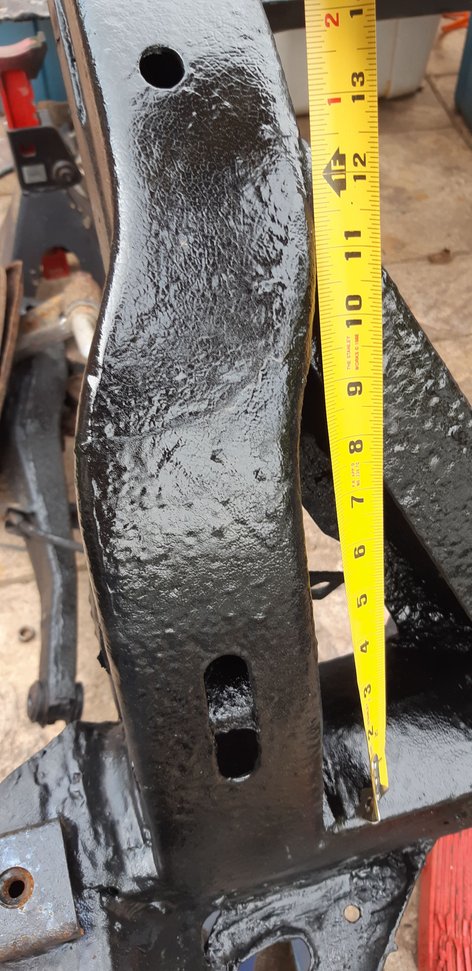

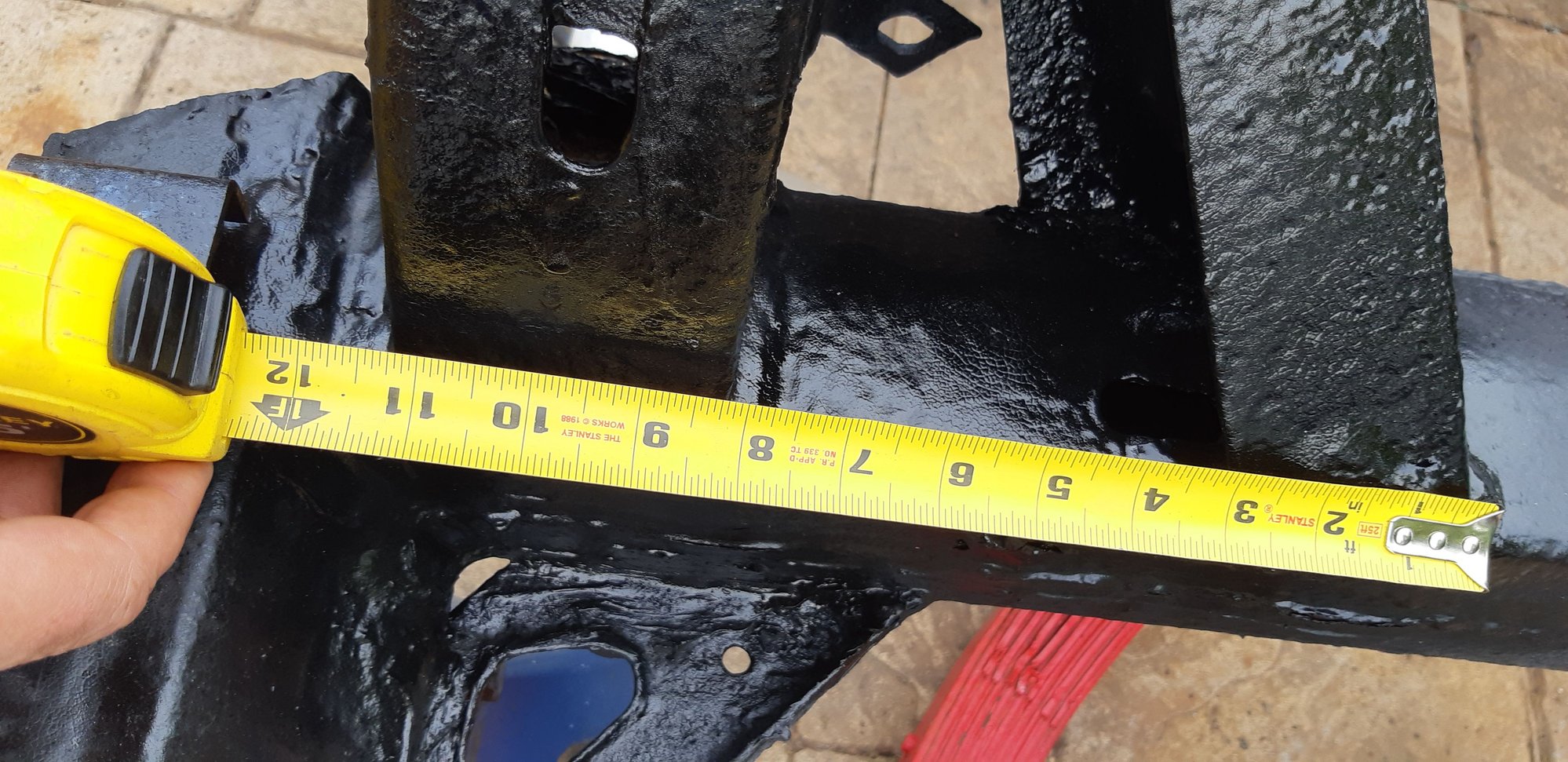

Here ya go - frame came from a '69. I did have to repair parts of it but I'm certain it's straight. I make the gussets out to be 12" out and 12" up.

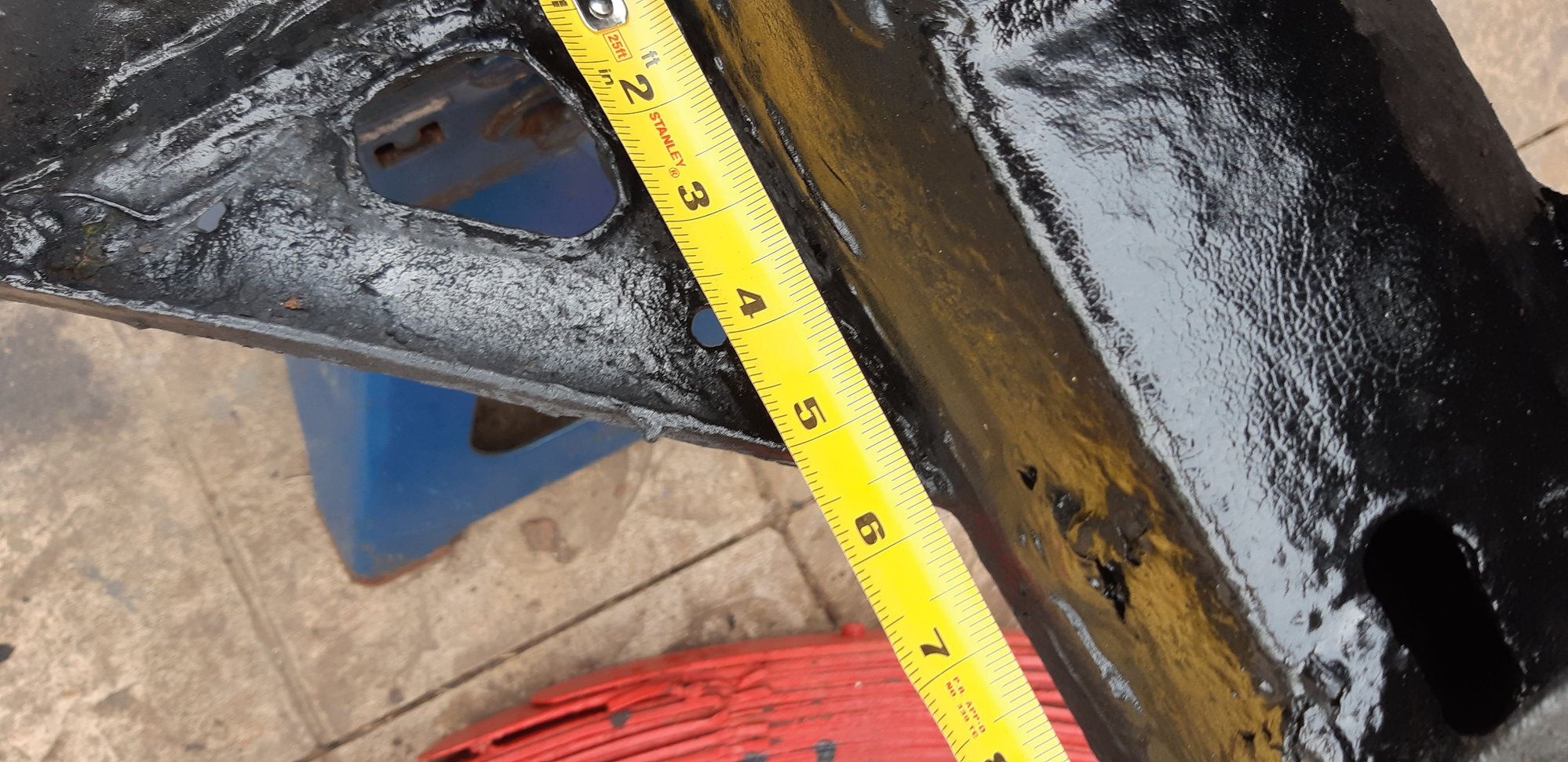

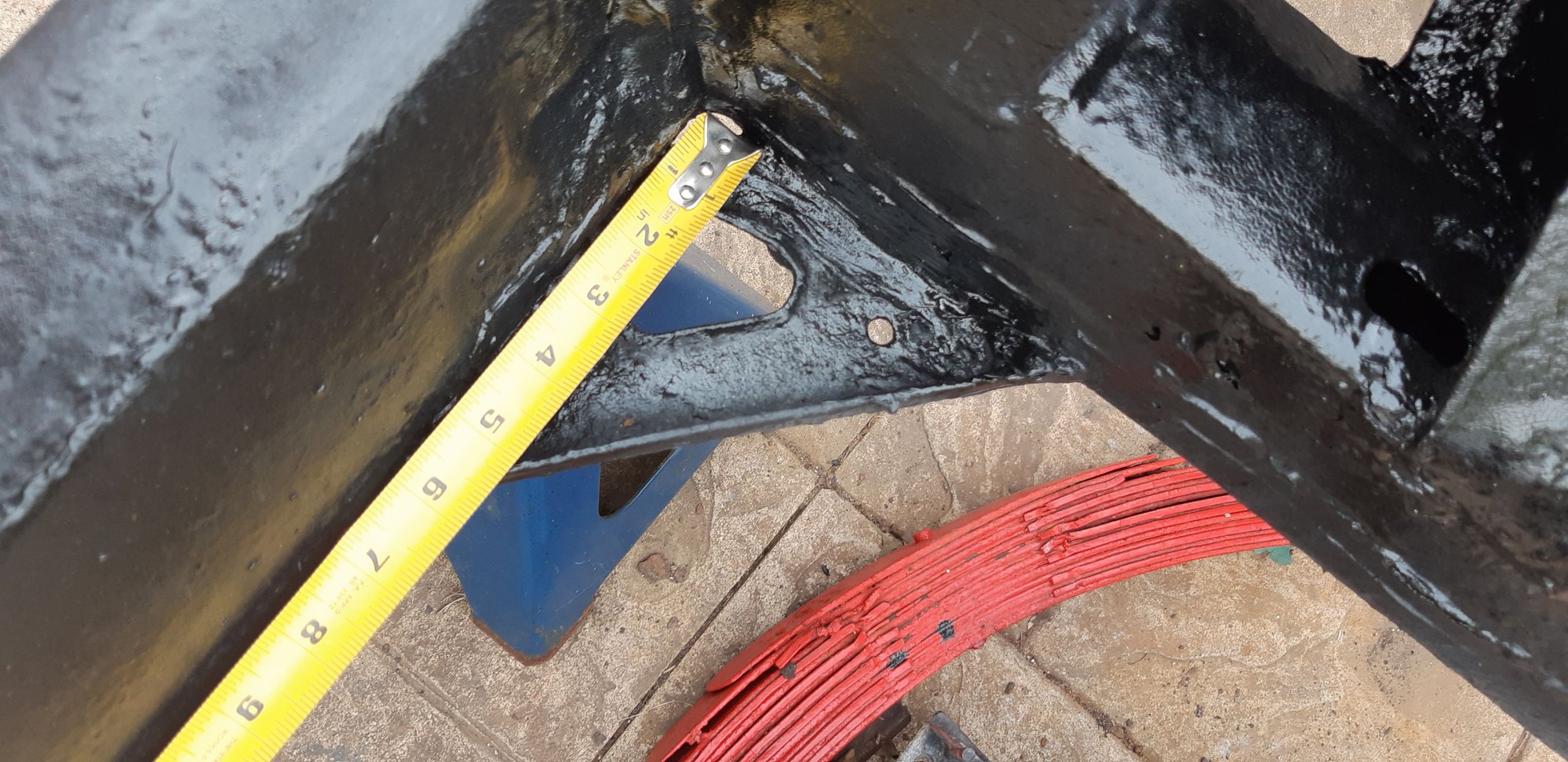

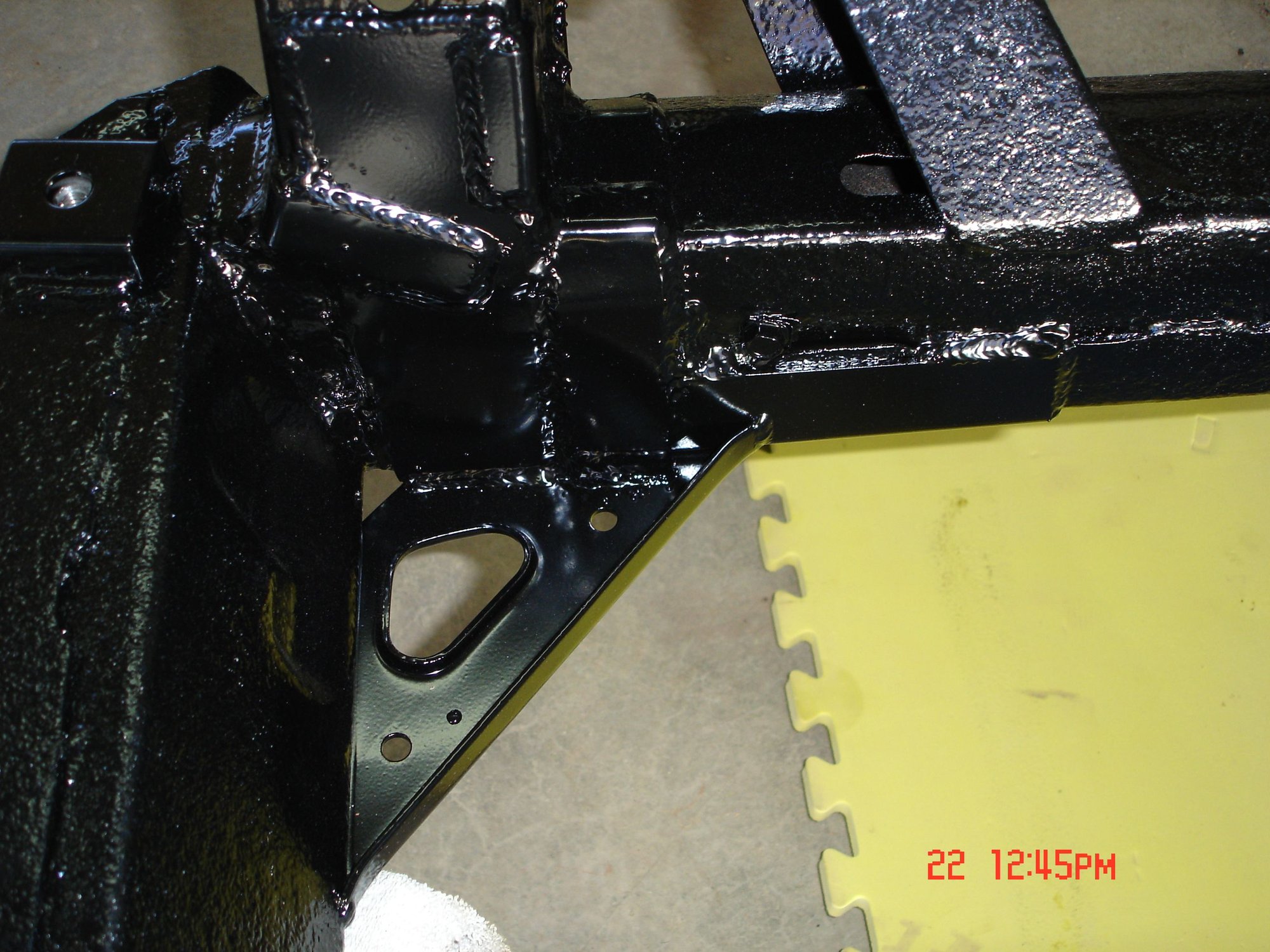

Also added the triangle-parts to the post here - which I believe are "6 in and "6 forward.
