68 frame, help with frame clutch bracket loc.
Working on my 68 frame and sometime in it's past someone put a new clutch bracket on the frame and did a terrible job. I have looked in my Manuel's and cannot find any location measurements. If anyone has a frame that they ca measure from the front of the frame rails back to the center of the channel for the rod, and from the center line of the frame to the face of the bracket it would be appreciated.
Team Owner
Joined: Jul 2004
Posts: 40,403
Likes: 791
From: Redondo Beach, California
Working on my 68 frame and sometime in it's past someone put a new clutch bracket on the frame and did a terrible job. I have looked in my Manuel's and cannot find any location measurements. If anyone has a frame that they ca measure from the front of the frame rails back to the center of the channel for the rod, and from the center line of the frame to the face of the bracket it would be appreciated.
Thread Starter
Cruising
Joined: Jul 2018
Posts: 11
Likes: 0
Was hoping to get a measurement from the front of the frame rail back to the center of the groove and then from the centerline of the frame out to the inner face of the bracket. My engine is off being machined. Any combo of known points to determine position both front to rear and side to side will help thanks for helping
Racer
Joined: Dec 2000
Posts: 295
Likes: 187
From: North Olmsted Oh

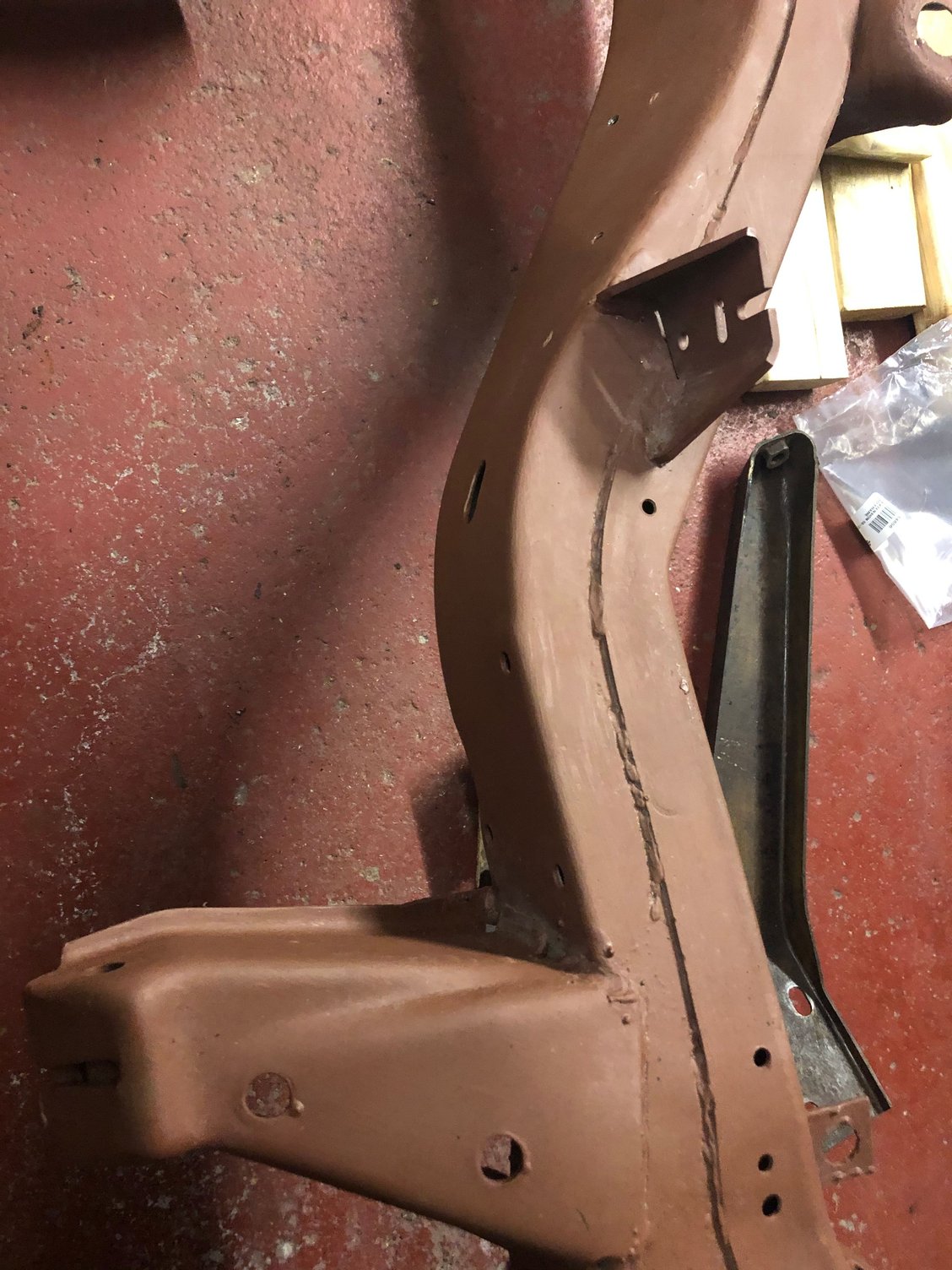

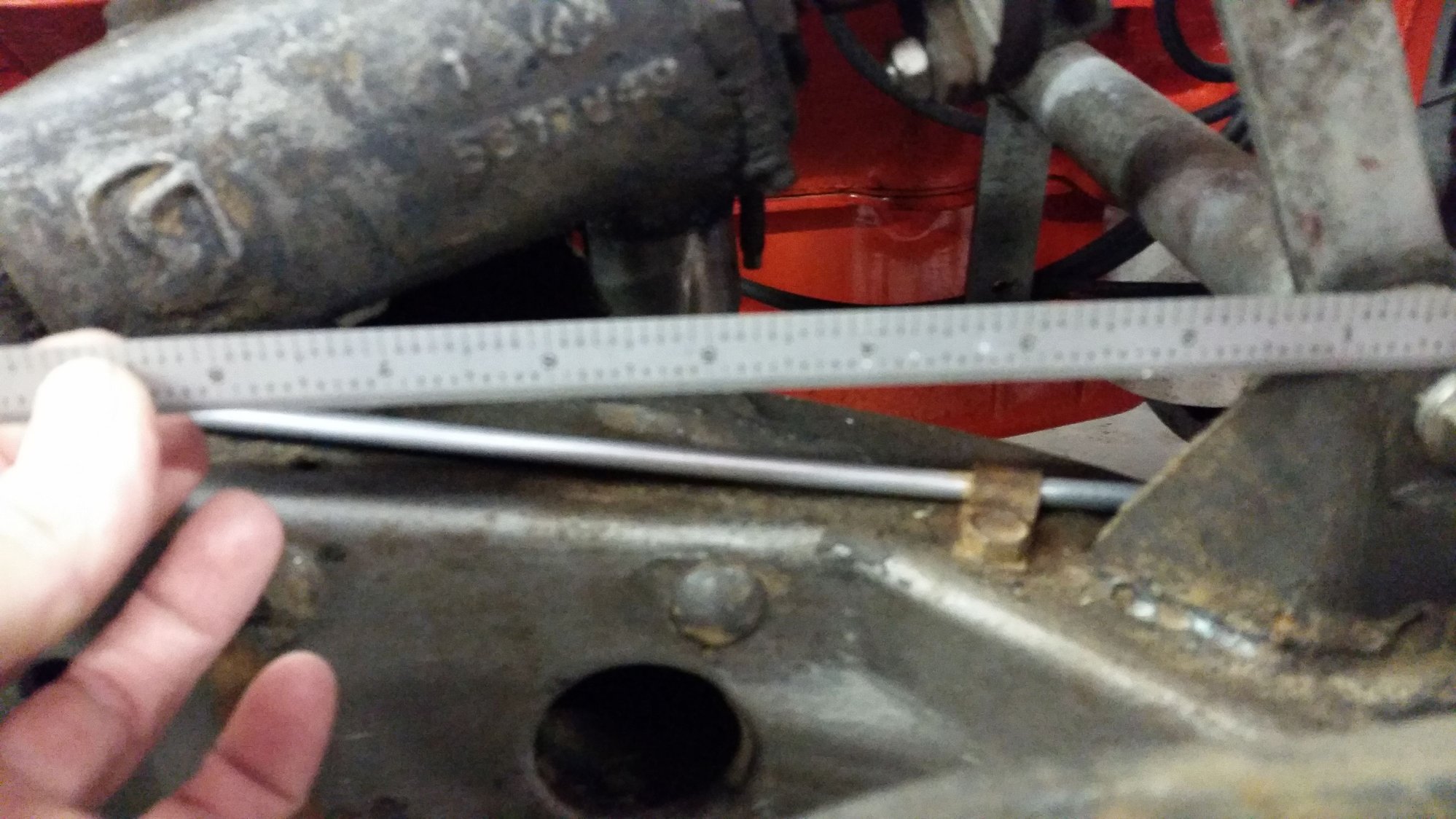

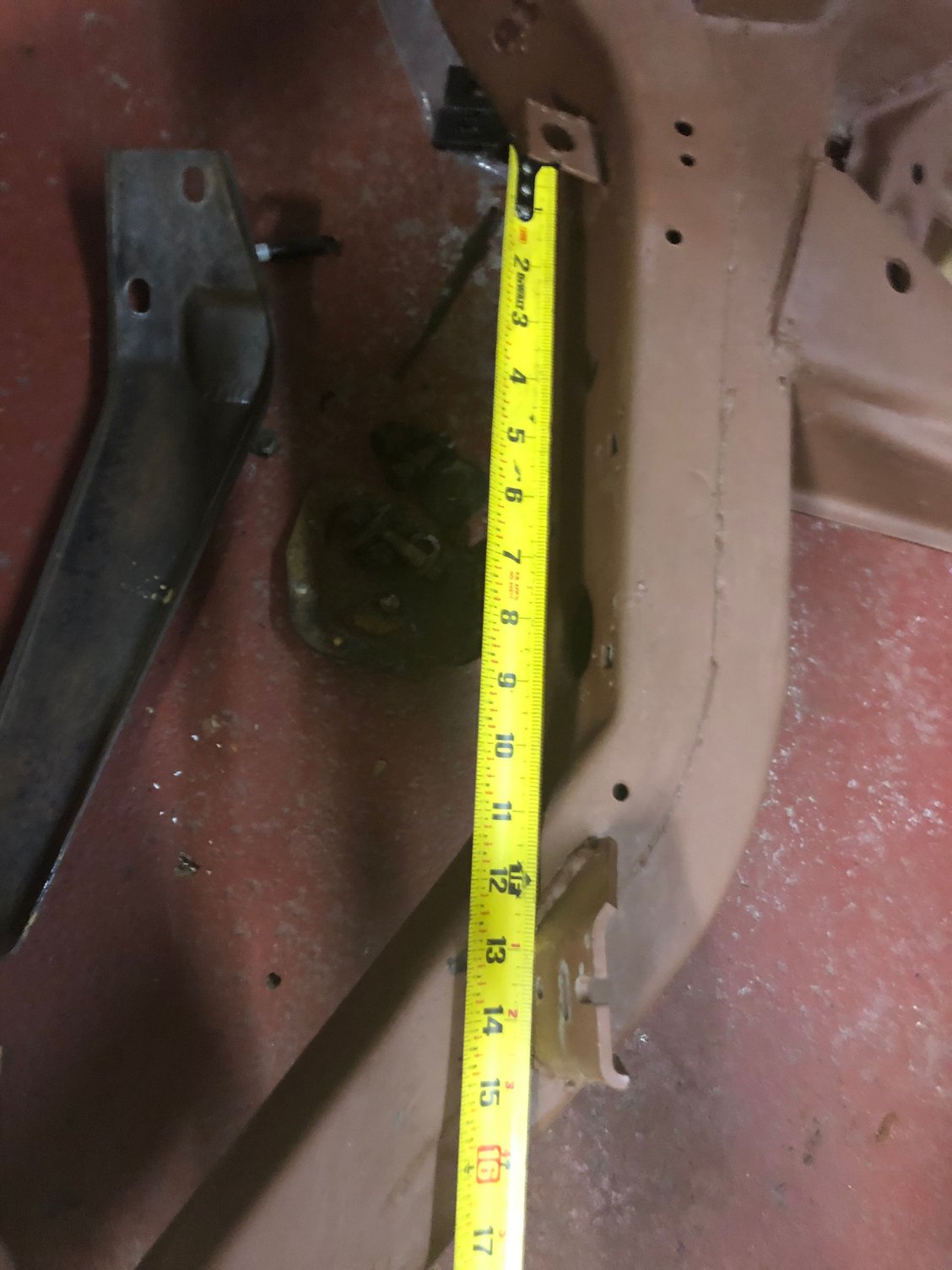

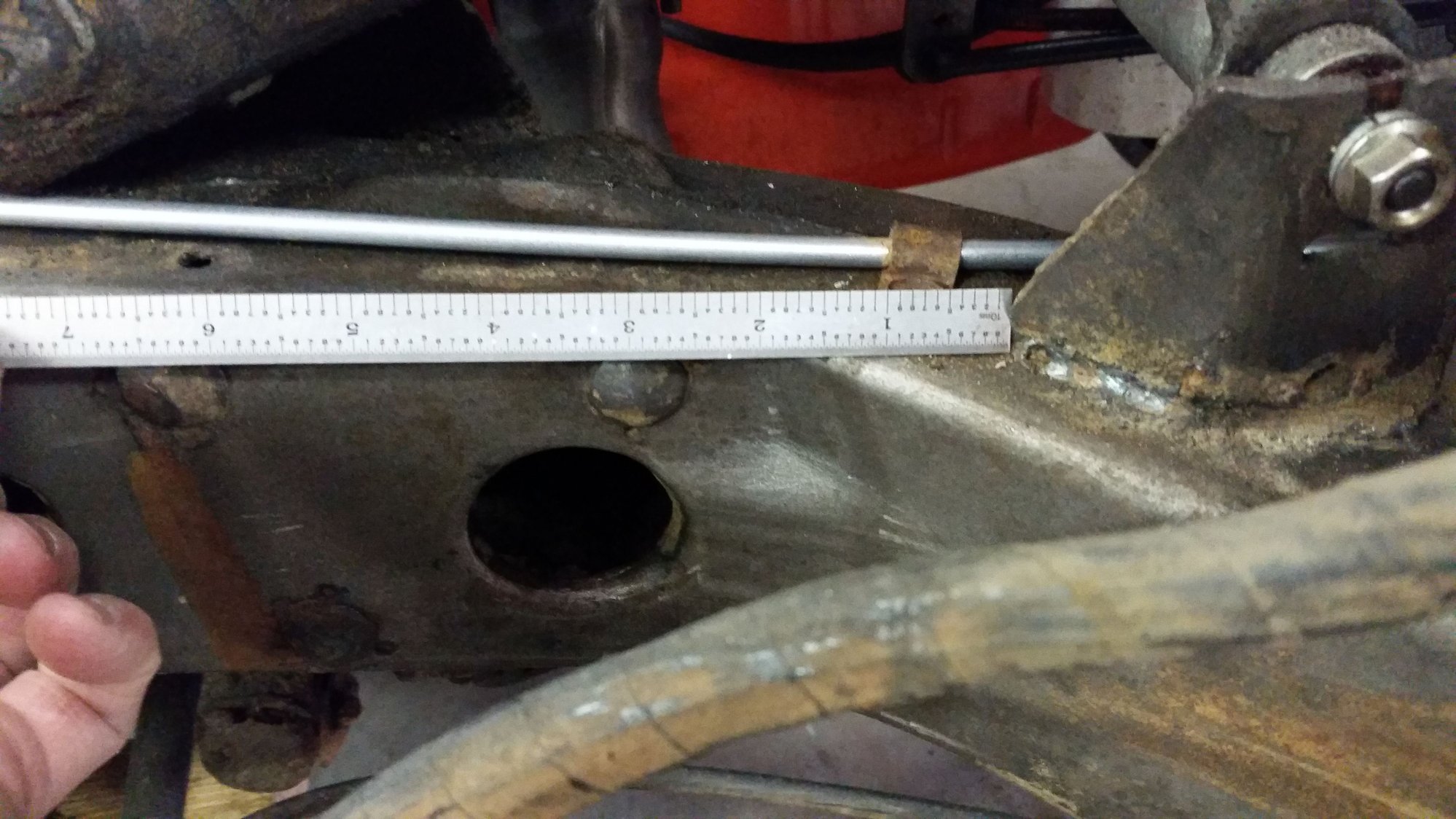

I tried to pick a place that was close to the Z bar, and also one that was not unique to the 68. My body is still on my car. Hopefully I'll be pulling the body off this weekend. But the frame horn on the 68 is one year only (of course), and the frame I'm using is off a 72. So I can't take a measurement for you from the front of the frame horn and give you a usable number. I will see if I can get a centerline measurement. The Z bar should be parallel to the centerline of the frame.
If there are any other landmarks that are easy for you to locate, let me know and I'll grab a measurement from that spot.
If there are any other landmarks that are easy for you to locate, let me know and I'll grab a measurement from that spot.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Senior Member
Joined: Jan 2008
Posts: 12,146
Likes: 2,038
From: Easton, PA
St. Jude Donor '10

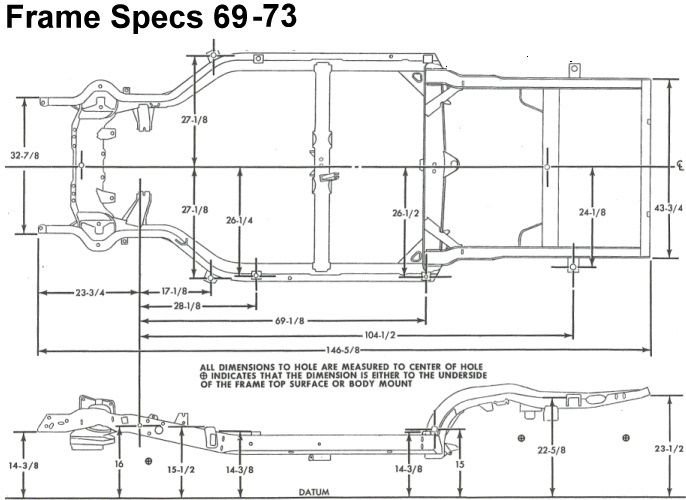

How about we start from here and see if we can build you a drawing that dimensions what you need?
