Turn Signal switch wire loom
Thread Starter
Intermediate
Joined: Nov 2012
Posts: 37
Likes: 0
From: Summerville SC
Turn Signal switch wire loom
Does the turn signal switch wire loom carry the ground wire to ground the horn contact pin? I'm getting no continuity from the pin to the 3rd black wire (next to the pink one) on the harmonica connector under the dash.
What say the gurus!?!?
What say the gurus!?!?
Last edited by Jantonb; Mar 4, 2021 at 09:52 AM.
Le Mans Master
Joined: May 2003
Posts: 8,877
Likes: 3,556
From: Fernandina Beach FL
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
The black wire is grounded only when the horn is depressed. The ground comes from the steering column itself.
Burning Brakes
Joined: Jul 2018
Posts: 979
Likes: 258
From: Maryland
According to a diagram I have, Harmonica Connection position G, a Black 20 gauge wire, is the Horn ground when horn button is pressed. I just replaced this switch, as I found a nick in several of the wires that went through the column which caused a constant horn ground. The basic idea is that this ground wire grounds the horn relay when the horn button is pressed and grounds it to the L shaped piece the horn contact is attached to. I believe the L shaped connector grounds it through the steering column itself, but I am not certain of that.
Thread Starter
Intermediate
Joined: Nov 2012
Posts: 37
Likes: 0
From: Summerville SC
Thank you...it's an 81 vette. I'm trying not to tear down the entire column...so if I understand you...there is no wire between the horn pin itself and the 3rd black wire connected to the harmonica connector correct?
Burning Brakes
Joined: Jul 2018
Posts: 979
Likes: 258
From: Maryland
Le Mans Master
Joined: May 2003
Posts: 8,877
Likes: 3,556
From: Fernandina Beach FL
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified

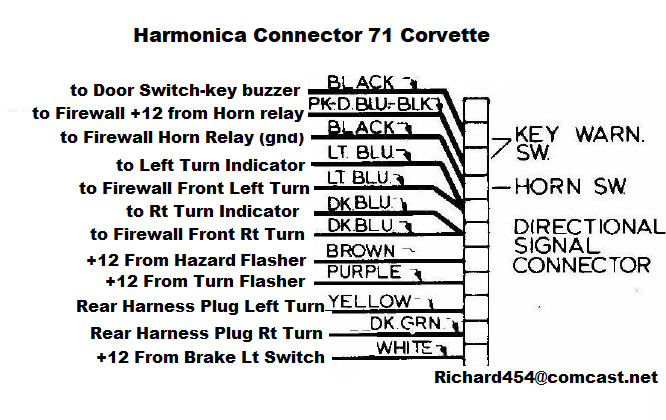

Here is a visual- Can check continuity between them to see if the wire is broken/damaged.
