Convenience Group Option?
Thread Starter
Intermediate
Joined: Mar 2021
Posts: 49
Likes: 0
From: Florida
Convenience Group Option?
So I'm looking at my old build sheet for my 77 Corvette and I'm curious as to what the convenience group (ZX2) is. I've been looking online, and can't seem to find anything about it. Anybody know what all was in the package? Thanks!
Le Mans Master
Joined: Dec 2003
Posts: 5,381
Likes: 415
From: N J
I have it on my 77. When I got the car some of it was gone but put back most of it. Its an underhood light, vanity mirror on pass side, low fuel warning in small gauge cluster, headlight warning buzzer, and the overhead light stays on after turning off engine, then goes out with a delay. Dont know if the light by the spare tire was part of it also?
Thread Starter
Intermediate
Joined: Mar 2021
Posts: 49
Likes: 0
From: Florida
I have it on my 77. When I got the car some of it was gone but put back most of it. Its an underhood light, vanity mirror on pass side, low fuel warning in small gauge cluster, headlight warning buzzer, and the overhead light stays on after turning off engine, then goes out with a delay. Dont know if the light by the spare tire was part of it also?
Le Mans Master
Joined: Sep 2002
Posts: 5,236
Likes: 898
From: Myrtle Beach SC
I have it on my 77. When I got the car some of it was gone but put back most of it. Its an underhood light, vanity mirror on pass side, low fuel warning in small gauge cluster, headlight warning buzzer, and the overhead light stays on after turning off engine, then goes out with a delay. Dont know if the light by the spare tire was part of it also?
Here's the way its written up in the NCRS operations section of its technical manual. There is a note that early 77s with ZX2 did not include the spare tire lamp.
Courtesy Lights
The Convenience Group includes courtesy lamp operation when either door is opened and upon exit of passengers doors closed. Lamps are located overhead (dome light), under the instrument panel in the foot wells of each side and a spare tire lamp. The spare tire lamp is located under the forward center edge of the rear bumper cover while a lamp is also located under the hood. Check its operation with hood up.
Once passengers exit the vehicle and doors are closed, interior lights as well as the lamp at the rear of the vehicle (located under the bumper), remain on for approximately 30 seconds. The courtesy lights illuminate for a period of 15 seconds when the ignition switch turns to the off position.
The spare tire lamp, also illuminates with the courtesy light function. To activate the spare tire lamp, open a door or rotate the headlight switch counter-clockwise. The spare tire lamp remains on for the 30 second period, same as the interior courtesy lights. Score courtesy lamp function under the map pocket line item.
Headlamp Warning Buzzer
A headlamp On reminder buzzer provides an audible warning when the light switch is in either the first or second detent position but actuated only when the ignition switch is turned to the Off or Lock position. With the headlights on, ignition Off and warning buzzer “buzzing,” the audible warning is silenced by rotating the light-switch **** counter clockwise.
Low-Fuel Indicator
A red low-fuel warning lamp is located in the center gauge cluster and illuminates when the fuel tank registers approximately five gallons or less. Compare the registration of the fuel gauge needle to the low-fuel lamp. If fuel tank gauge shows low-fuel, then the low-fuel warning lamp should show low fuel as well
The Convenience Group includes courtesy lamp operation when either door is opened and upon exit of passengers doors closed. Lamps are located overhead (dome light), under the instrument panel in the foot wells of each side and a spare tire lamp. The spare tire lamp is located under the forward center edge of the rear bumper cover while a lamp is also located under the hood. Check its operation with hood up.
Once passengers exit the vehicle and doors are closed, interior lights as well as the lamp at the rear of the vehicle (located under the bumper), remain on for approximately 30 seconds. The courtesy lights illuminate for a period of 15 seconds when the ignition switch turns to the off position.
The spare tire lamp, also illuminates with the courtesy light function. To activate the spare tire lamp, open a door or rotate the headlight switch counter-clockwise. The spare tire lamp remains on for the 30 second period, same as the interior courtesy lights. Score courtesy lamp function under the map pocket line item.
Headlamp Warning Buzzer
A headlamp On reminder buzzer provides an audible warning when the light switch is in either the first or second detent position but actuated only when the ignition switch is turned to the Off or Lock position. With the headlights on, ignition Off and warning buzzer “buzzing,” the audible warning is silenced by rotating the light-switch **** counter clockwise.
Low-Fuel Indicator
A red low-fuel warning lamp is located in the center gauge cluster and illuminates when the fuel tank registers approximately five gallons or less. Compare the registration of the fuel gauge needle to the low-fuel lamp. If fuel tank gauge shows low-fuel, then the low-fuel warning lamp should show low fuel as well
Last edited by hunt4cleanair; May 2, 2021 at 04:38 AM.
Safety Car
Joined: Oct 2007
Posts: 4,364
Likes: 1,724
From: Seattle Area Washington
Here's the way its written up in the NCRS operations section of its technical manual. There is a note that early 77s with ZX2 did not include the spare tire lamp.
Courtesy Lights
The Convenience Group includes courtesy lamp operation when either door is opened and upon exit of passengers doors closed. Lamps are located overhead (dome light), under the instrument panel in the foot wells of each side and a spare tire lamp. The spare tire lamp is located under the forward center edge of the rear bumper cover while a lamp is also located under the hood. Check its operation with hood up.
Once passengers exit the vehicle and doors are closed, interior lights as well as the lamp at the rear of the vehicle (located under the bumper), remain on for approximately 30 seconds. The courtesy lights illuminate for a period of 15 seconds when the ignition switch turns to the off position.
The spare tire lamp, also illuminates with the courtesy light function. To activate the spare tire lamp, open a door or rotate the headlight switch counter-clockwise. The spare tire lamp remains on for the 30 second period, same as the interior courtesy lights. Score courtesy lamp function under the map pocket line item.
Headlamp Warning Buzzer
A headlamp On reminder buzzer provides an audible warning when the light switch is in either the first or second detent position but actuated only when the ignition switch is turned to the Off or Lock position. With the headlights on, ignition Off and warning buzzer “buzzing,” the audible warning is silenced by rotating the light-switch **** counter clockwise.
Low-Fuel Indicator
A red low-fuel warning lamp is located in the center gauge cluster and illuminates when the fuel tank registers approximately five gallons or less. Compare the registration of the fuel gauge needle to the low-fuel lamp. If fuel tank gauge shows low-fuel, then the low-fuel warning lamp should show low fuel as well
The Convenience Group includes courtesy lamp operation when either door is opened and upon exit of passengers doors closed. Lamps are located overhead (dome light), under the instrument panel in the foot wells of each side and a spare tire lamp. The spare tire lamp is located under the forward center edge of the rear bumper cover while a lamp is also located under the hood. Check its operation with hood up.
Once passengers exit the vehicle and doors are closed, interior lights as well as the lamp at the rear of the vehicle (located under the bumper), remain on for approximately 30 seconds. The courtesy lights illuminate for a period of 15 seconds when the ignition switch turns to the off position.
The spare tire lamp, also illuminates with the courtesy light function. To activate the spare tire lamp, open a door or rotate the headlight switch counter-clockwise. The spare tire lamp remains on for the 30 second period, same as the interior courtesy lights. Score courtesy lamp function under the map pocket line item.
Headlamp Warning Buzzer
A headlamp On reminder buzzer provides an audible warning when the light switch is in either the first or second detent position but actuated only when the ignition switch is turned to the Off or Lock position. With the headlights on, ignition Off and warning buzzer “buzzing,” the audible warning is silenced by rotating the light-switch **** counter clockwise.
Low-Fuel Indicator
A red low-fuel warning lamp is located in the center gauge cluster and illuminates when the fuel tank registers approximately five gallons or less. Compare the registration of the fuel gauge needle to the low-fuel lamp. If fuel tank gauge shows low-fuel, then the low-fuel warning lamp should show low fuel as well
It is simply not correct for the 1977.
There is absolutely NO relationship between the Courtesy Light circuit and the ignition switch.
Also, some early build 1977 did NOT have the Low Fuel Warning light with the ZX2 option. It simply was not available.
Last edited by bmotojoe; May 2, 2021 at 09:04 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Le Mans Master
Joined: Sep 2002
Posts: 5,236
Likes: 898
From: Myrtle Beach SC
The above highlighted needs to be removed from ANY NCRS documentation.
It is simply not correct for the 1977.
There is absolutely NO relationship between the Courtesy Light circuit and the ignition switch.
Also, some early build 1977 did NOT have the Low Fuel Warning light with the ZX2 option. It simply was not available.
It is simply not correct for the 1977.
There is absolutely NO relationship between the Courtesy Light circuit and the ignition switch.
Also, some early build 1977 did NOT have the Low Fuel Warning light with the ZX2 option. It simply was not available.

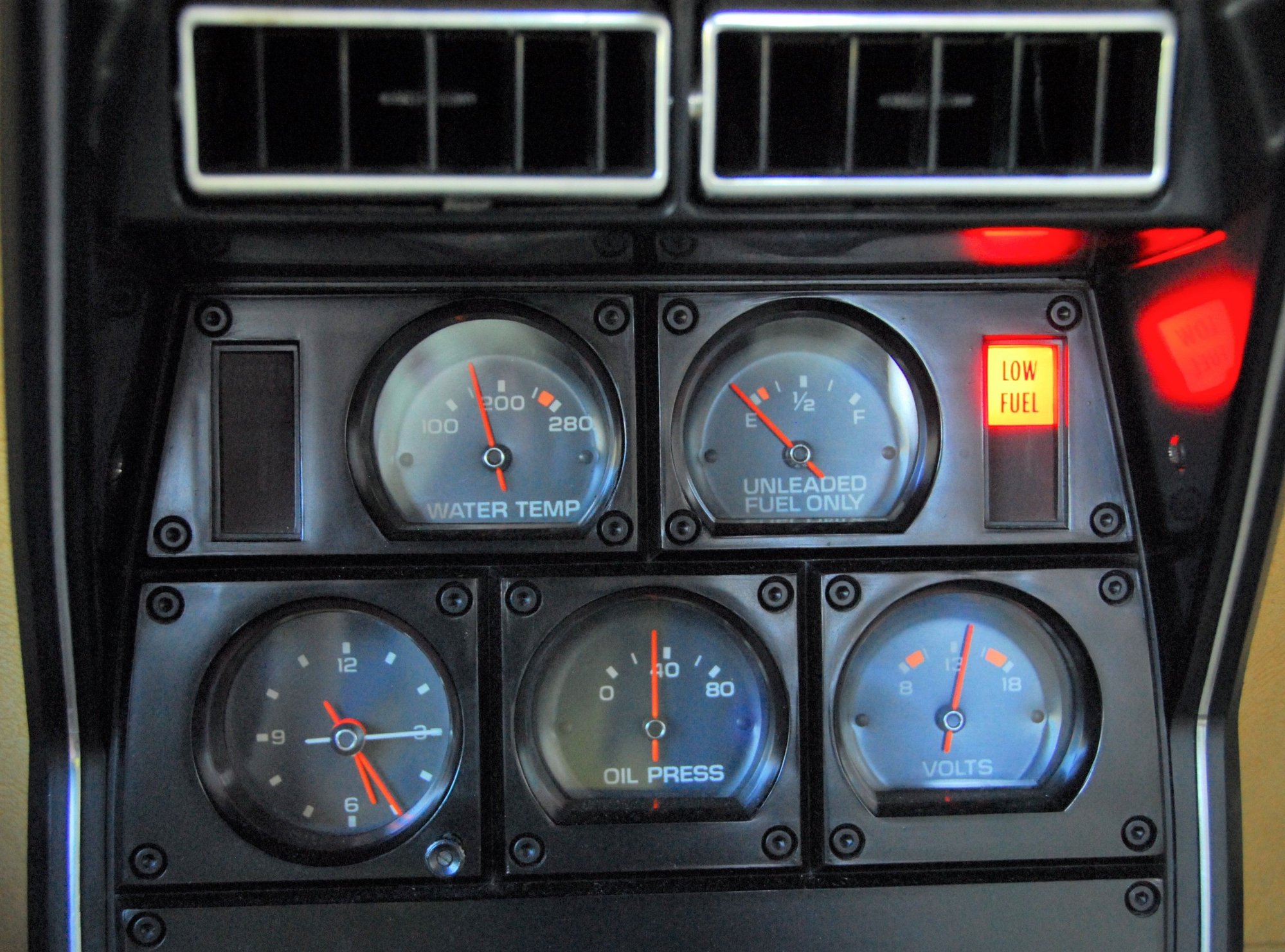

The photo is from a June 77 built car
Safety Car
Joined: Oct 2007
Posts: 4,364
Likes: 1,724
From: Seattle Area Washington
Mine is a July of 77 built car, so late build.
My understanding, a credit was given on the early ZX2 optioned cars for the Low Fuel Warning Light module because it was not available when production of the 77 started.
My Low Fuel Warning Light comes on when there is approximately 3 gallons of fuel in the tank.
Mine was not working for the longest time, found a old tread where forum member ...Roger... responded with a hand drawn diagram so I went from there. Thanks Roger!
This is what I did to repair my Low Fuel Light Module.

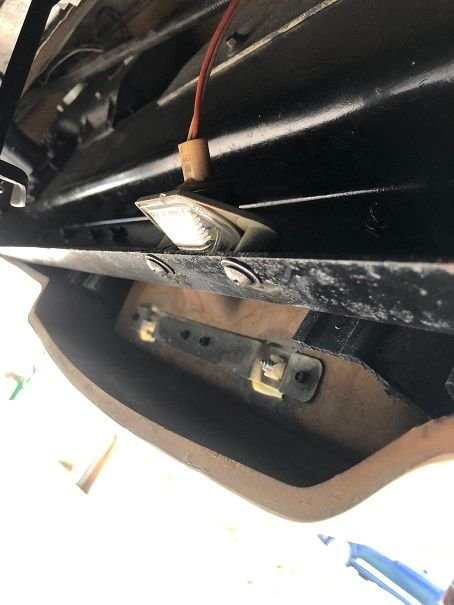

Spare Tire Light,
