Ammeter help - 69

The ammeter worked before I rewired the vehicle this past winter. Now it is not working, so I am assuming I put something back together incorrectly. I have searched a lot of the threads here however I figured I would just post my wiring configurations on both the horn relay and starter and see if anybody sees something out of whack.

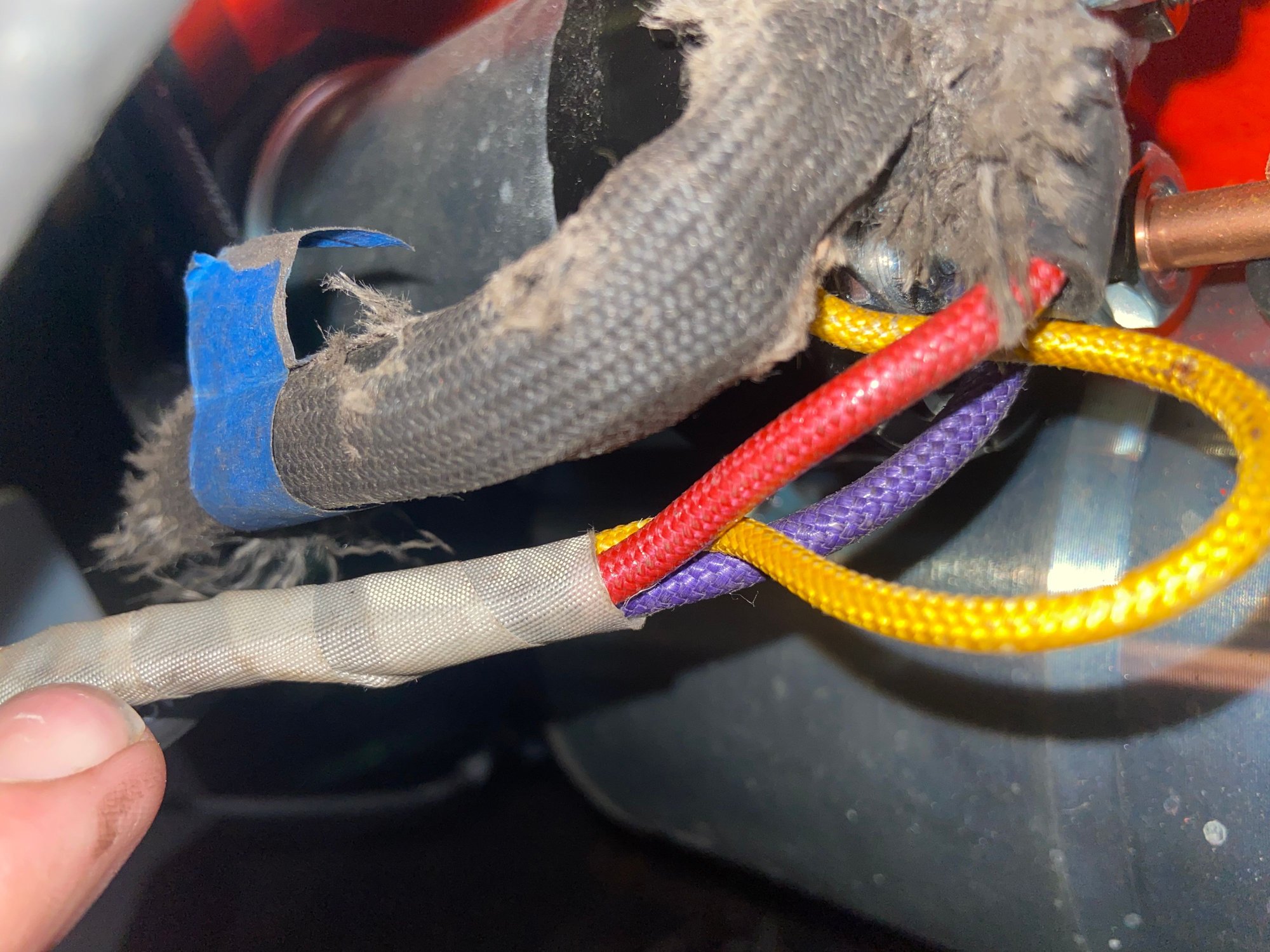

(Looking at the starter solenoid, the big black wire is actually the power ... on the top terminal along with the red wire. The left post is the yellow wire and the right is the purple, sorry for the poor picture)

Last edited by Bremquest; May 31, 2021 at 06:13 PM.

May 31, 2021 | 05:51 PM

sullyman56

Drifting

Joined: Nov 2013

Posts: 1,547

Likes: 282

From: Scottsdale Arizona

I’m not sure what year you’re working on, but I just looked at the horn relay on my 68 and it looks as though you may want to check if your horn relay is wired correctly.

May 31, 2021 | 06:02 PM

Bremquest

Thread Starter

Racer

Joined: Aug 2012

Posts: 251

Likes: 14

Quote:

Originally Posted by sullyman56

I’m not sure what year you’re working on, but I just looked at the horn relay on my 68 and it looks as though you may want to check if your horn relay is wired correctly.

It is a 1969, sorry about that, I had both red wires on the right post but changed just to test it, but my understanding is the configuration on the bar does not matter.

May 31, 2021 | 07:23 PM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,877

Likes: 3,556

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

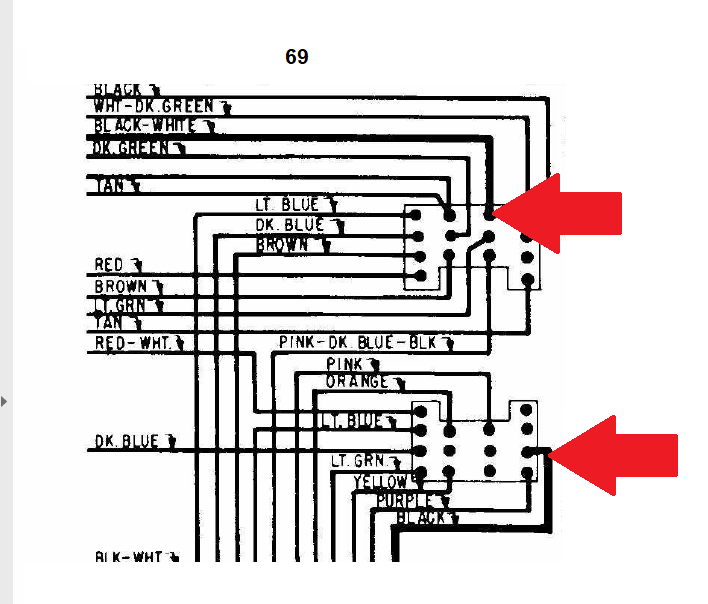

Here's a diagram of the harness firewall connector-

Take a meter and see if you have power at both of the wires indicated by the red arrows.

If you do- you'll need to move inside the car and check at the ammeter for power- might just be a bad meter.

Richard

Last edited by Richard454; May 31, 2021 at 07:32 PM.

May 31, 2021 | 09:05 PM

Bremquest

Thread Starter

Racer

Joined: Aug 2012

Posts: 251

Likes: 14

Quote:

Originally Posted by Richard454

I pulled the dash to investigate earlier today and put a meter to the black and black/white striped wire on the harness, and there was no power

May 31, 2021 | 10:13 PM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,877

Likes: 3,556

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

Quote:

Originally Posted by Bremquest

I pulled the dash to investigate earlier today and put a meter to the black and black/white striped wire on the harness, and there was no power

Those wires at the ammeter are hot all the time-

First check at the firewall- if no power there you might have damaged both fusible links

Jun 1, 2021 | 03:42 PM

Bremquest

Thread Starter

Racer

Joined: Aug 2012

Posts: 251

Likes: 14

Quote:

Originally Posted by Richard454

Those wires at the ammeter are hot all the time-

First check at the firewall- if no power there you might have damaged both fusible links

OK I just tested the two black wires coming out of the firewall and both have power ... so it must be the gauge? Weird it would have just stopped working

Jun 2, 2021 | 11:05 AM

Bremquest

Thread Starter

Racer

Joined: Aug 2012

Posts: 251

Likes: 14

OK I tested the wire connections at the ammeter itself, and it IS receiving power. Now my question, as I currently cannot start the car due to a couple repairs I am making, should the ammeter needle move from -40 when I turn the accessories on?
