Unknown wires
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
A schematic might help you figure out those wires
https://www.corvetteforum.com/forums...ispreloading=1
M
https://www.corvetteforum.com/forums...ispreloading=1
M
Race Director
Joined: Mar 2017
Posts: 11,923
Likes: 4,495
From: Virginia
It looks like someone has disabled your anti-theft relay.
More wiring diagrams are here:
http://wordpress.keystonestatecorvet...m/?page_id=118
More wiring diagrams are here:
http://wordpress.keystonestatecorvet...m/?page_id=118
Le Mans Master
Joined: Mar 2004
Posts: 7,464
Likes: 1,485
From: Little Rock AR
Anti theft relay wires cut? It can be unplugged there. Seems like Bubba was at work.
I would like to know what the green wire is for. It's not plugged into anything on my '80 either.
I would like to know what the green wire is for. It's not plugged into anything on my '80 either.
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
And as bikespace and stingr say, the lt blue and dk blue with white stripe are for the anti theft relay which is what they went to with the orange-blk black and yellow wires there
M
M
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
Sorry, No idea (mines a lot older) Do you reverse lights work?
Normally (not looking at a schematic) lt-green is the headlight (nothing in the console for that) reverse light (automatic shifter would have a switch) and I think later on they used it for the locking converter circuits (can't see that in the console either but who knows) and then they sometimes used them for part of the a/c but that would be with a much larger connector i think. Same with a radio circuit
Remember there are some options that were wired but not there, CB radio? or something
M
Normally (not looking at a schematic) lt-green is the headlight (nothing in the console for that) reverse light (automatic shifter would have a switch) and I think later on they used it for the locking converter circuits (can't see that in the console either but who knows) and then they sometimes used them for part of the a/c but that would be with a much larger connector i think. Same with a radio circuit
Remember there are some options that were wired but not there, CB radio? or something
M
Le Mans Master
Joined: Mar 2004
Posts: 7,464
Likes: 1,485
From: Little Rock AR
Loose green wire is not the reverse light. That feature is on the shifter assembly. It has 2 pigtails, one for neutral safety and one for the backup lights. Green wire is something else.
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
Thread Starter
Advanced
Joined: Aug 2021
Posts: 76
Likes: 24
From: Abu Dhabi

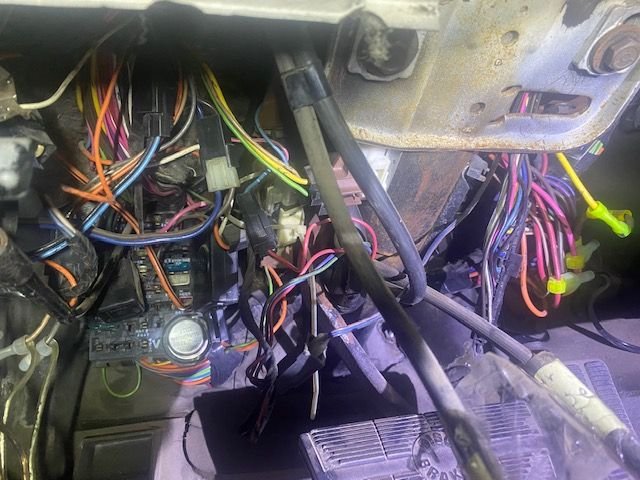

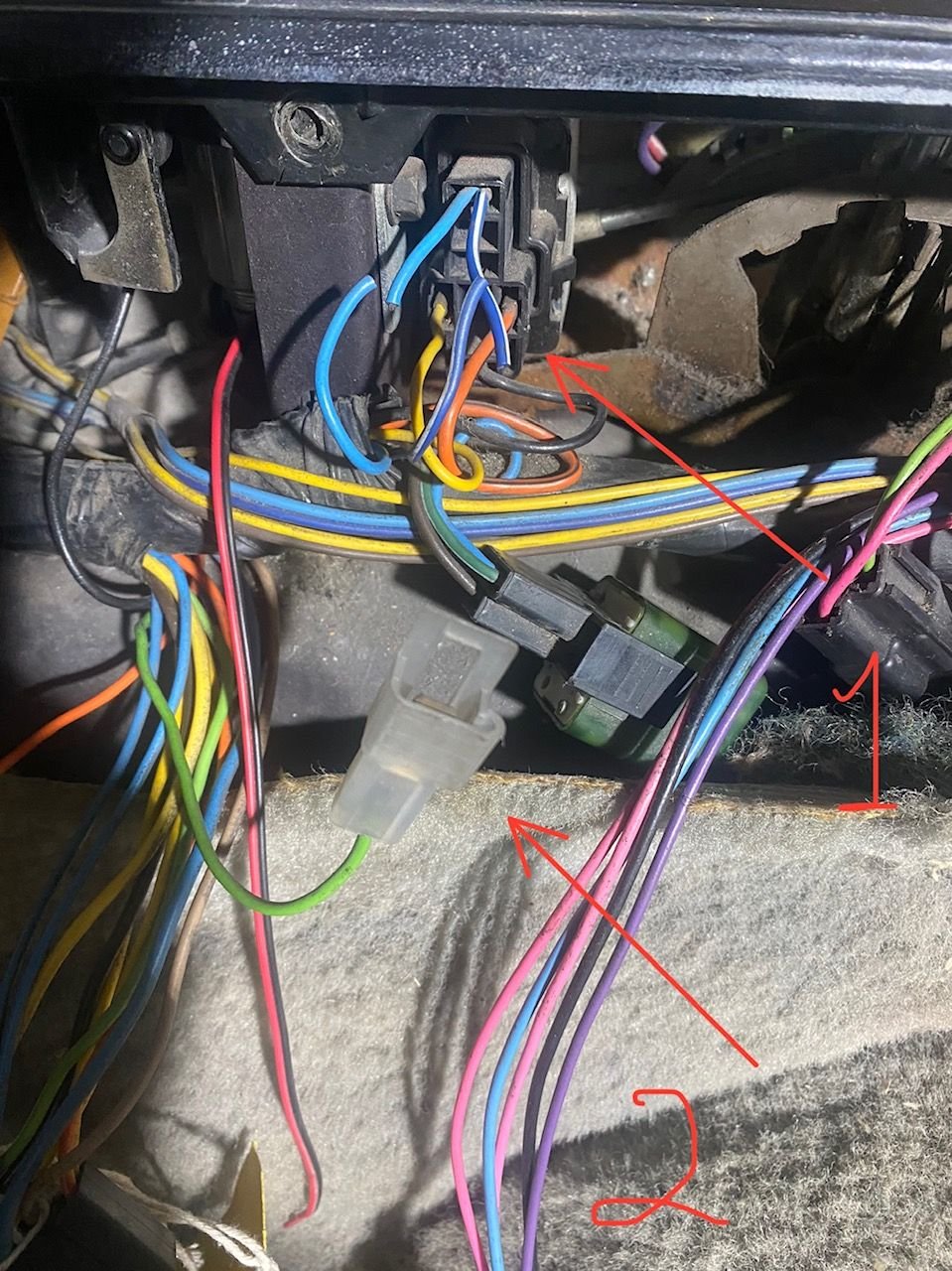

I’ll share a picture of the under dash shortly, it might give some hints. I was successful on tracing the light green wire from the diagram and found out that it goes to multiple connections like
- pressure cycle SW
- backup lights SW
- converter lock vacuum SW
and the headlights (high beam never worked when I got the car)
- pressure cycle SW
- backup lights SW
- converter lock vacuum SW
and the headlights (high beam never worked when I got the car)
Thread Starter
Advanced
Joined: Aug 2021
Posts: 76
Likes: 24
From: Abu Dhabi
I’ll share a picture of the under dash shortly, it might give some hints. I was successful on tracing the light green wire from the diagram and found out that it goes to multiple connections like
- pressure cycle SW
- backup lights SW
- converter lock vacuum SW
and the headlights (high beam never worked when I got the car)
- pressure cycle SW
- backup lights SW
- converter lock vacuum SW
and the headlights (high beam never worked when I got the car)

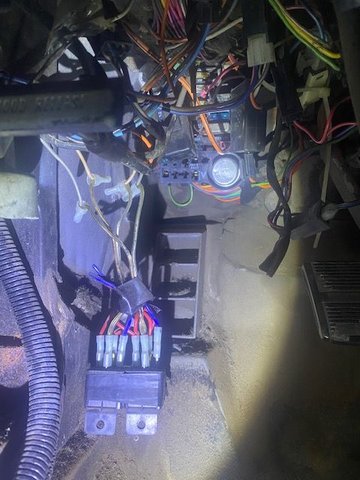

Below the shifter
Thread Starter
Advanced
Joined: Aug 2021
Posts: 76
Likes: 24
From: Abu Dhabi
Thread Starter
Advanced
Joined: Aug 2021
Posts: 76
Likes: 24
From: Abu Dhabi

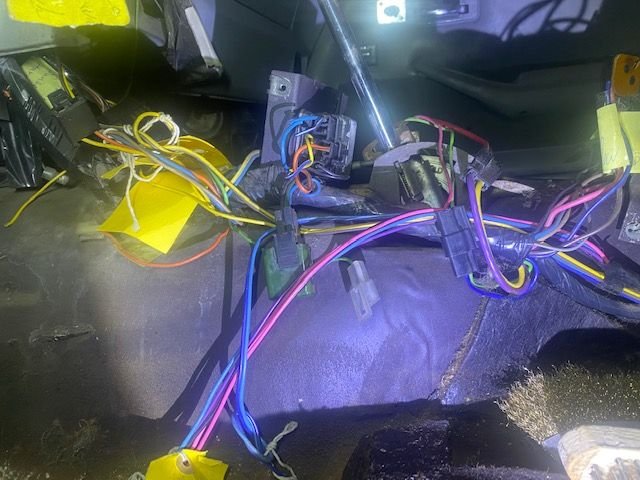

these 2 relays were connected to the power lock on the driver side through the door, the left side didn’t have any relays. Previously the power locks were not working anyway, I removed these relays and reconnected the 2 wires to their original matched color wires and will change the damaged power lock, will see what happens. Also the ground on the passenger side was very bad.
