What’s this
Thread Starter
Pro
Joined: Apr 2012
Posts: 657
Likes: 114
From: Picton NSW
What’s this
Photo attached
I took this out of a 69 BB I got some years back. Wiring looks OEM connect to ignition / coil etc ,
your info / help appreciated.
bfit
I took this out of a 69 BB I got some years back. Wiring looks OEM connect to ignition / coil etc ,
your info / help appreciated.
bfit
Last edited by bfit; May 3, 2023 at 04:54 AM.
Popular Reply
May 3, 2023, 07:29 AM
Instructor
Joined: Feb 2021
Posts: 243
Likes: 111
From: Augusta Mo
Transistorized ignition module
Race Director
Joined: Nov 2006
Posts: 13,192
Likes: 7,791
From: Sunshine Coast, Queensland, Australia
2025 C3 of the Year Finalist - Modified
2024 C3 of the Year Finalist- Modified
2022 C3 of the Year Finalist - Modified
Cruise-In VIII Veteran
Trying to figure out where on the car you took this photo. Looks like the plug to my alarm switch.
Thread Starter
Pro
Joined: Apr 2012
Posts: 657
Likes: 114
From: Picton NSW
Photo taken on a bench ,
this was mounted to the left of the radiator high on the panel behind the headlight structure.
The plug looks like a headlight connection but two of the wires from this,went to the positive side of the coil the other goes through the fiirewall behind the LHS head and to the ignition switch.
.Bfit
this was mounted to the left of the radiator high on the panel behind the headlight structure.
The plug looks like a headlight connection but two of the wires from this,went to the positive side of the coil the other goes through the fiirewall behind the LHS head and to the ignition switch.
.Bfit
Last edited by bfit; May 3, 2023 at 07:23 AM.
Thread Starter
Pro
Joined: Apr 2012
Posts: 657
Likes: 114
From: Picton NSW

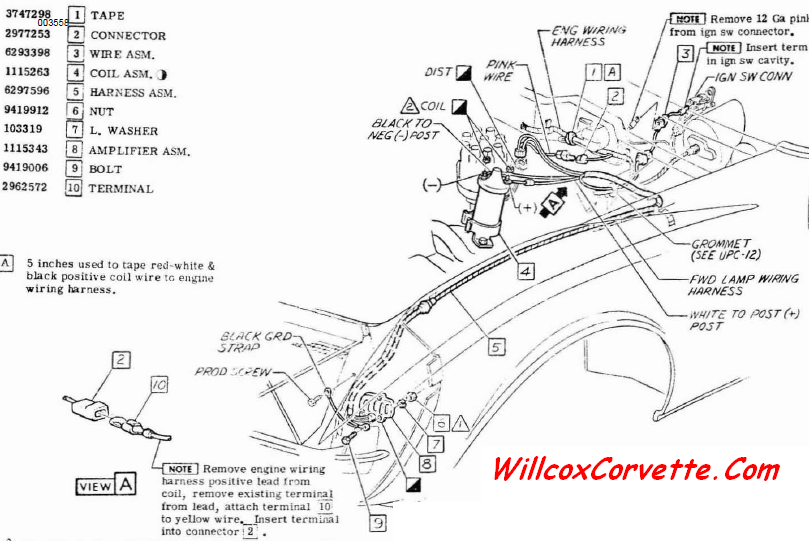

Thanks to Wilwood for the image here. This shows where it was mounted , interested that it still connected and apparently working after all these years.
