Headlight connection

In the middle of getting things prepped for the body shop and noticed the headlight connections are not the best and two are broken. Is there a source for new connectors that have the fiber optic connection as well? Trying to get away from buying a whole new harness.

Jan 15, 2024 | 06:00 PM

bmotojoe

Safety Car

Joined: Oct 2007

Posts: 4,364

Likes: 1,724

From: Seattle Area Washington

Mouser Electronics
3 Wire Connector Housing Link: https://www.mouser.com/ProductDetail...bmX4hbYQ%3D%3D
2 Wire Connector Housing Link: https://www.mouser.com/ProductDetail...aICM49MQ%3D%3D
If you need the crimp terminals they are not the standard series 56 (1/4") terminal, they are series 59 (5/16") terminals.
There are 2 different terminals used on those housings, a double wire and a single wire.
Double wire terminal is GM #2973215
Single wire terminal is GM #2973216.
Minimum order for the terminals through Mouser is 20ea.

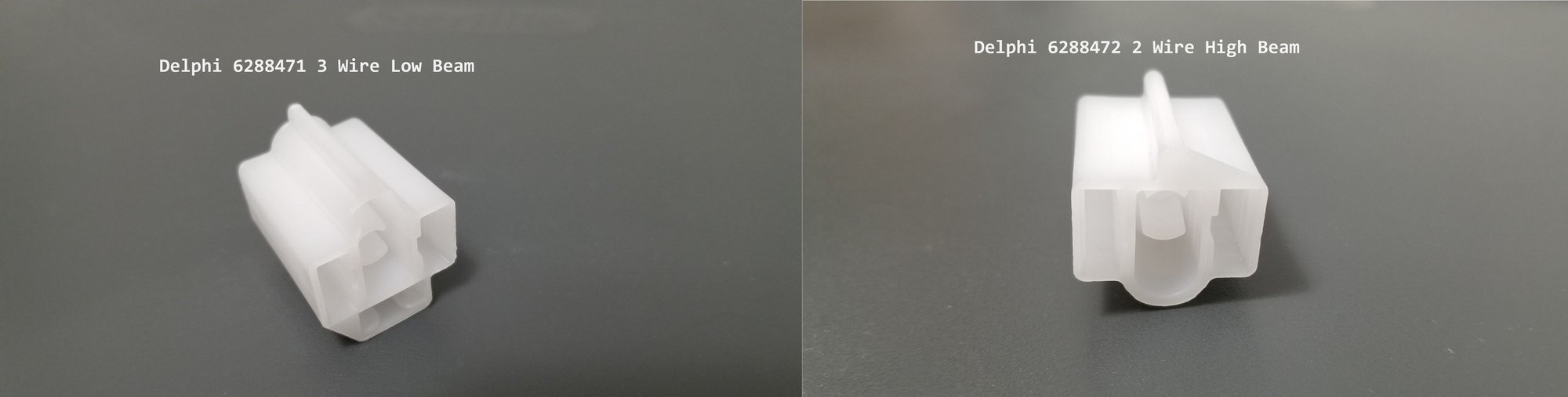

Here are the connector housings if you do not do links...

One of the double wire crimp terminals...

Jan 15, 2024 | 06:16 PM

barkingrats

1967 Pedal Car Champion

Joined: Mar 2020

Posts: 9,027

Likes: 4,174

From: US-PNW

If you want assembled, I think Lectric Limited sells just the pigtails.

Jan 15, 2024 | 10:51 PM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,875

Likes: 3,554

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

Here's some pigtails- handles fiberoptics $2.54/ea no minimum purchase

https://www.delcity.net/store/Headli...98105.h_818652
