Parts Identification Test 2
1967 Pedal Car Champion
Joined: Mar 2020
Posts: 8,983
Likes: 4,139
From: US-PNW

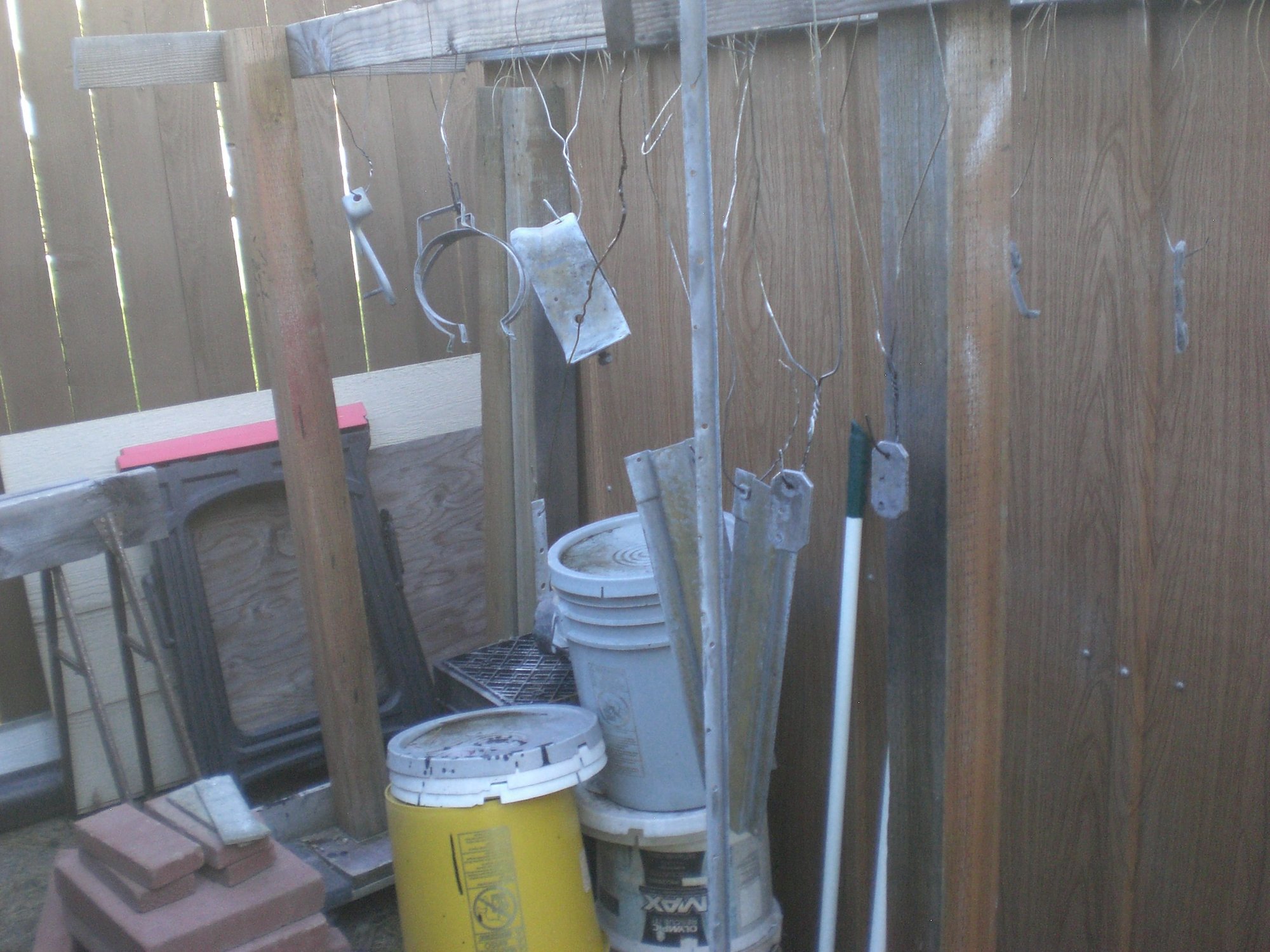

The circular bracket holds the charcoal canister for the fuel vapor capture system -- mounts to the wheel well below the vacuum storage tank.
The item to the right of that looks like it could be the seat belt reinforcement bracket that sits in the driveshaft tunnel.
The other pieces need to be photo'd closer, showing more detail and shape.
The item to the right of that looks like it could be the seat belt reinforcement bracket that sits in the driveshaft tunnel.
The other pieces need to be photo'd closer, showing more detail and shape.
Thread Starter
Old Fart Pilot
Joined: Apr 2010
Posts: 1,870
Likes: 950
From: Spokane, WA
The circular bracket holds the charcoal canister for the fuel vapor capture system -- mounts to the wheel well below the vacuum storage tank.
The item to the right of that looks like it could be the seat belt reinforcement bracket that sits in the driveshaft tunnel.
The other pieces need to be photo'd closer, showing more detail and shape.
The item to the right of that looks like it could be the seat belt reinforcement bracket that sits in the driveshaft tunnel.
The other pieces need to be photo'd closer, showing more detail and shape.
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
I believe...
Left most part is the steering column plate from the engine side of the firewall
Parts on the mid/right are the under-chassis plates for the front and rear (inner) seat mounts
Right most part looks like the battery tray hold-down part, not the bolt one (forward one)
Can't really make out the other two parts
M
Left most part is the steering column plate from the engine side of the firewall
Parts on the mid/right are the under-chassis plates for the front and rear (inner) seat mounts
Right most part looks like the battery tray hold-down part, not the bolt one (forward one)
Can't really make out the other two parts
M
Thread Starter
Old Fart Pilot
Joined: Apr 2010
Posts: 1,870
Likes: 950
From: Spokane, WA
[QUOTE=Mooser;1608188125] Parts on the mid/right are the under-chassis plates for the front and rear (inner) seat mounts[/ QUOTE]
Yes (mostly)- Seat front mount plates & seat rear mounts plates (1 inner & 1 outer)
Last unidentified parts are hanging between the fwd seat mount plates and down by the grey pail lid under the vapor can straps.
