Alternator Bracket....keeps breaking!!!!!! WHY!!
Thread Starter
Melting Slicks
Joined: Jan 2003
Posts: 2,713
Likes: 31
From: Shreveport LA
LA Events Coordinator
Alternator Bracket....keeps breaking!!!!!! WHY!!
OK, here's the deal. Over the past 5 years, I have replaced my broken alternator bracket 5 times. The first 3 times I replaced the stock bracket with a stock bracket. Like this:
. After about 8 months each one broke in the groved area (on top) where the alternator is bolted to. So I kept getting another one, and another one and another one. I even went and installed a ZOOPS aluminum bracket but didn't like the way it kept lossening, so I went back to the stock bracket...but this time, I had 2 of them bolted together (on the recomendation of several mechanics and parts guys), had it chromed and that set up lasted until TODAY when I saw it too was BROKEN in the same spot!!!!
This one lasted about 2 years.....
Like this:

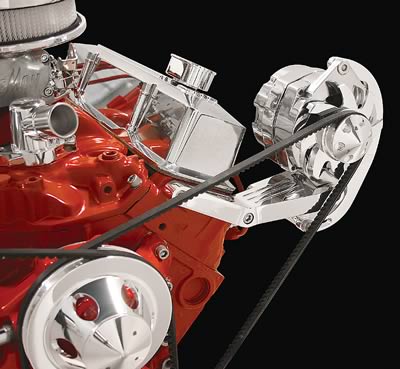

So I went ahead and order this Billet Specialities aluminum bracket from Summit Racing...
Getting it Thursday....here we go AGAIN!!!!
So here's my question after going down memory lane....WHY in the he(( to these brackets keep breaking???? Does anyone else have the same problem???? What is the solution....I hope getting the $130 bracket will finally fix the problem!!!!
Let me know out there ok?
. After about 8 months each one broke in the groved area (on top) where the alternator is bolted to. So I kept getting another one, and another one and another one. I even went and installed a ZOOPS aluminum bracket but didn't like the way it kept lossening, so I went back to the stock bracket...but this time, I had 2 of them bolted together (on the recomendation of several mechanics and parts guys), had it chromed and that set up lasted until TODAY when I saw it too was BROKEN in the same spot!!!! This one lasted about 2 years.....Like this:
So I went ahead and order this Billet Specialities aluminum bracket from Summit Racing...
Getting it Thursday....here we go AGAIN!!!!
So here's my question after going down memory lane....WHY in the he(( to these brackets keep breaking???? Does anyone else have the same problem???? What is the solution....I hope getting the $130 bracket will finally fix the problem!!!!
Let me know out there ok?
