69 Winshield Washer Pump
The 69 is unique as it is a three port with a splitter valve on the other side. Does anyone have a source for this pump and especially the splitter valve?
Does anyone have a good drawing of the system with the hose positioning on the 3 port and splitter valve? The AIM and Chevrolet manual does not give ir justice.
Does anyone have a good drawing of the system with the hose positioning on the 3 port and splitter valve? The AIM and Chevrolet manual does not give ir justice.
Racer
Joined: Aug 2003
Posts: 259
Likes: 2
From: Sacramento CA
The pump uses 3 ports, one in and two out. The two out go into a "Y" connector then on to the bottom port of an electro-mechanical diverter valve (That's my name for it) on the driver's side of the washer motor.
The two other ports on the valve connect to the wiper arm washer tubes via a tee and other runs forward to the headlamp washers.
The valve just came available about a year ago. Hold your wallet....
Corvette Central
1969 HEADLAMP WASHER SQUIRT PUMP #653123 199.95 EACH

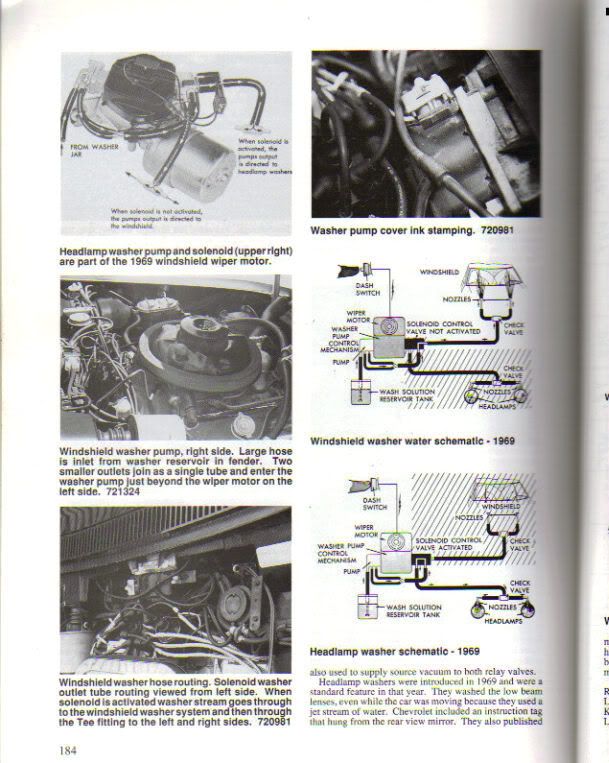

There are good pictures in both the AIM and the Chassis Service Manual. That dingy looking Tee connector is actually a check valve and not yet available for any sources.
The two other ports on the valve connect to the wiper arm washer tubes via a tee and other runs forward to the headlamp washers.
The valve just came available about a year ago. Hold your wallet....
Corvette Central
1969 HEADLAMP WASHER SQUIRT PUMP #653123 199.95 EACH
There are good pictures in both the AIM and the Chassis Service Manual. That dingy looking Tee connector is actually a check valve and not yet available for any sources.
Thread Starter
Burning Brakes
Joined: Oct 2006
Posts: 1,089
Likes: 43
From: Native Californian CALIFORNIA
Army
You mentioned a check valve. Is this original? Without it will the water just drain off or take the pump awhile to prime?
Your picture and explanation will give me something to work on Sunday afternoon.
Thank you,
Erv
Your picture and explanation will give me something to work on Sunday afternoon.
Thank you,
Erv
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
5 Best & 5 Worst Corvette Daily Drivers
Joe Kucinski
The Headlights of Every Corvette Generation Explained
Joe Kucinski
5 Best & 5 Most Overrated Corvette Track Packages of All Time!
Joe Kucinski
Every 2027 Corvette Engine Explained
Joe Kucinski
Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette
Verdad Gallardo
10 Ugly Corvettes That We Still Kinda Love
Joe Kucinski
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
Race Director
Joined: Apr 1999
Posts: 10,867
Likes: 721
From: Beverly Hills/Pine Ridge Florida
Here's a pic.
The little barrel shaped gizmos are "one way valves". You'll also find them on the headlight washing side of the circuit too.
Keeps the water from flowing back.
Chuck
The little barrel shaped gizmos are "one way valves". You'll also find them on the headlight washing side of the circuit too.
Keeps the water from flowing back.
Chuck
Burning Brakes
Joined: Feb 2004
Posts: 1,231
Likes: 0
From: edmonton ab
Got mine complete from Dynamiccorvettes.com for $294.00. I was referred to them by Corvette America. Most of the other pieces, lines etc can be sourced through Paragon and you can see pics in their online catalogue. Both these firms are reasonably priced and fast shipping. Good luck!
Last edited by nuck; Apr 21, 2007 at 03:26 PM.
Thread Starter
Burning Brakes
Joined: Oct 2006
Posts: 1,089
Likes: 43
From: Native Californian CALIFORNIA
Army
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Here is a picture of the pump and coil if this helps. It is available new as an assembly only. http://willcoxcorvette.com/product_i...ducts_id=24473
Willcox Inc.
Willcox Inc.
Race Director
Joined: Apr 1999
Posts: 10,867
Likes: 721
From: Beverly Hills/Pine Ridge Florida
Didn't know the pump and coil was available in repro form. Thanks for the info.
The one way valves? They're around. When I go to Corvette flea markets, I always scrounge in the boxes of "junk", or the little pigeon hole boxes many vendors have.
You can find them for 25 cents to $1.00 each. Chuck
Thread Starter
Burning Brakes
Joined: Oct 2006
Posts: 1,089
Likes: 43
From: Native Californian CALIFORNIA
Army
The pump uses 3 ports, one in and two out. The two out go into a "Y" connector then on to the bottom port of an electro-mechanical diverter valve (That's my name for it) on the driver's side of the washer motor.
The two other ports on the valve connect to the wiper arm washer tubes via a tee and other runs forward to the headlamp washers.
The valve just came available about a year ago. Hold your wallet....
Corvette Central
1969 HEADLAMP WASHER SQUIRT PUMP #653123 199.95 EACH
There are good pictures in both the AIM and the Chassis Service Manual. That dingy looking Tee connector is actually a check valve and not yet available for any sources.
The two other ports on the valve connect to the wiper arm washer tubes via a tee and other runs forward to the headlamp washers.
The valve just came available about a year ago. Hold your wallet....
Corvette Central
1969 HEADLAMP WASHER SQUIRT PUMP #653123 199.95 EACH
There are good pictures in both the AIM and the Chassis Service Manual. That dingy looking Tee connector is actually a check valve and not yet available for any sources.
Thanks
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Yes I would think so. The current is the same as the washer pump, but it's not a looped circuit. The washer pump should still work without the headlamp washer hooked up.
